Overview

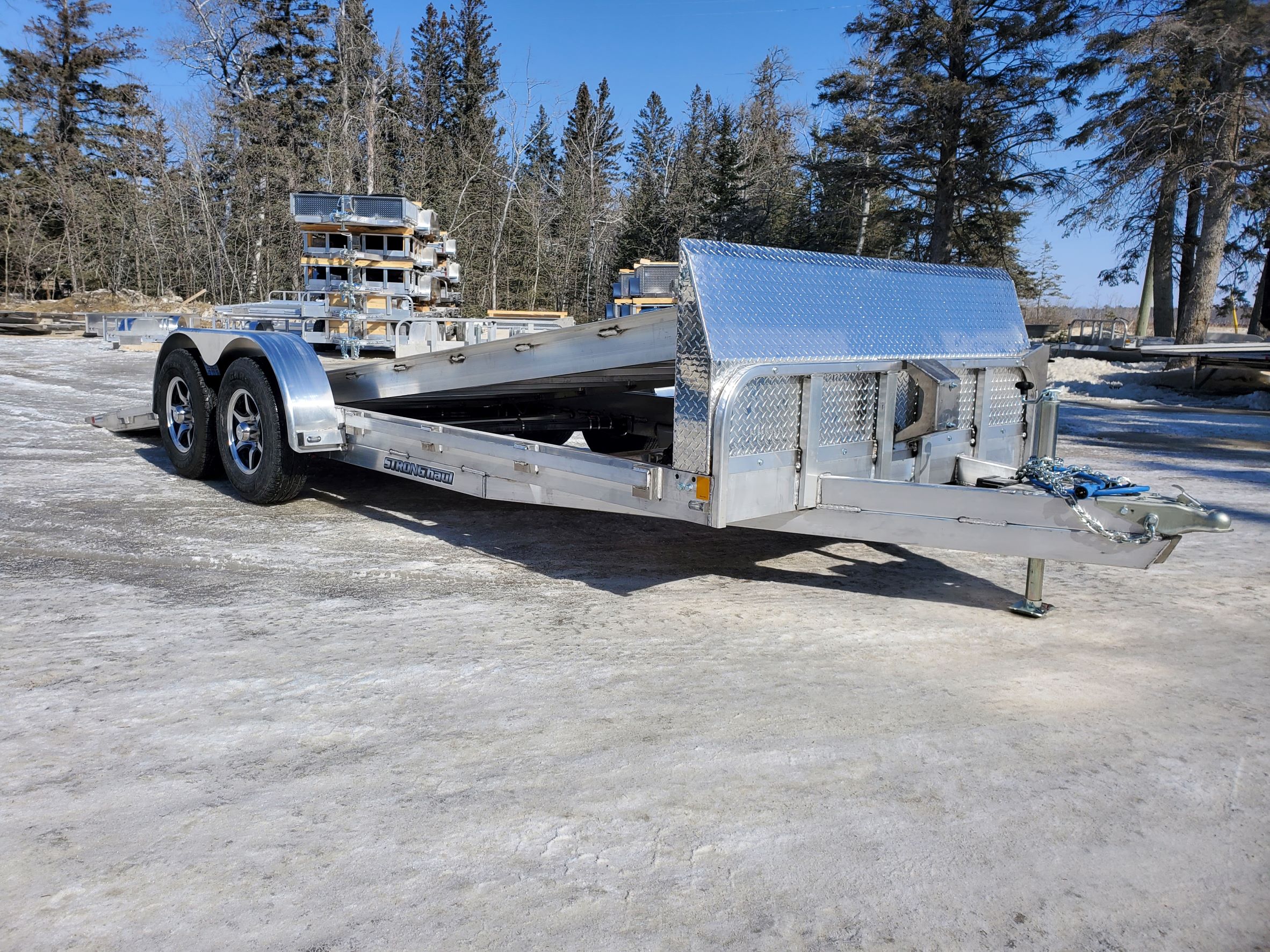

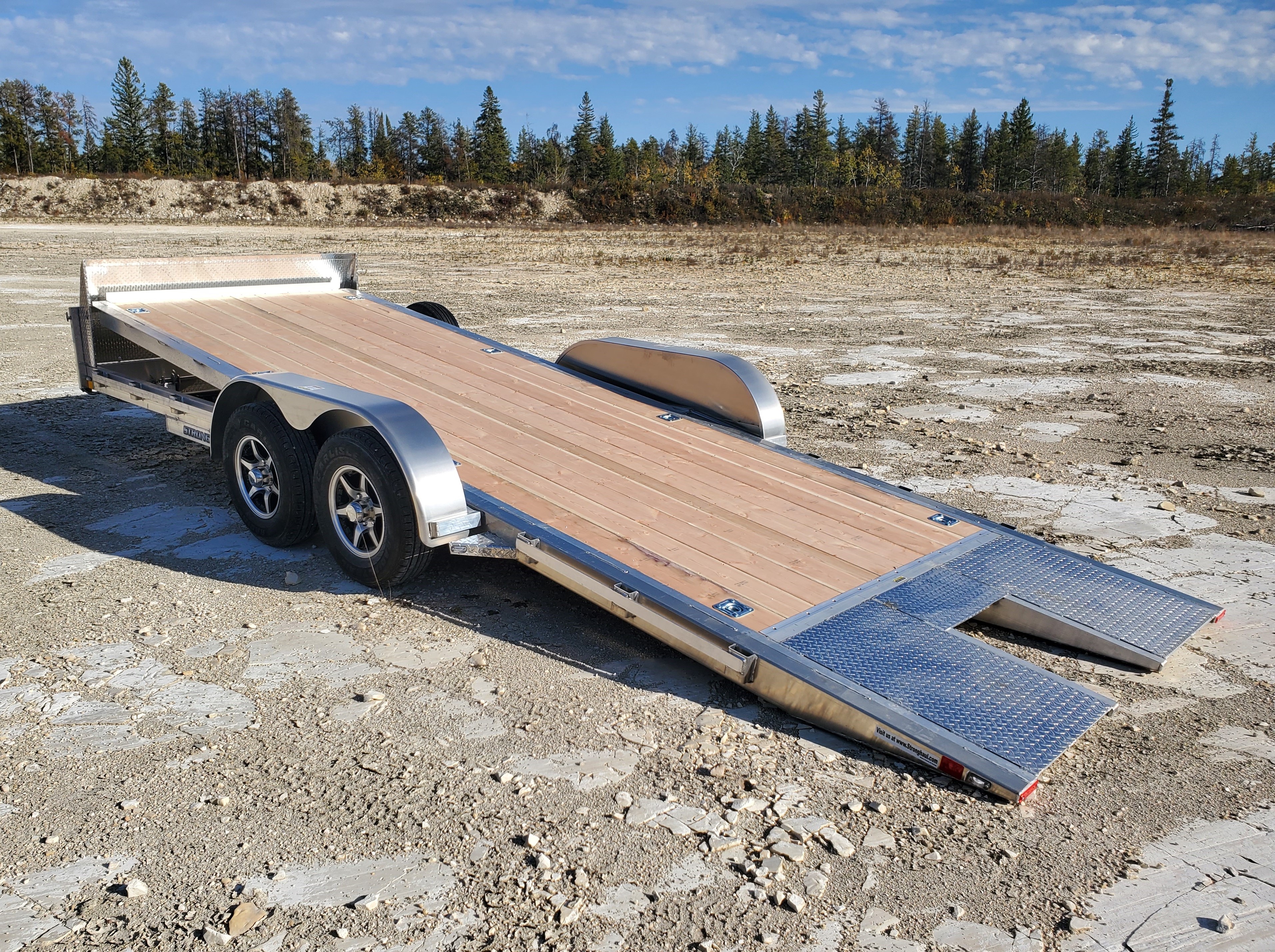

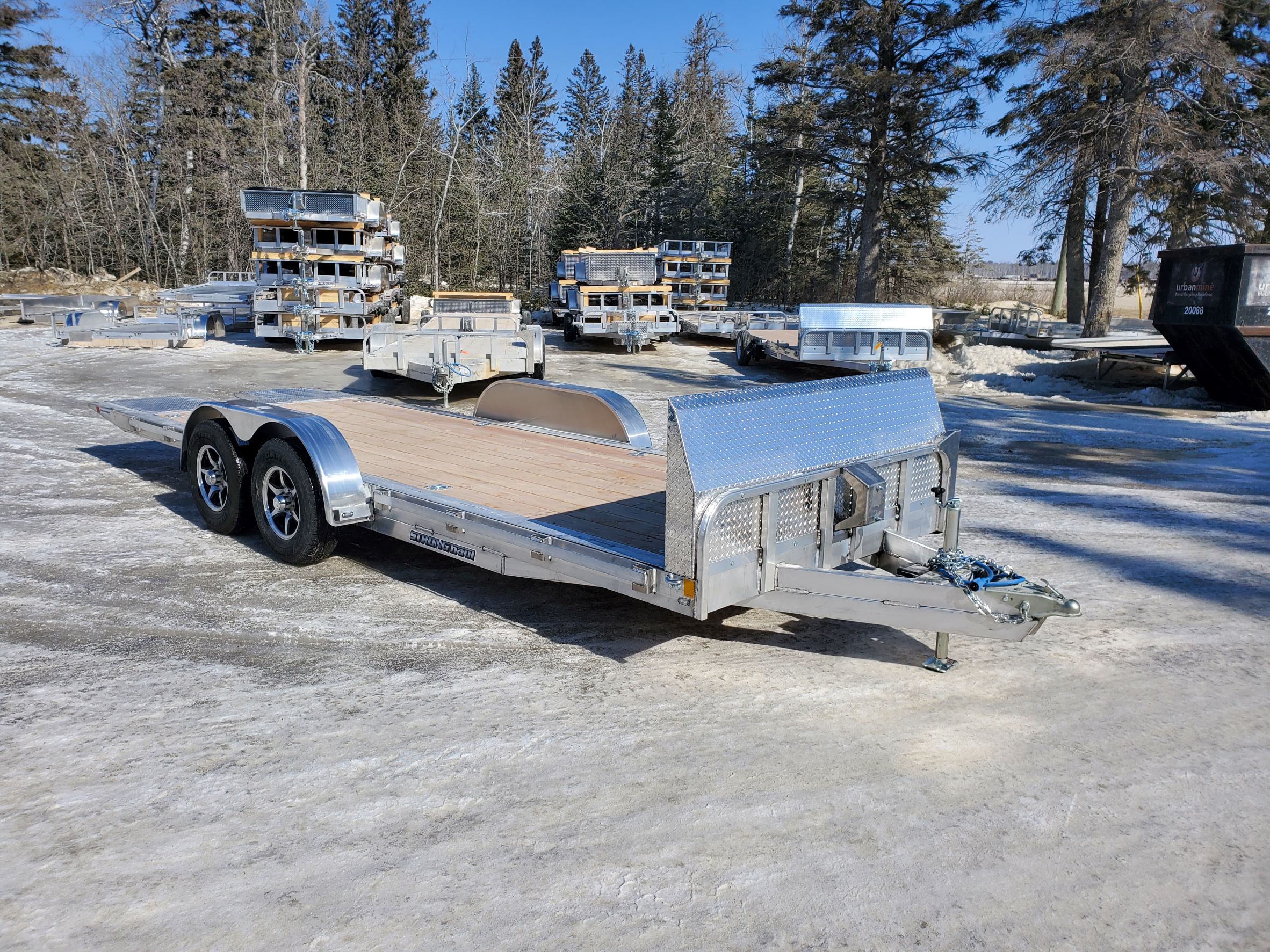

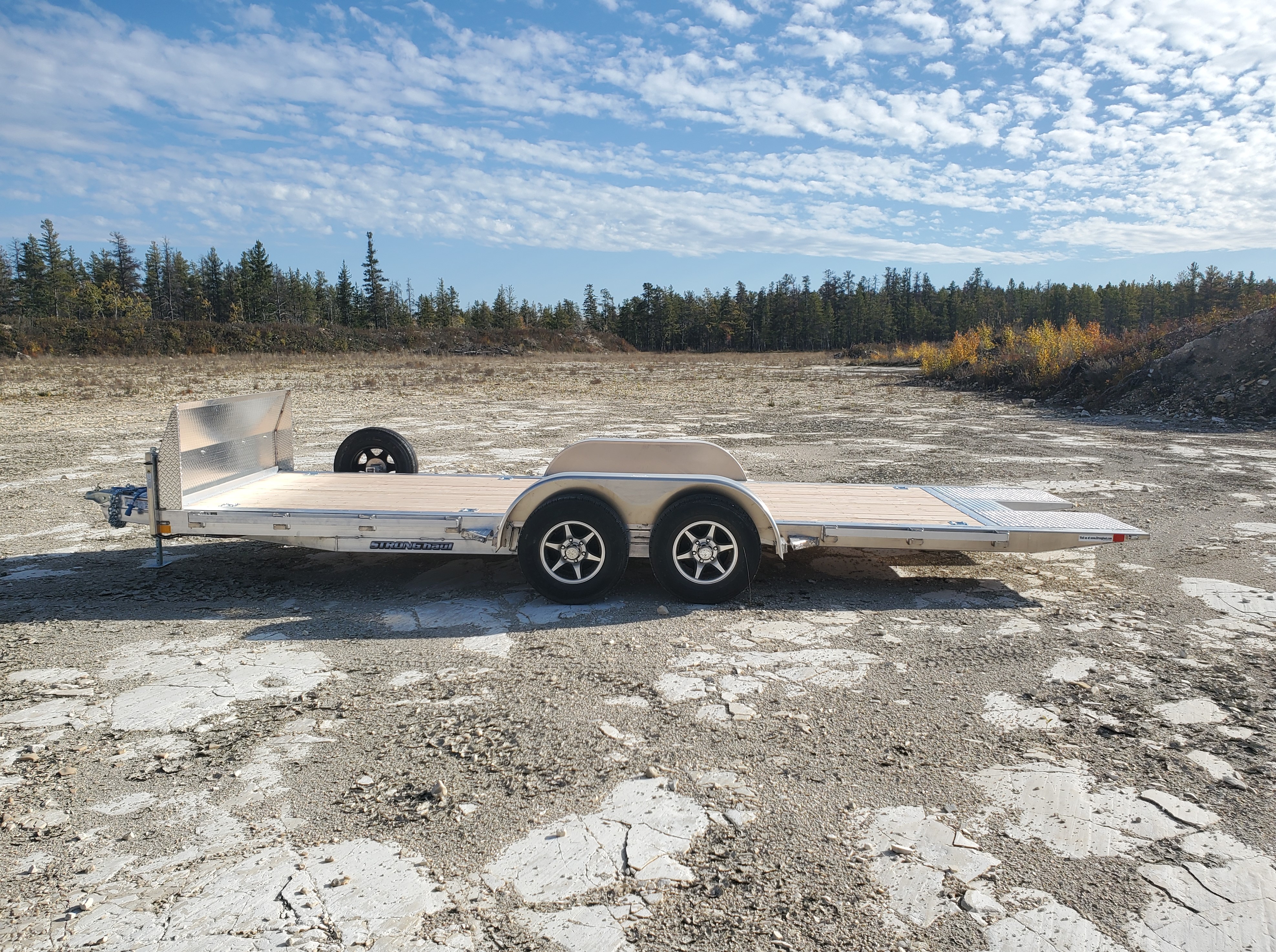

Utility Style, Aluminum Frame, Tandem Axle, Tilt Deck Trailer.

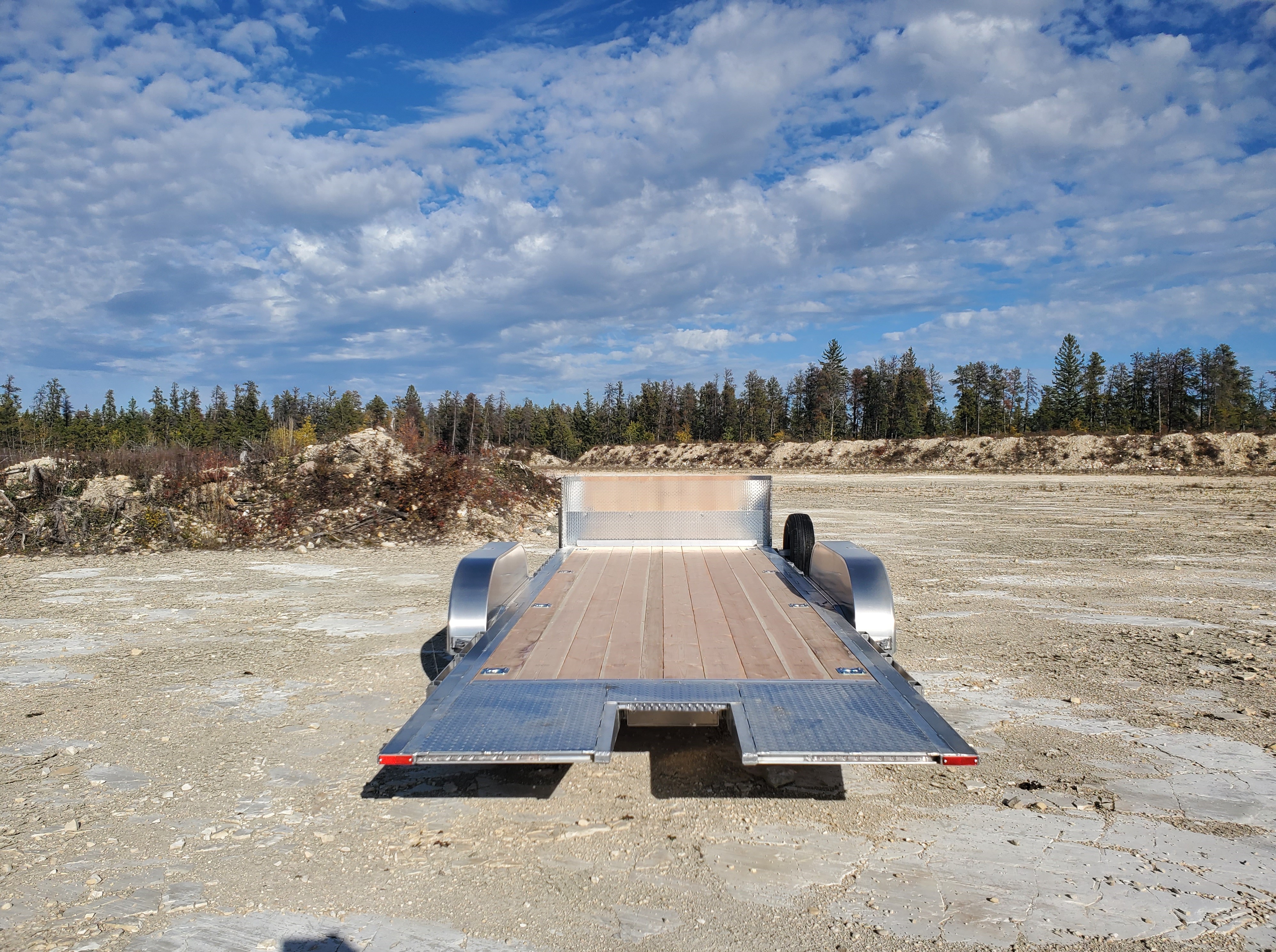

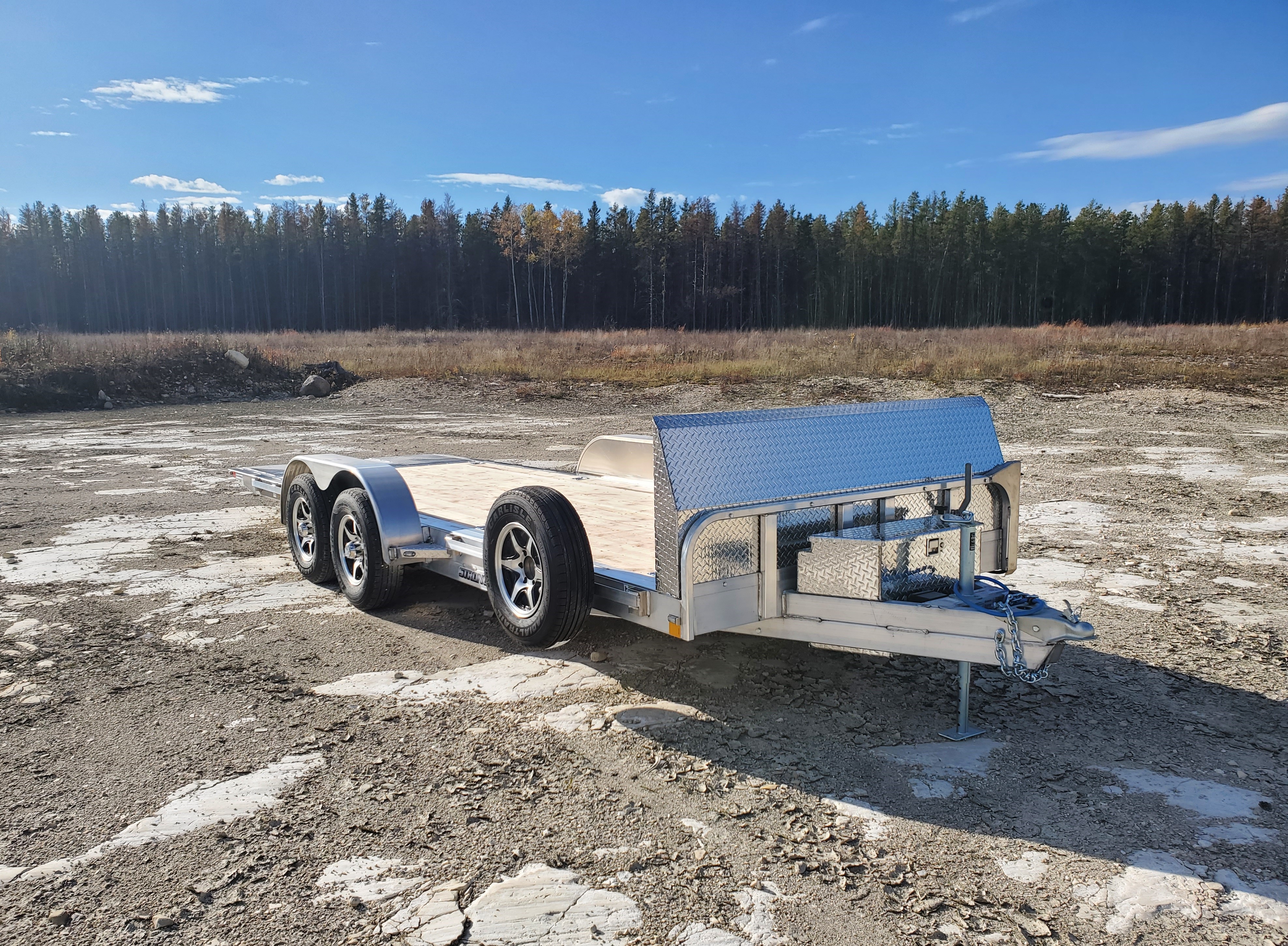

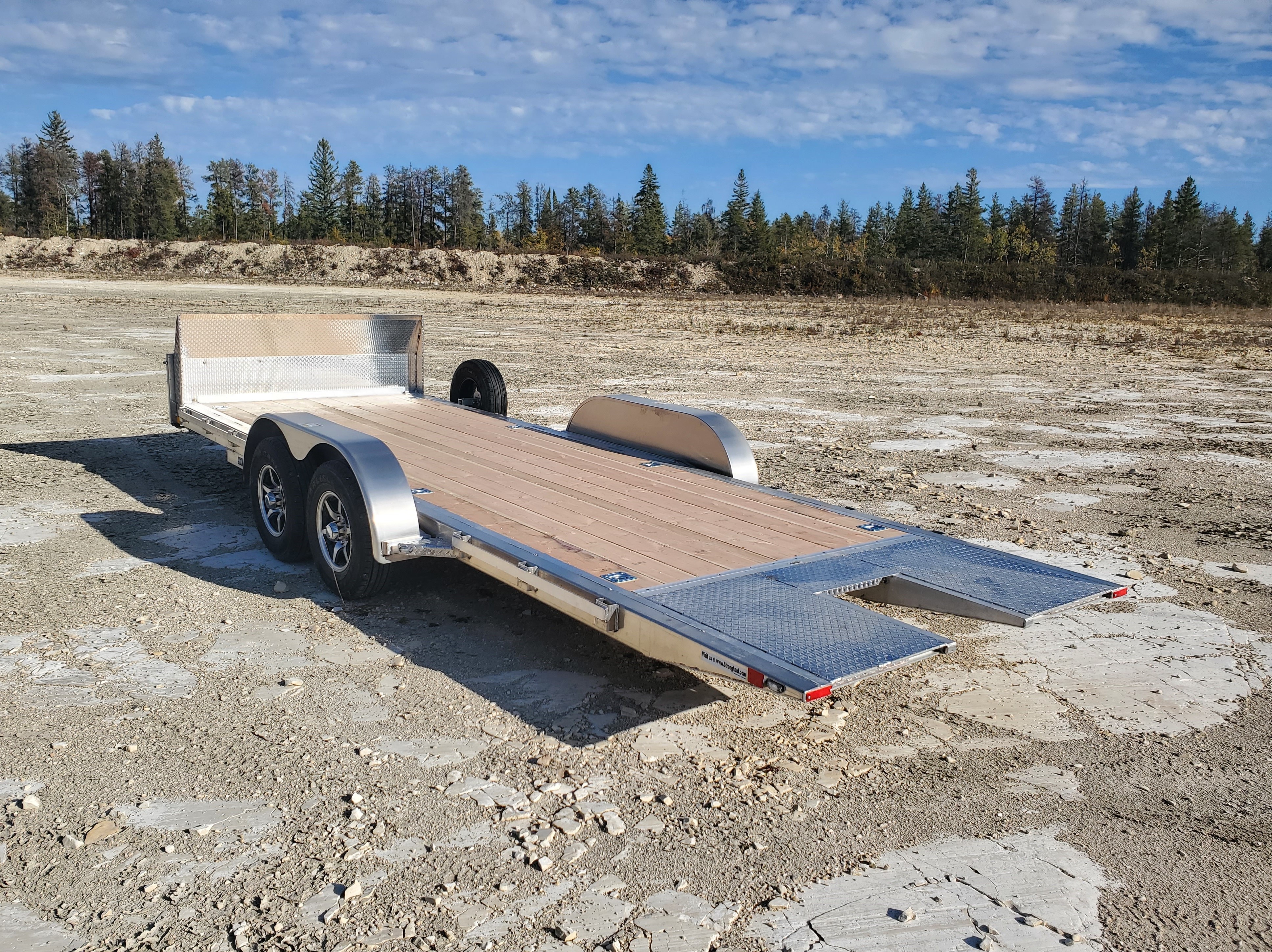

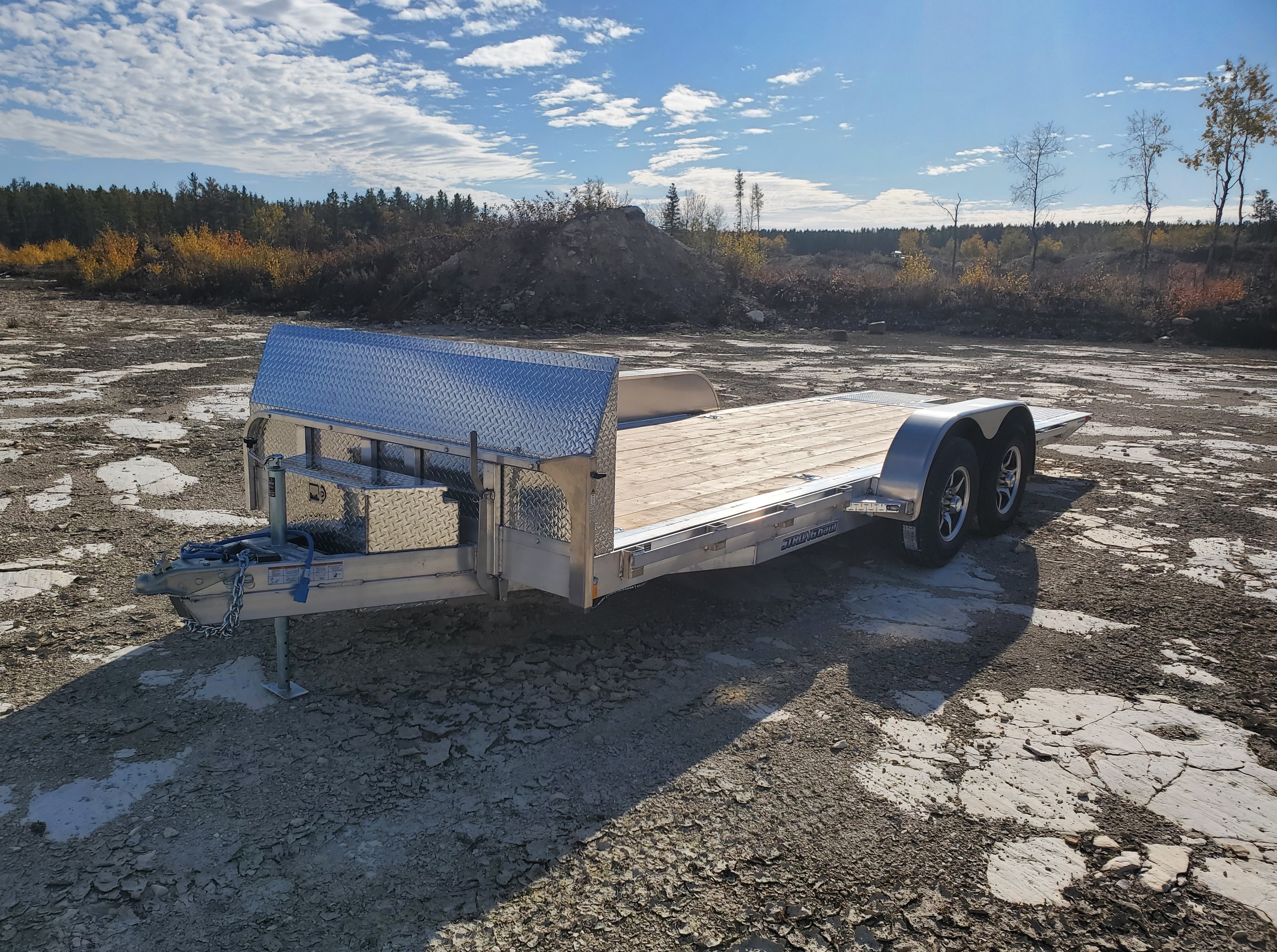

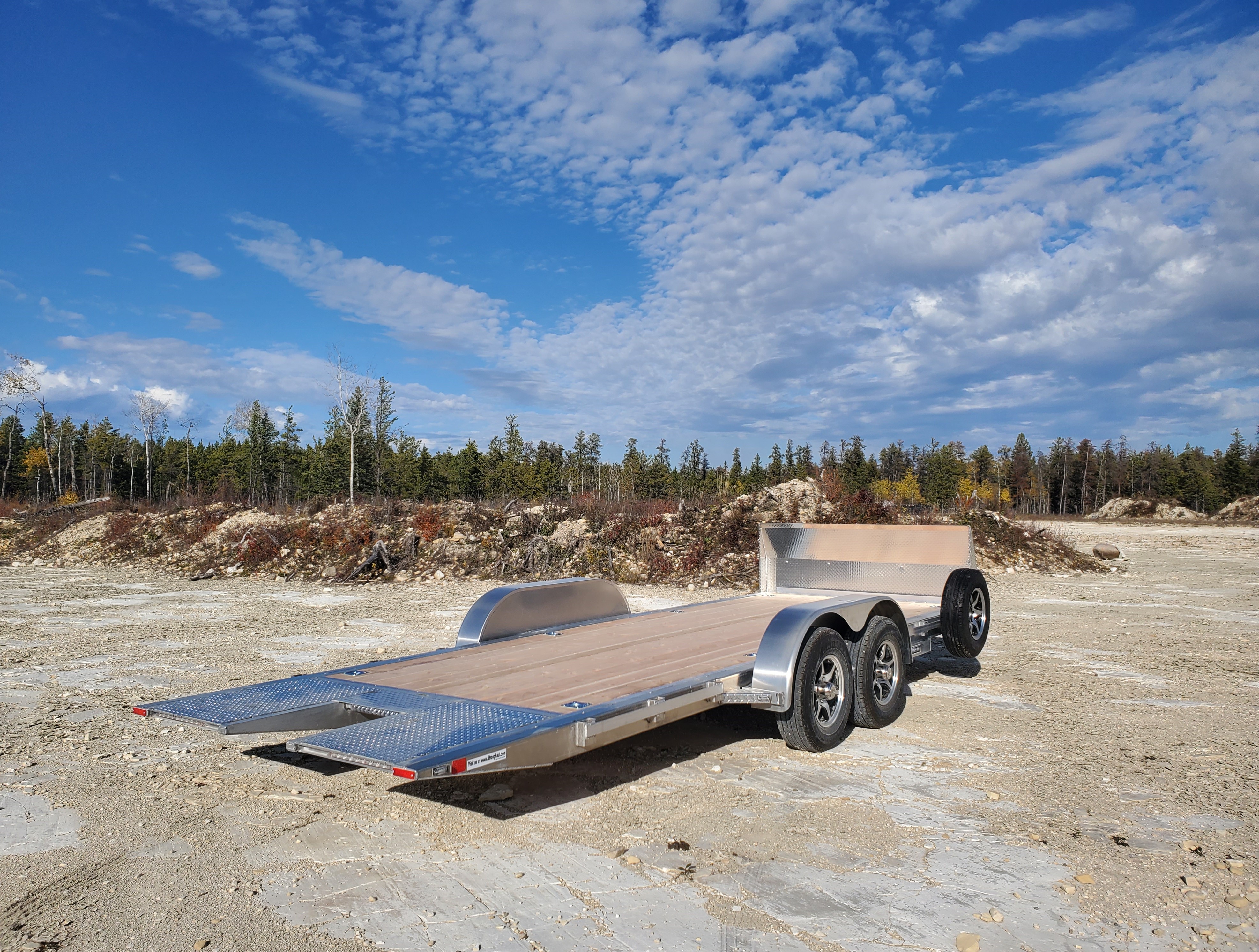

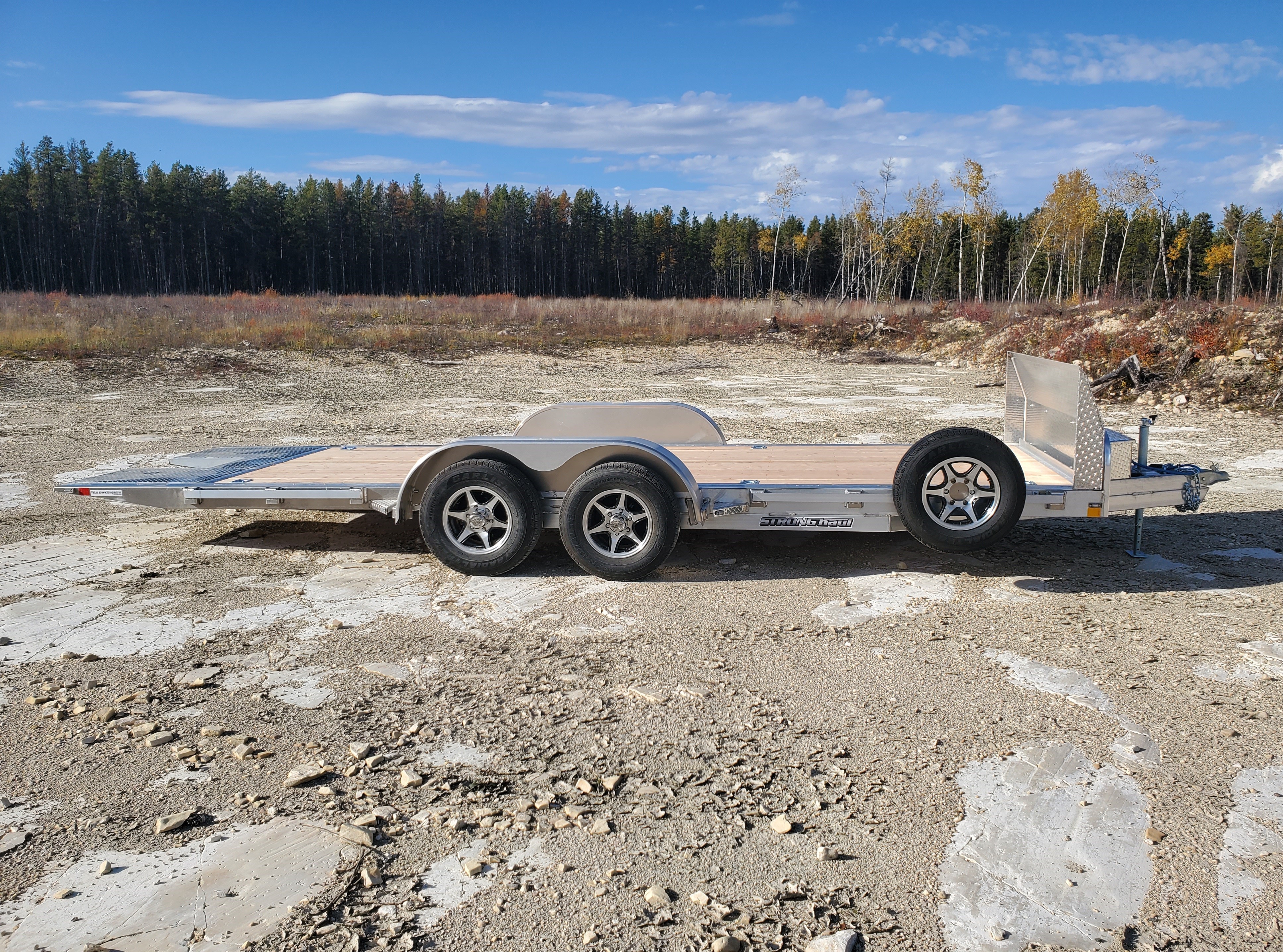

UATT-80x21 Model Displayed

Featured trailer has the following options applied:

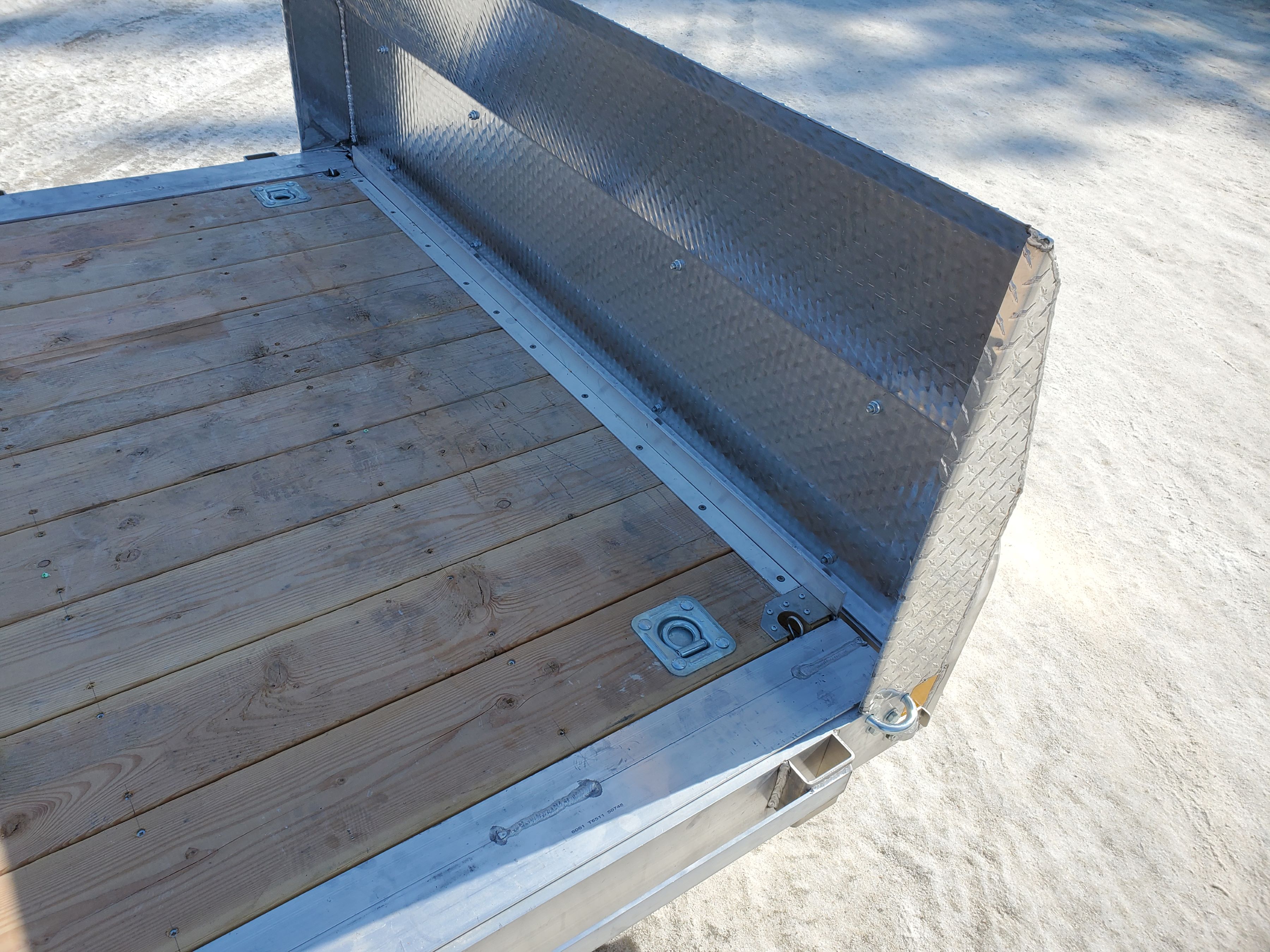

27” Spray Shield

Aluminum Wheel Upgrade

Aluminum Spare

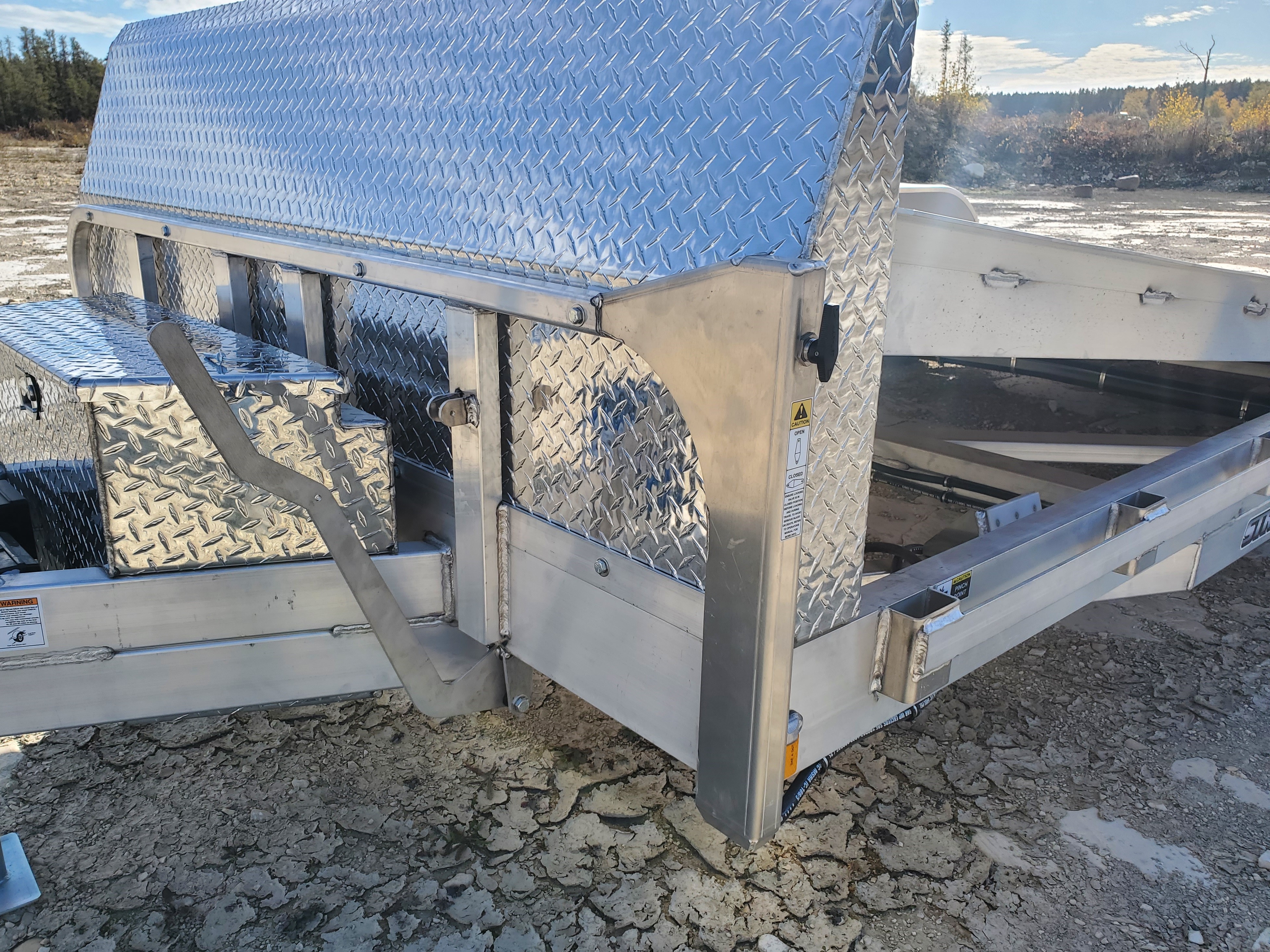

Lockable Tool Box

6,000lb Recessed Lashing Rings

For more trailer specs, details, and sizing please see below.

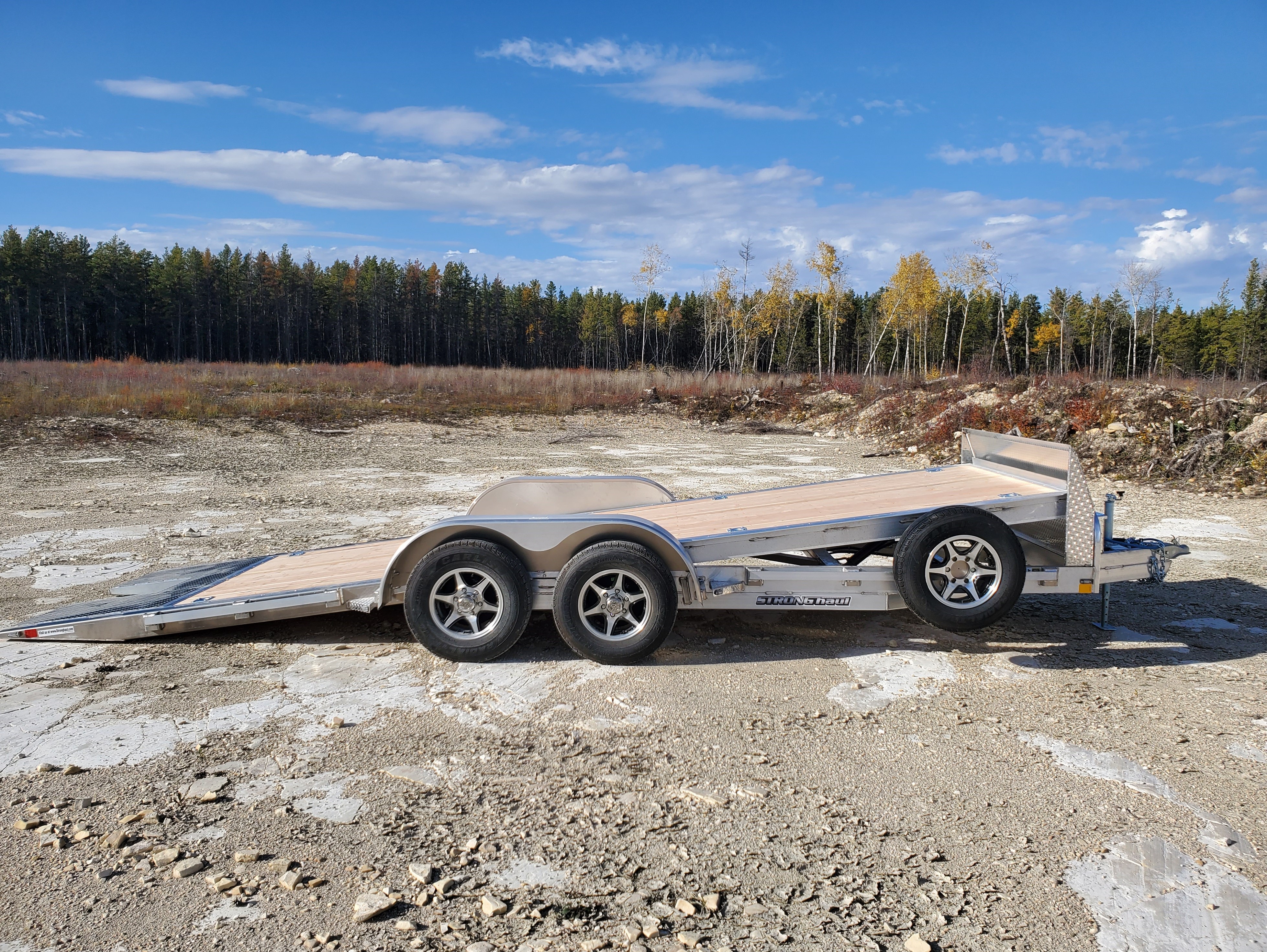

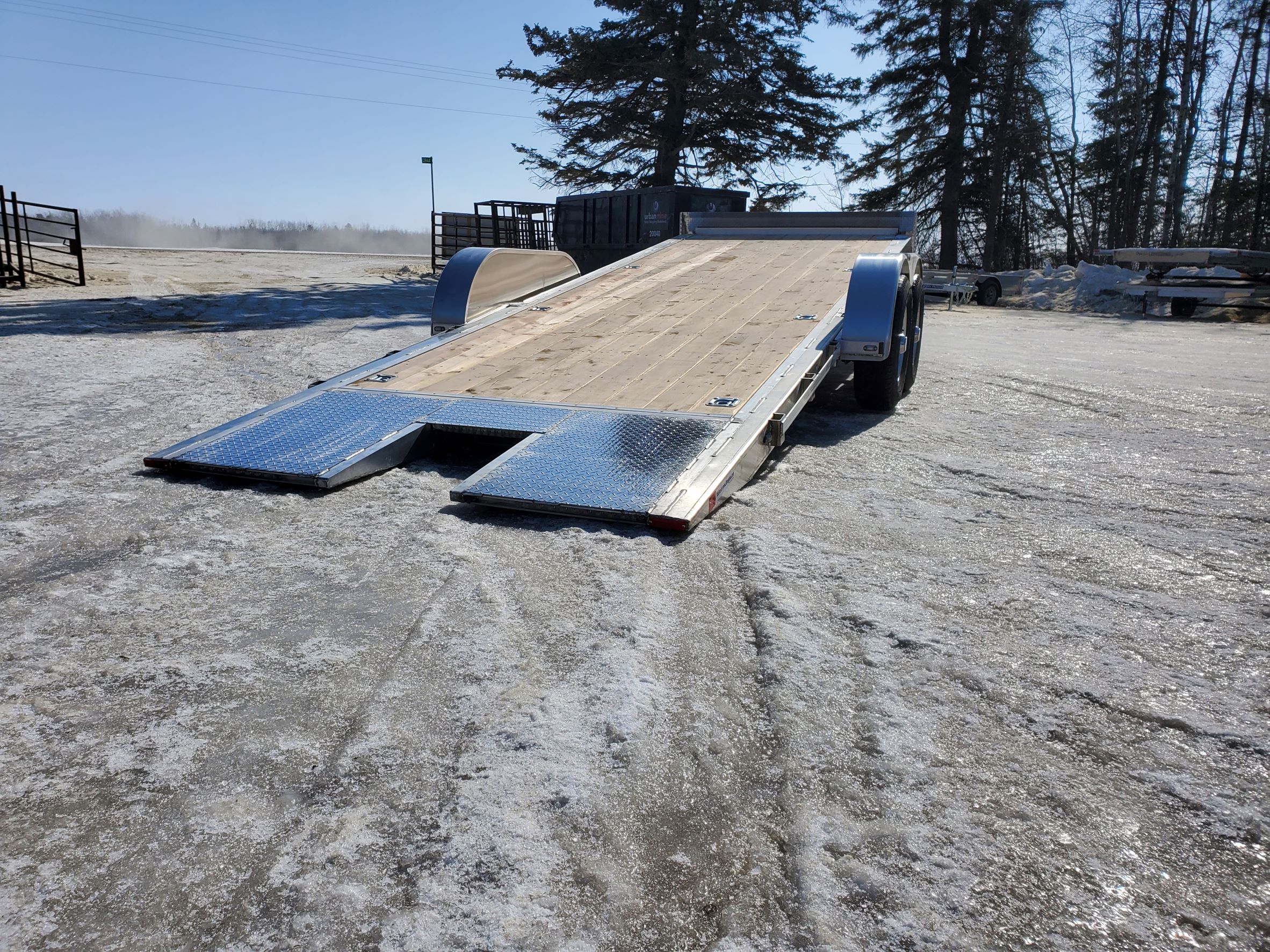

If you like a low approach angle for loading as well as not having to deal with ramps, Our gravity tilt deck trailer might be right for you.

With a 9 degree loading angle, and a 20” ride height this trailer is ideal for low vehicles



Contact a Dealer

More Information

Standard Features and Equipment

Stronghaul UATT Brochure.PDF

-83” Between Fenders, 80” Narrowest Point of Tilt Deck ,18’ Deck Area with 3’ Knife Edge

-6061 All Aluminum Frame

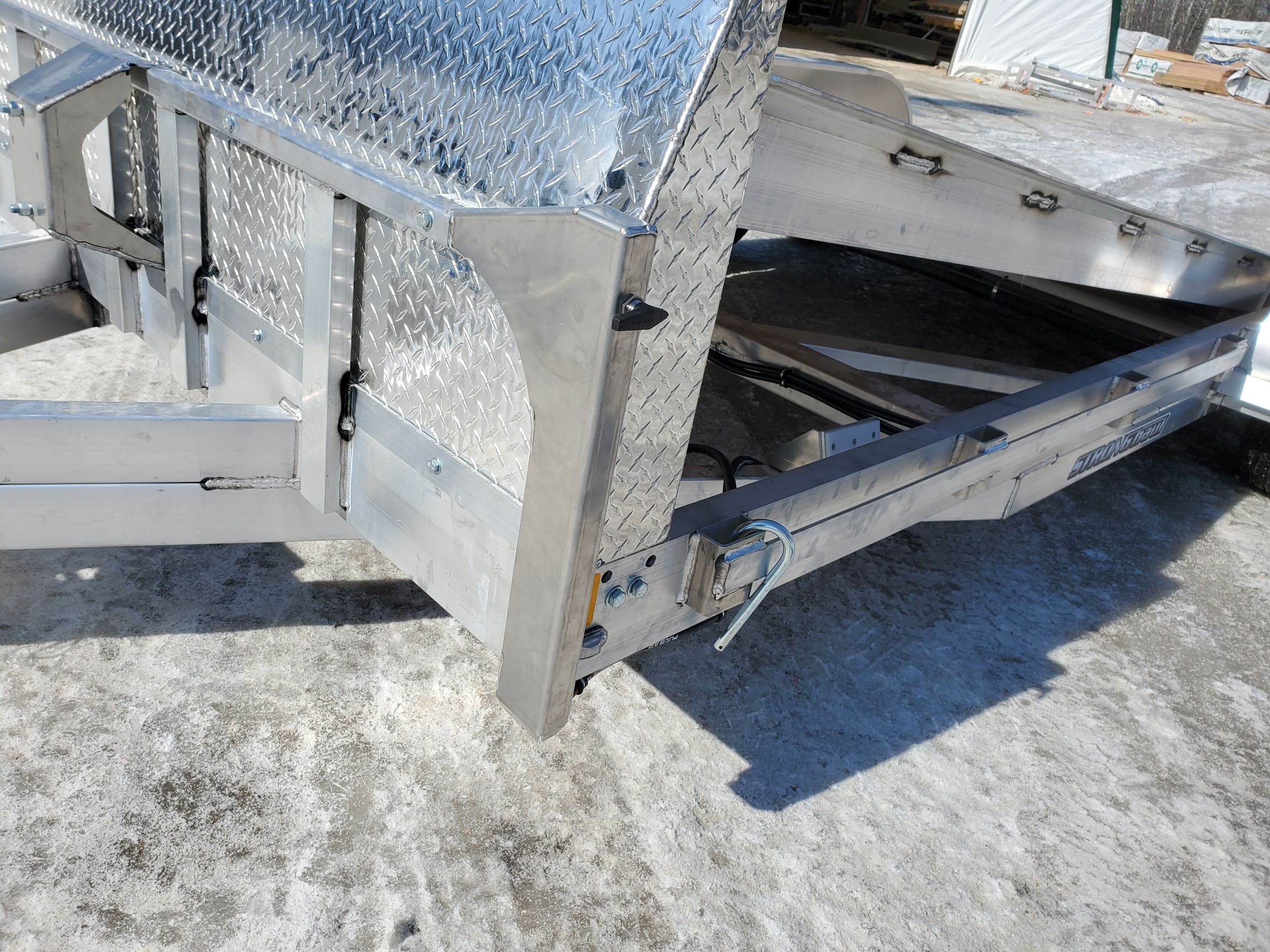

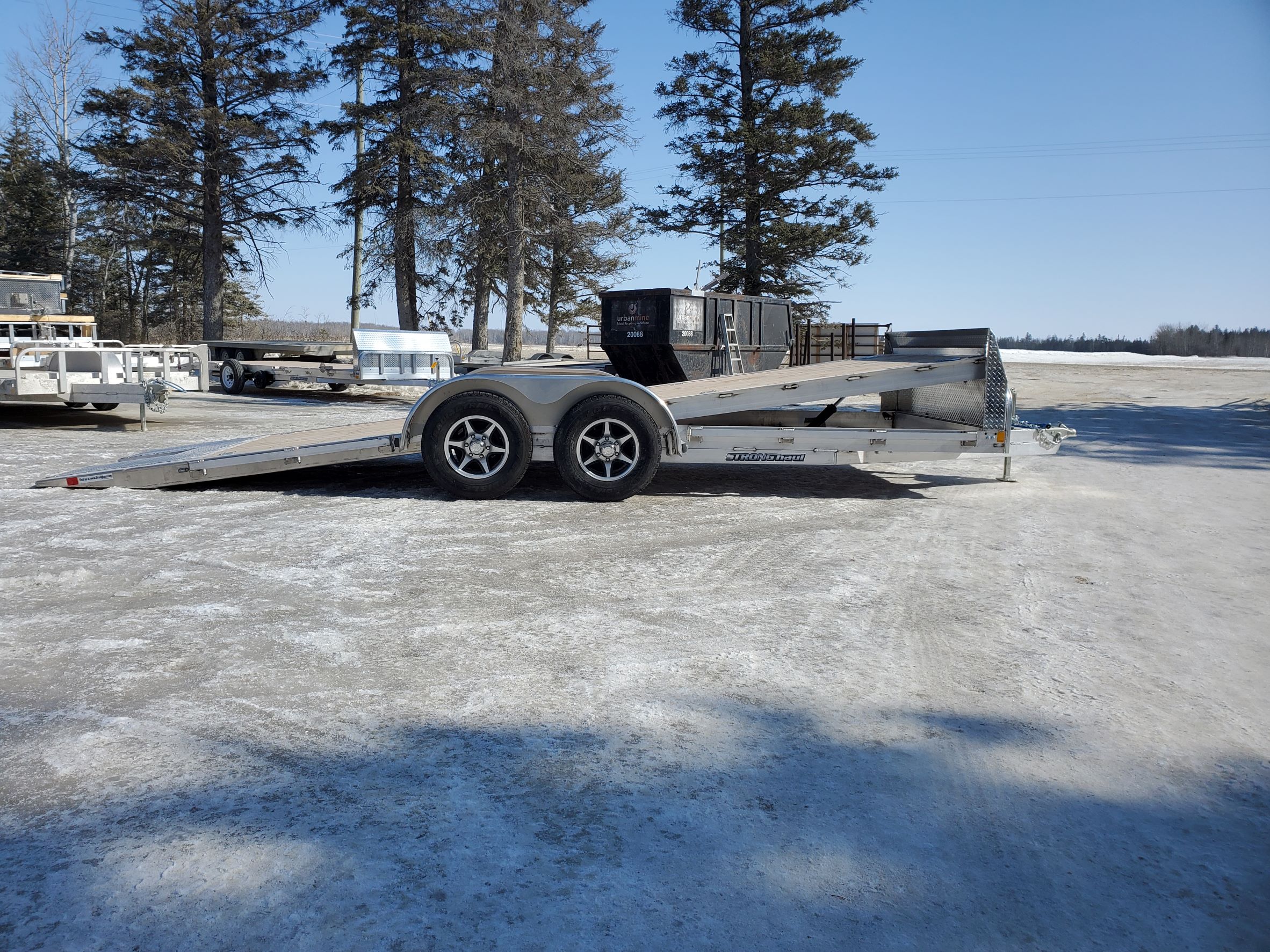

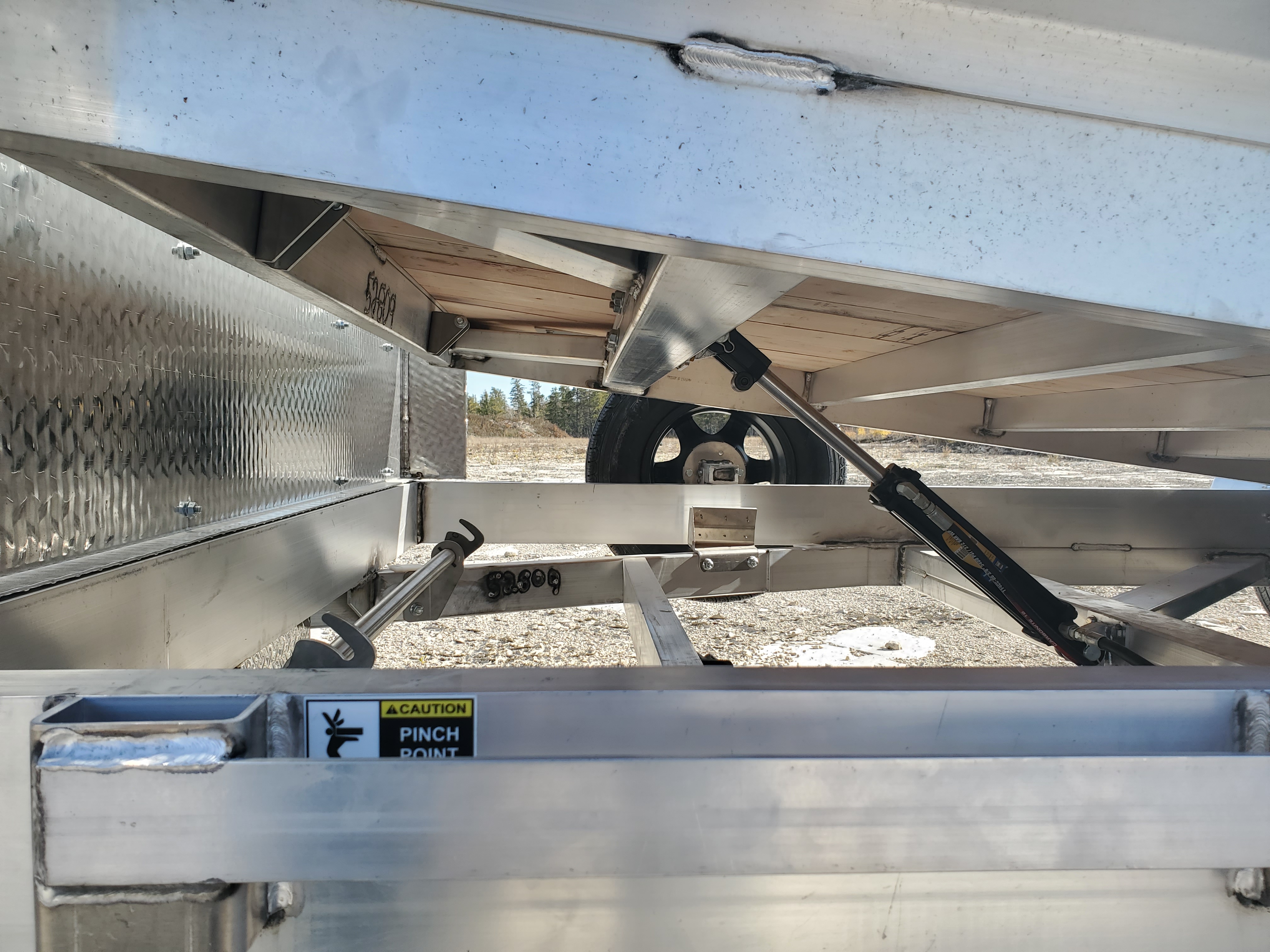

-Gravity Tilting, with Hydraulic Damper and Locking Valve

-Tilt Loading Angle 9 Degrees

-13.5” Front Rail Height (Deck to top of Rail)

-5200lb Dexter Torsion Drop Axles, with Electric Self Adjusting Brakes

-7-Pin RV Style Arctic Rated Electrical Connector

-Junction Box, Break-away Kit with Battery and Charger

-2-5/16” Ball Coupler, Max 2,100lb tongue WT, with Polypropylene Tape

-ST225/75R15 7-ply tires

-Modular-Style Steel Wheels, R15”, 6 lug on 5.5”, Black

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-5,000lb, A-Frame Mounted, Drop Leg Jack

-2x8 Douglas Fir/Larch Plank Floor

-3/8” x 35” Safety Chains, 16.2K lb Rating, with Safety Latch

-Stake Pockets and Side Rub Rails

-8x 4,000lb Lashing Rings , Zinc Plated

-Spare Tire Mount (Changes from front to side depending on tool box)

-Deck to Ground Height:  20”

-Ground to Coupler Height:  17” When Level

-GVWR: 9,980lbs

-Ship Weight: 2,500lbs

Available Options

Description

Aluminum Wheel Upgrade PKG

Spare Wheel, Steel

Spare Wheel, Aluminum

Spray Shield, 82”

Extra Lashing Rings 4k lb

Recessed Lashing Rings 6k lb
Jack Caster Wheel
Side Mount Pivot Jack
2-5/16” Adjustable Coupler
Under Deck Winch Mount
Rail Cover (Stone Shield 15”)
Lockable Handle Tool Box
