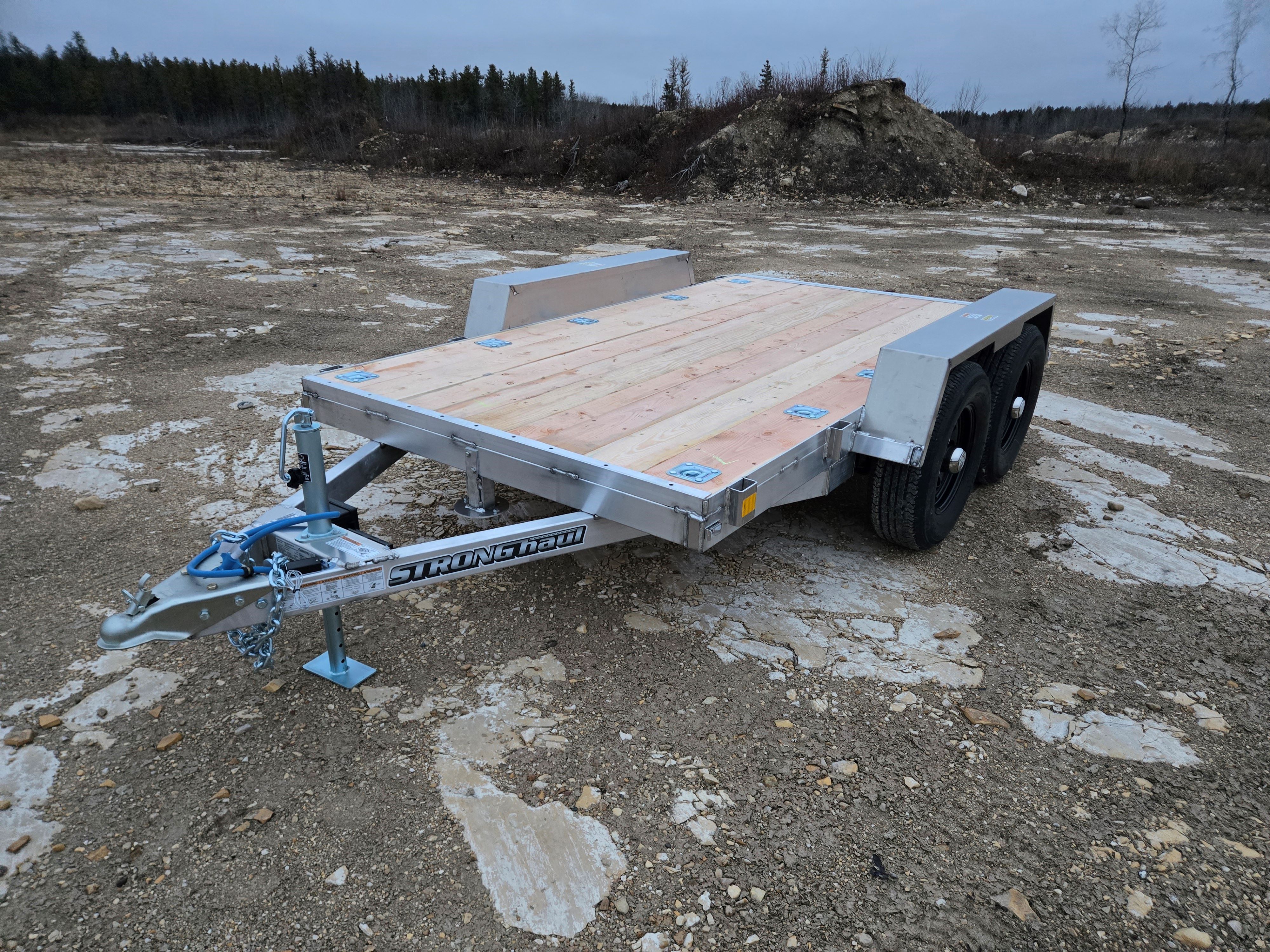

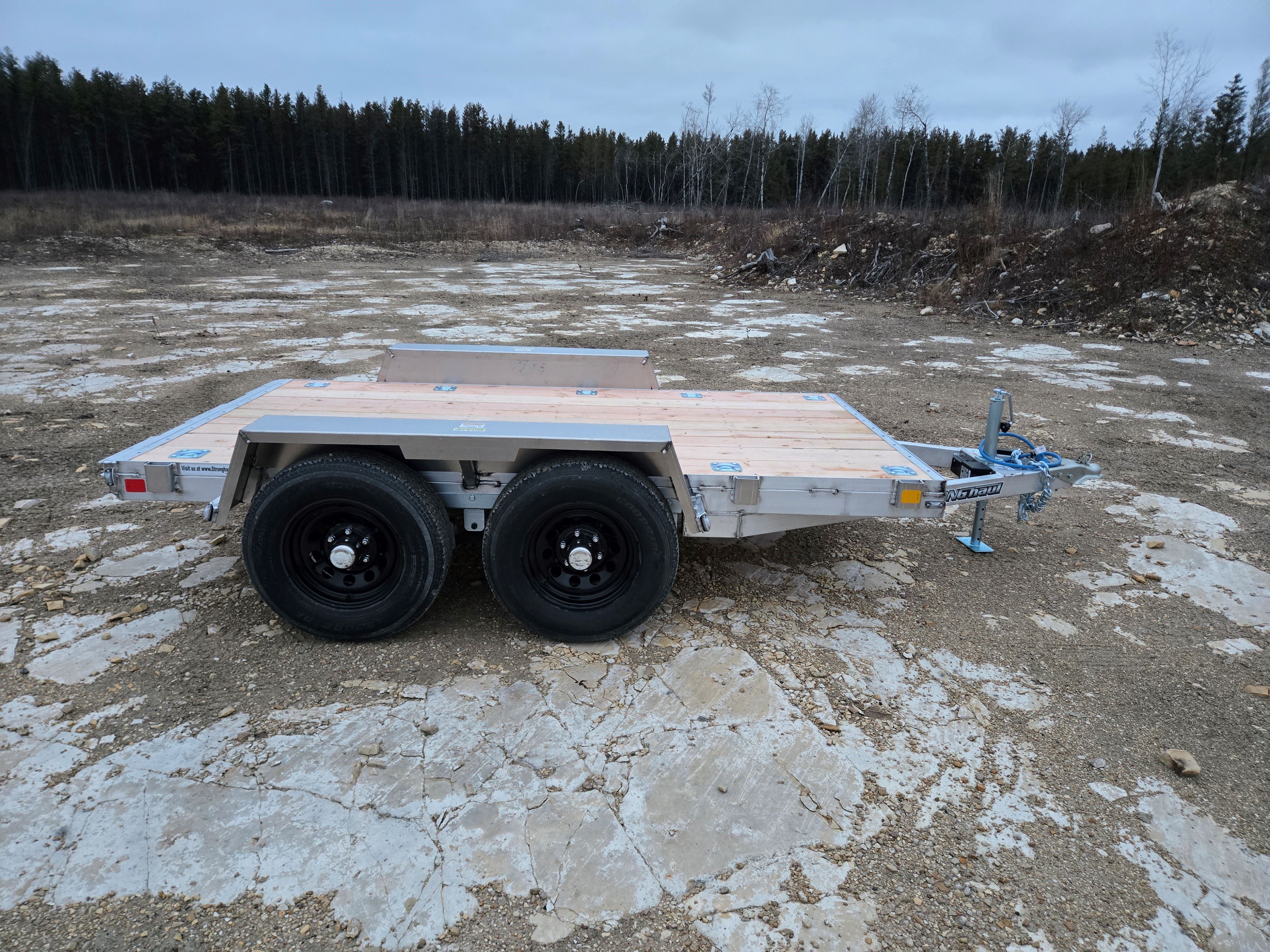

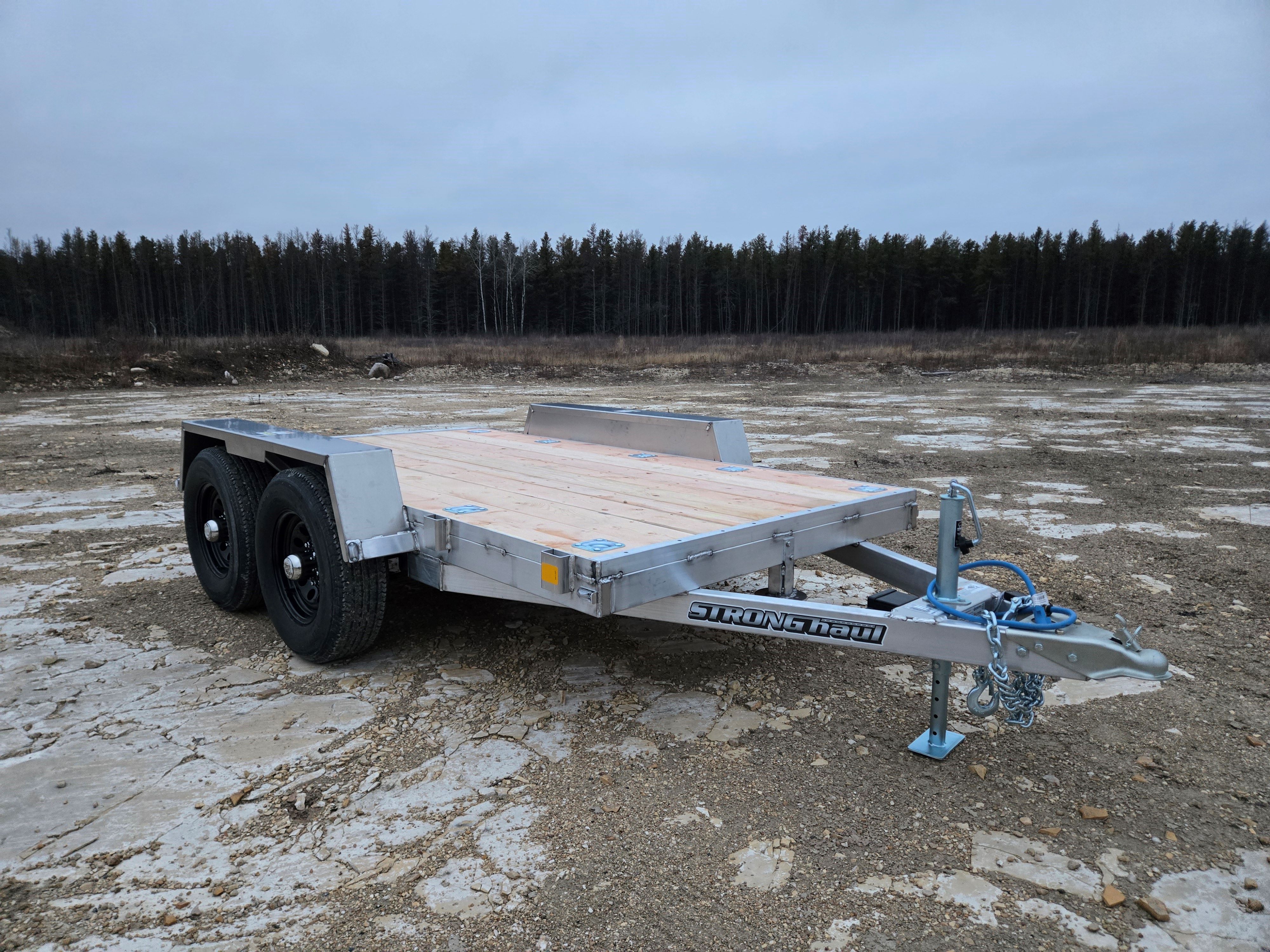

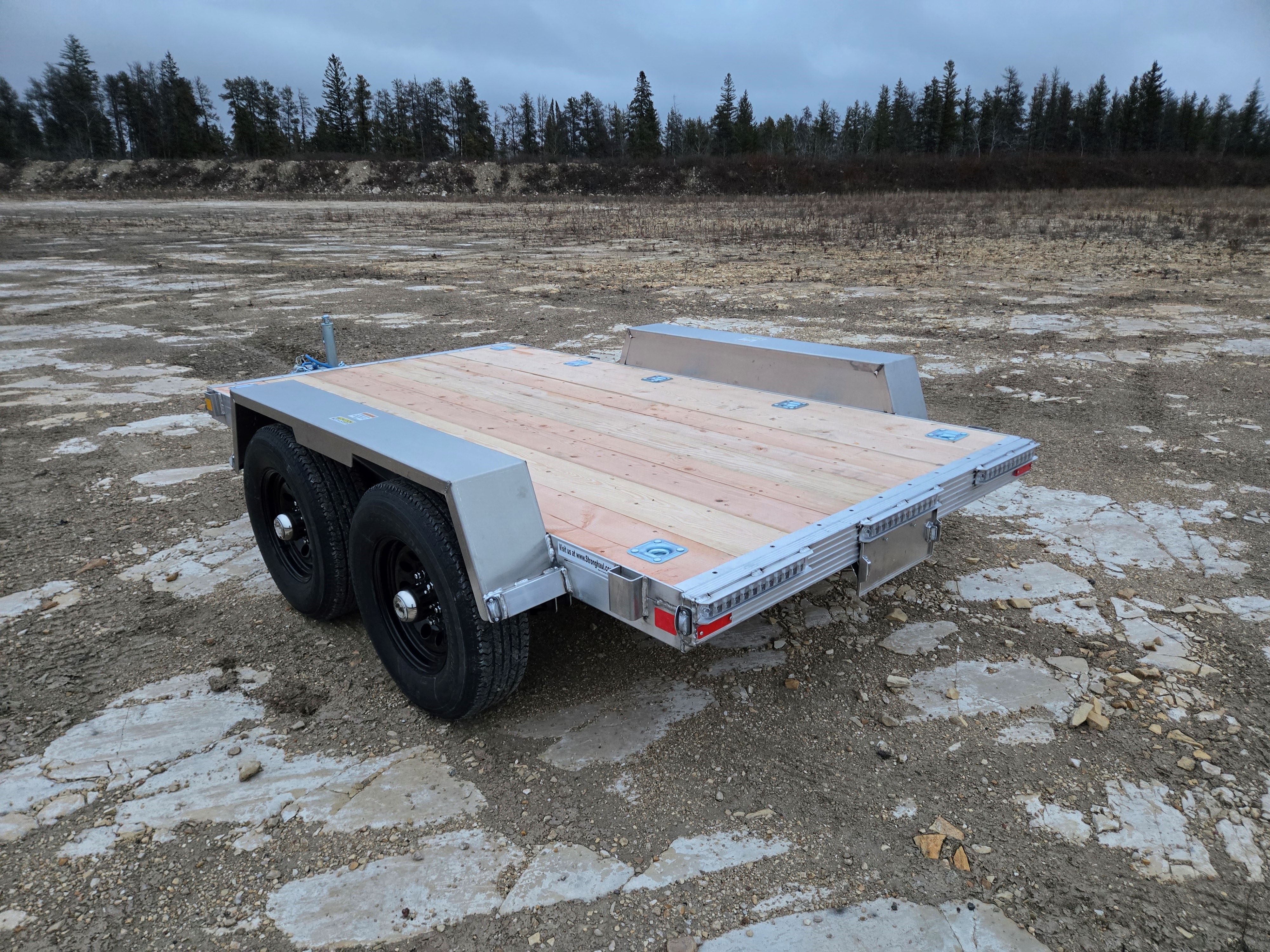

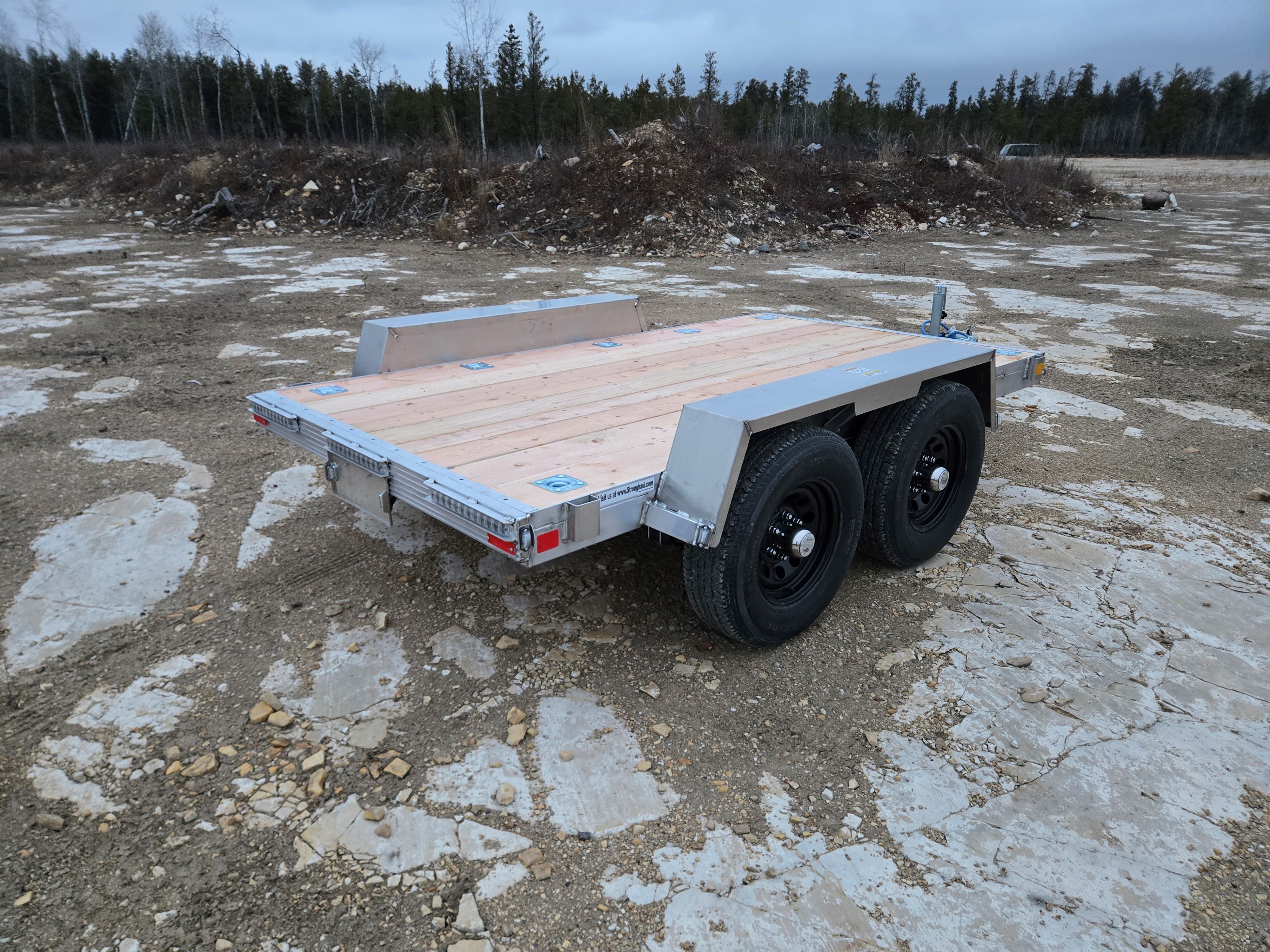

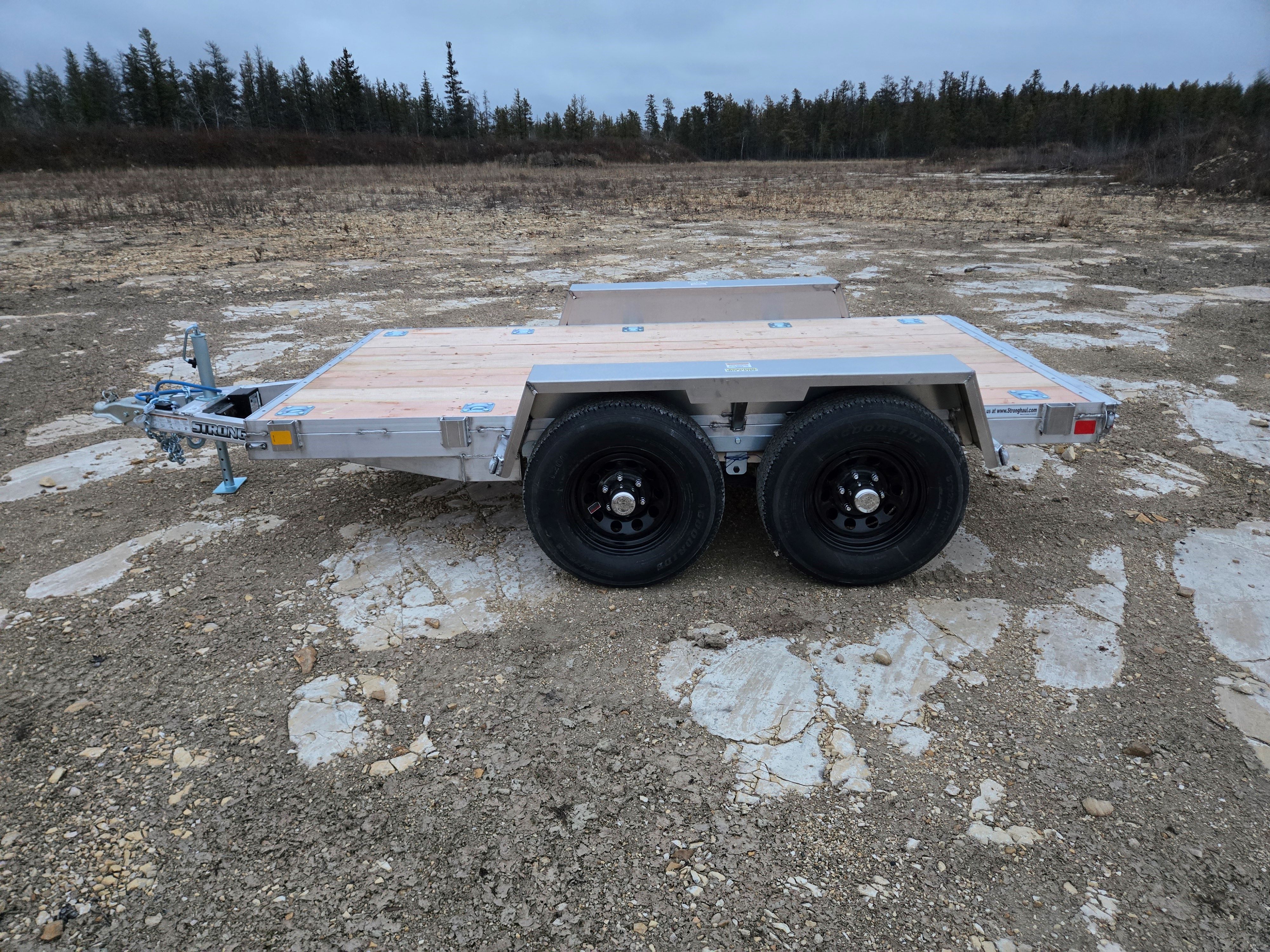

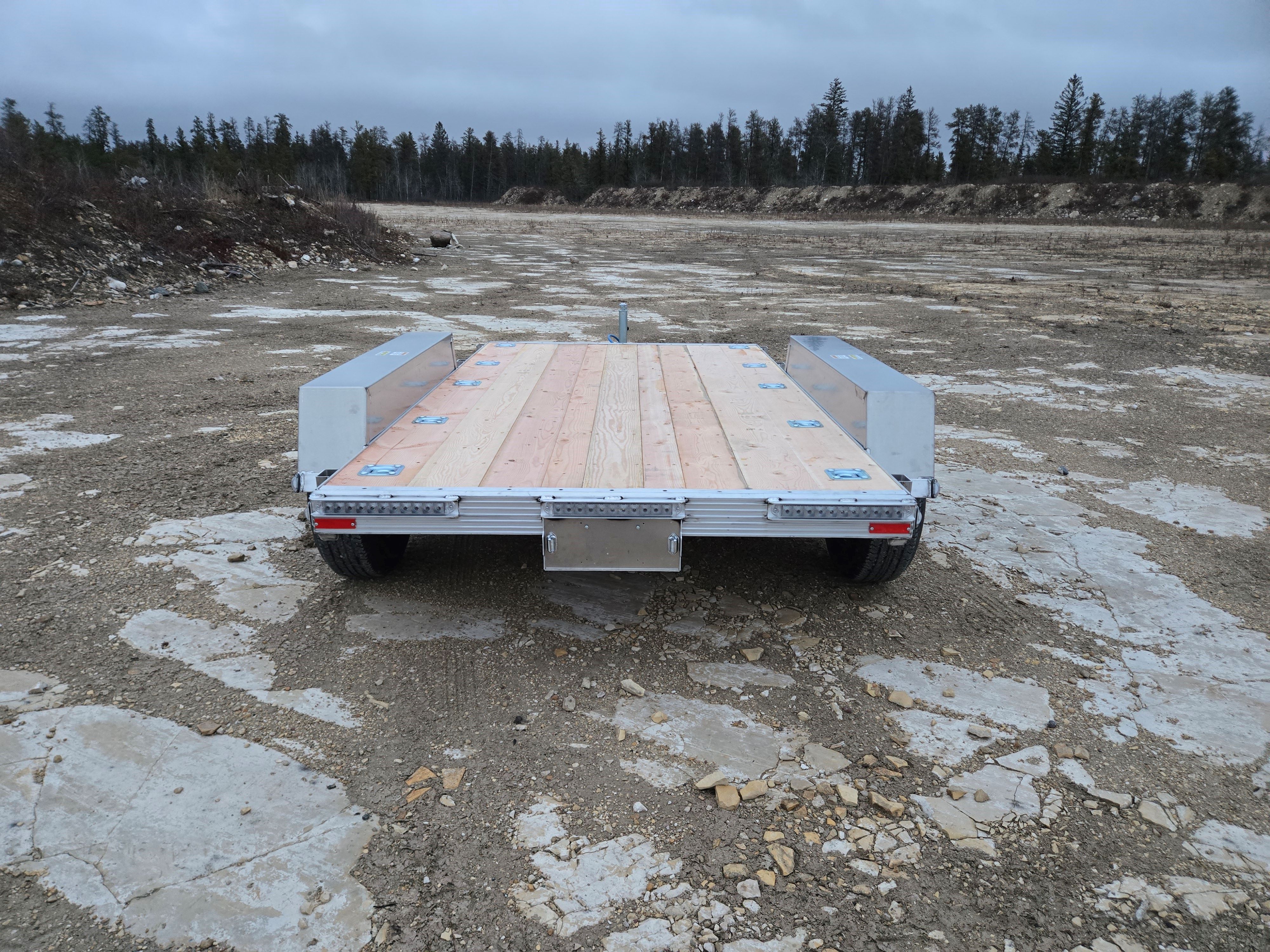

Water Hauler, Aluminum Frame, Tandem Axle, Flat Bed Trailer

This heavy duty little trailer was design for one purpose, mobile water storage. With this trailer having high clearance heavy duty fenders and a track width similar to a pickup truck, it is ideal for remote access situations and rugged terrain.

This unit was designed to be capable of hauling a 1000 US gallon water tank, while still having enough deck space to also fit a hose reel and water pump.

For more trailer specs, details, and sizing please see below.



Contact a Dealer

More Information

Standard Features and Equipment

Stronghaul WATF Brochure.PDF

-4.00” x 2.00” x .250w 6061-T6 Aluminum Frame Tubes and Hitch Tubes

-3.00” x 1.50” x .188w 6061-T6 Aluminum Crossmember Channels on 16” ctrs

-Dexter 5200lb Strt, Leaf Spring Axles, Elec. Brakes

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-7-Pin RV Style Arctic Rated Electrical Connector

-Junction Box, Break-away Kit with Battery and Charger

-2-5/16” Ball Coupler, Max 2,100lb tongue WT, with Polypropylene Tape

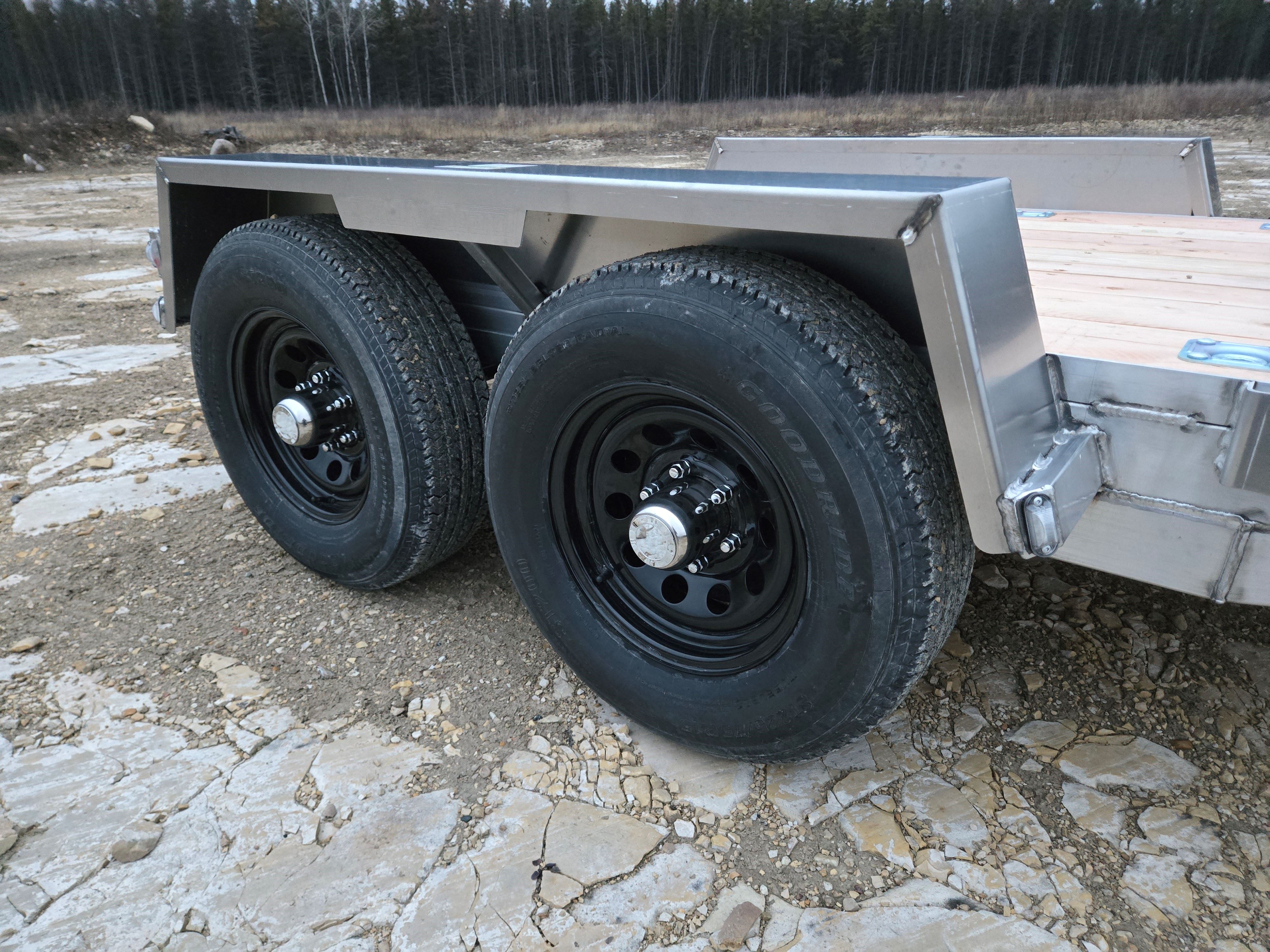

-ST225/75R15 7-ply Radial Tires

-Modular-Style Steel Wheels, R15”, 6 lug on 5.5” BHP, Black

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-5,000lb, A-Frame Mounted, Drop Leg Jack

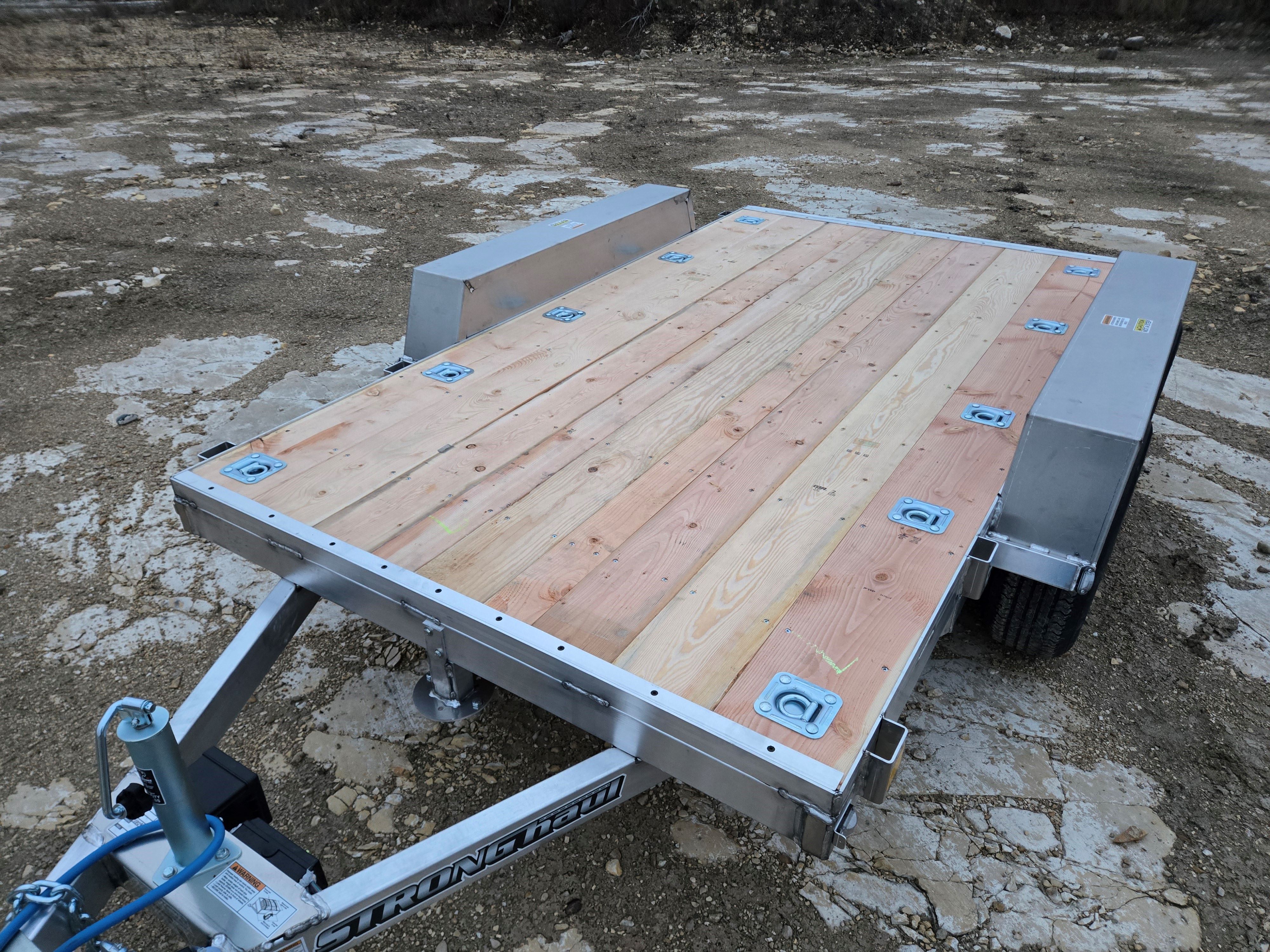

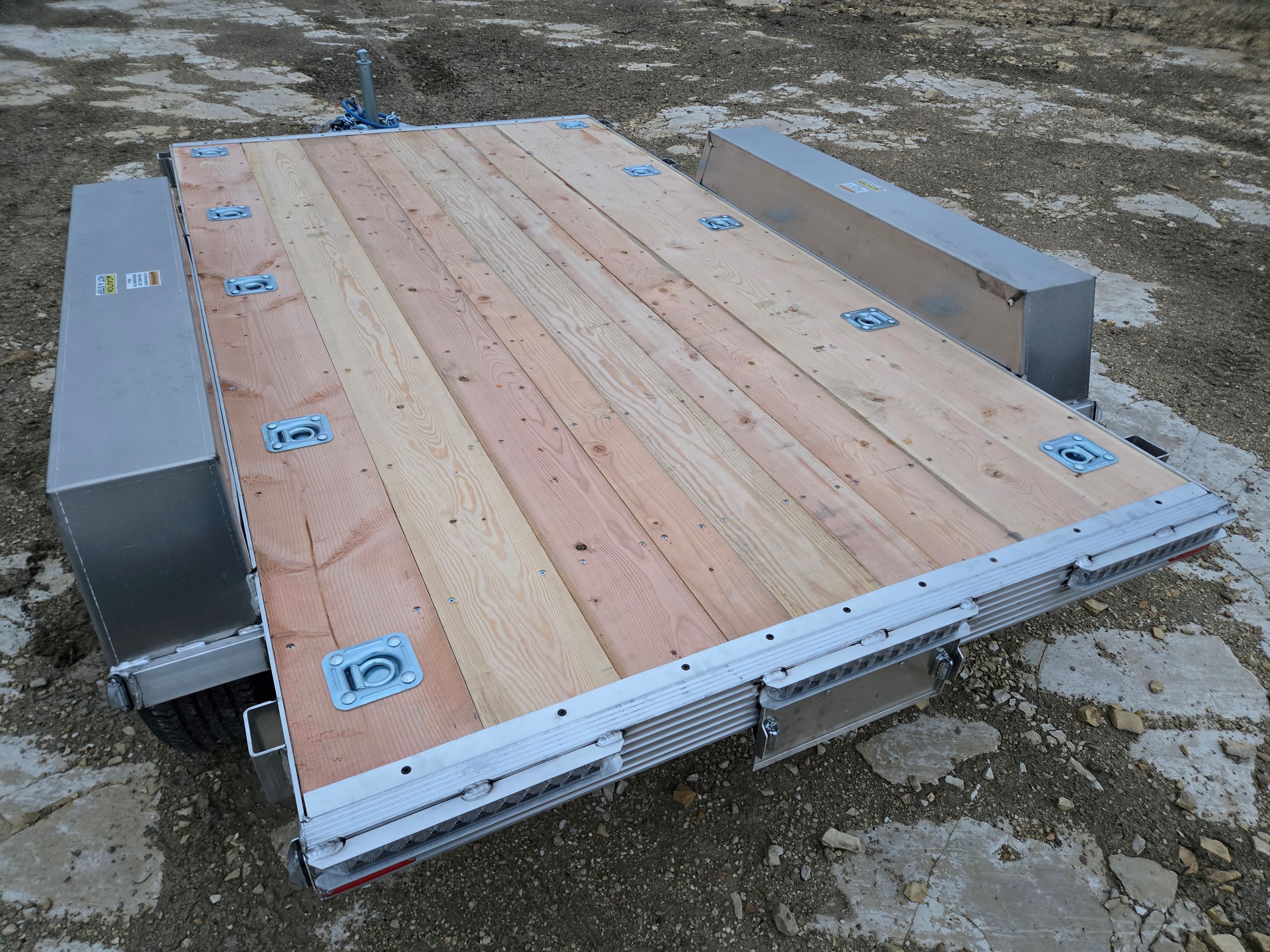

-2x10 Douglas Fir/Larch Plank Floor

-3/8” x 35” Safety Chains, 16.2K lb Rating, with Safety Latch

-6 x Stake Pockets for Additional Hook Points

-6,000 lb Recessed Lashing Rings , ZP (10 lashing rings on 10’ model)

-Underside Spare Tire Mount, in A-Frame of Hitch (Changes to stake pocket mount depending on tool box)

-Deck to Ground Height:  23”

-Ground to Coupler Height:  16” When Level

-GVWR: 9890lbs (Designed to carry 1000 US Gallon water tank)

Available Options

Description

Aluminum Wheel Upgrade PKG

Spare Wheel, Steel

Spare Wheel, Aluminum

Recessed Lashing Rings 6k lb
Jack Caster Wheel
Side Mount Pivot Jack
2-5/16” Adjustable Coupler
Lockable Handle Tool Box
