Stronghaul UATS-DR Brochure.PDF

-6061 All Aluminum Frame

-13.5” Side Height (Deck to top of Flange)

-3500lb Dexter Drop Axles, with Electric Self Adjusting Brakes

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-7-Pin RV Style Arctic Rated Electrical Connector

-Junction Box, Break-away Kit with Battery and Charger

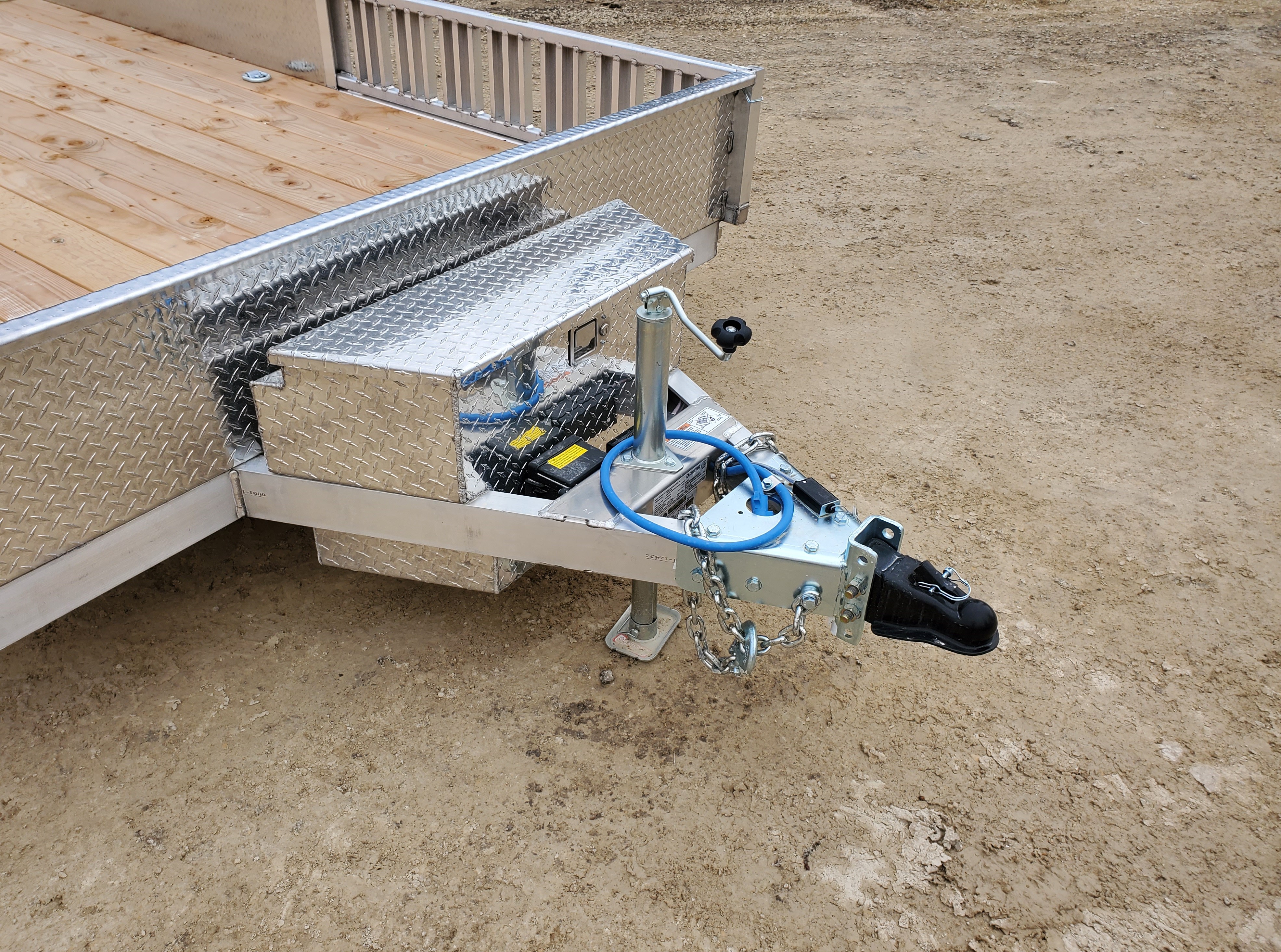

-2-5/16” Ball Coupler, Max 2,100lb tongue WT, with Polypropylene Tape

-ST205/75R15 6-ply Radial Tires

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, Black

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-5,000lb, A-Frame Mounted, Drop Leg Jack

-2x10 Douglas Fir/Larch Plank Floor

-3/8” x 35” Safety Chains, 16.2K lb Rating, with Safety Latch

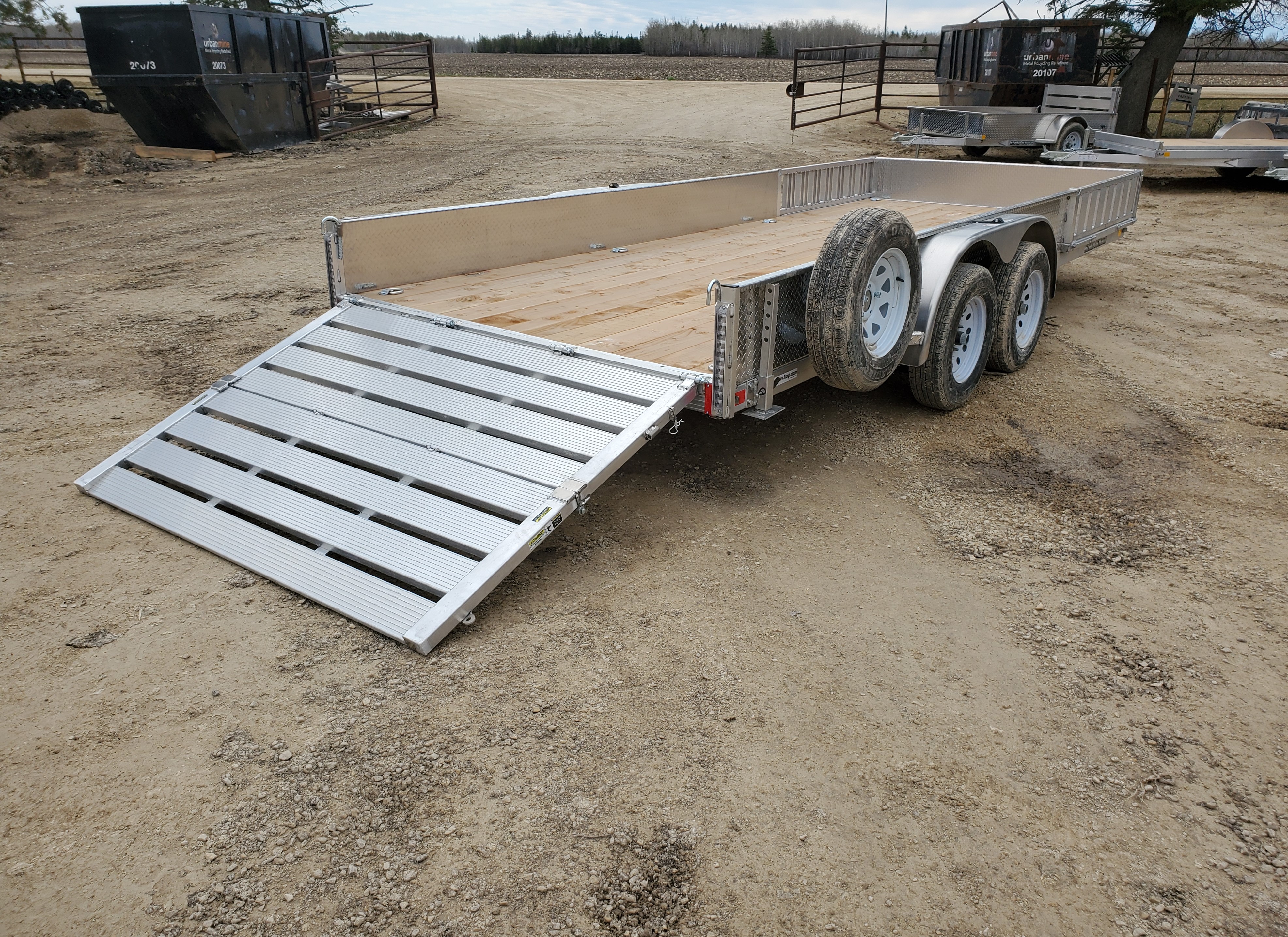

-Folding Rear Ramp rated at 3000lbs

-Ramp Unfolded Length:  54” L x 71” W (Ramp Width is trailer size - 5.00”)

-Ramp Folds Down onto Deck

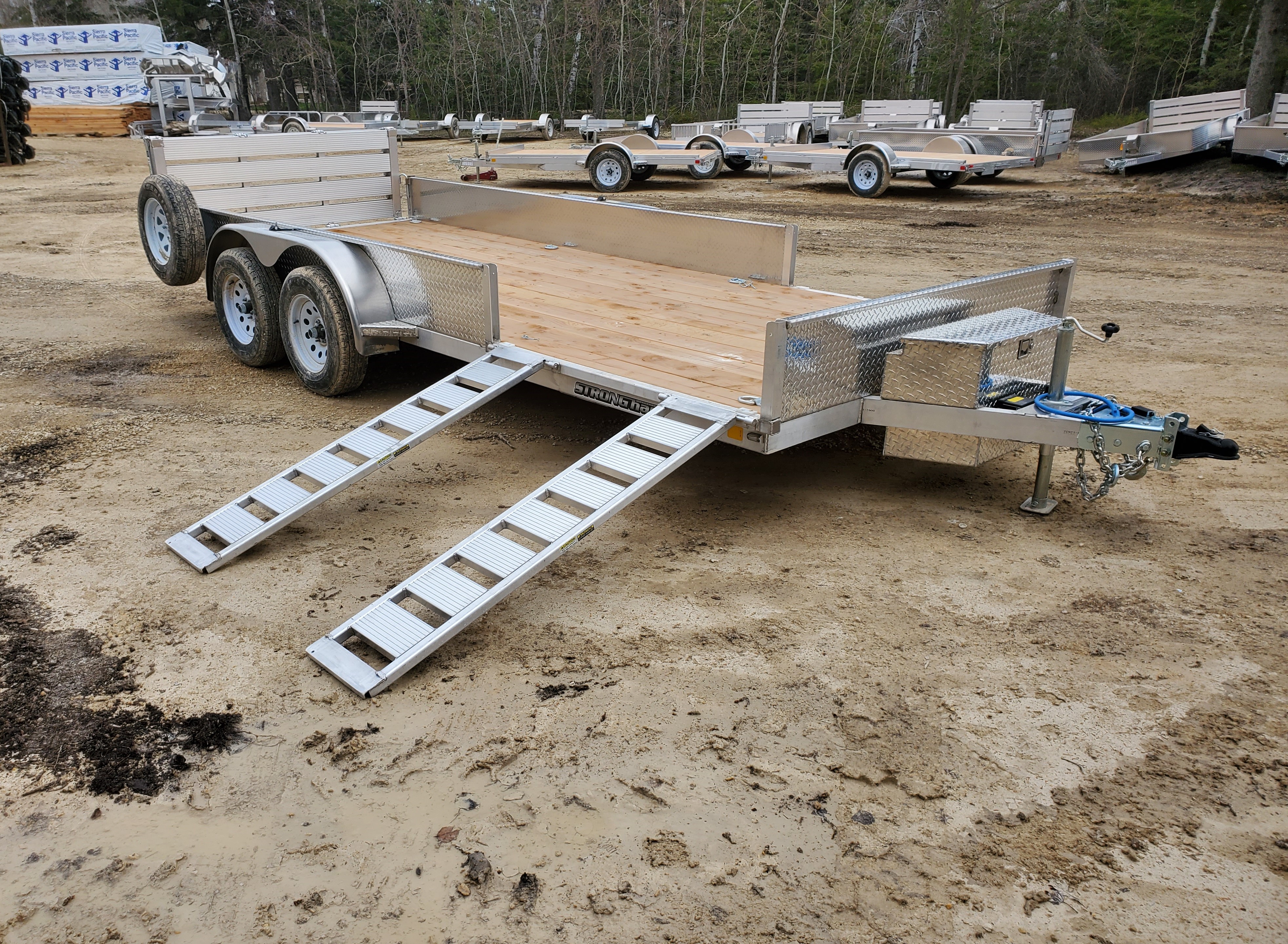

-Side Loading Access w/ Drop in Ramp Gates, 1250lb Capacity / Ea, 61” L x 13” W

-4,000lb Lashing Rings , ZP (6 rings on 12’ models, 6 on 14’, 6 on 16’, and 8 on 18’)

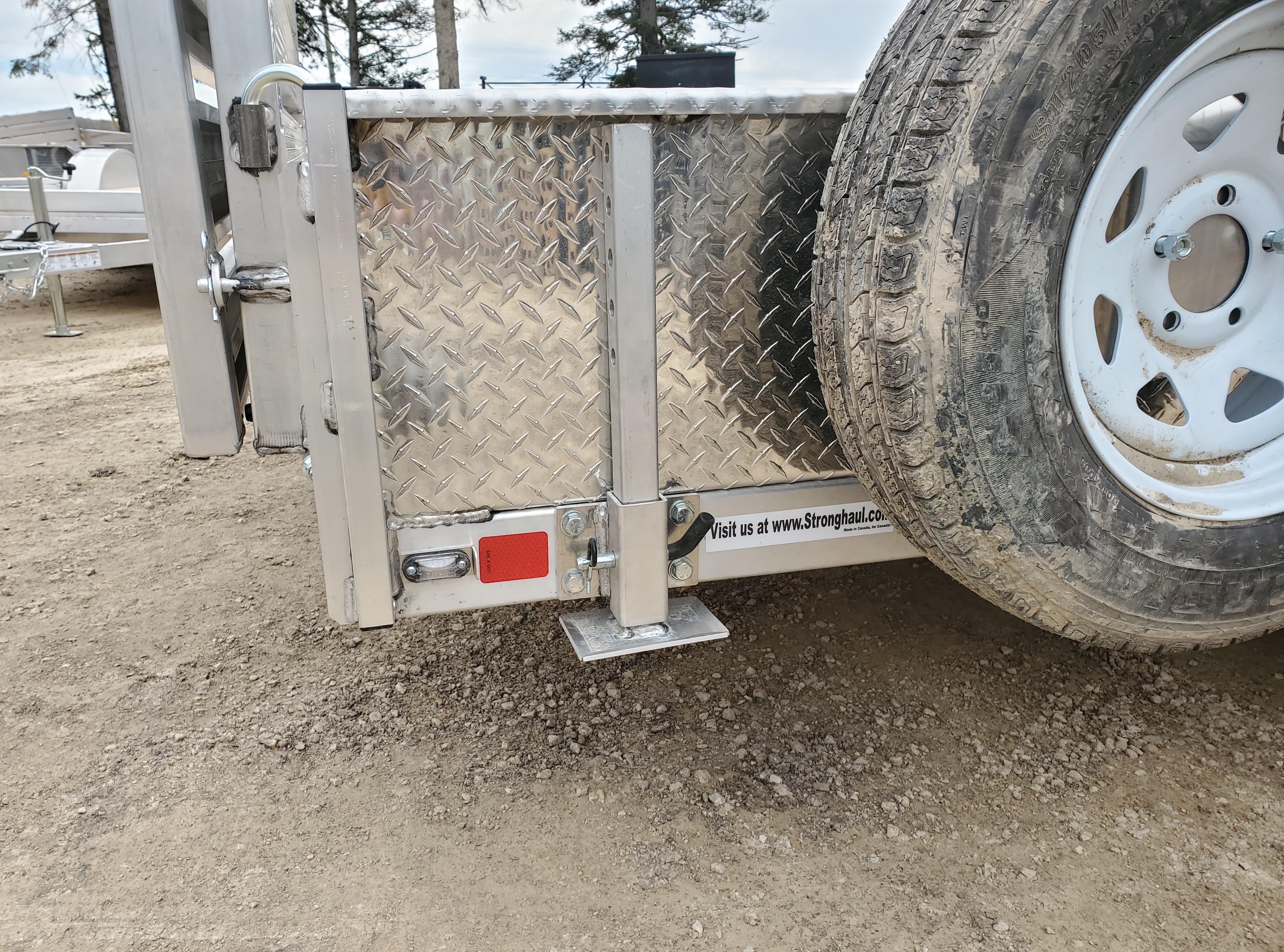

-Spare Tire Mount (Changes from front to side depending on tool box)

-Deck to Ground Height:  18”

-Ground to Coupler Height:  15” When Level

-GVWR: 7000lbs
