Overview

Utility Style, Aluminum Frame, Tandem Axle, Solid Side Trailer with 24” Sides

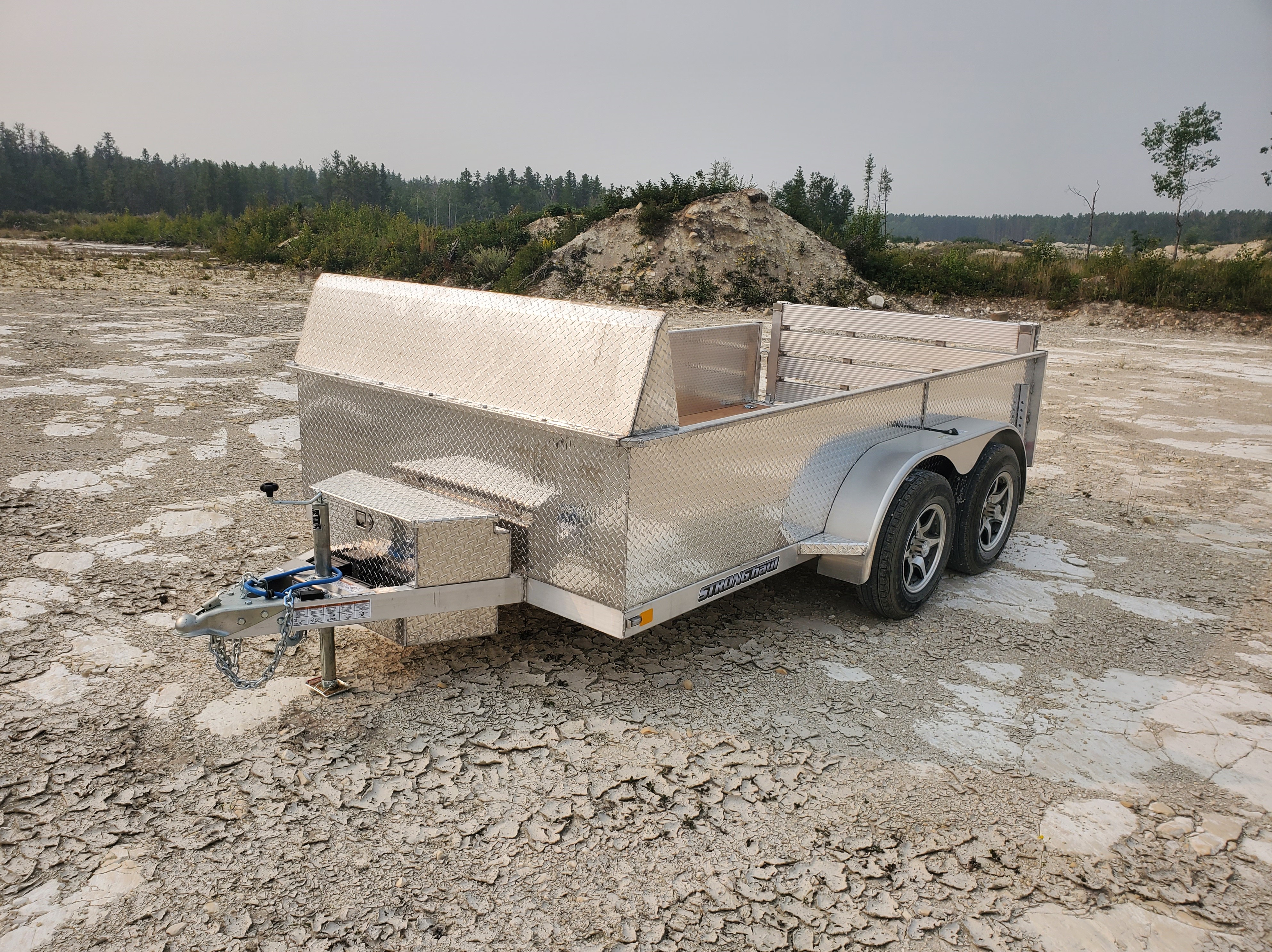

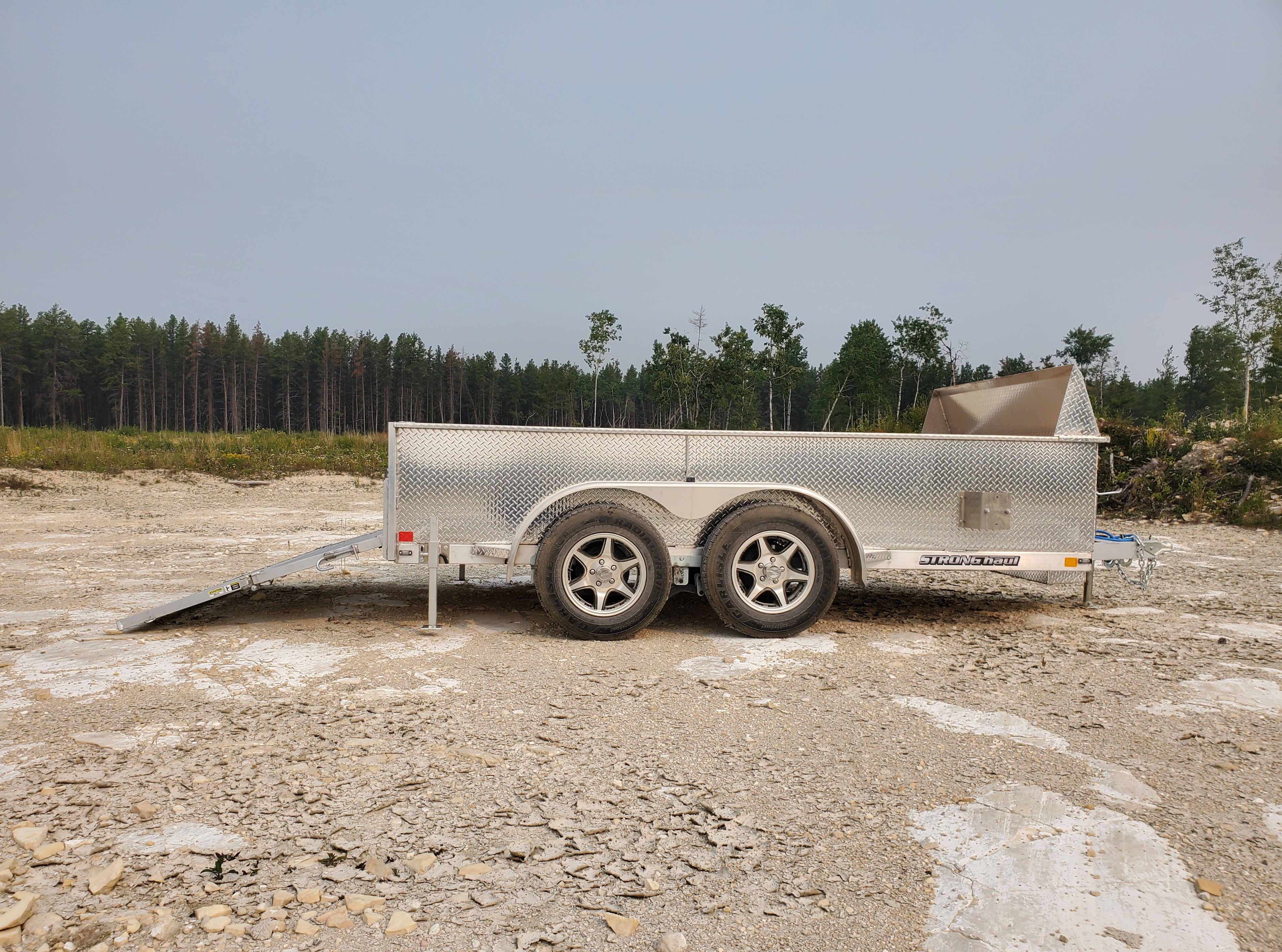

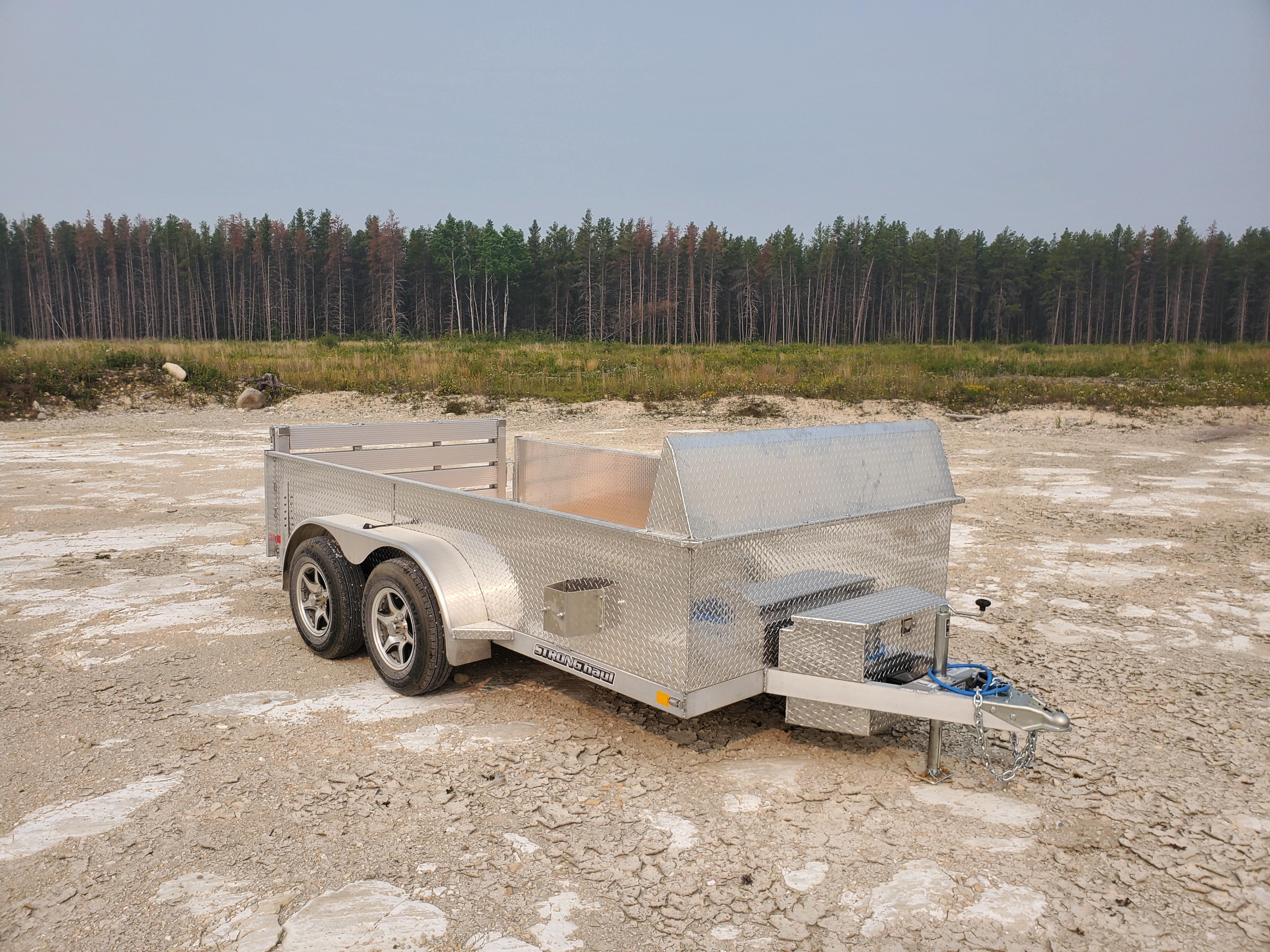

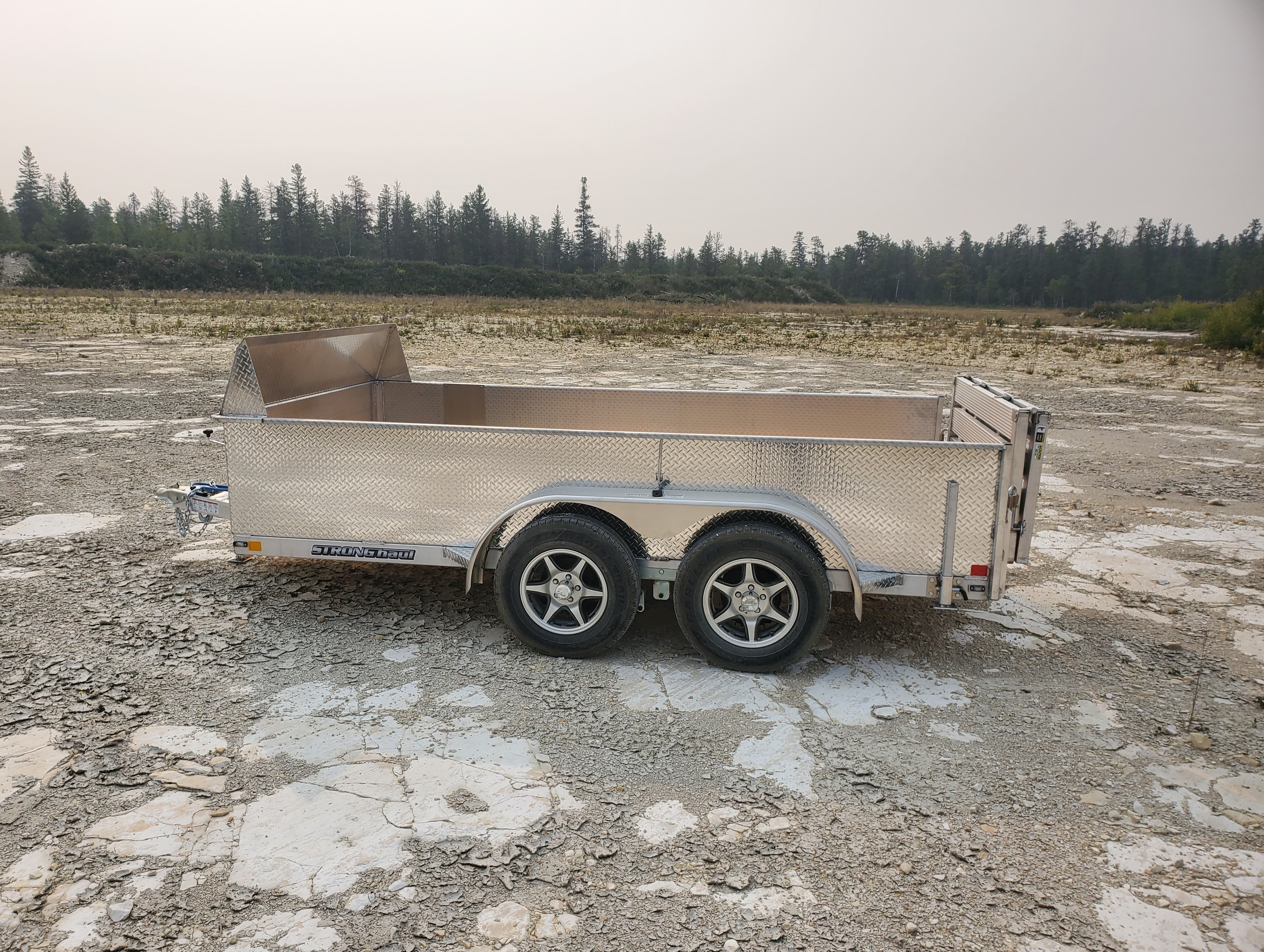

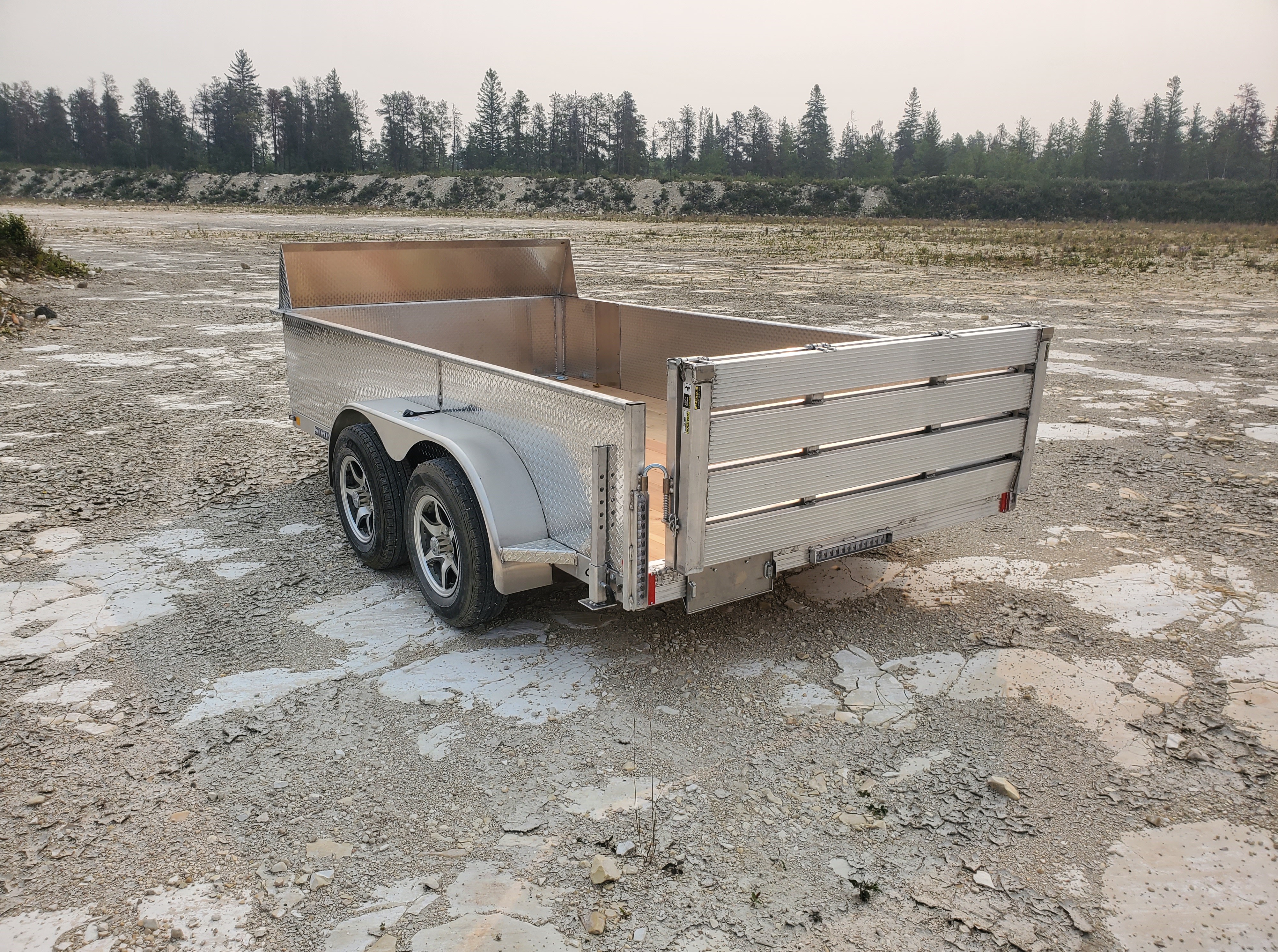

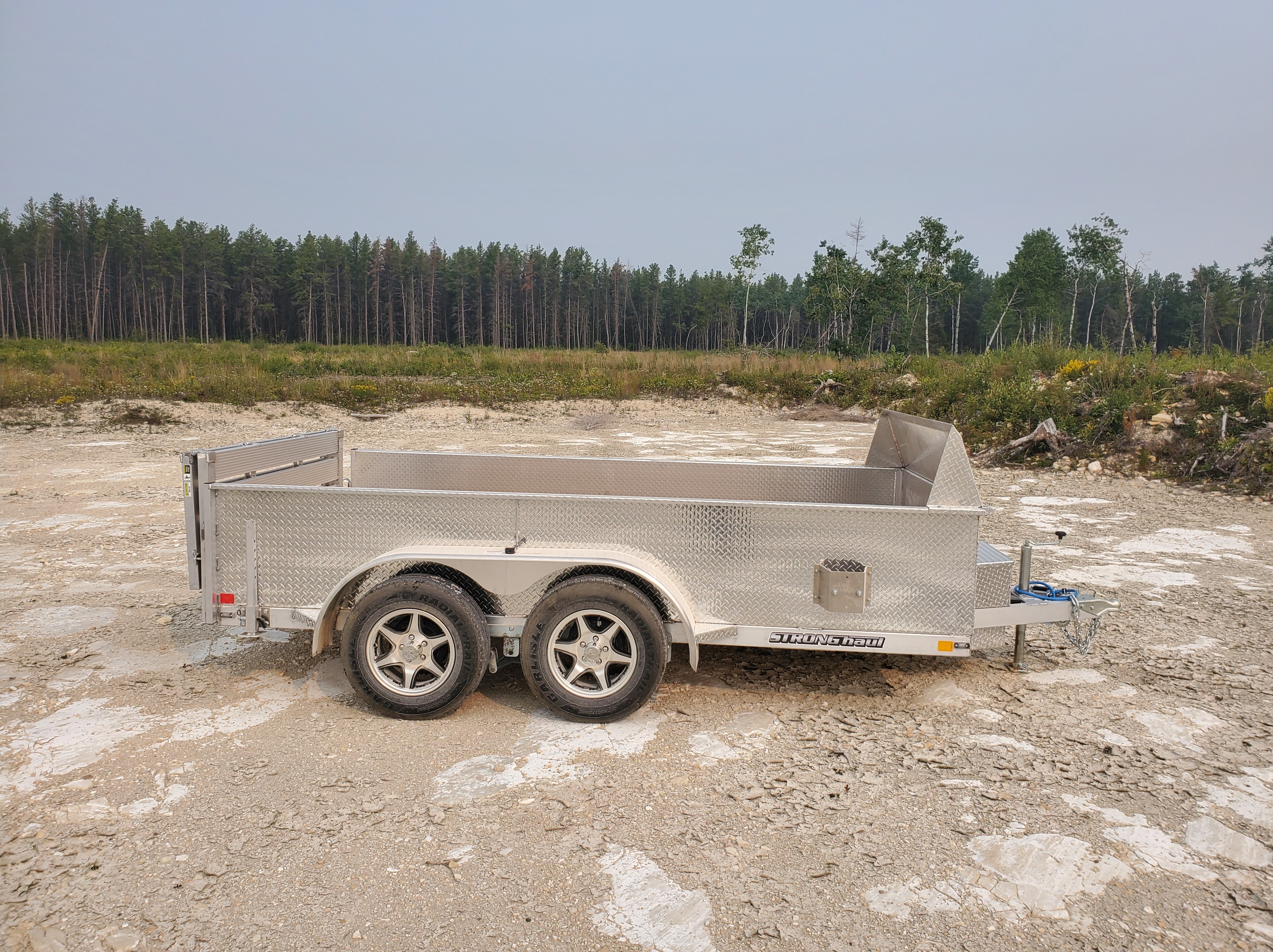

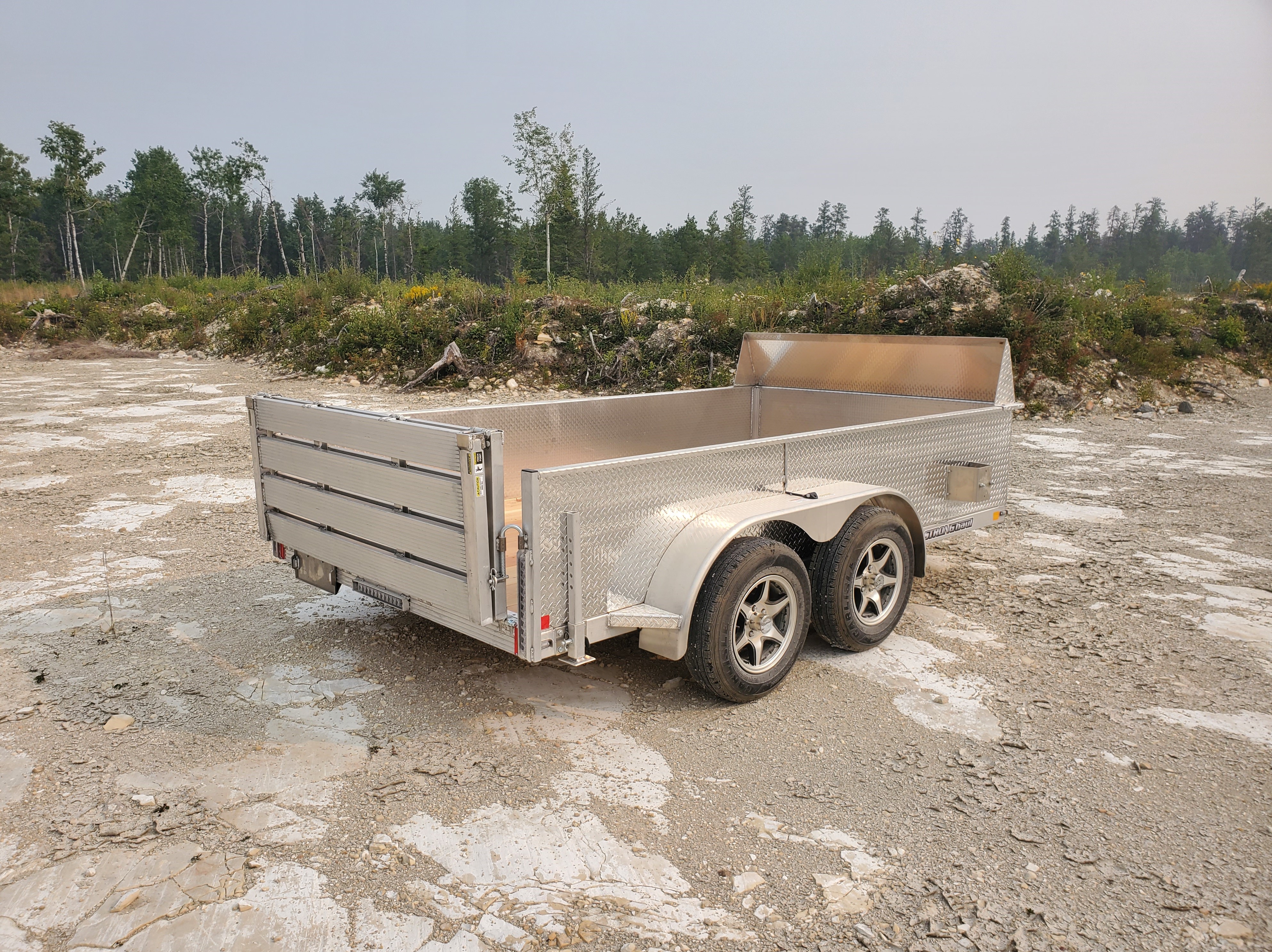

UATS-76x12-24 Model Displayed

The featured trailer has the following options applied:

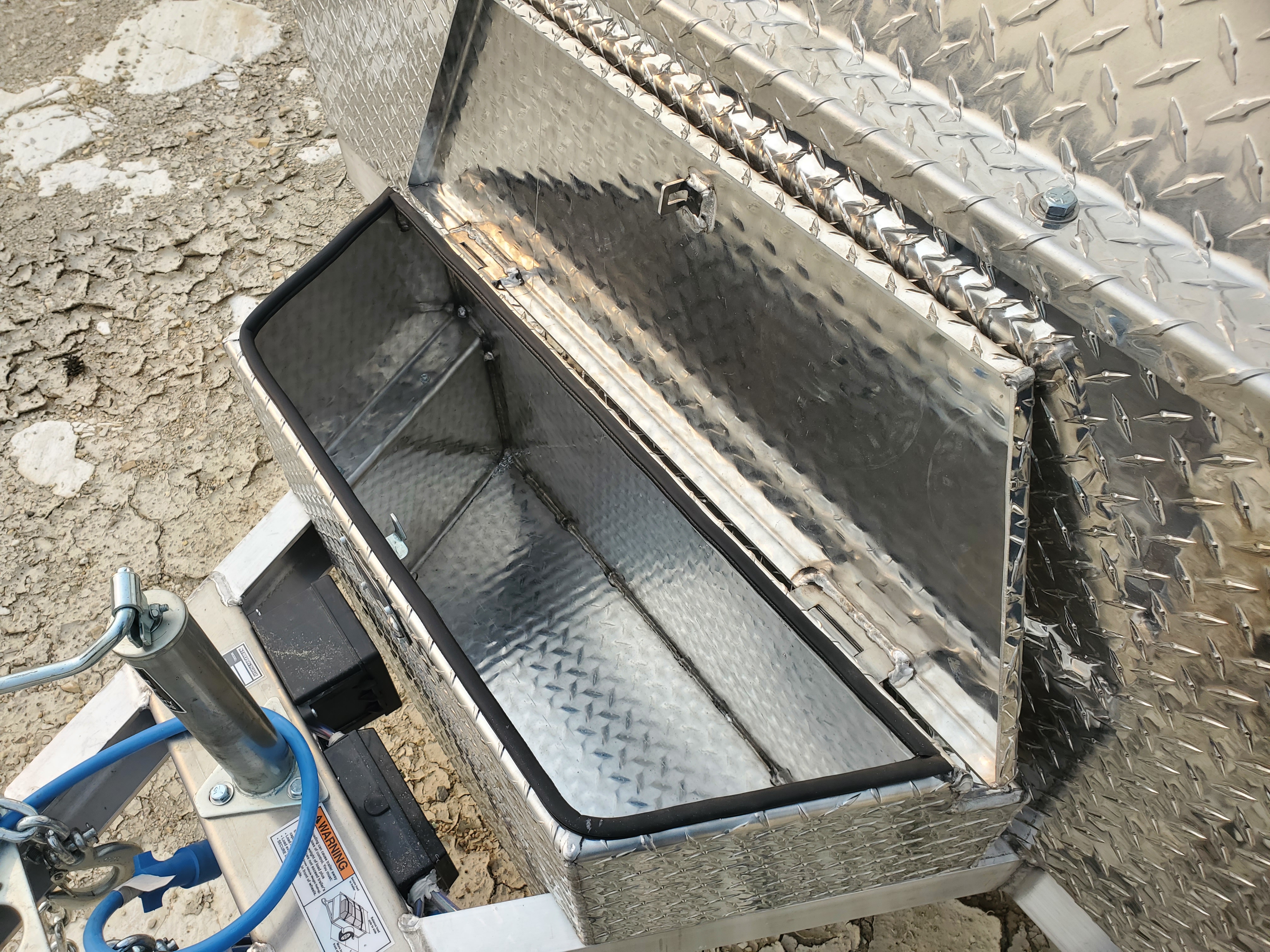

A-Frame Mount, Lockable Handle Tool Box

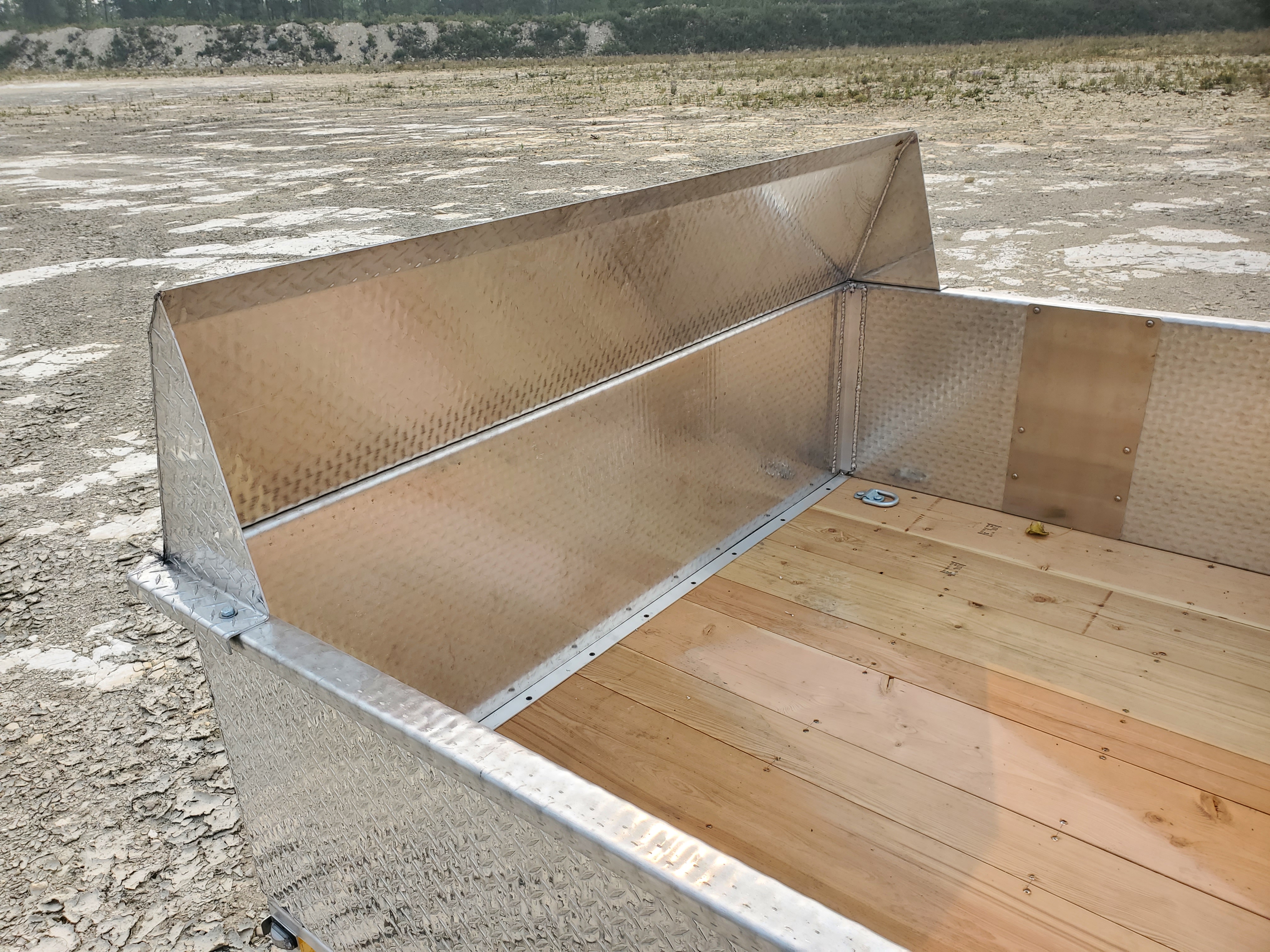

Solid Side Spray Shield 15” Tall

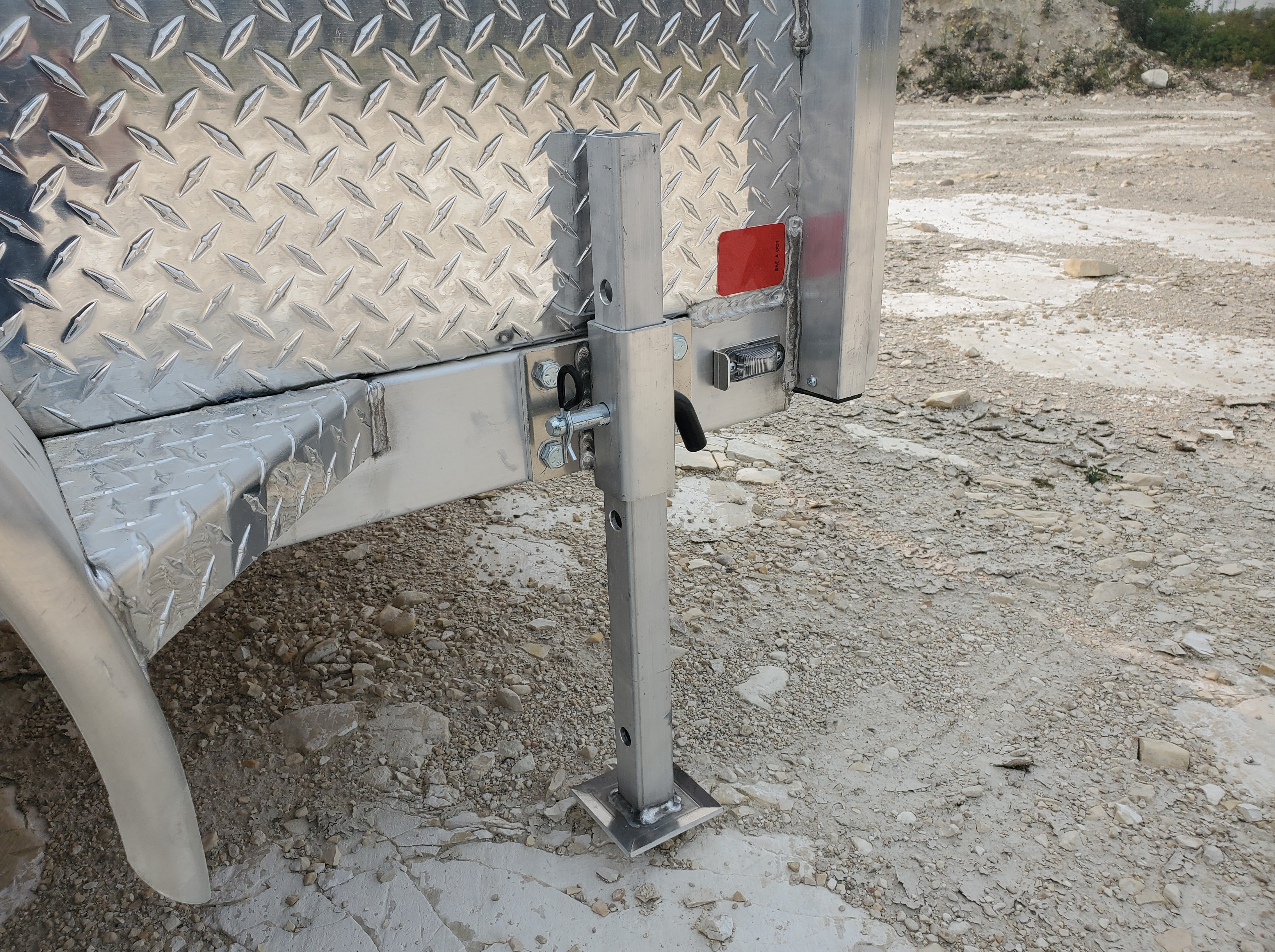

Stabilizer Stands

Aluminum Wheel Package

For more trailer specs, details, and sizing please see below.



Contact a Dealer

More Information

Standard Features and Equipment

-6061 All Aluminum Frame

-22.5” Side Height (Deck to top of Flange)

-3500lb Dexter Drop Axles, with Electric Self Adjusting Brakes

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-7-Pin RV Style Arctic Rated Electrical Connector

-Junction Box, Break-away Kit with Battery and Charger

-2-5/16” Ball Coupler, Max 2,100lb tongue WT, with Polypropylene Tape

-ST205/75R15 6-ply Radial Tires

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, White

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-5,000lb, A-Frame Mounted, Drop Leg Jack

-2x10 Douglas Fir/Larch Plank Floor

-3/8” x 35” Safety Chains, 16.2K lb Rating, with Safety Latch

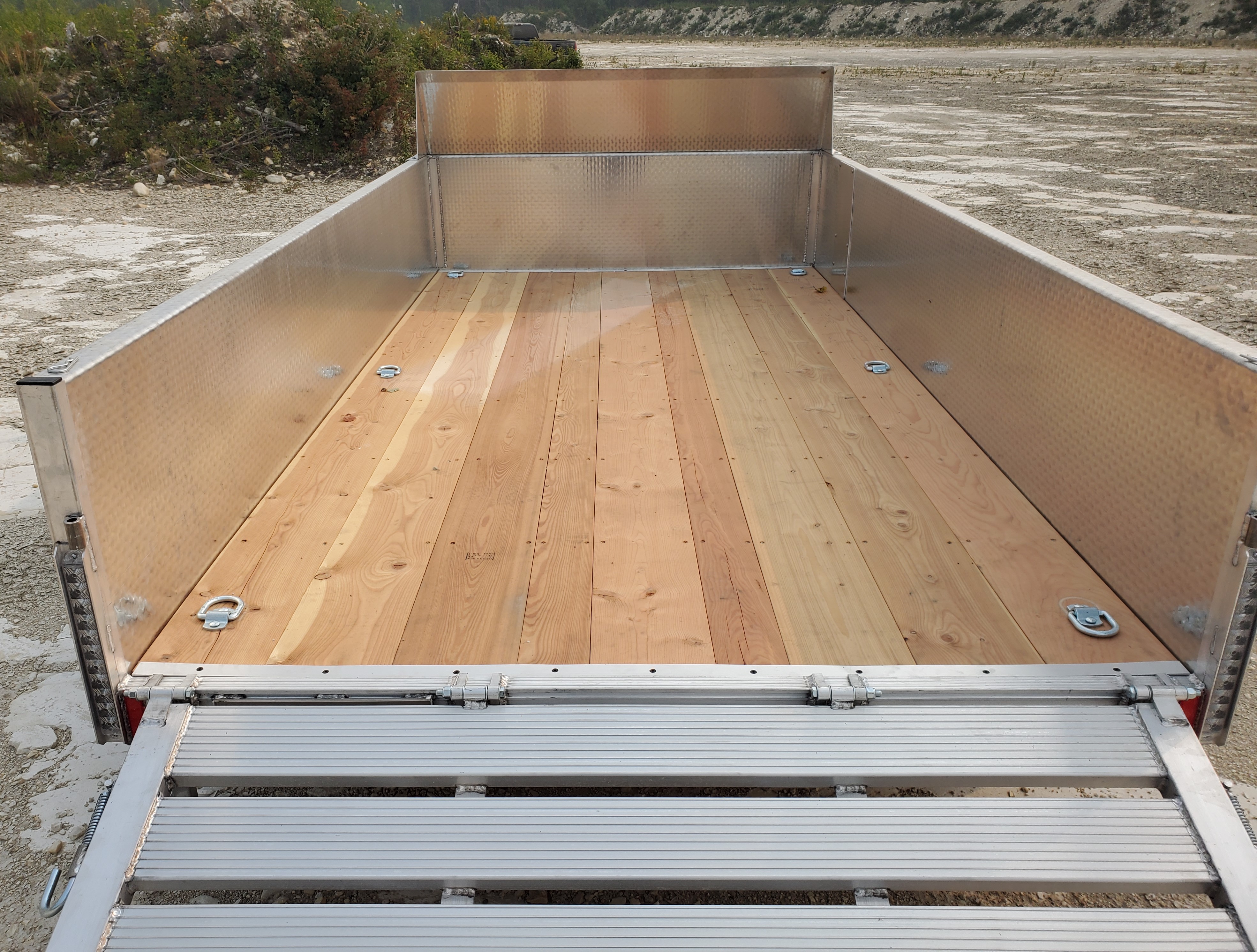

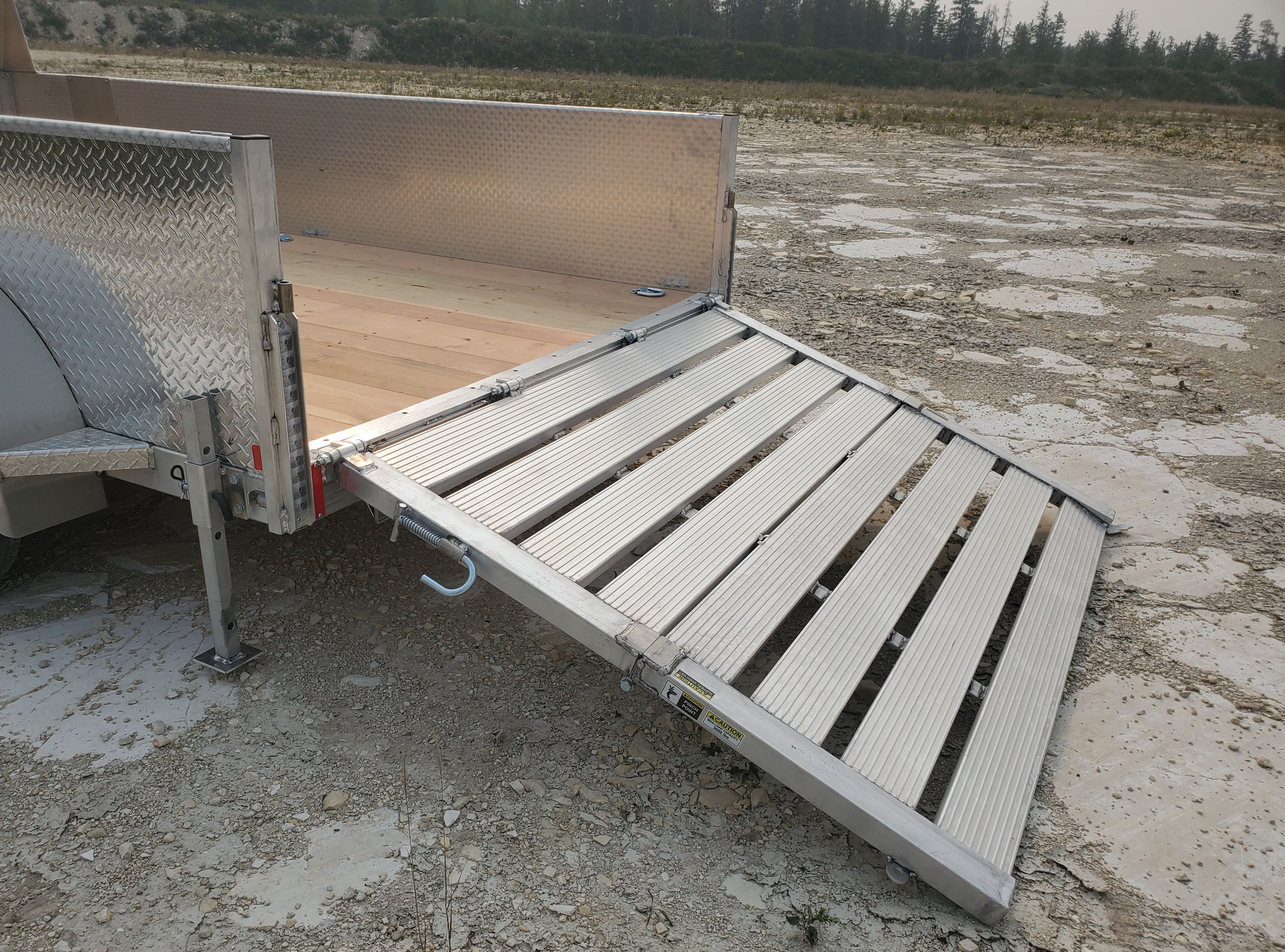

-Folding Rear Ramp rated at 3000lbs

-Ramp Unfolded Length:  54” L x 71” W (Ramp Width is trailer size - 5.00”)

-Ramp Folds Down onto Deck

-4,000lb Lashing Rings , ZP (6 rings on 12’ models, 6 on 14’,and 6 on 16’)

-Spare Tire Mount (Changes from front to side depending on tool box)

-Deck to Ground Height:  18”

-Ground to Coupler Height:  15” When Level

-GVWR: 7000lbs

Available Options

Description

Aluminum Wheel Upgrade PKG

Spare Wheel, Steel

Spare Wheel, Aluminum

Spray Shield, Solid Side, 76”

Spray Shield, Solid Side, 82”

Extra Lashing Rings 4k lb

Recessed Lashing Rings 6k lb

Jack Caster Wheel

Side Mount Pivot Jack

Stabilizer Stands, Drop Leg

2-5/16” Adjustable Coupler

A-Frame Mounted, Lockable Handle Tool Box
