Overview

Utility Style, Aluminum Frame, Tandem Axle, Rail Side Trailer

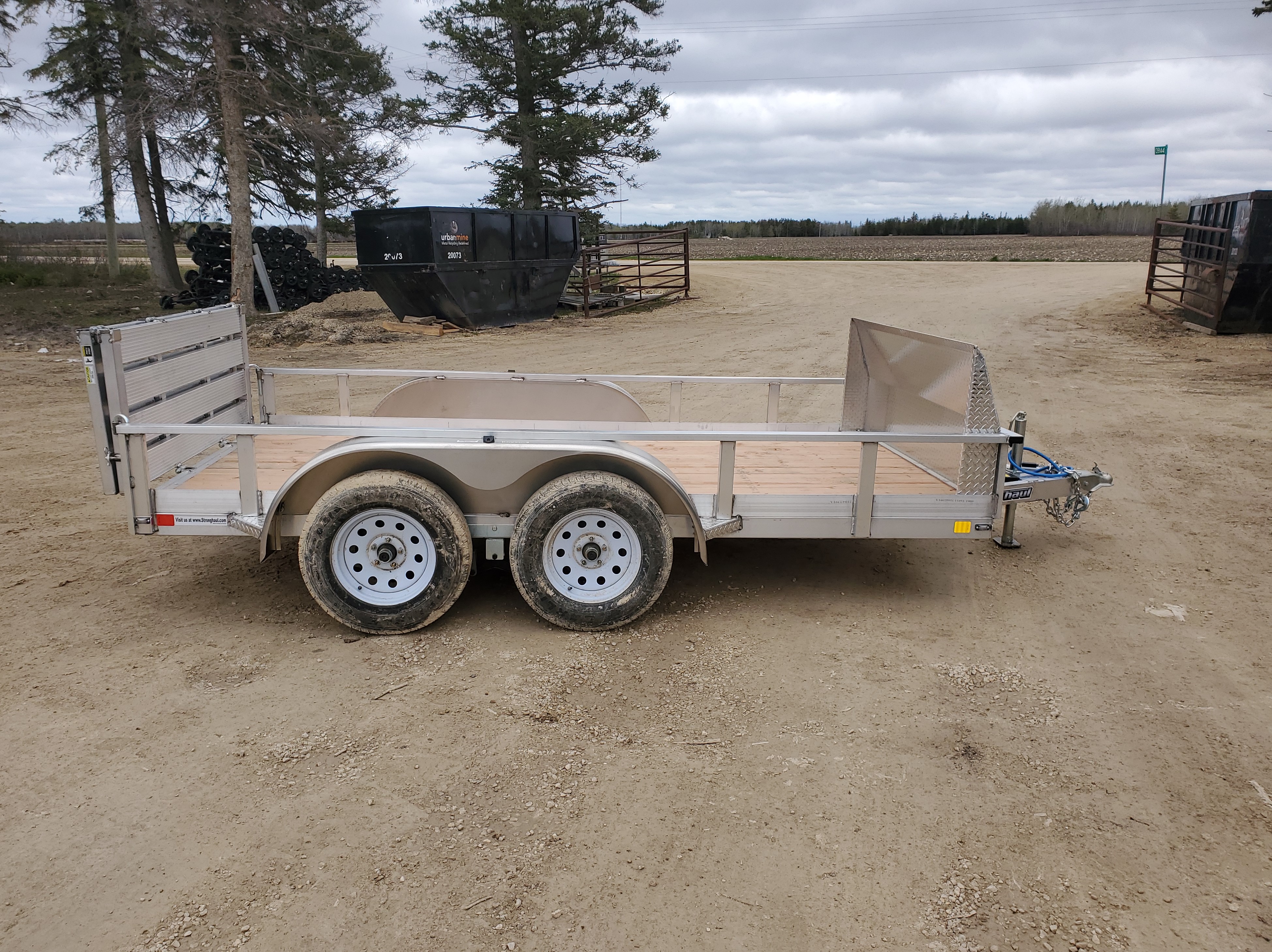

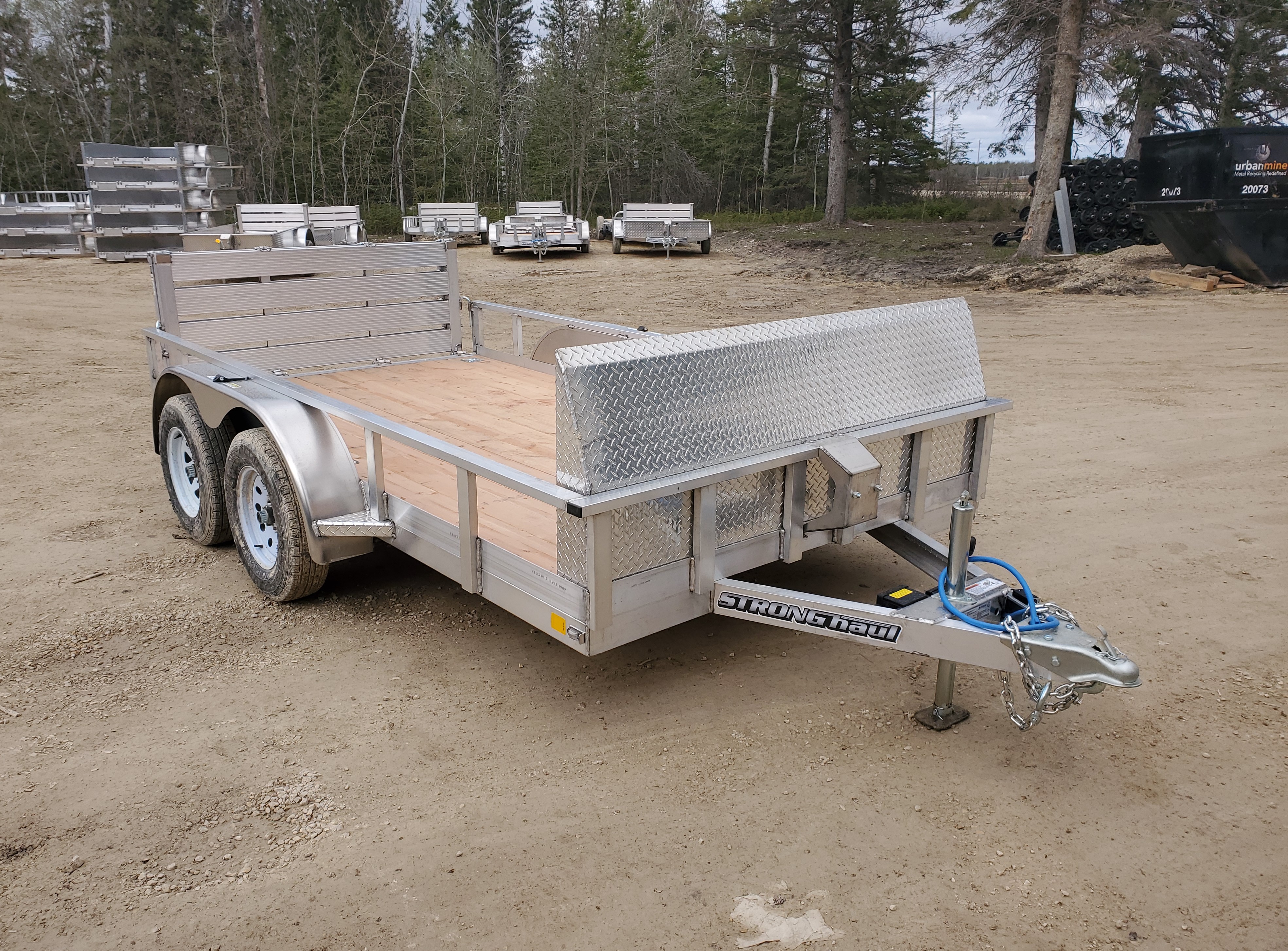

UATR-76x12 Model Displayed

The featured trailer has the following options applied:

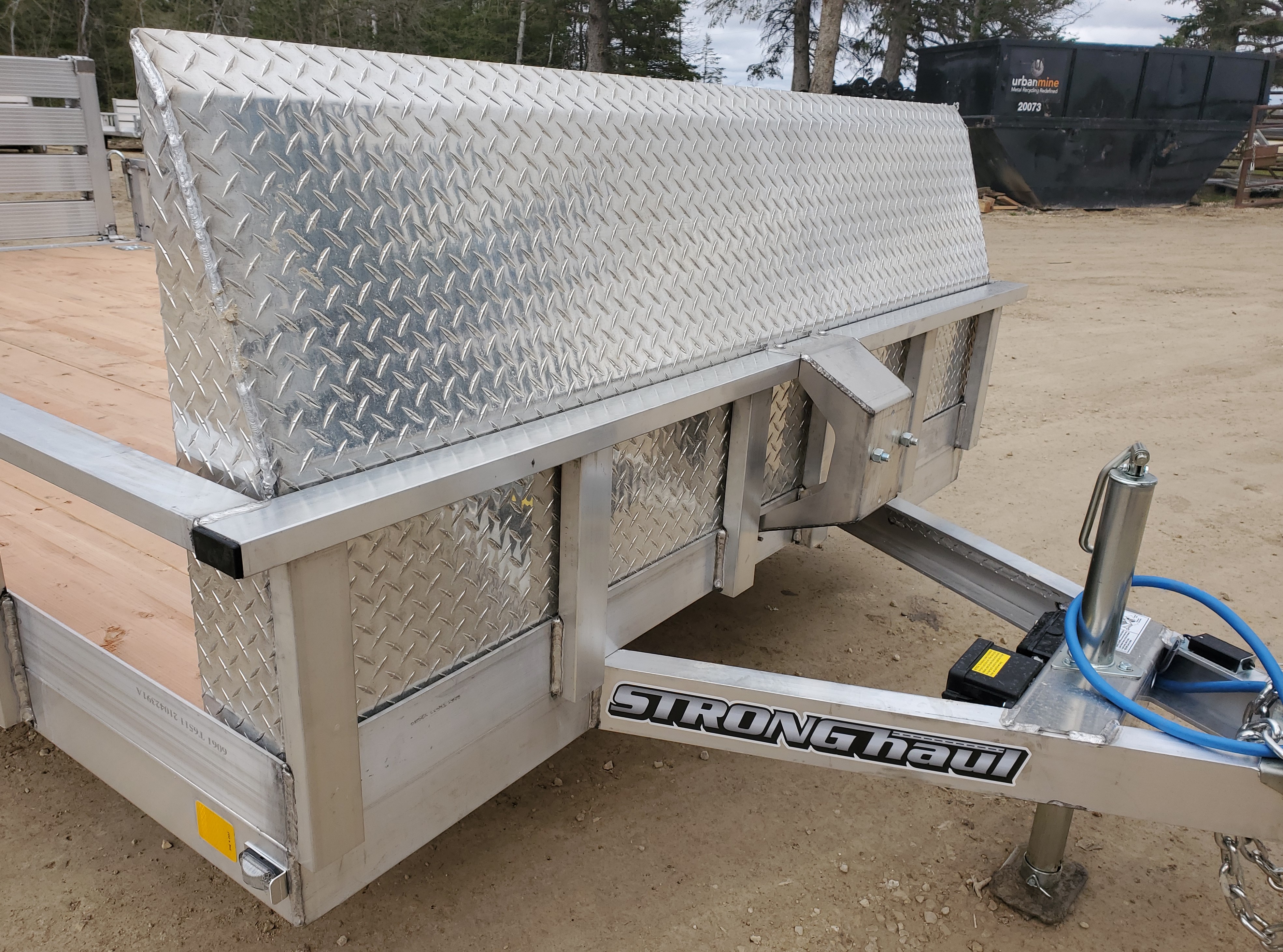

27” Tall Rail Side Spray Shield

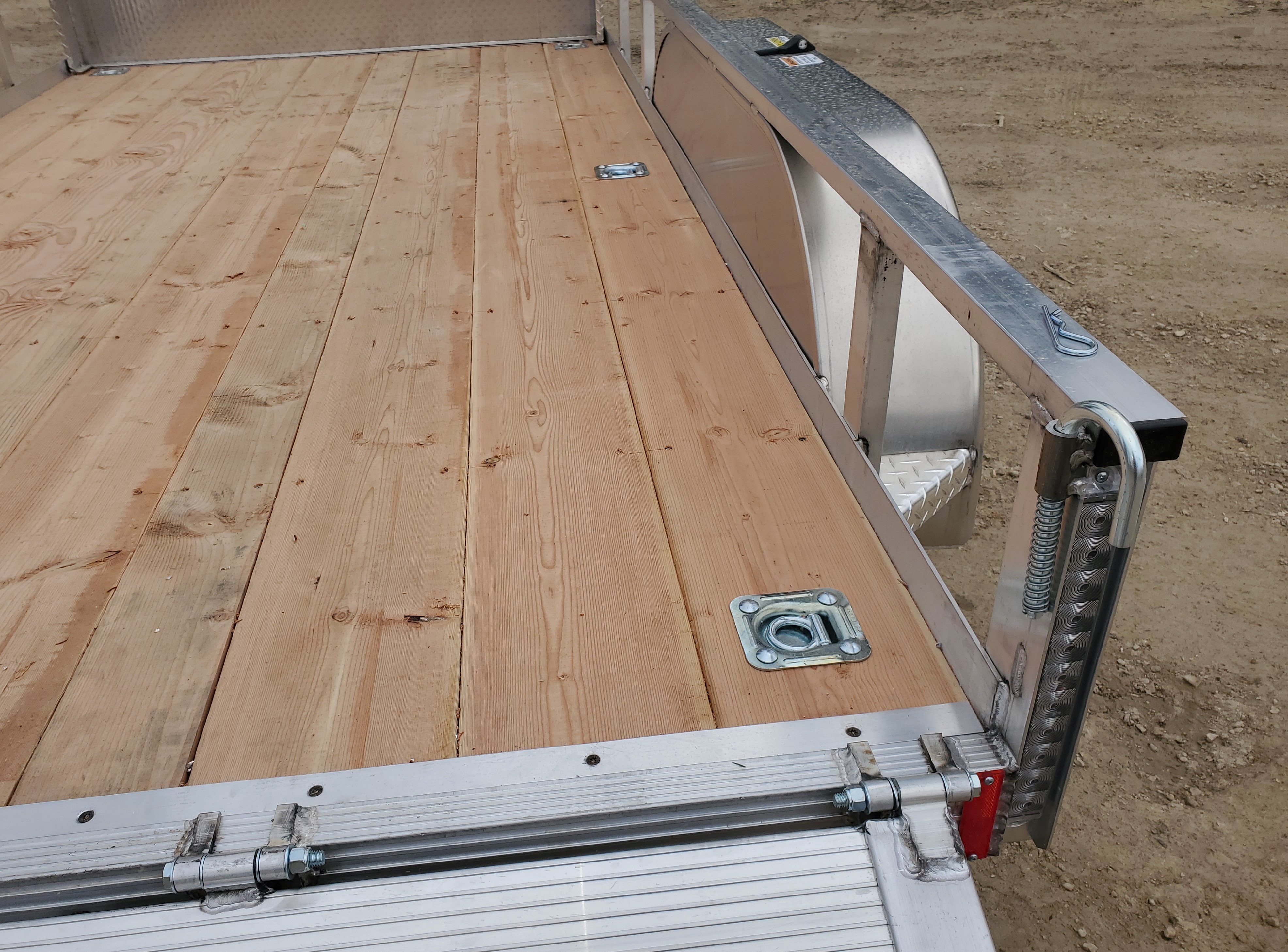

6K Recessed Lashing Rings

For more trailer specs, details, and sizing please see below.

Contact a Dealer

More Information

Standard Features and Equipment

Stronghaul UATR Brochure.PDF

-6061 All Aluminum Frame

-13.5” Side Height (Deck to top of Rail)

-3500lb Dexter Drop Axles, with Electric Self Adjusting Brakes

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-7-Pin RV Style Arctic Rated Electrical Connector

-Junction Box, Break-away Kit with Battery and Charger

-2-5/16” Ball Coupler, Max 2,100lb tongue WT, with Polypropylene Tape

-ST205/75R15 6-ply Radial Tires

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, White

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-5,000lb, A-Frame Mounted, Drop Leg Jack

-2x10 Douglas Fir/Larch Plank Floor

-3/8” x 35” Safety Chains, 16.2K lb Rating, with Safety Latch

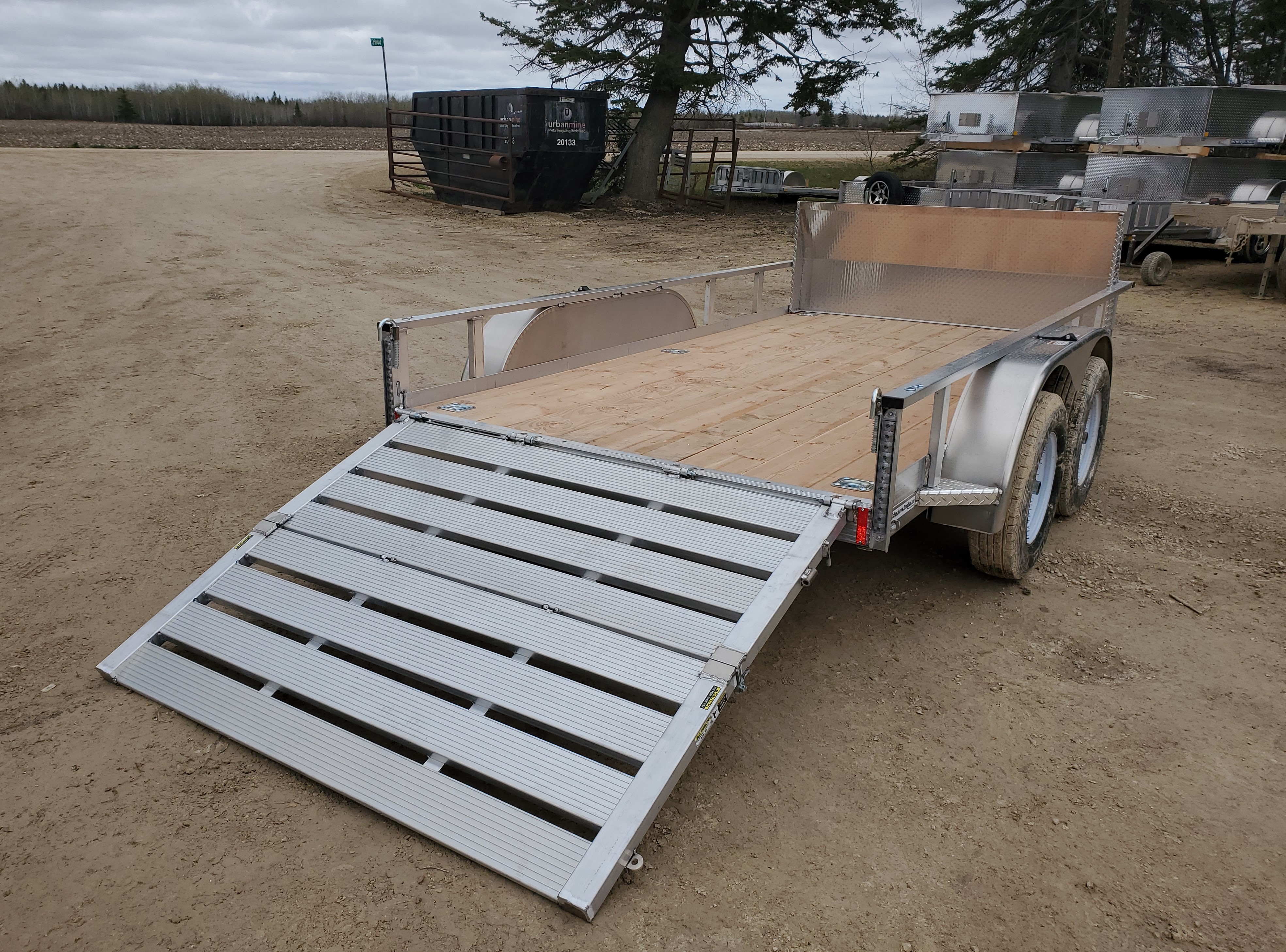

-Folding Rear Ramp rated at 3000lbs

-Ramp Unfolded Length:  54” L x 71” W (Ramp Width is trailer size - 5.00”)

-Ramp Folds Down onto Deck

-4,000lb Lashing Rings , ZP (6 rings on 12’ models, 6 on 14’, 6 on 16’, and 8 on 18’)

-Spare Tire Mount (Changes from front to side depending on tool box)

-Deck to Ground Height:  18”

-Ground to Coupler Height:  15” When Level

-GVWR: 7000lbs

Available Sizes

Description

Payload

Dry Wt.

UATR-76x12

5,720 lbs

1280 lbs

UATR-76x14

5,655 lbs

1345 lbs

UATR-76x16

5,590 lbs

1410 lbs

UATR-82x12

5,505 lbs

1495 lbs

UATR-82x14

5,455 lbs

1545 lbs

UATR-82x16

5,405 lbs

1595 lbs

UATR-82x18

5,355 lbs

1645 lbs



Available Options

Description

Aluminum Wheel Upgrade PKG

Spare Wheel, Steel

Spare Wheel, Aluminum

Spray Shield, RS 76”

Spray Shield, RS, 82”

Extra Lashing Rings 4k lb

Recessed Lashing Rings 6k lb

Jack Caster Wheel

Side Mount Pivot Jack

Stabilizer Stands, Drop Leg

2-5/16” Adjustable Coupler

12” x 18” Winch Plate

A-Frame Mounted, Lockable Handle Tool Box
