Overview

Utility Style, Aluminum Frame, Tandem Axle, Flat Bed Trailer with 2’ Dove Tail

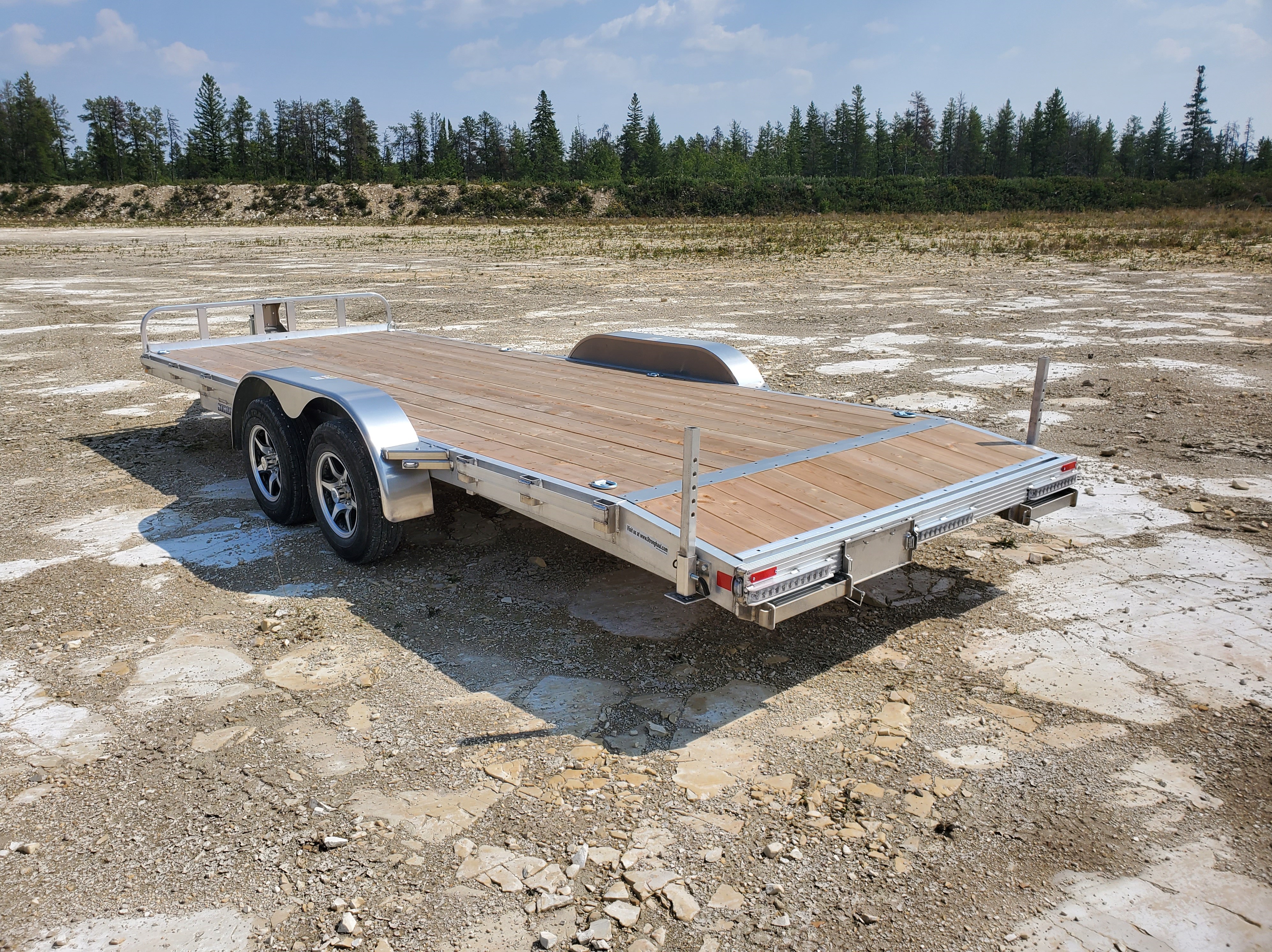

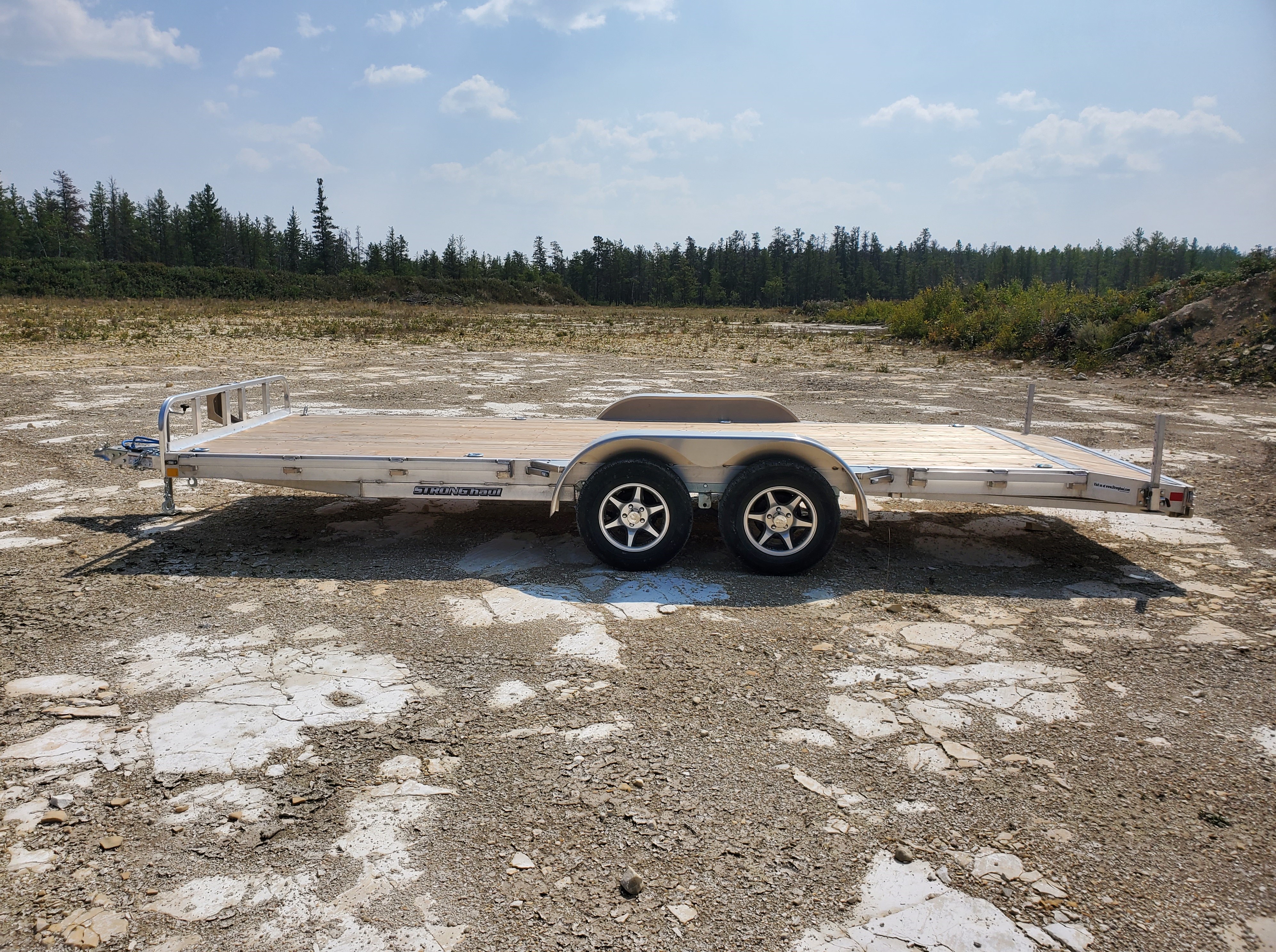

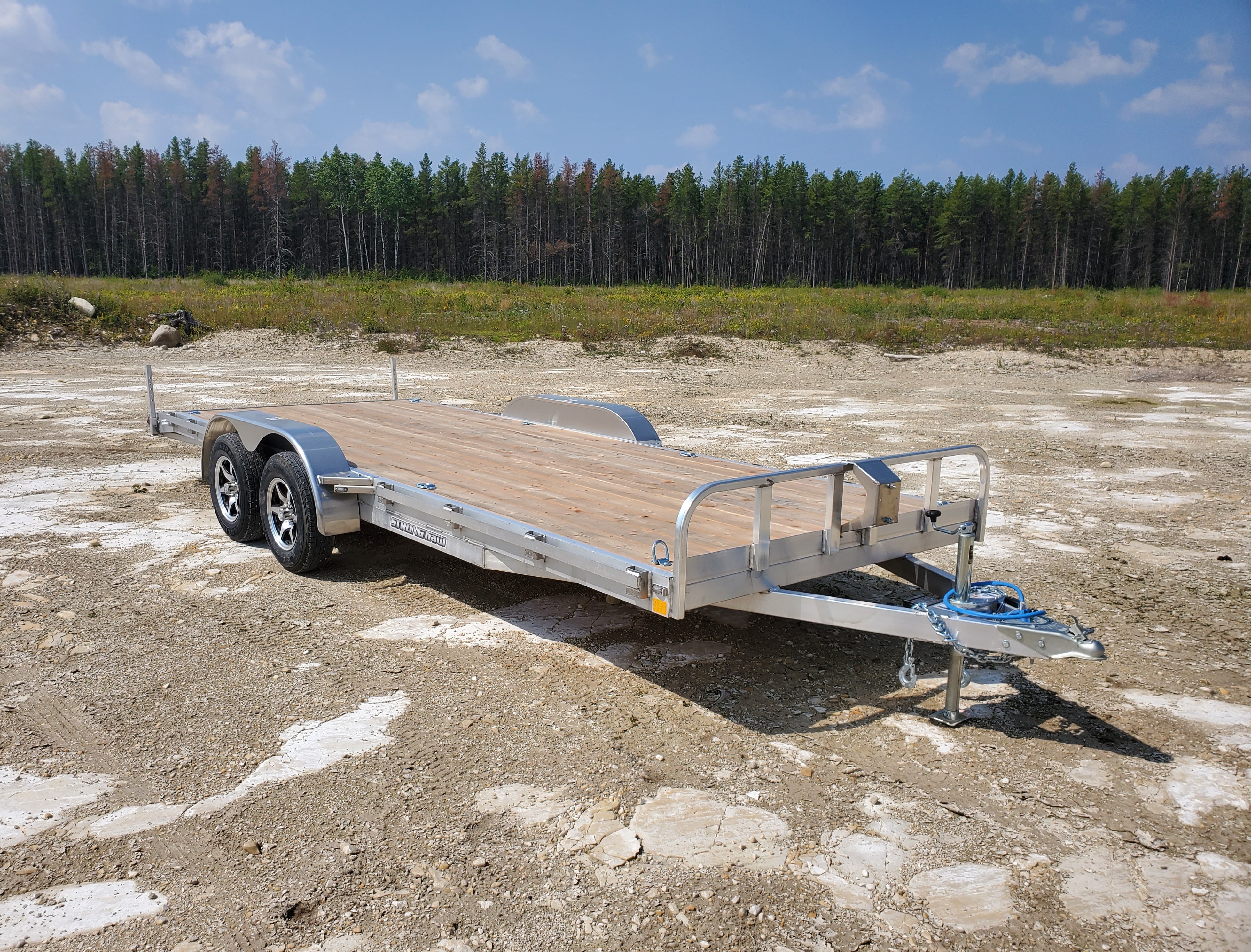

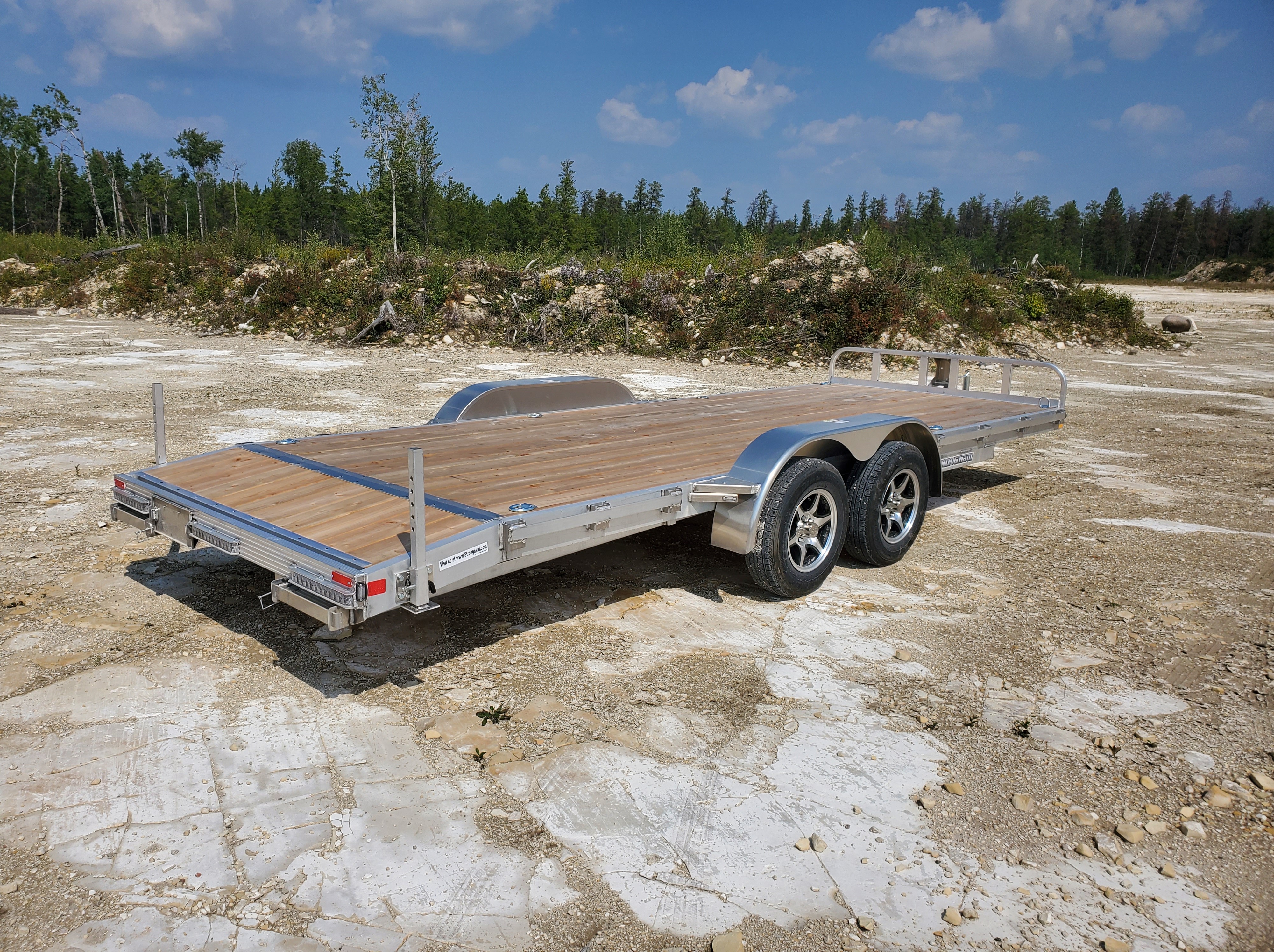

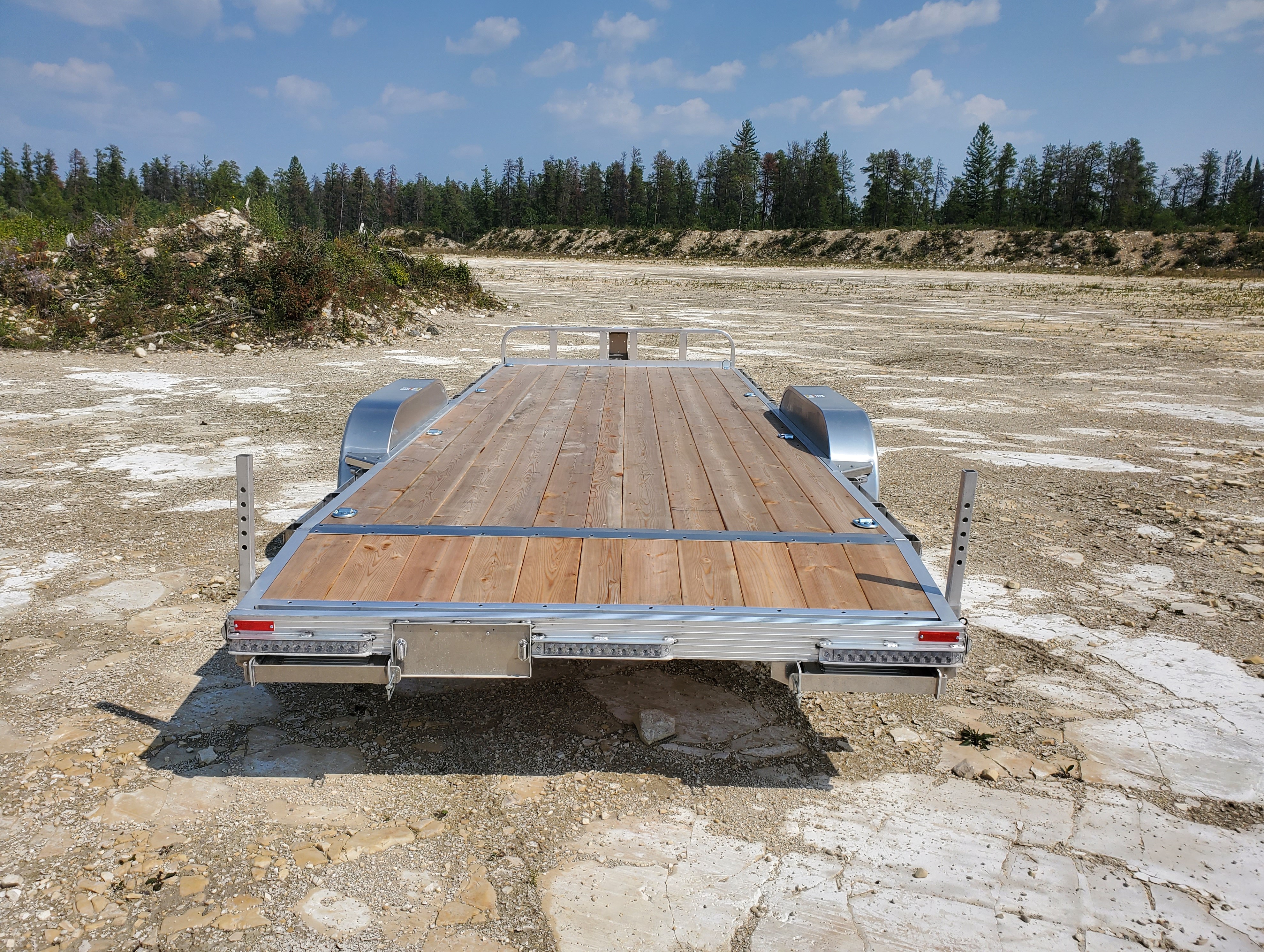

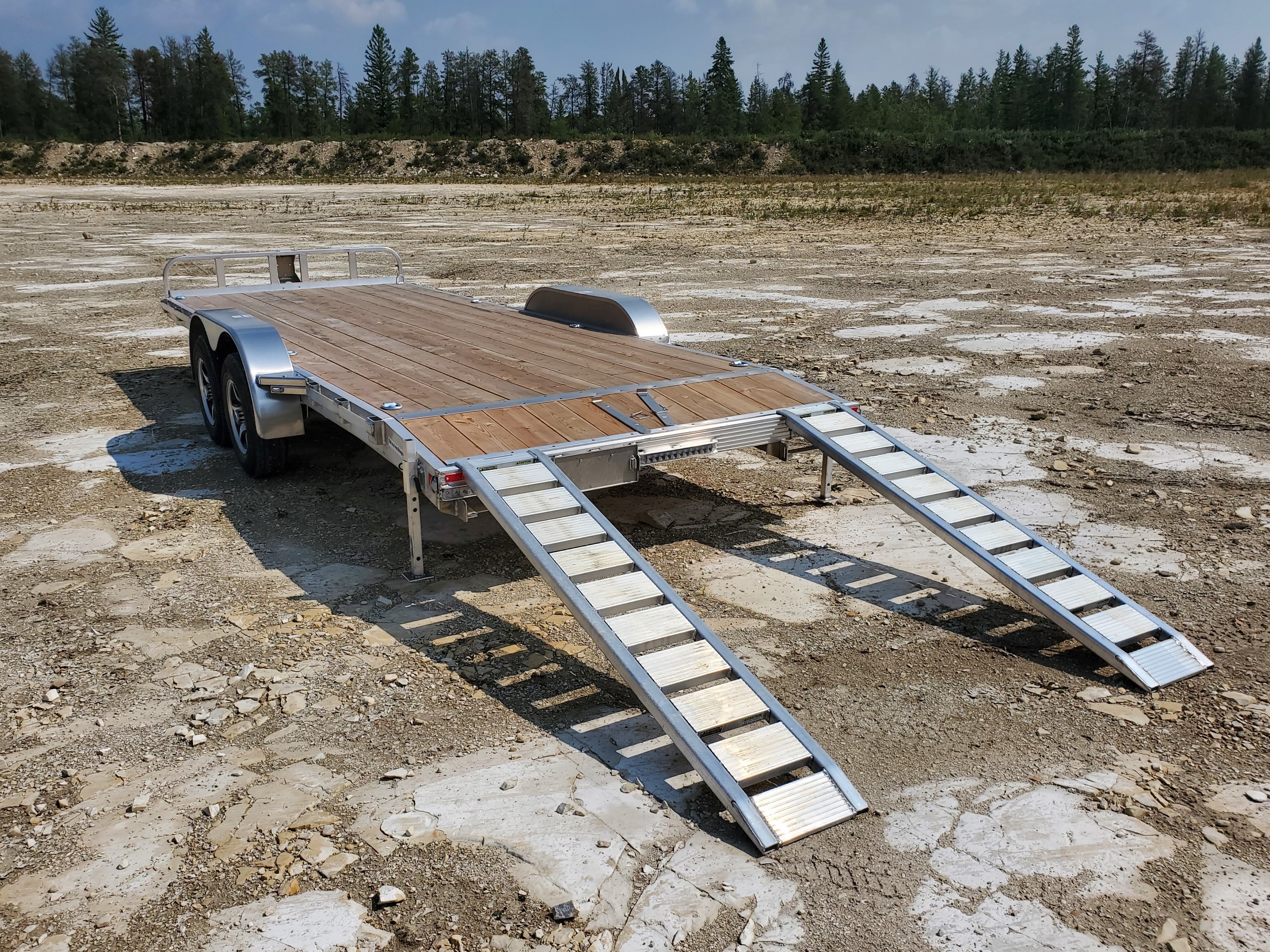

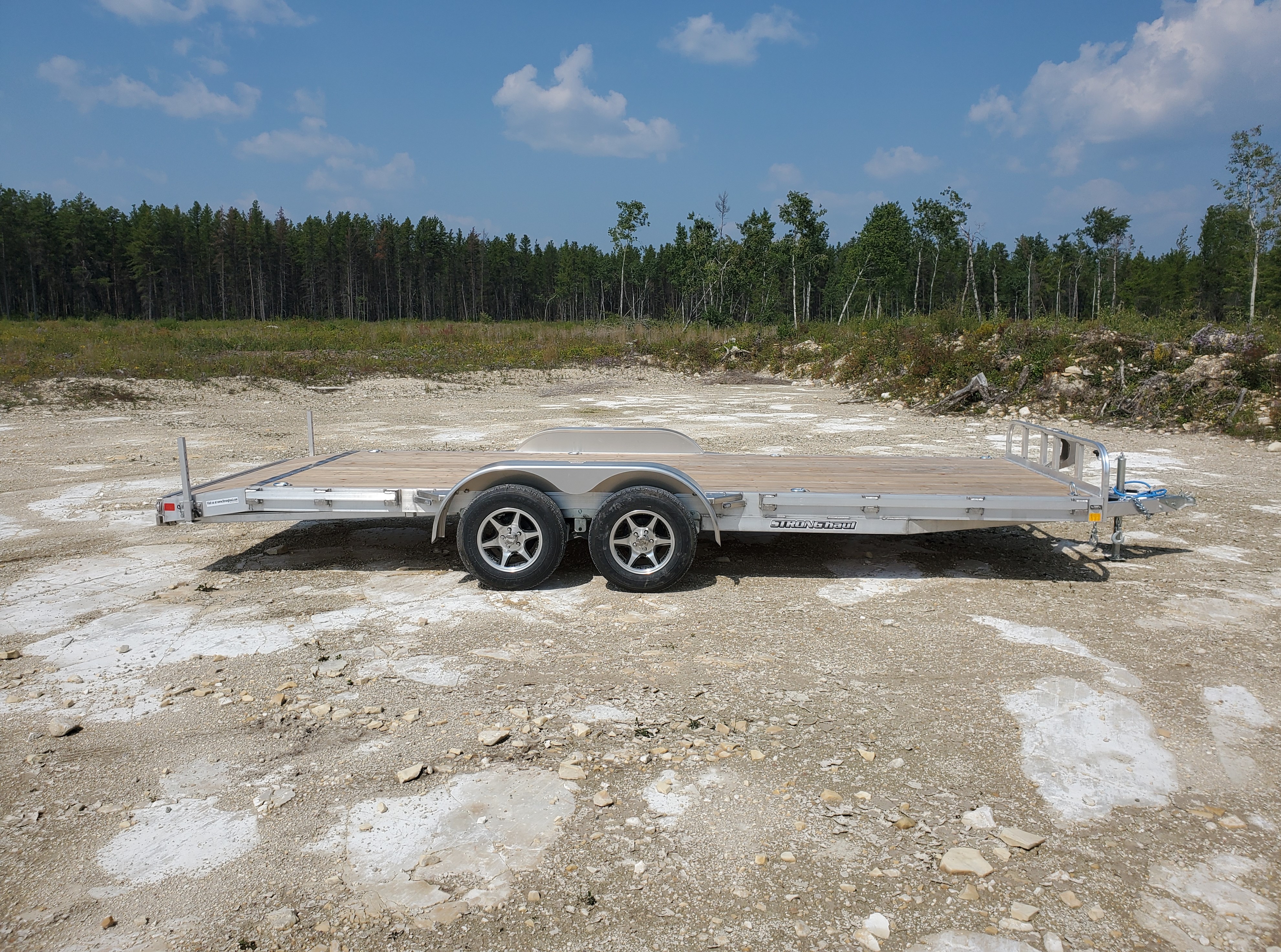

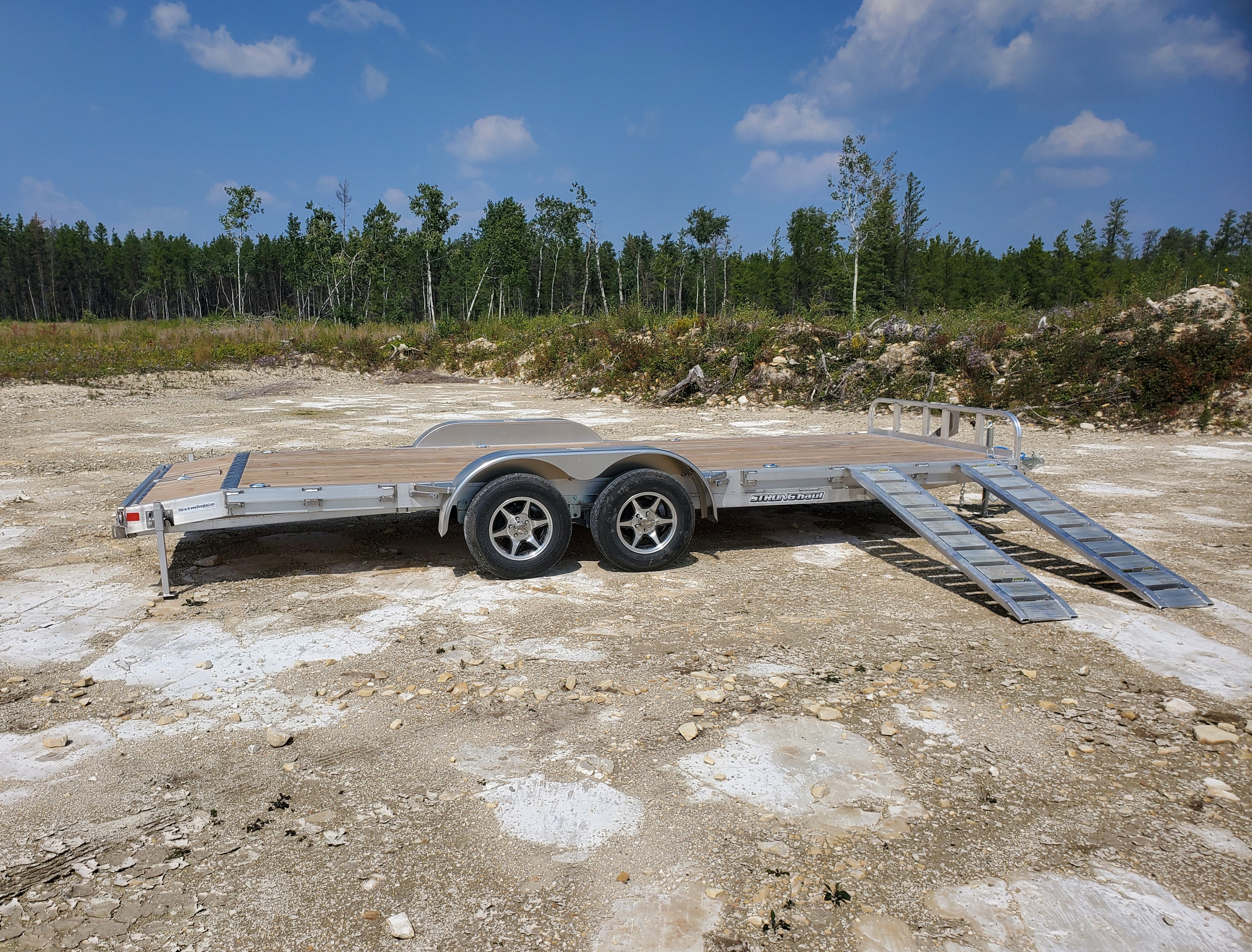

UATF-82x20-DT35 Model Displayed, (AKA 82x18+2)

The featured trailer has the following options applied:

Aluminum Wheel Package

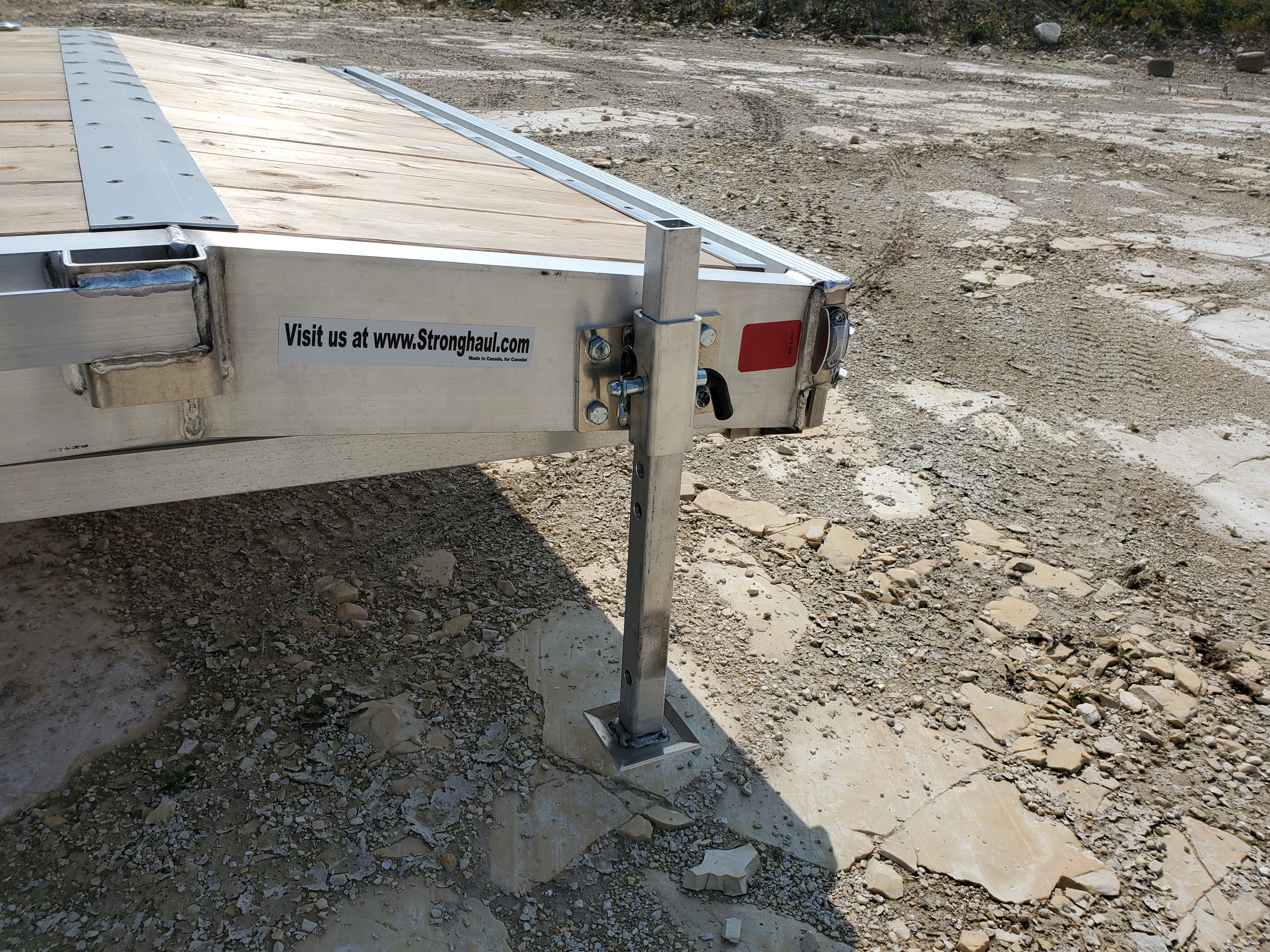

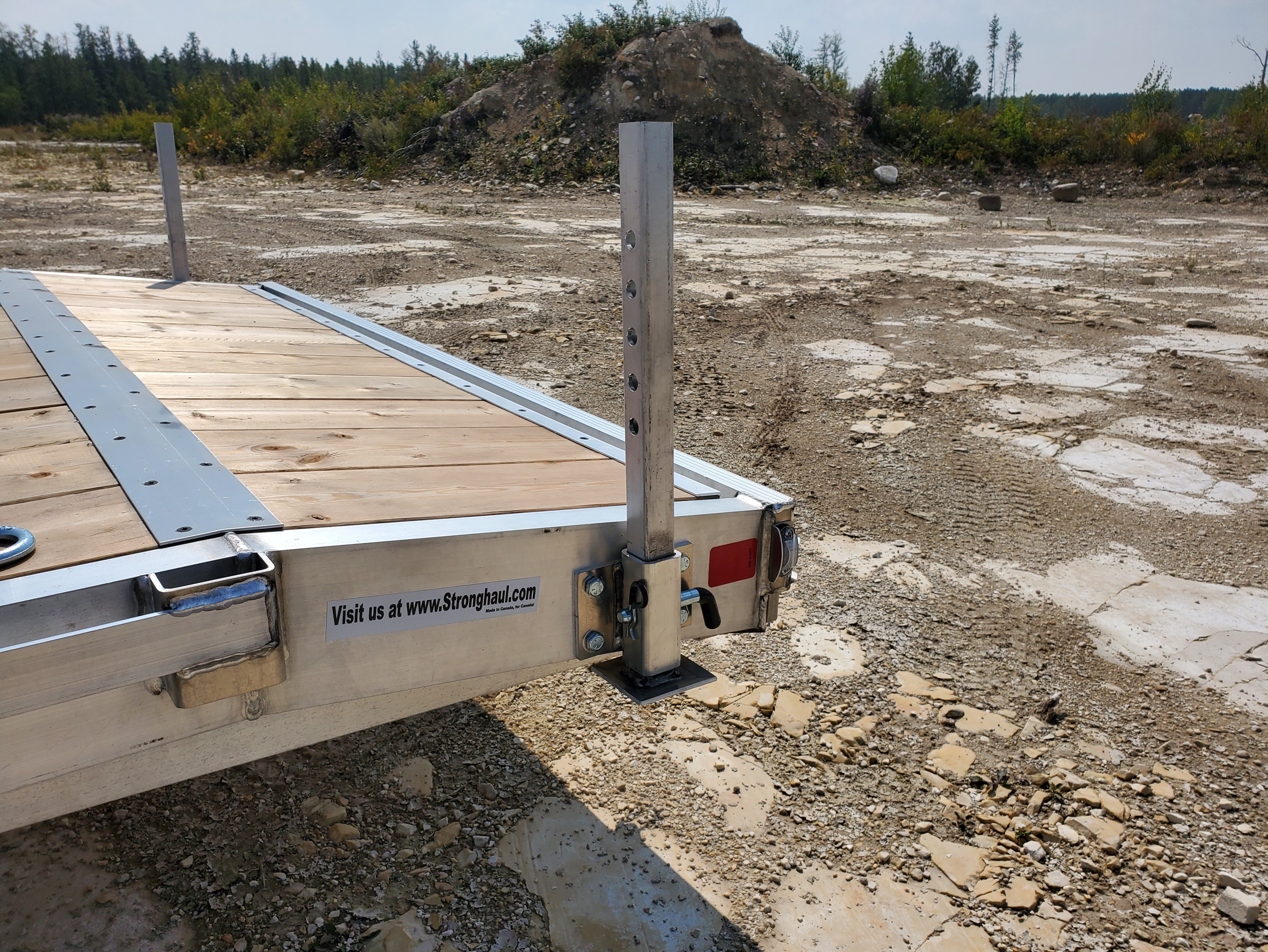

Stabilizer Stands, Drop Leg

For more trailer specs, details, and sizing please see below.

Contact a Dealer

More Information

Standard Features and Equipment

-6061 All Aluminum Frame

-2’ Dovetail Section, 3” Drop (Length of trailer includes DT section)

-13.5” Front Rail Height (Deck to top of Rail)

-3500lb Dexter Straight Axles, with Electric Self Adjusting Brakes (Changes to 5200lb axles on -52 models)

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-7-Pin RV Style Arctic Rated Electrical Connector

-Junction Box, Break-away Kit with Battery and Charger

-2-5/16” Ball Coupler, Max 2,100lb tongue WT, with Polypropylene Tape

-ST205/75R15 6-ply Radial Tires (ST225/75R15 7-ply tires for -DT52 models)

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, Black (6 on 5.5” for -DT52)

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-5,000lb, A-Frame Mounted, Drop Leg Jack

-2x8 Douglas Fir/Larch Plank Floor

-3/8” x 35” Safety Chains, 16.2K lb Rating, with Safety Latch

-Stake Pockets and Side Rub Rails, Removable Fenders

-4k lb Lashing Rings , ZP (6 rings on 16’ models, 8 on 18’, and 8 on 20’)

-Spare Tire Mount (Changes from front to side depending on tool box)

-Deck to Ground Height:  23” (both 3500lb and 5200lb models)

-Bumper to Ground Height: 20” (both 3500lb and 5200lb models)

-Ground to Coupler Height:  16” When Level (both 3500lb and 5200lb models)

-GVWR: 7000lbs on -DT35 models (9,990lbs on -DT52 models)

Standard Ramp Specs


Trailer is available with one of the following choices:

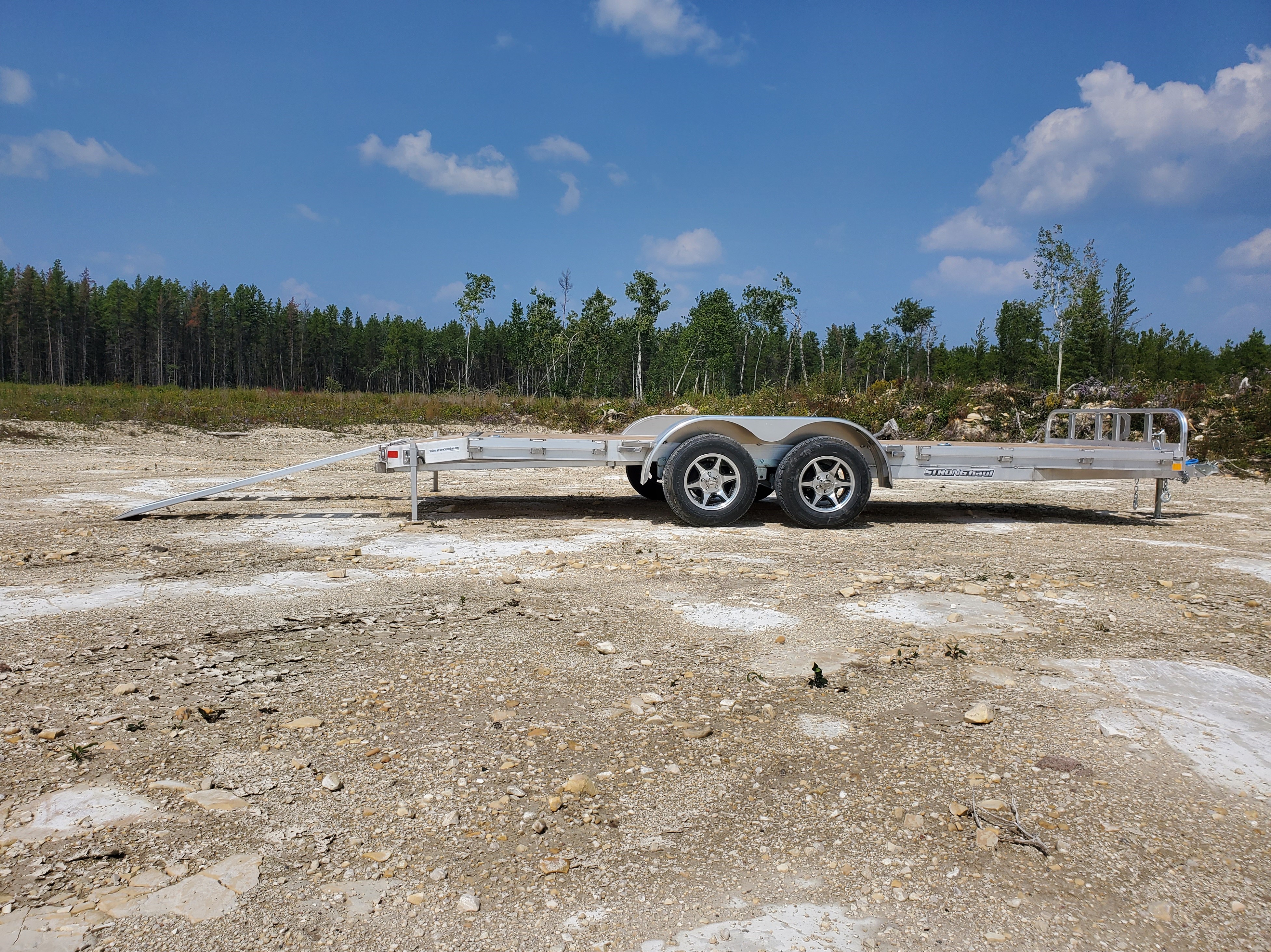

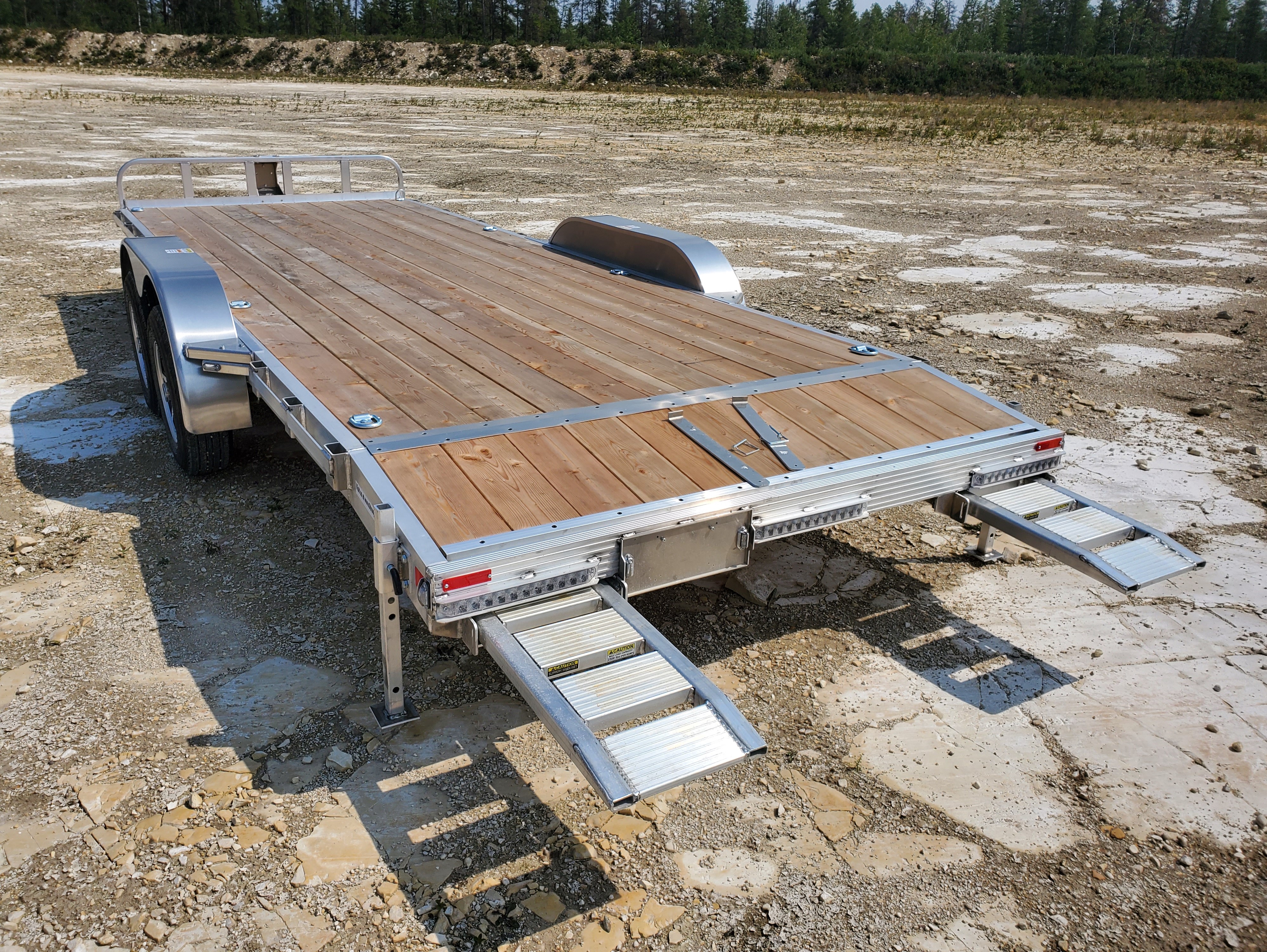

-Pocket Style Ramps, Mounts Under Rear of Deck, 2,500lb CAP/Ea, 78” L x 14” W

-Folding Rear Bi-Fold Ramp, Rated at 3000lbs, 54” L x 77” W (Ramp Width is trailer size -5.00” for fold down purposes)

Available Sizes w/ Pocket Style Ramp

Description

Payload

Dry Wt.

UATF-82x16-DT35

5,534 lbs

1466 lbs

UATF-82x18-DT35

5,450 lbs

1550 lbs

UATF-82x20-DT35

5,290 lbs

1710 lbs

UATF-82x16-DT52

8,270 lbs

1720 lbs

UATF-82x18-DT52

8,190 lbs

1800 lbs

UATF-82x20-DT52

8,030 lbs

1960 lbs

Stronghaul UATF-DT Brochure.PDF

Available Sizes w/ Bi-fold Ramp

Description

Payload

Dry Wt.

UATF-82x16-DT35-B

5,534 lbs

1466 lbs

UATF-82x18-DT35-B

5,450 lbs

1550 lbs

UATF-82x20-DT35-B

5,290 lbs

1710 lbs

UATF-82x16-DT52-B

8,270 lbs

1720 lbs

UATF-82x18-DT52-B

8,190 lbs

1800 lbs

UATF-82x20-DT52-B

8,030 lbs

1960 lbs

Stronghaul UATF-DT Brochure.PDF

Available Options For Both Ramp Styles

Description

Aluminum Wheel Upgrade PKG

Spare Wheel, Steel

Spare Wheel, Aluminum

Spray Shield, 82”

Extra Lashing Rings 4k lb

Recessed Lashing Rings 6k lb

Jack Caster Wheel
Side Mount Pivot Jack
Stabilizer Stands, Drop Leg
2-5/16” Adjustable Coupler
12” x 18” Winch Plate
Rail Cover (Stone Shield 15”)
Lockable Handle Tool Box
