Stronghaul UATF Brochure.PDF

-6061 All Aluminum Frame

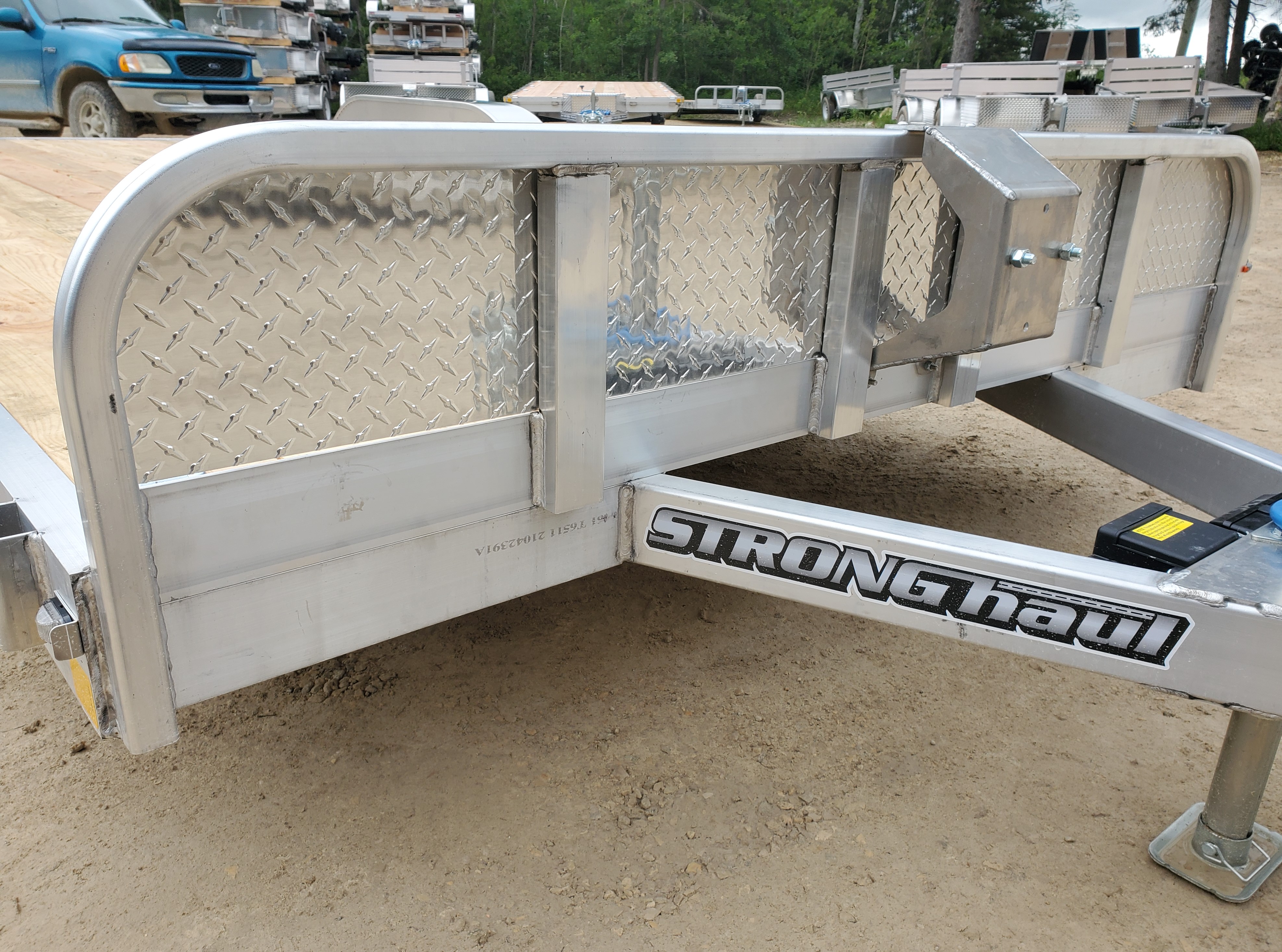

-13.5” Front Rail Height (Deck to top of Rail)

-3500lb Strt, Leaf Spring Axles, Elec. Brakes on -35 models

-5200lb Strt, Leaf Spring Axles, Elec. Brakes on -52 models (Torsions on 20’ model)

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-7-Pin RV Style Arctic Rated Electrical Connector

-Junction Box, Break-away Kit with Battery and Charger

-2-5/16” Ball Coupler, Max 2,100lb tongue WT, with Polypropylene Tape

-ST205/75R15 6-ply Radial Tires (ST225/75R15 7-ply tires for -52 models)

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, Black (6 on 5.5” for -52)

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-5,000lb, A-Frame Mounted, Drop Leg Jack

-2x8 Douglas Fir/Larch Plank Floor

-3/8” x 35” Safety Chains, 16.2K lb Rating, with Safety Latch

-Stake Pockets and Side Rub Rails, Removable Fenders

-4,000 lb Lashing Rings , ZP (6 rings on 12’,14’,16’ models, and 8 on 18’,20’ models)

-Spare Tire Mount (Changes from front to side depending on tool box)

-Deck to Ground Height:  23”

-Ground to Coupler Height:  16” When Level

-GVWR: 7000lbs on -35 models (9,980lbs on -52 models)

Trailer is available with one of the following choices:

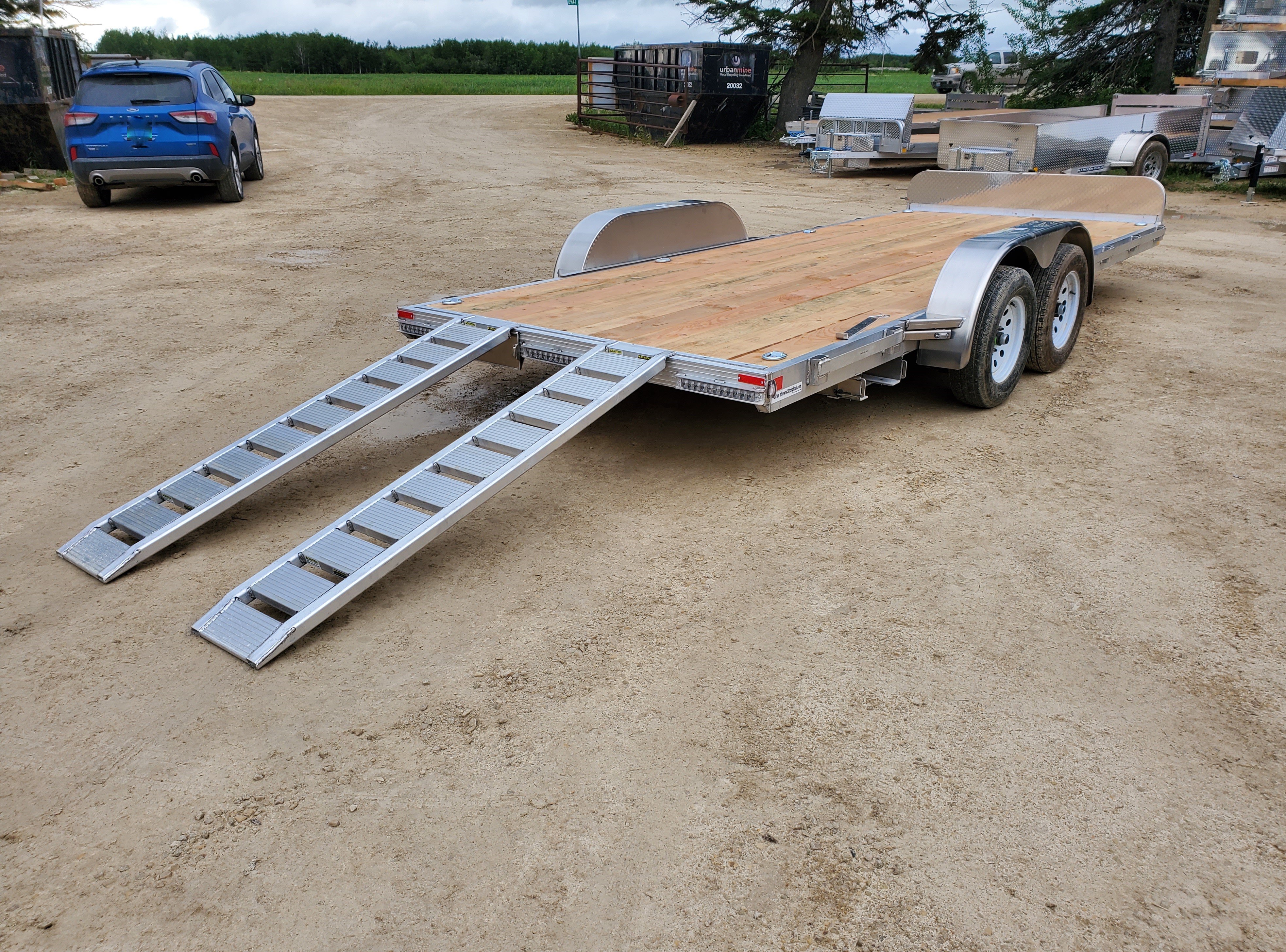

-Pocket Style Ramps, Mounts Under Rear of Deck, 2,500lb CAP/Ea, 78” L x 14” W

-Folding Rear Bi-Fold Ramp, Rated at 3000lbs, 54” L x 77” W (Ramp Width is trailer size -5.00” for fold down purposes)
