Stronghaul UASS-DR Brochure.PDF

-6061 All Aluminum Frame

-13.5” Side Height (Deck to top of Flange)

-3500lb Dexter Drop Axle, Idler

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-4-Pin Flat, Easy Pull Electrical Connector

-2” Ball Coupler, Max rating 700lb tongue WT, with Polypropylene Tape

-ST205/75R15 6-ply Radial Tires

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, Black

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-5,000lb, A-Frame Mounted, Drop Leg Jack

-2x10 Douglas Fir/Larch Plank Floor

-5/16” x 30” Safety Chains, 7.6K lb Rating, with Safety Latch

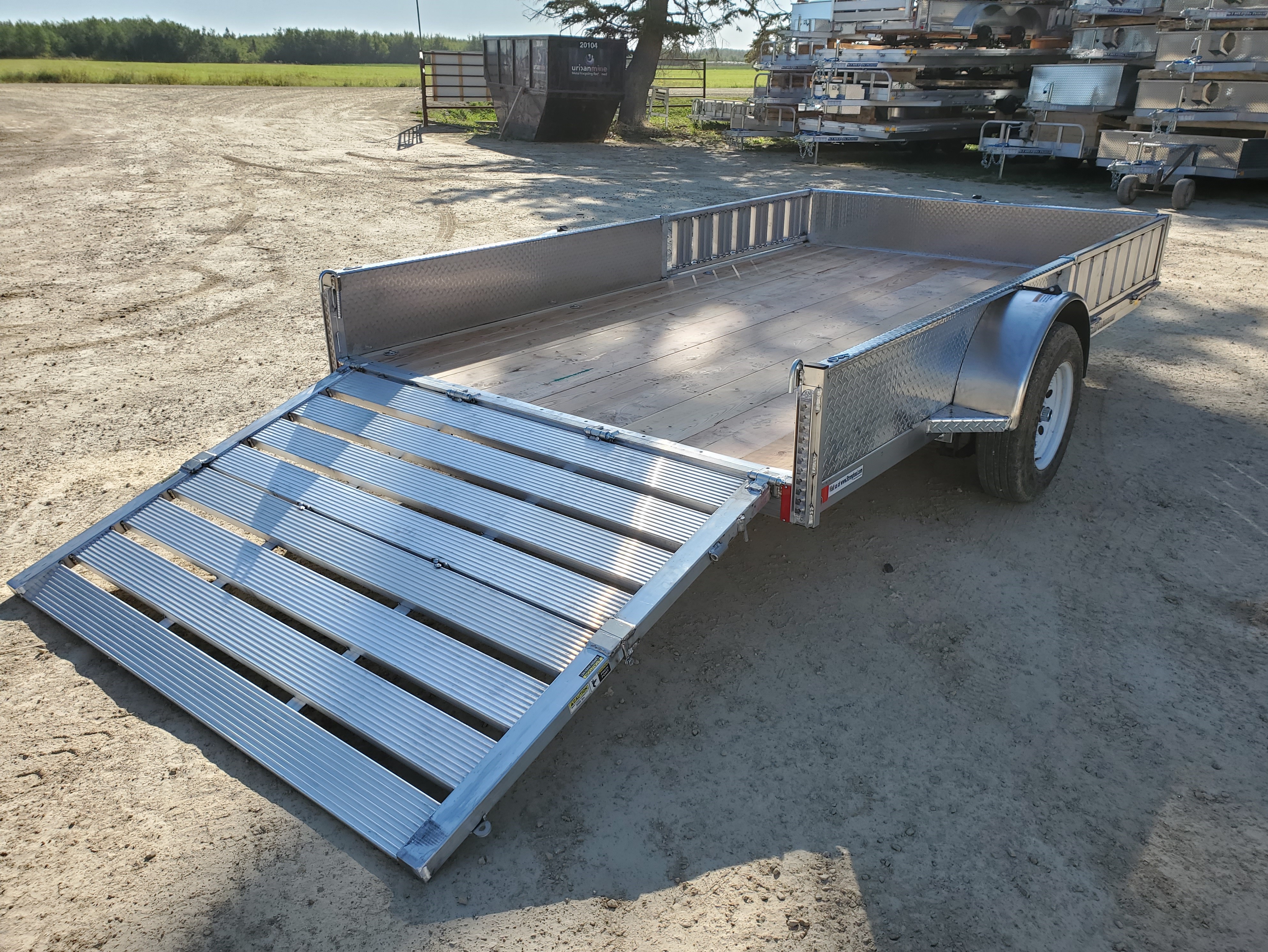

-Folding Rear Ramp rated at 3000lbs

-Ramp Unfolded Length:  54” L x 71” W (Ramp Width is trailer size - 5.00”)

-Ramp Folds Down onto Deck

-Side Loading Access w/ Drop in Ramp Gates, 1250 lb Capacity/Ea, 61” L x 13” W

-2,000lb Lashing Rings , ZP (8 rings on 12’ models, and 10 on 14’)

-Spare Tire Mount (Changes from front to side depending on tool box)

-Deck to Ground Height:  18”

-Ground to Coupler Height:  15” When Level

-GVWR: 2,990lbs (3,500lbs with additional electric brake option)
