Overview

Utility Style, Aluminum Frame, Single Axle, Solid Side Trailer with 24” Sides

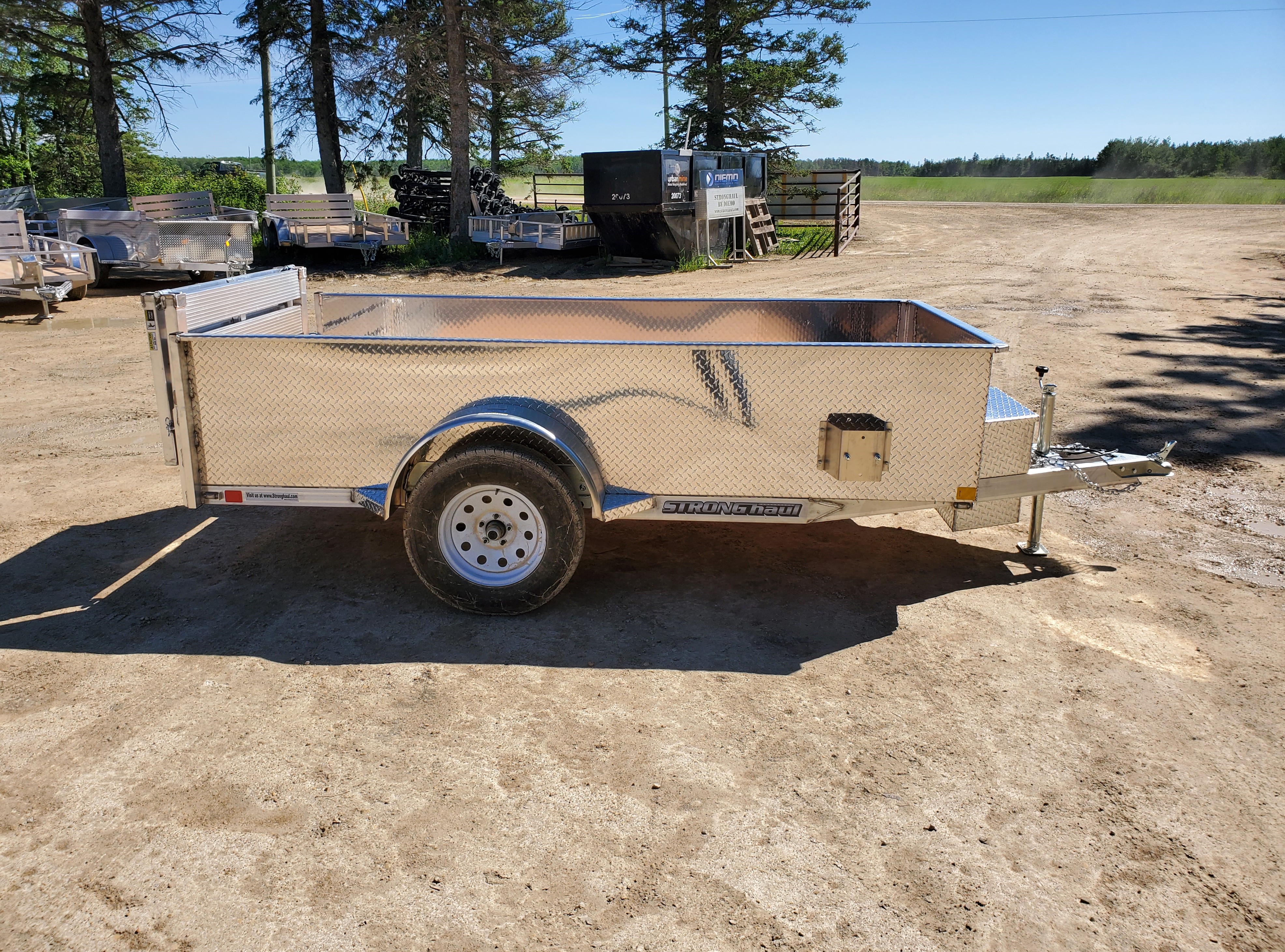

UASS-60x10 Model Displayed

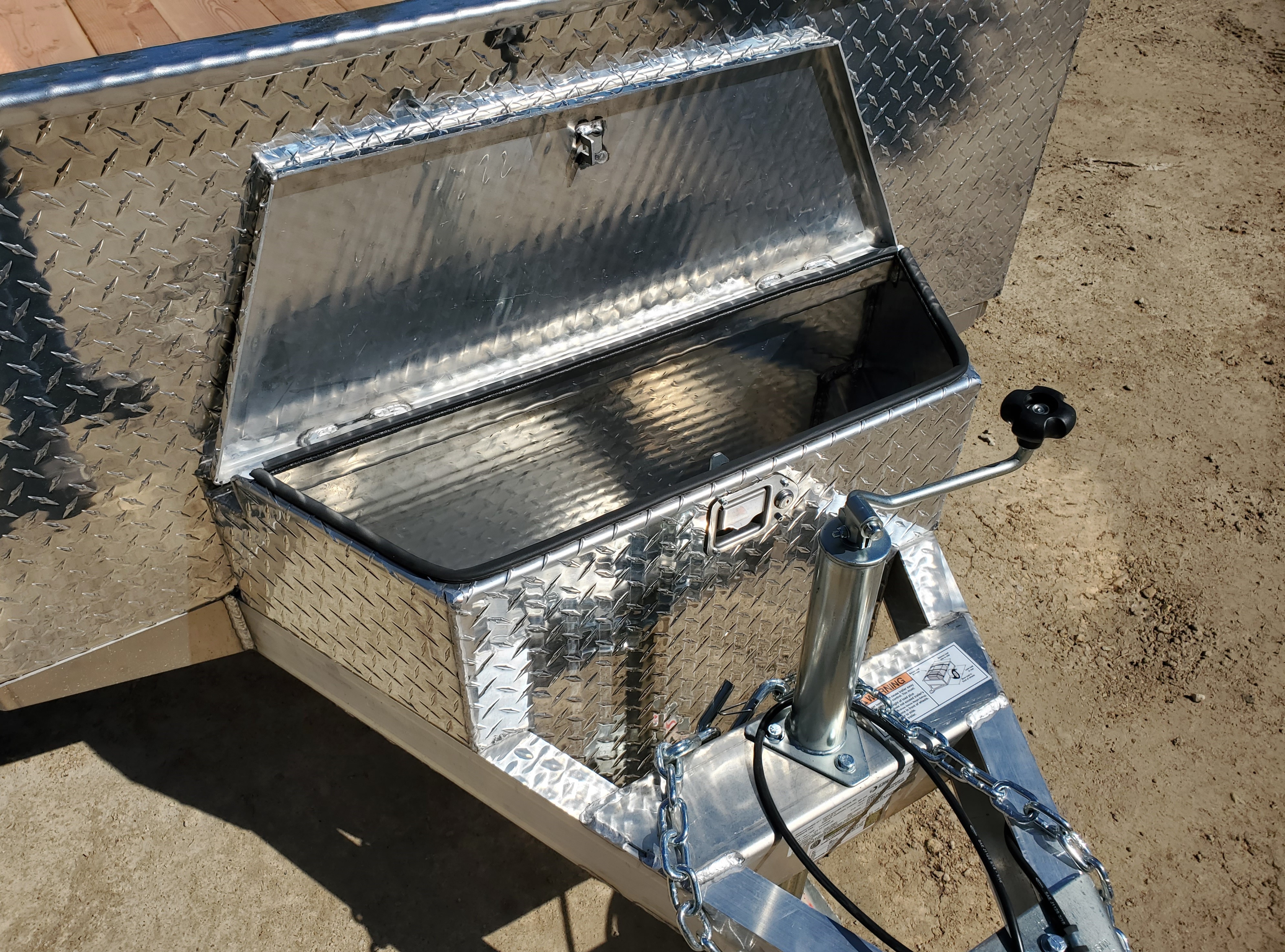

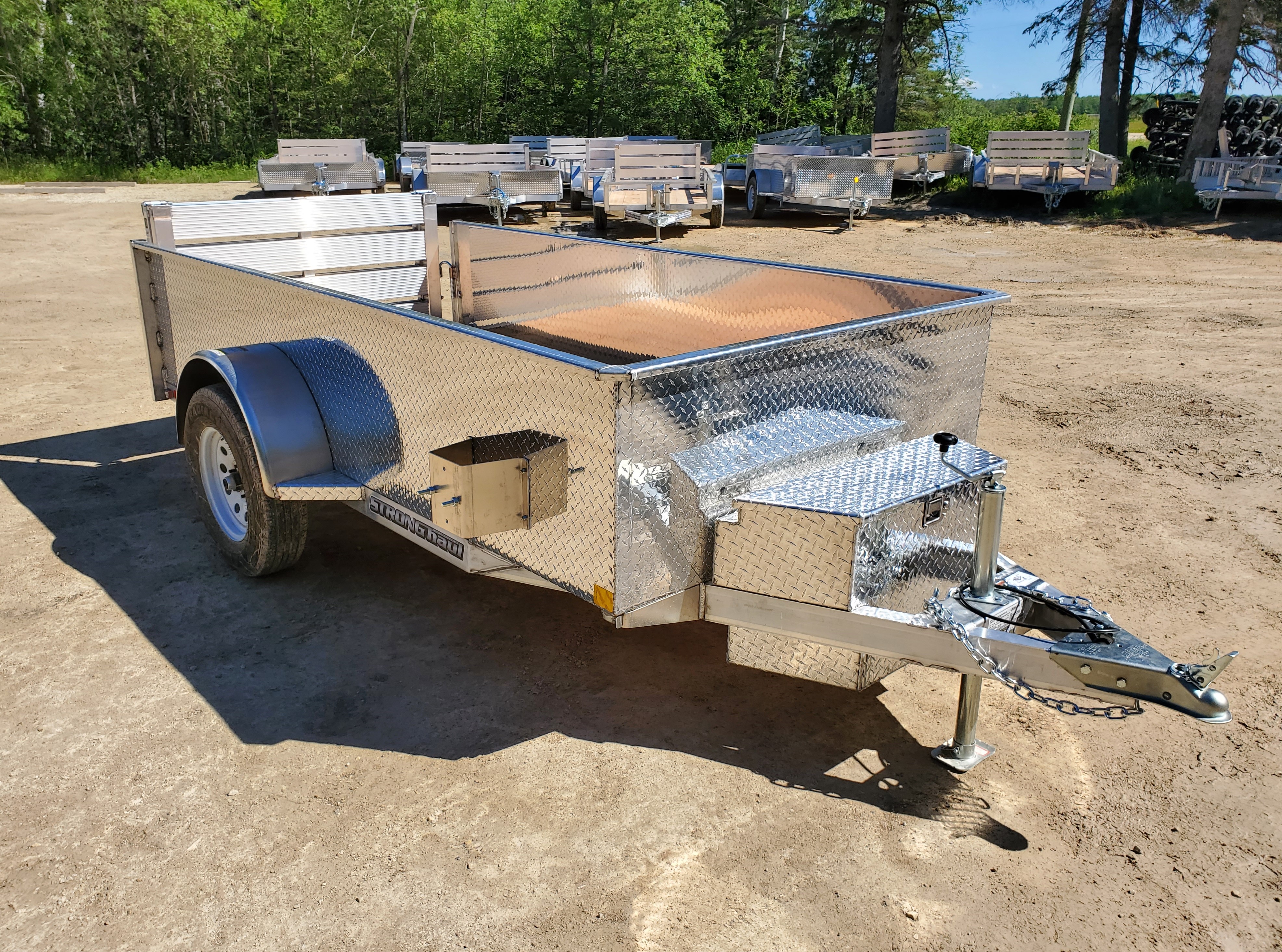

The featured trailer has the “A-frame Mounted, Lockable Handle Tool Box” option applied

With 24” sides this model is specific built for hauling loose loads and is Ideal to fit into tight spaces

For more trailer specs, details, and sizing please see below.

Contact a Dealer

More Information

Standard Features and Equipment

Stronghaul UASS-24 Brochure.PDF

-6061 All Aluminum Frame

-22.5” Side Height (Deck to top of Flange)

-3500lb Dexter Straight Axle, Idler

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-4-Pin Flat, Easy Pull Electrical Connector

-2” Ball Coupler, Max rating 700lb tongue WT, with Polypropylene Tape

-ST205/75R15 6-ply Radial Tires

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, Black

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-5,000lb, A-Frame Mounted, Drop Leg Jack

-2x10 Douglas Fir/Larch Plank Floor

-5/16” x 30” Safety Chains, 7.6K lb Rating, with Safety Latch

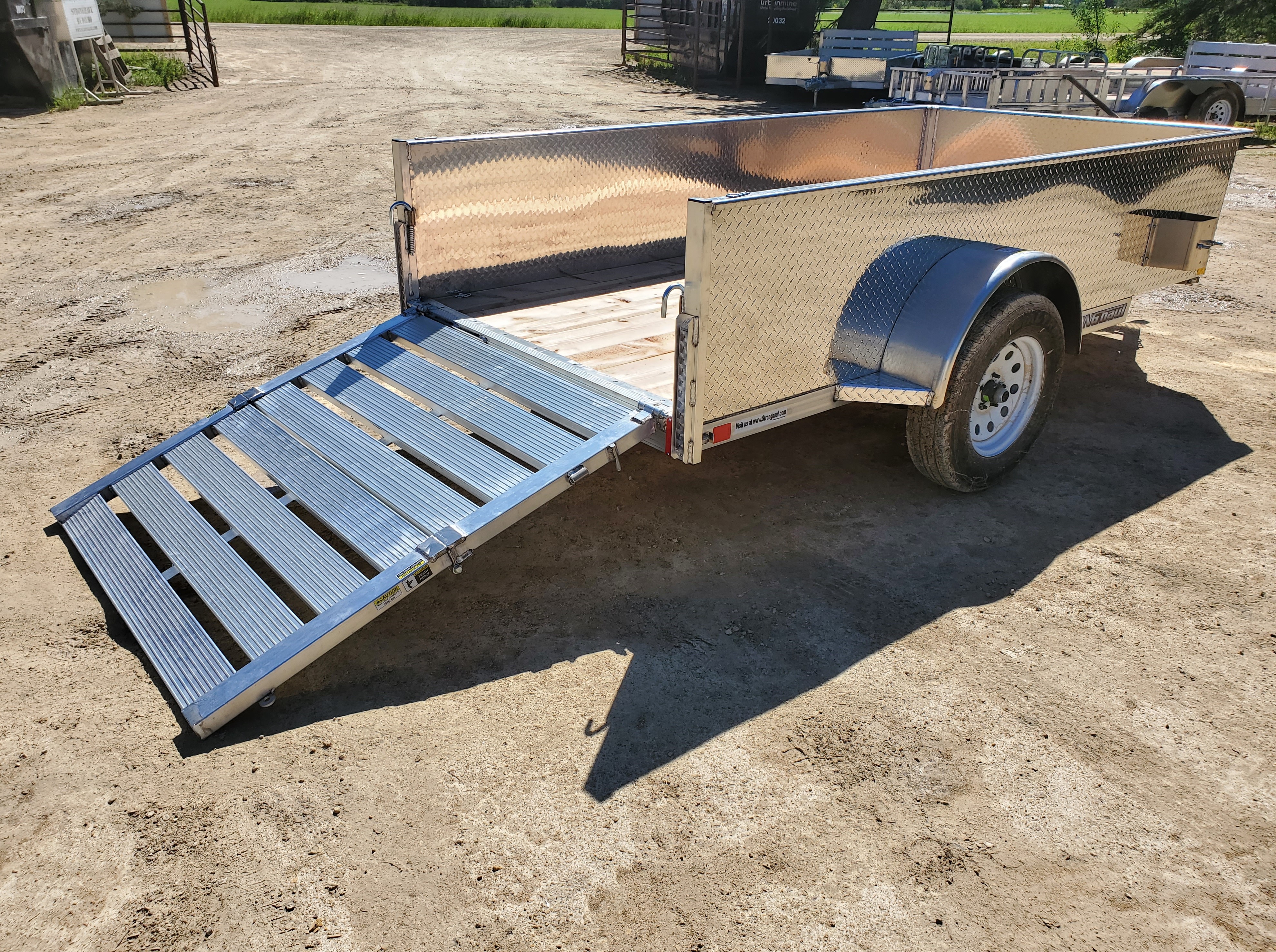

-Folding Rear Ramp rated at 3000lbs

-Ramp Unfolded Length:  54” L x 55” W (Ramp Width is trailer size - 5.00”)

-Ramp Folds Down onto Deck

-2,000lb Lashing Rings , ZP (4 rings on 8’ models, 6 on 10’, 8 on 12’, and 10 on 14’)

-Spare Tire Mount (Changes from front to side depending on tool box)

-Deck to Ground Height:  18”

-Ground to Coupler Height:  15” When Level

-GVWR: 2,990lbs (3,500lbs with additional electric brake option)

Available Sizes

Description

STD. Payload

Dry Wt.

UASS-60x10-24

2,192 lbs

798 lbs

UASS-60x12-24

2,114lbs

876 lbs

UASS-66x10-24

2,122 lbs

868 lbs

UASS-66x12-24

2,014 lbs

976 lbs

UASS-76x12-24

1,960 lbs

1030 lbs

Available Options

Description

Aluminum Wheel Upgrade PKG

Spare Wheel, Steel

Spare Wheel, Aluminum

Spray Shield, Solid Side, 60”

Spray Shield, Solid Side, 66”

Spray Shield, Solid Side, 76”

Extra Lashing Rings 2k lb

Jack Caster Wheel

Side Mount Pivot Jack

A-Frame Mounted, Lockable Handle Tool Box

Electric Braking Axle Upgrade
