Overview

Utility Style, Aluminum Frame, Single Axle, Solid Side Trailer

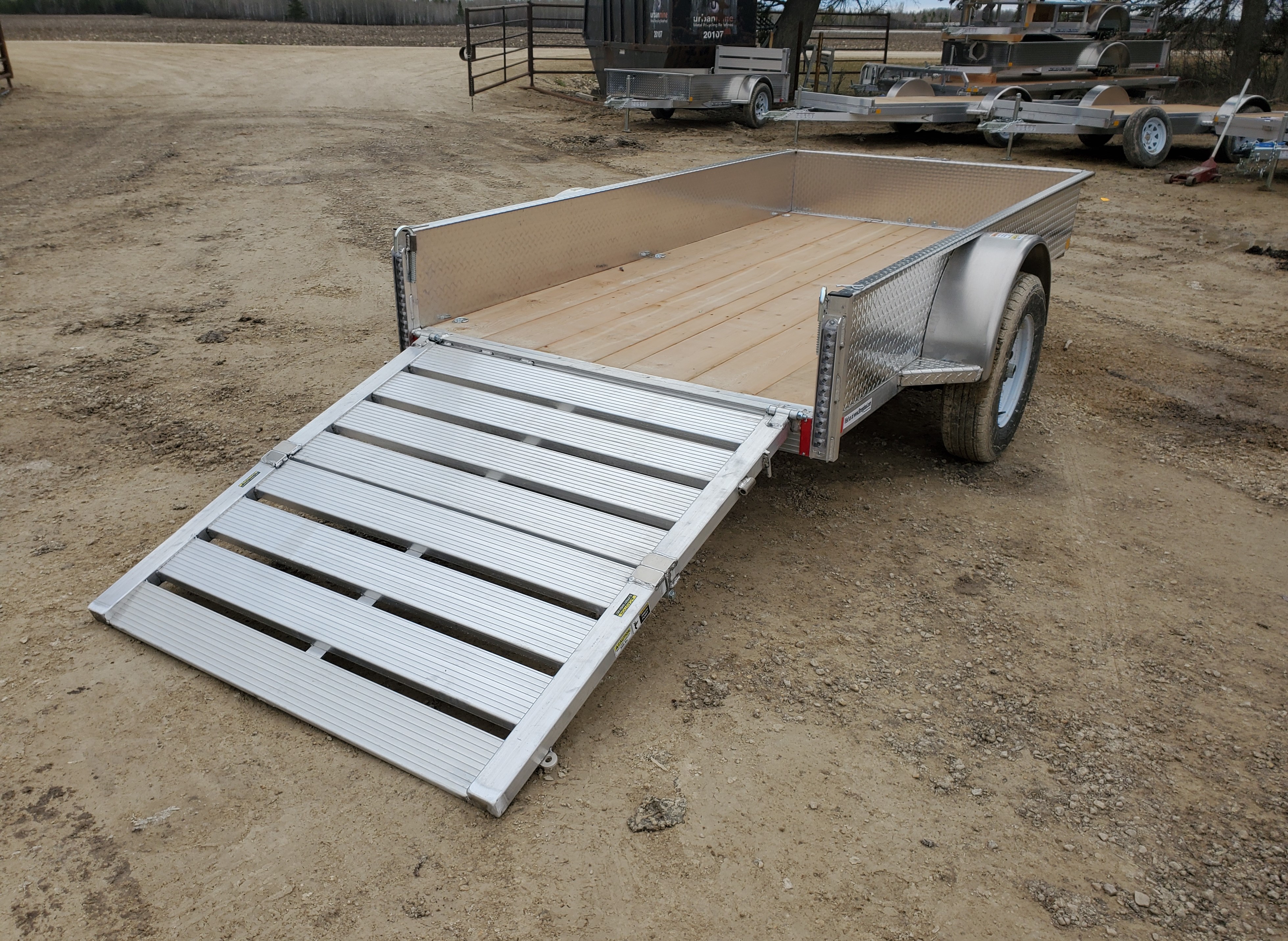

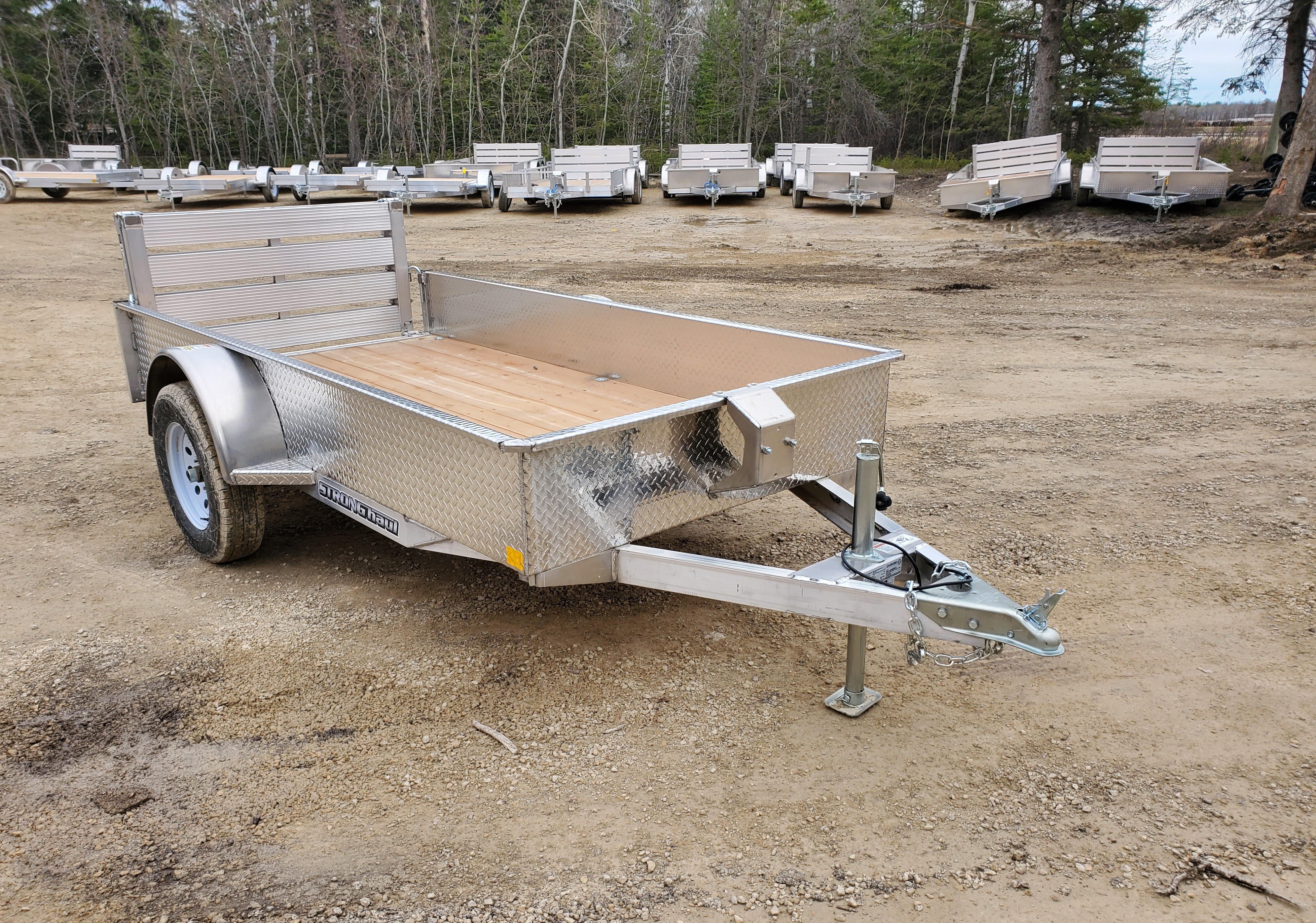

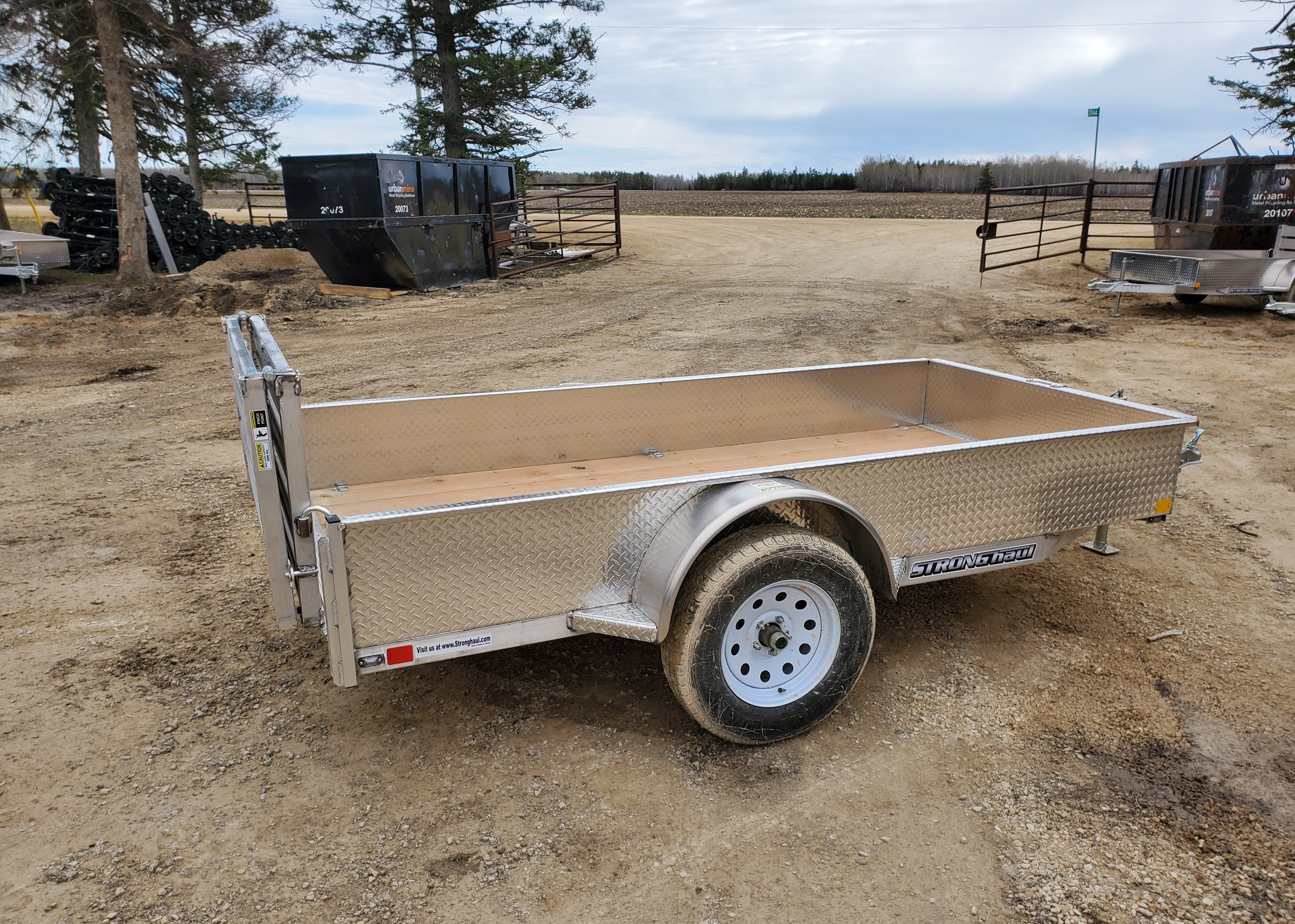

UASS-60x10 Model Displayed

Looking for a small maneuverable trailer with big hauling capabilities?

This may be the perfect fit for you!

For more trailer specs, details, and sizing please see below.

Contact a Dealer

More Information

Standard Features and Equipment

Stronghaul UASS Brochure.PDF

-6061 All Aluminum Frame

-13.5” Side Height (Deck to top of Flange)

-3500lb Dexter Straight Axle, Idler

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-4-Pin Flat, Easy Pull Electrical Connector

-2” Ball Coupler, Max rating 700lb tongue WT, with Polypropylene Tape

-ST205/75R15 6-ply Radial Tires

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, White

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-5,000lb, A-Frame Mounted, Drop Leg Jack

-2x10 Douglas Fir/Larch Plank Floor

-5/16” x 30” Safety Chains, 7.6K lb Rating, with Safety Latch

-Folding Rear Ramp rated at 3000lbs

-Ramp Unfolded Length:  54” L x 55” W (Ramp Width is trailer size - 5.00”)

-Ramp Folds Down onto Deck

-2,000lb Lashing Rings , ZP (4 rings on 8’ models, 6 on 10’, 8 on 12’, and 10 on 14’)

-Spare Tire Mount (Changes from front to side depending on tool box)

-Deck to Ground Height:  18”

-Ground to Coupler Height:  15” When Level

-GVWR: 2,990lbs (3,500lbs with additional electric brake option)

Available Sizes

Description

STD. Payload

Dry Wt.

UASS-60x8

2,370 lbs

620 lbs

UASS-60x10

2,345 lbs

645 lbs

UASS-60x12

2,290 lbs

700 lbs

UASS-66x8

2,330 lbs

660 lbs

UASS-66x10

2,280 lbs

710 lbs

UASS-66x12

2,170 lbs

820 lbs

UASS-76x10

2,210 lbs

780 lbs

UASS-76x12

2,110 lbs

880 lbs

UASS-76x14

1,910 lbs

1080 lbs

UASS-82x12

2,010 lbs

980 lbs

UASS-82x14

1,810 lbs

1180 lbs



Available Options

Description

Aluminum Wheel Upgrade PKG

Spare Wheel, Steel

Spare Wheel, Aluminum

Spray Shield, Solid Side, 60”

Spray Shield, Solid Side 66”

Spray Shield, Solid Side 76”

Spray Shield, Solid Side 82”

Drop In Rear Panel, 60”

Drop In Rear Panel, 66”

Drop In Rear Panel, 76”

Drop In Rear Panel, 82”

Extra Lashing Rings 2k lb

Jack Caster Wheel

Side Mount Pivot Jack

A-Frame Mounted, Lockable Handle Tool Box

Electric Braking Axle Upgrade
