Standard Features and Equipment
-6061 All Aluminum Frame
-13.5” Side Height (Deck to top of Rail)
-3500lb Dexter Straight Axle, Idler
-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape
-4-Pin Flat, Easy Pull Electrical Connector
-2” Ball Coupler, Max rating 700lb tongue WT, with Polypropylene Tape
-ST205/75R15 6-ply Radial Tires
-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, Black
-LED Lighting Package
-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

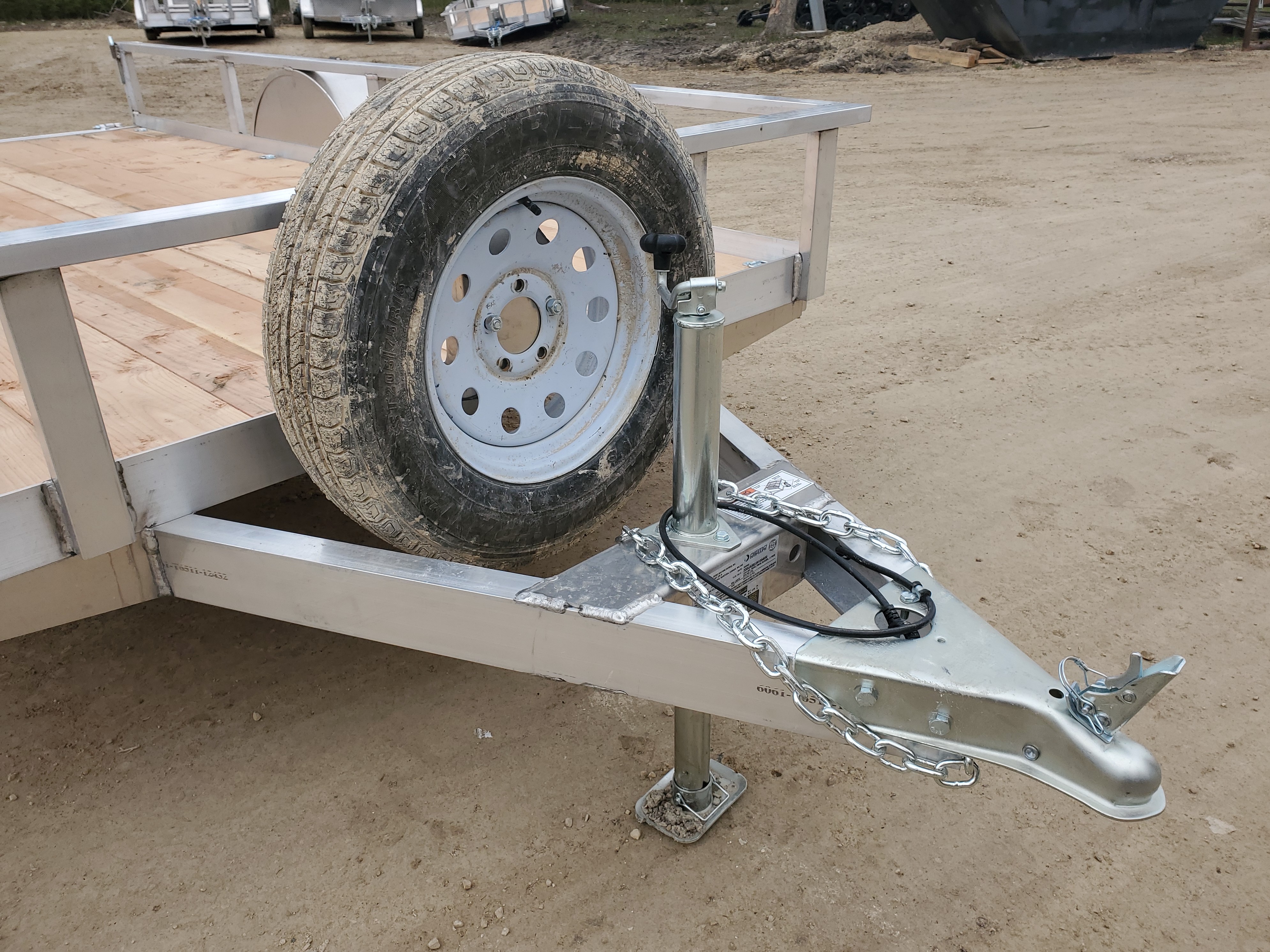

-5,000lb, A-Frame Mounted, Drop Leg Jack
-2x10 Douglas Fir/Larch Plank Floor
-5/16” x 30” Safety Chains, 7.6K lb Rating, with Safety Latch

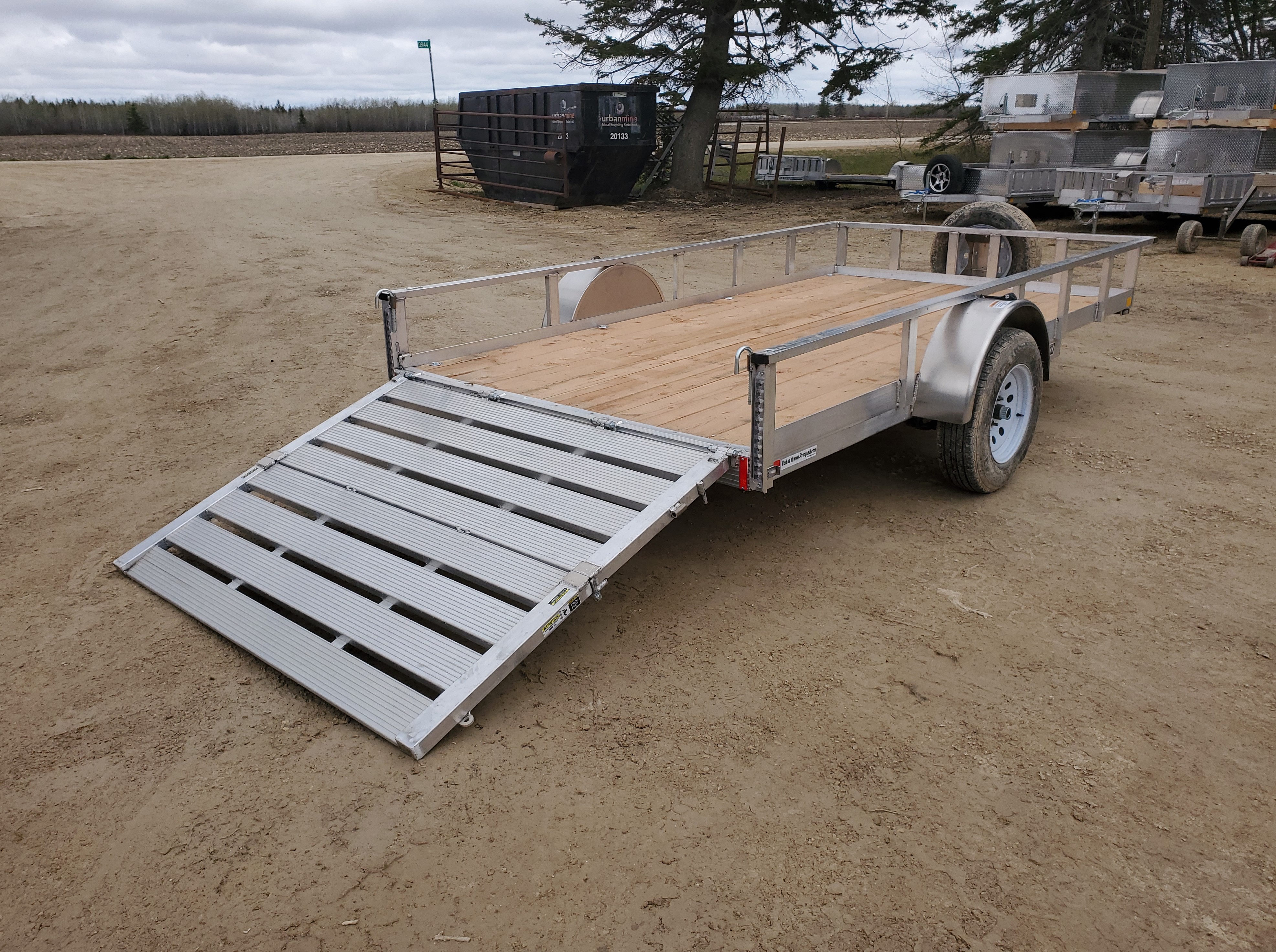

-Folding Rear Ramp rated at 3000lbs
-Ramp Unfolded Length: 54” L x 71” W (Ramp Width is trailer size - 5.00”)
-Ramp Folds Down onto Deck
-2,000lb Lashing Rings , ZP (4 rings on 8’ models, 6 on 10’, 8 on 12’, and 10 on 14’)
-Spare Tire Mount (Changes from front to side depending on tool box)
-Deck to Ground Height: 18”
-Ground to Coupler Height: 15” When Level
-GVWR: 2,990lbs (3,500lbs with additional electric brake option)
