Stronghaul SASD_SATD-G1 Brochure.PDF

-6061 All Aluminum Frame

-3500lb Straight Axle, Idler

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-4-Pin Flat, Easy Pull Electrical Connector

-2” Ball Coupler, Max rating 700lb tongue WT, with Polypropylene Tape

-ST205/75R15 6-ply Radial Tires

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, Black

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-A-Frame Mounted Jack Rated at 5K lbs

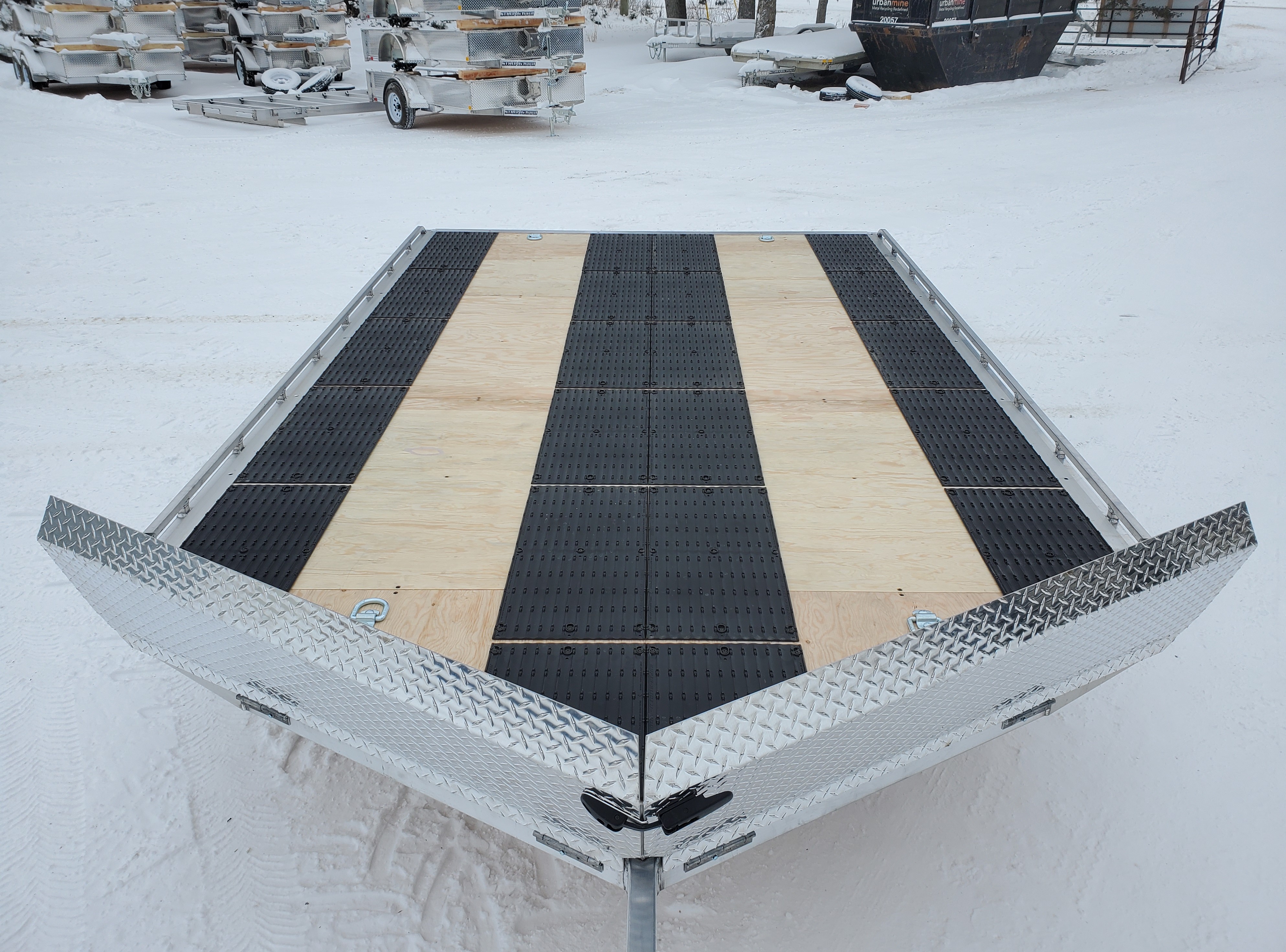

-3/4” Douglas Fir/Larch Plywood Floor

-5/16” x 30” Safety Chains, 7.6K lb Rating, with Safety Latch

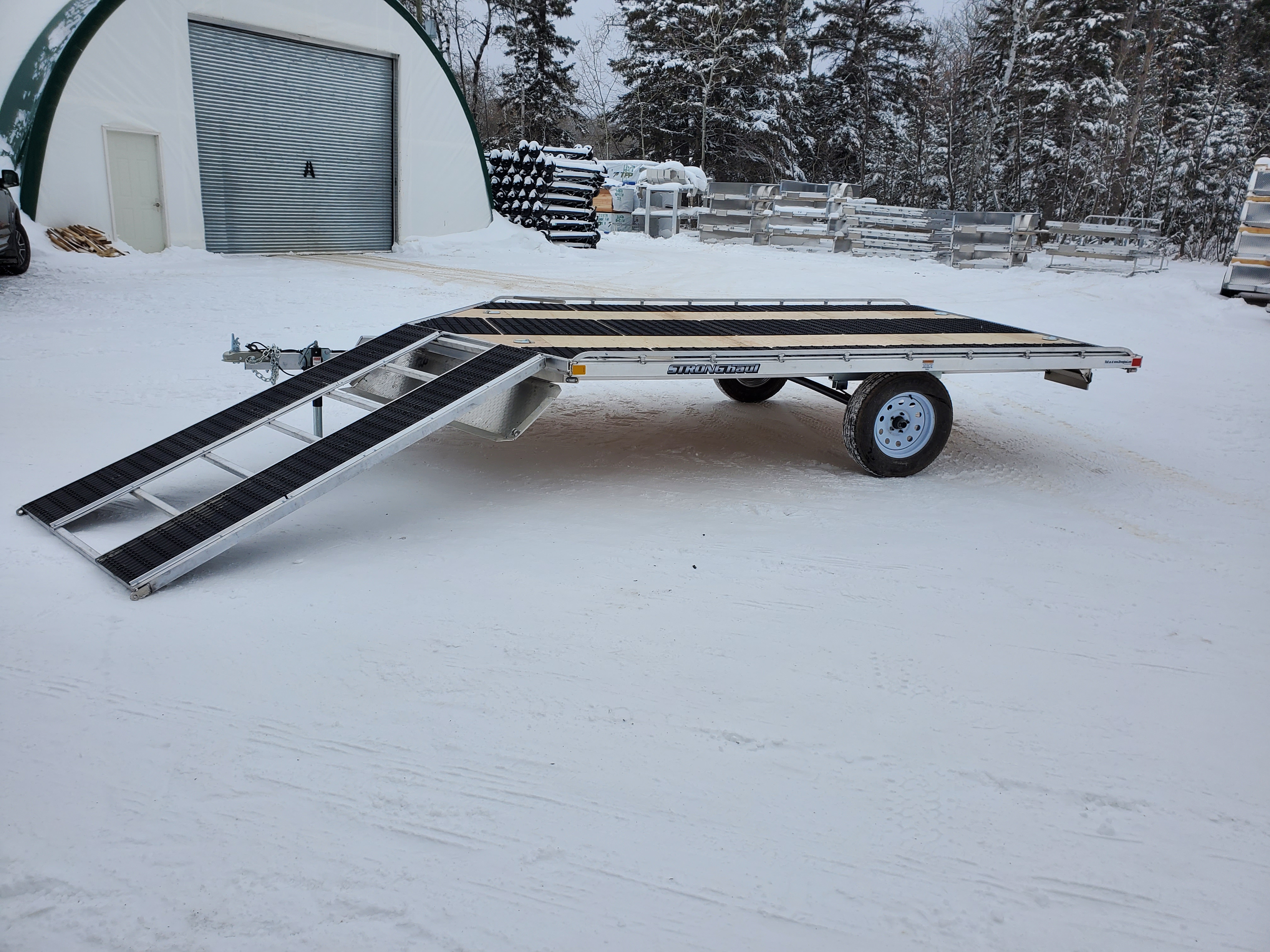

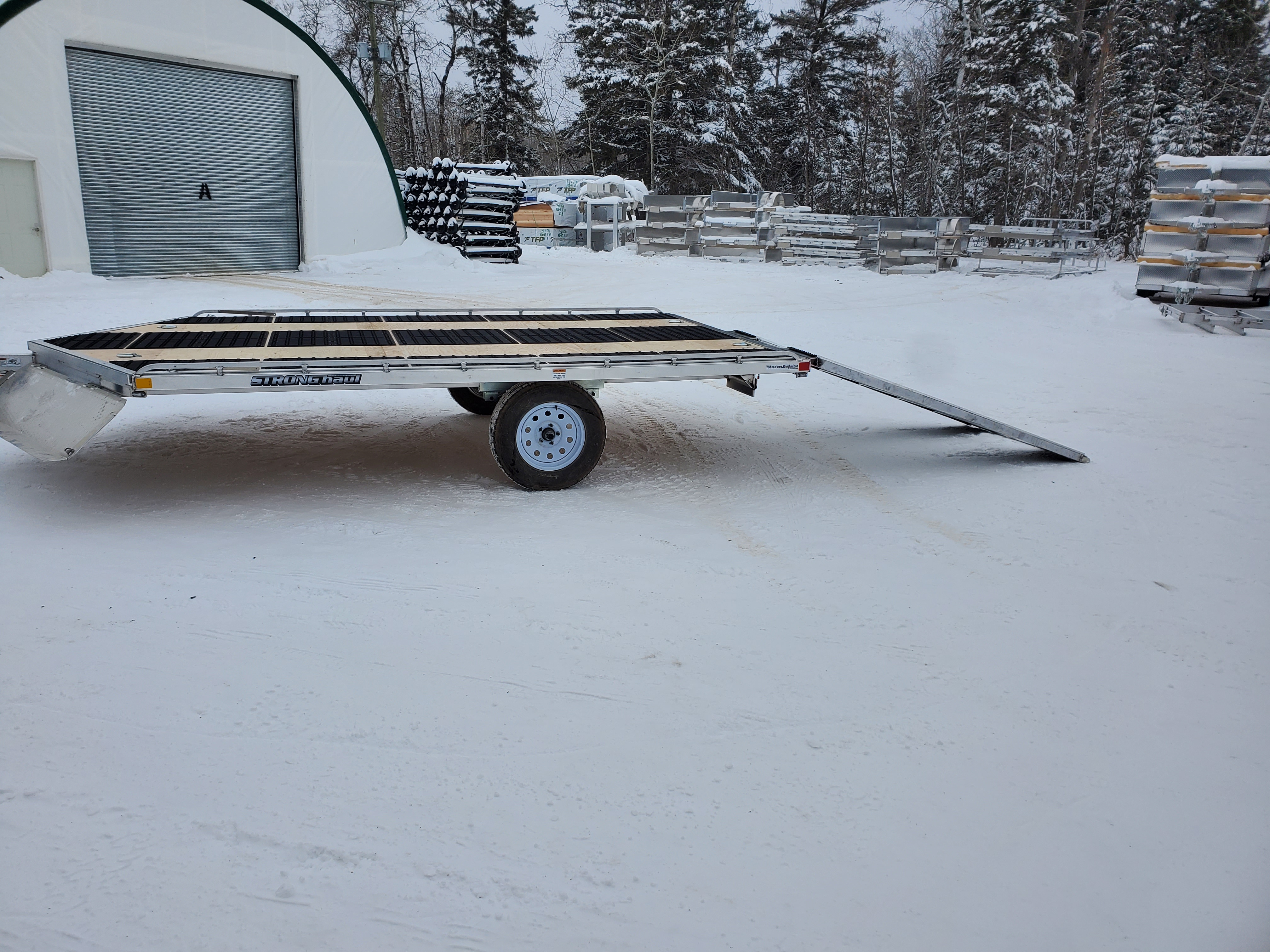

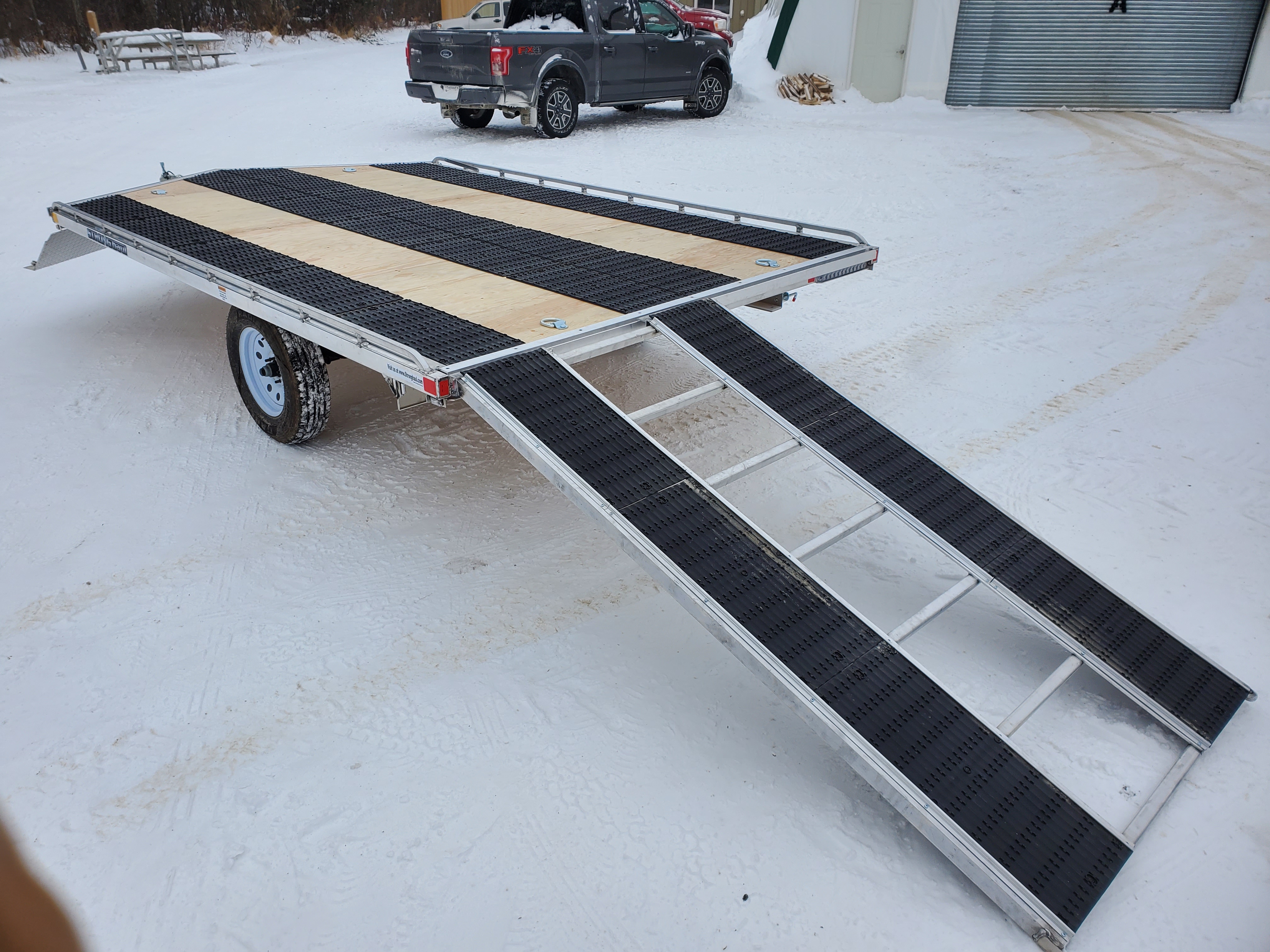

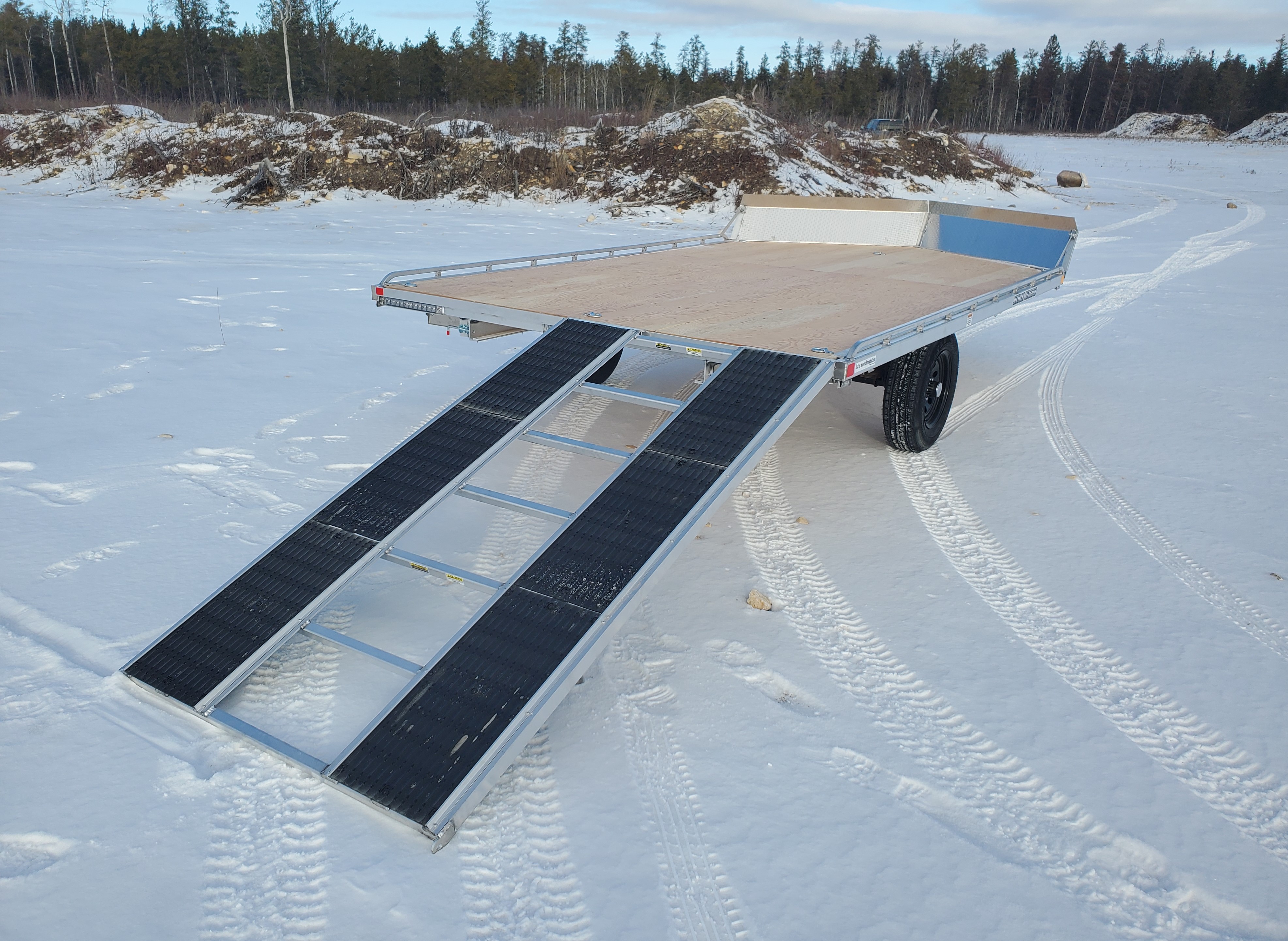

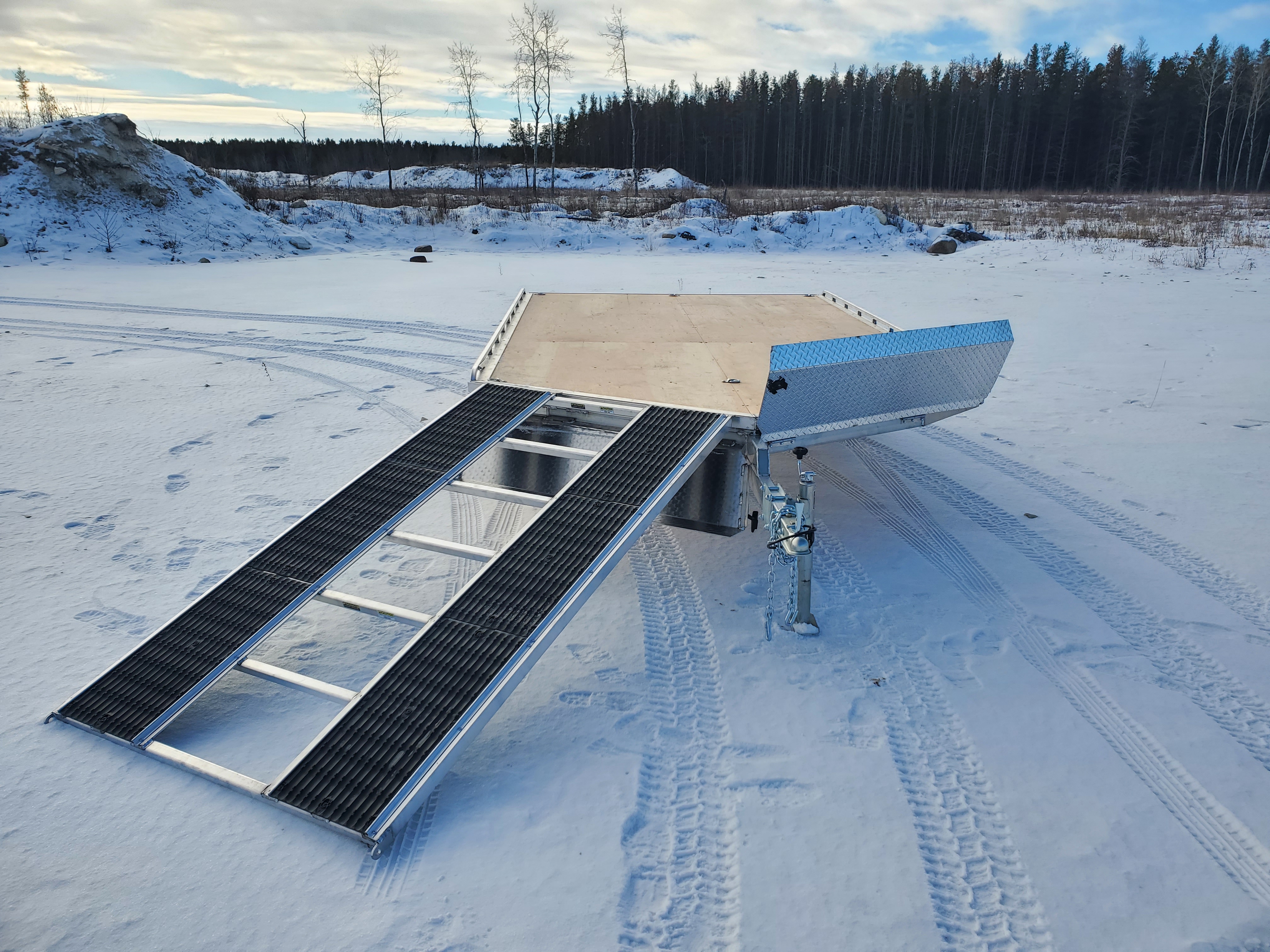

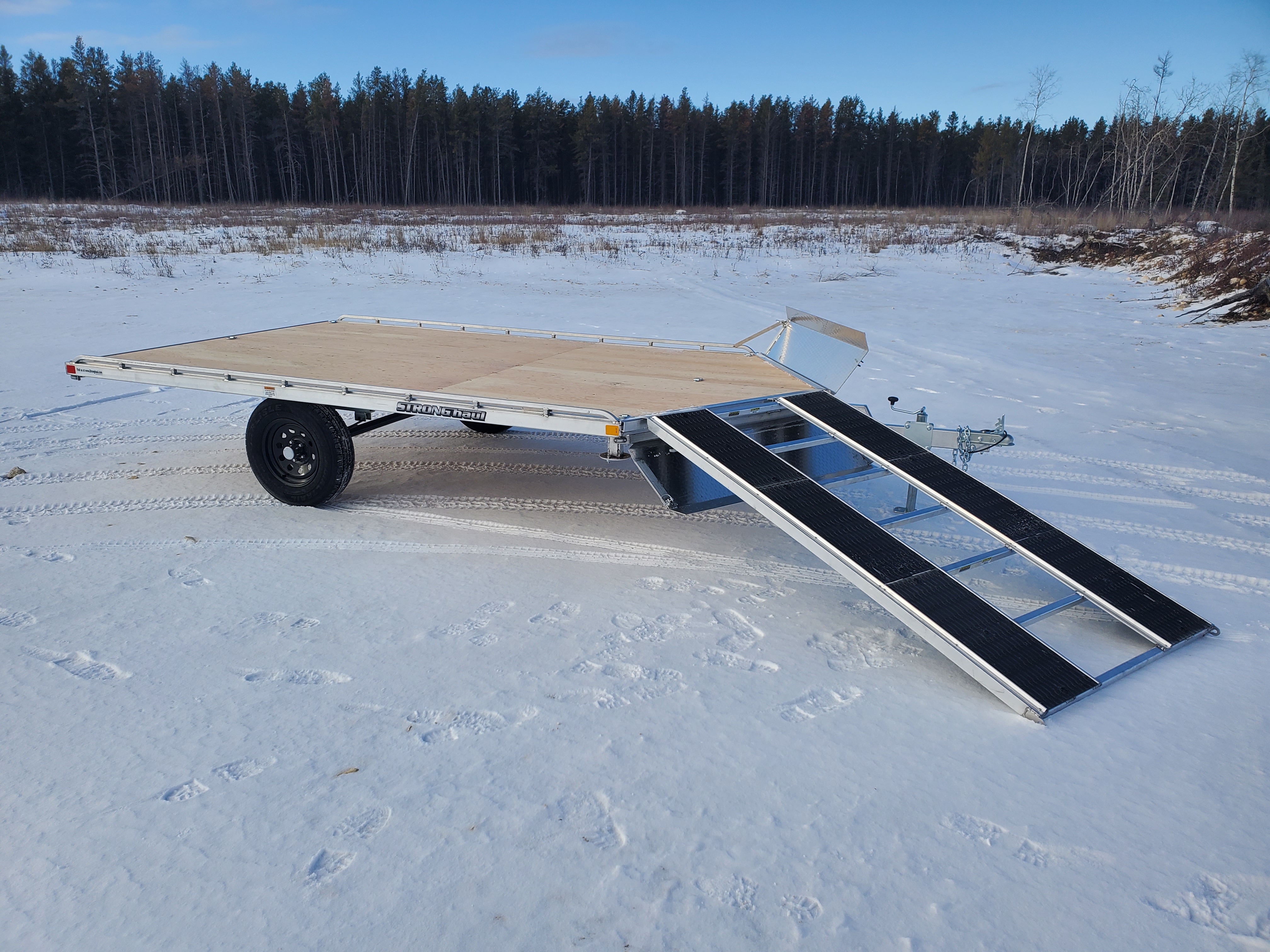

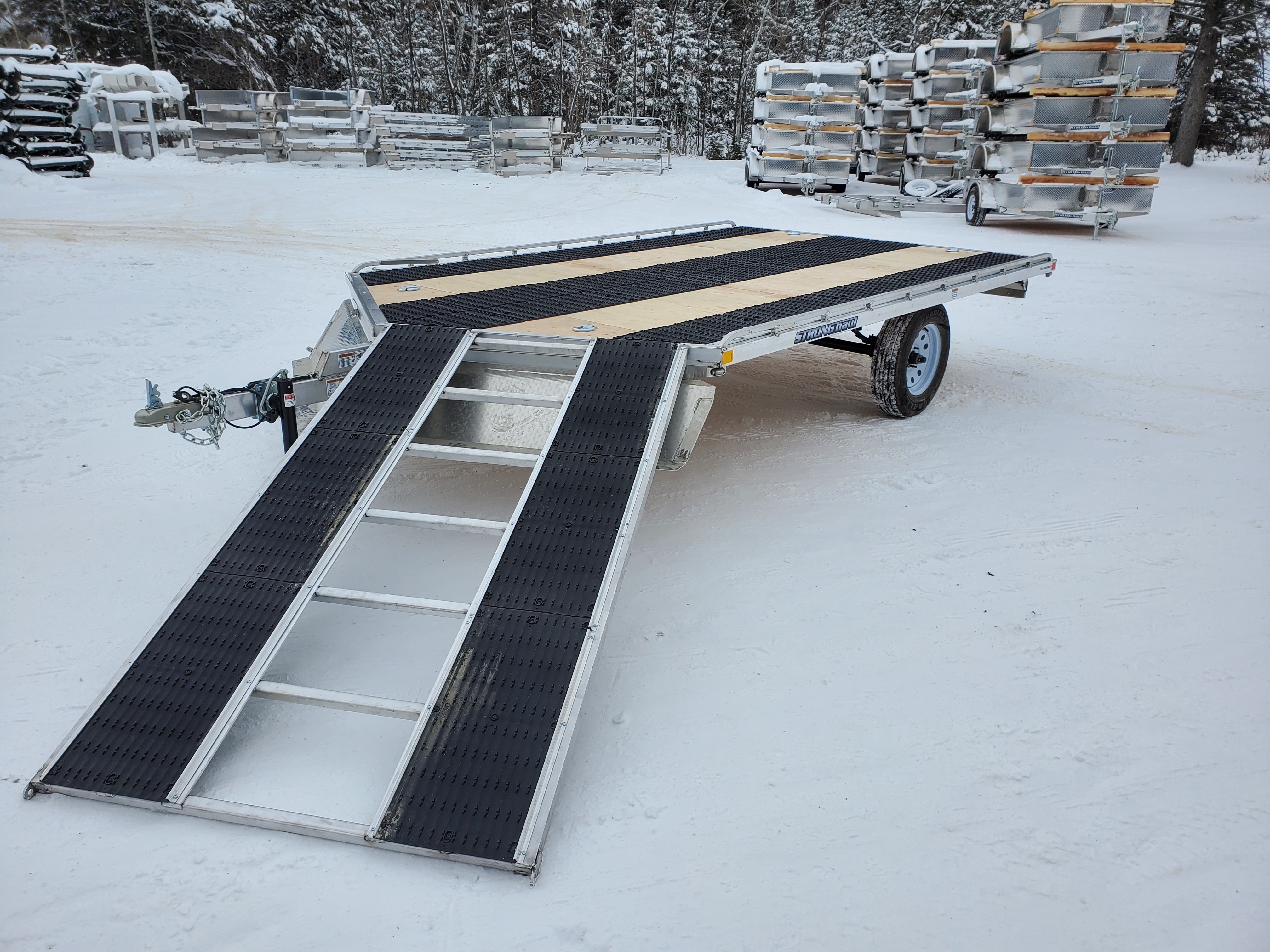

-Pull Out Rear Ramp Rated at 1000lbs, 90” L x 51” W

-6 x 2,000lb Lashing Rings , ZP

-Full Length 3” High Side Rail

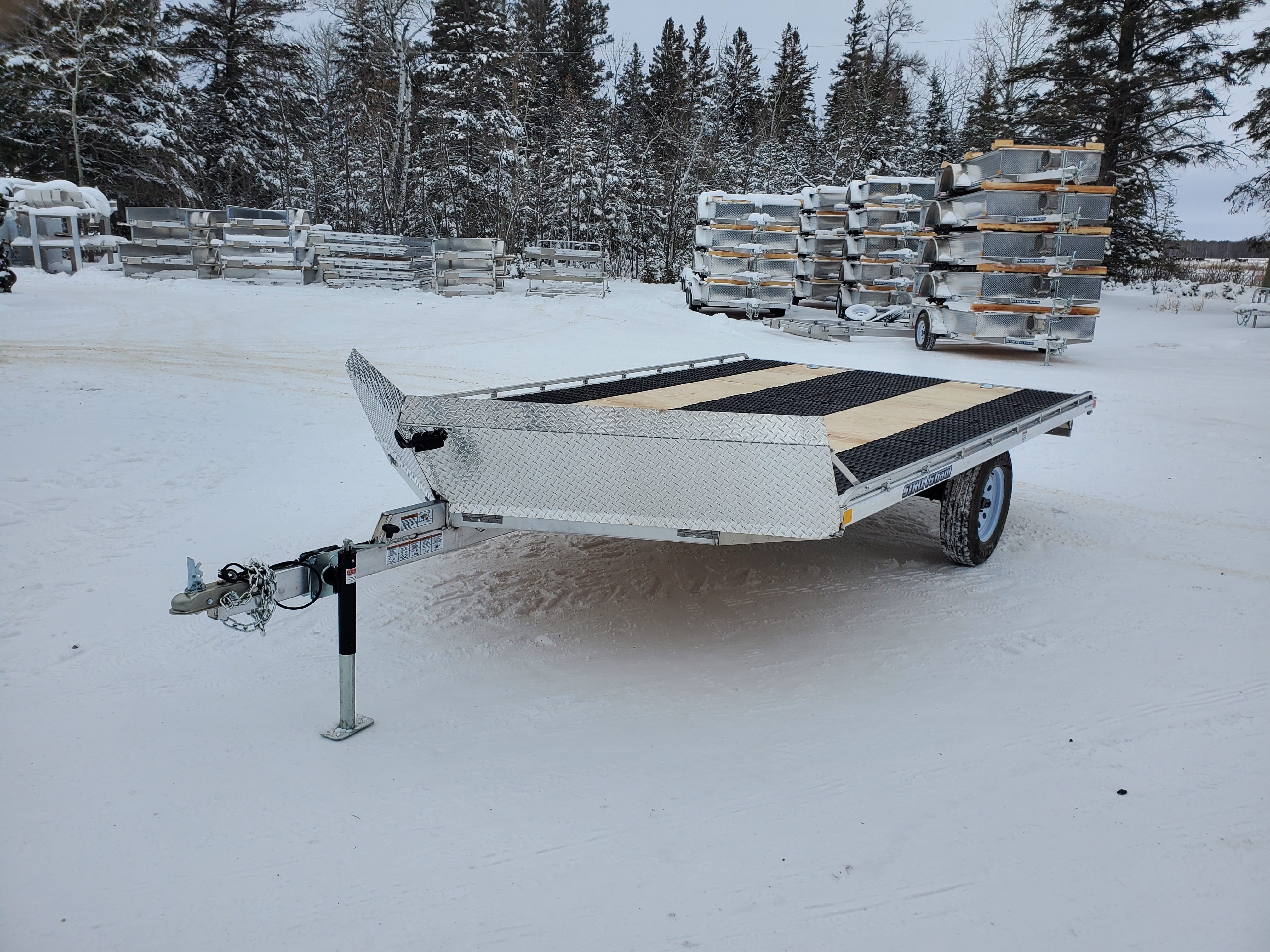

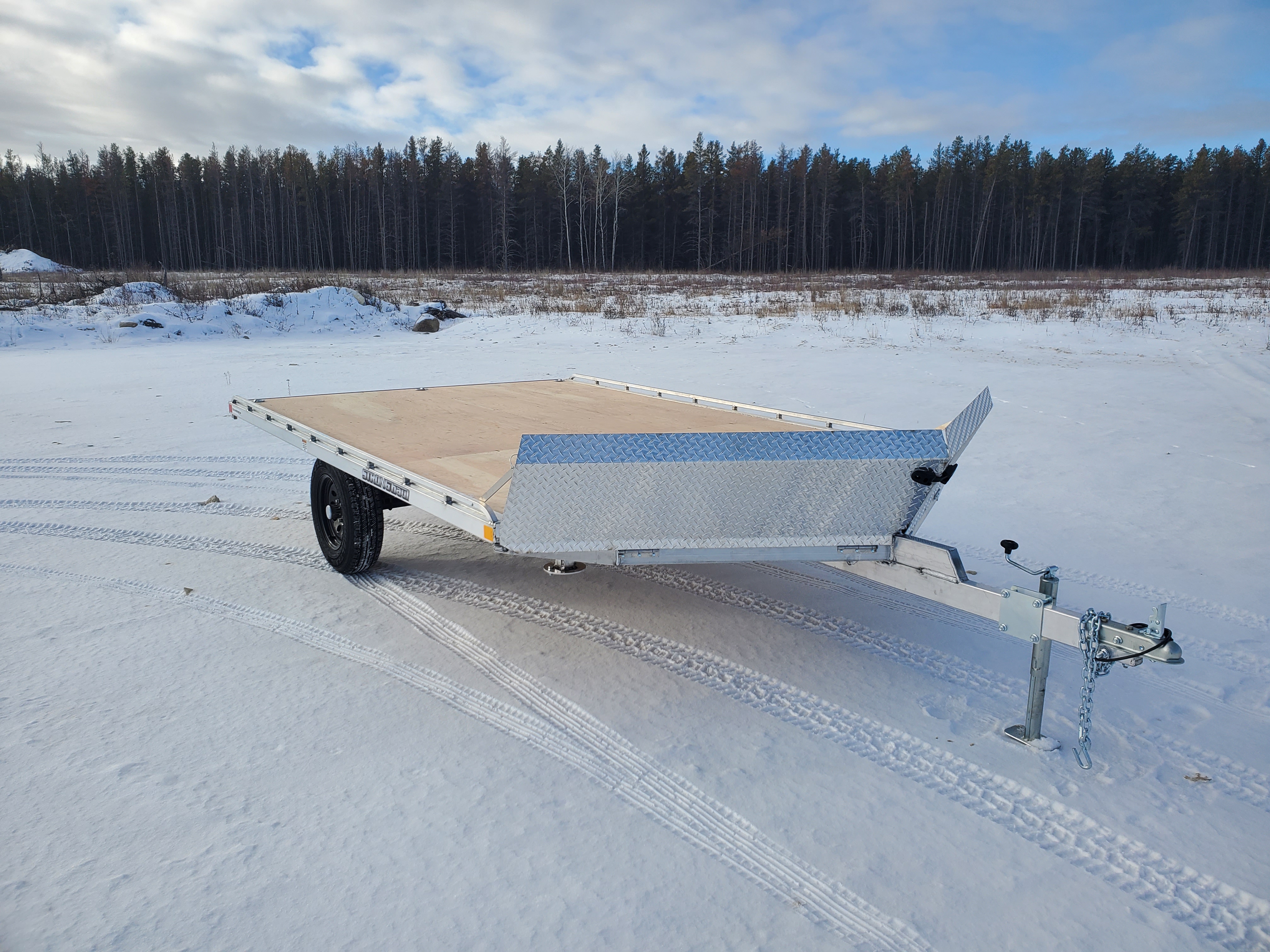

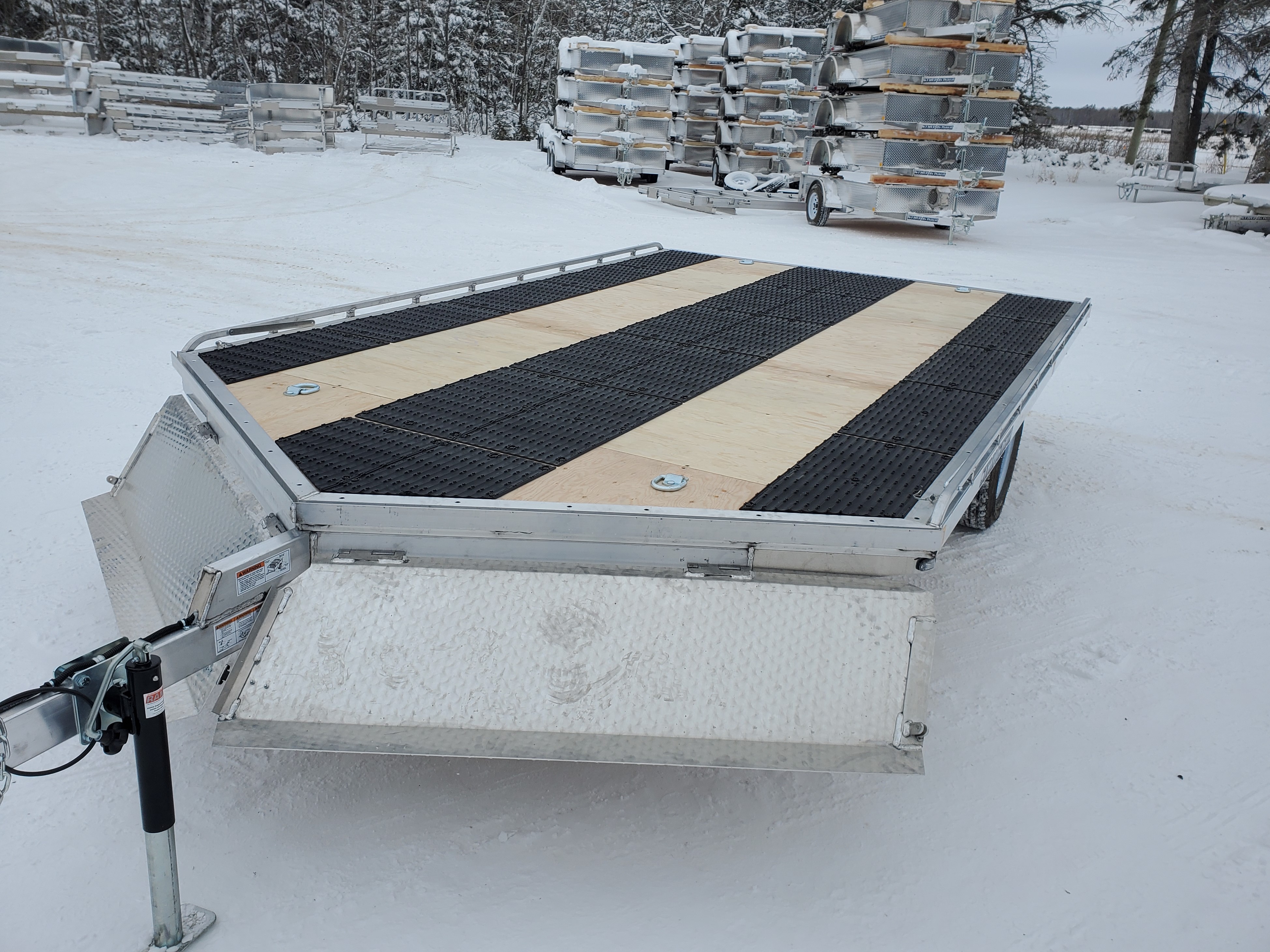

-Downward Deflecting Shield 18”

-Underside Spare Tire Mount

-Deck to Ground Height:  30”

-Ground to Coupler Height:  21” When Level

-GVWR: 2,990lbs (3,500lbs with additional electric brake option)

Stronghaul SASD_SATD-G1 Brochure.PDF

-6061 All Aluminum Frame

-3500lb Straight Axles, Electric Self Adjusting Brakes

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-7-Pin RV Style Electrical Connector

-Junction Box, Break-away Kit with Battery and Charger

-2-5/16” Ball Coupler, Max rating 2,100lb tongue WT, with Polypropylene Tape

-ST205/75R15 6-ply Radial Tires

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, Black

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-A-Frame Mounted Jack Rated at 5K lbs

-3/4” Douglas Fir/Larch Plywood Floor

-3/8” x 35” Safety Chains, 16.2K lb Rating, with Safety Latch

-Pull Out Rear Ramp Rated at 1000lbs, 90” L x 51” W

-9 x 2,000lb Lashing Rings , ZP

-Full Length 3” High Side Rail

-Downward Deflecting Shield 18”

-Underside Spare Tire Mount

-Deck to Ground Height:  30”

-Ground to Coupler Height:  21” When Level

-GVWR: 7000lbs
