Flat Deck Style, Aluminum Frame, Tandem, Deck-over Axle Trailer

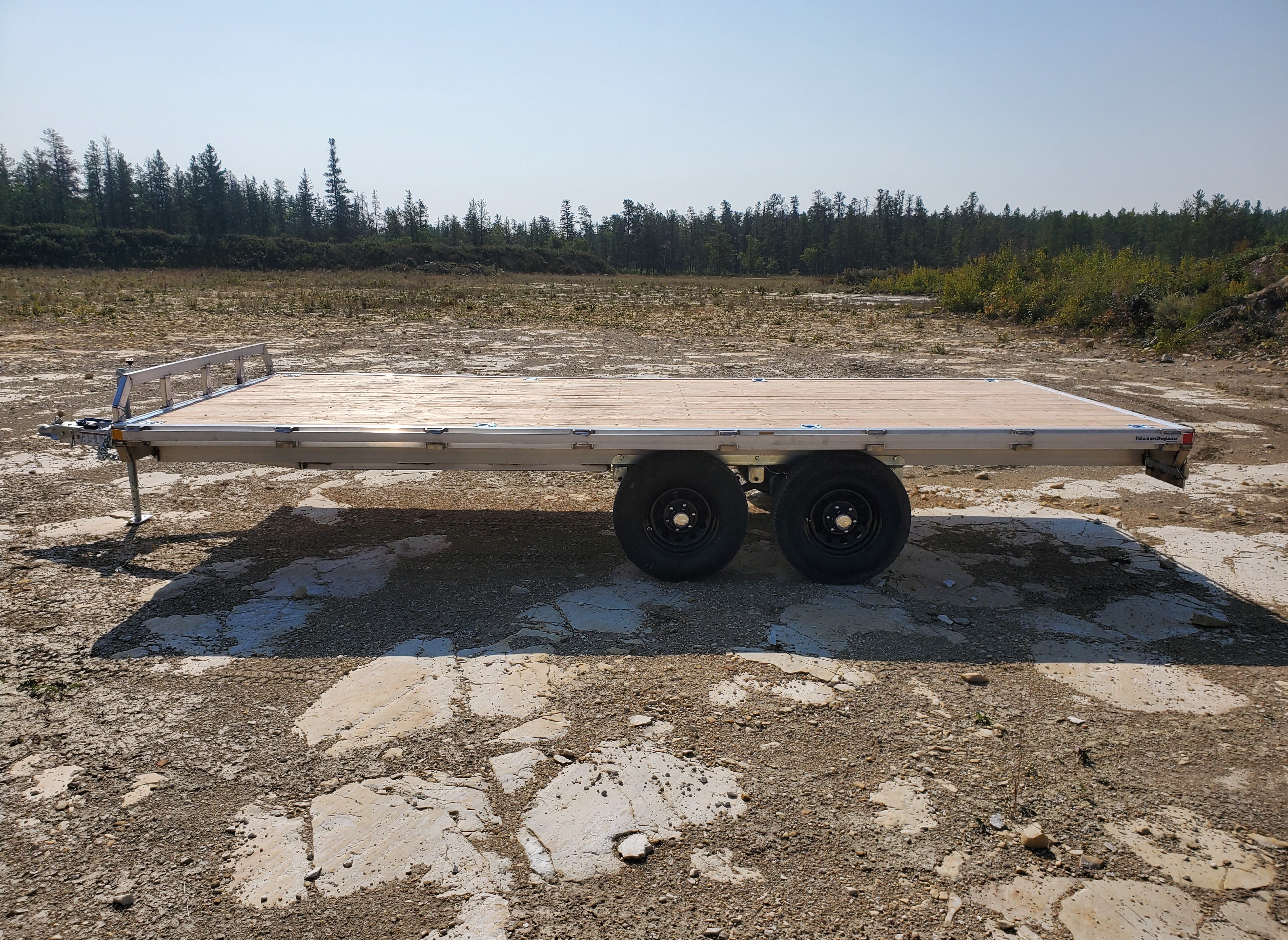

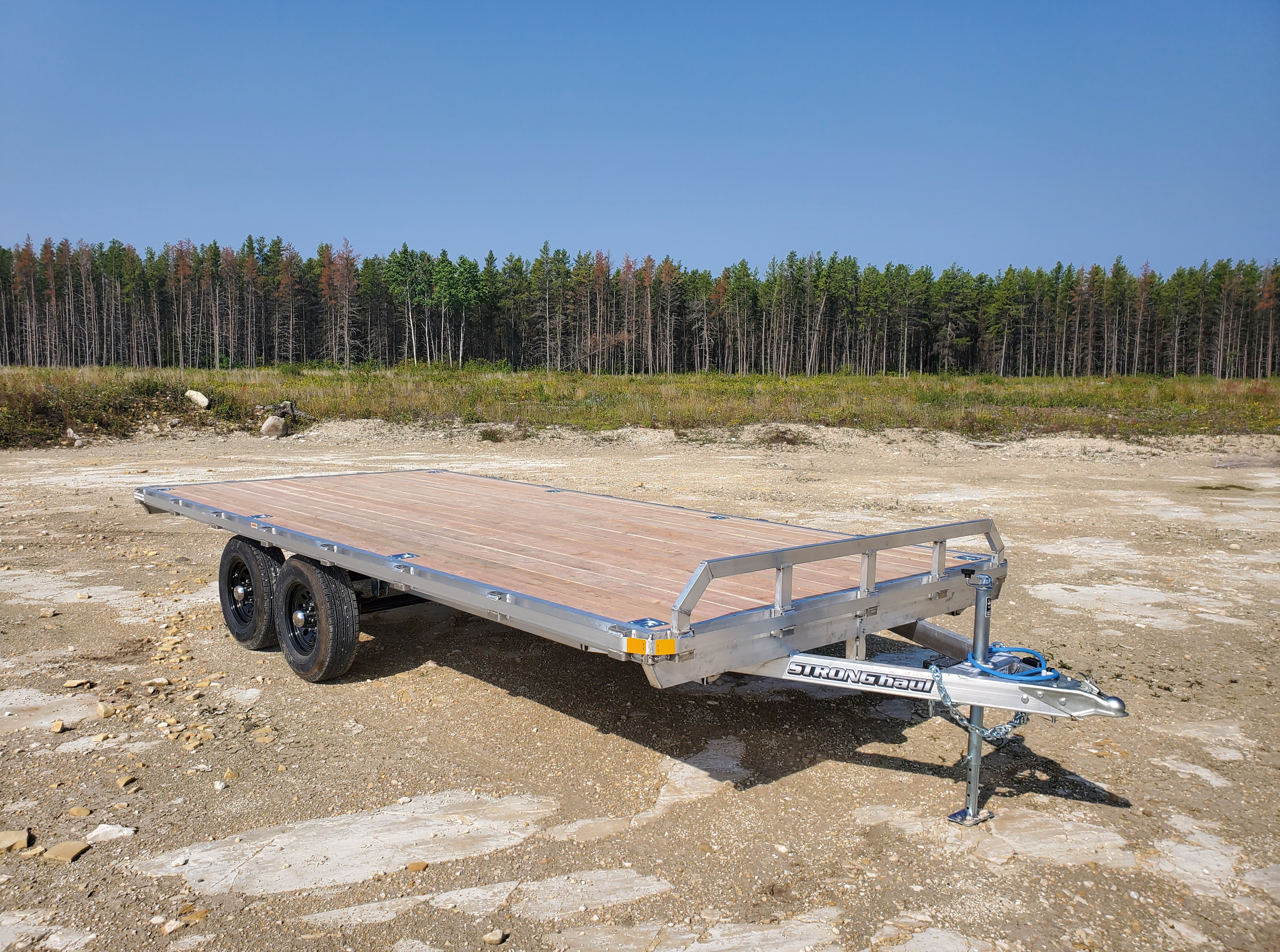

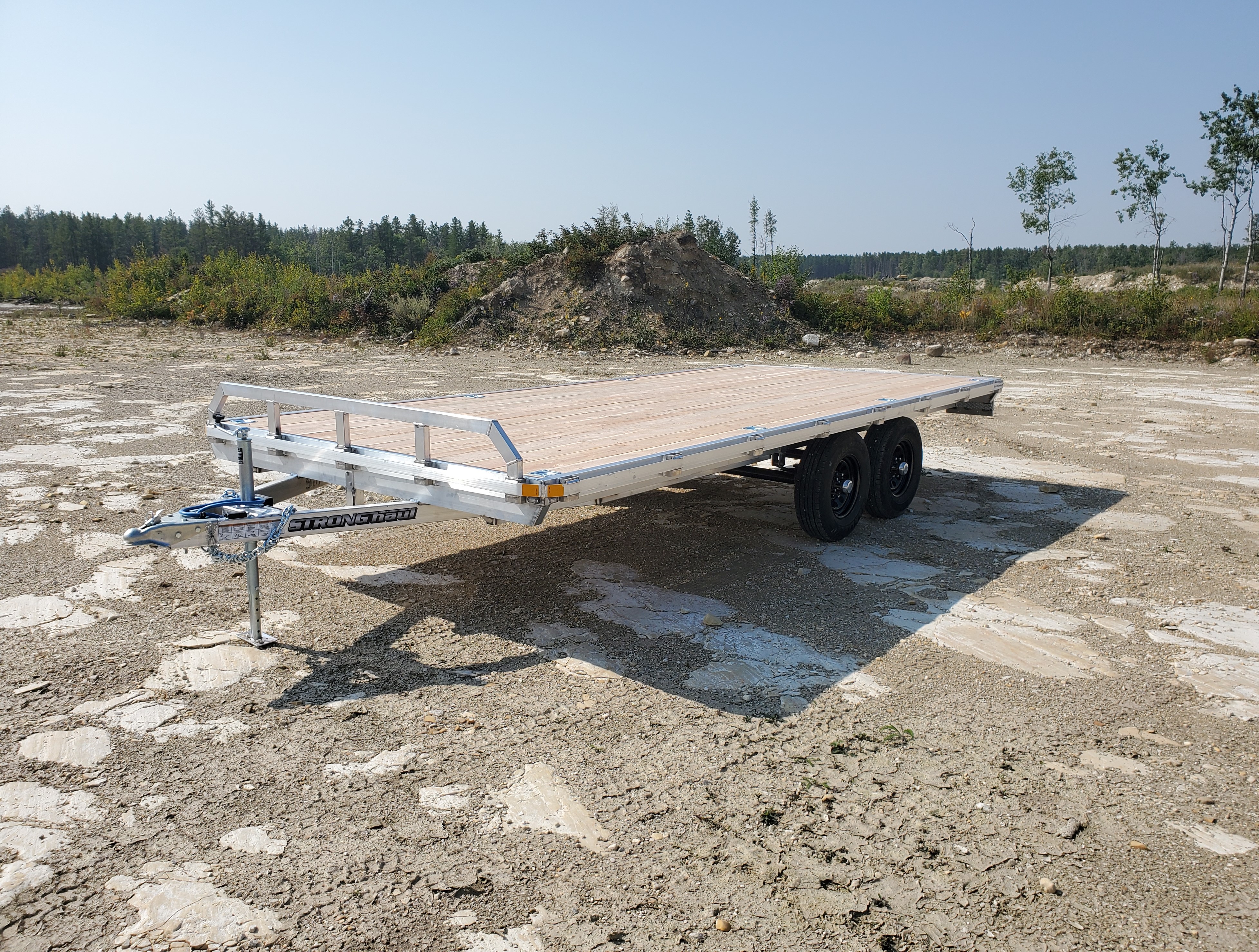

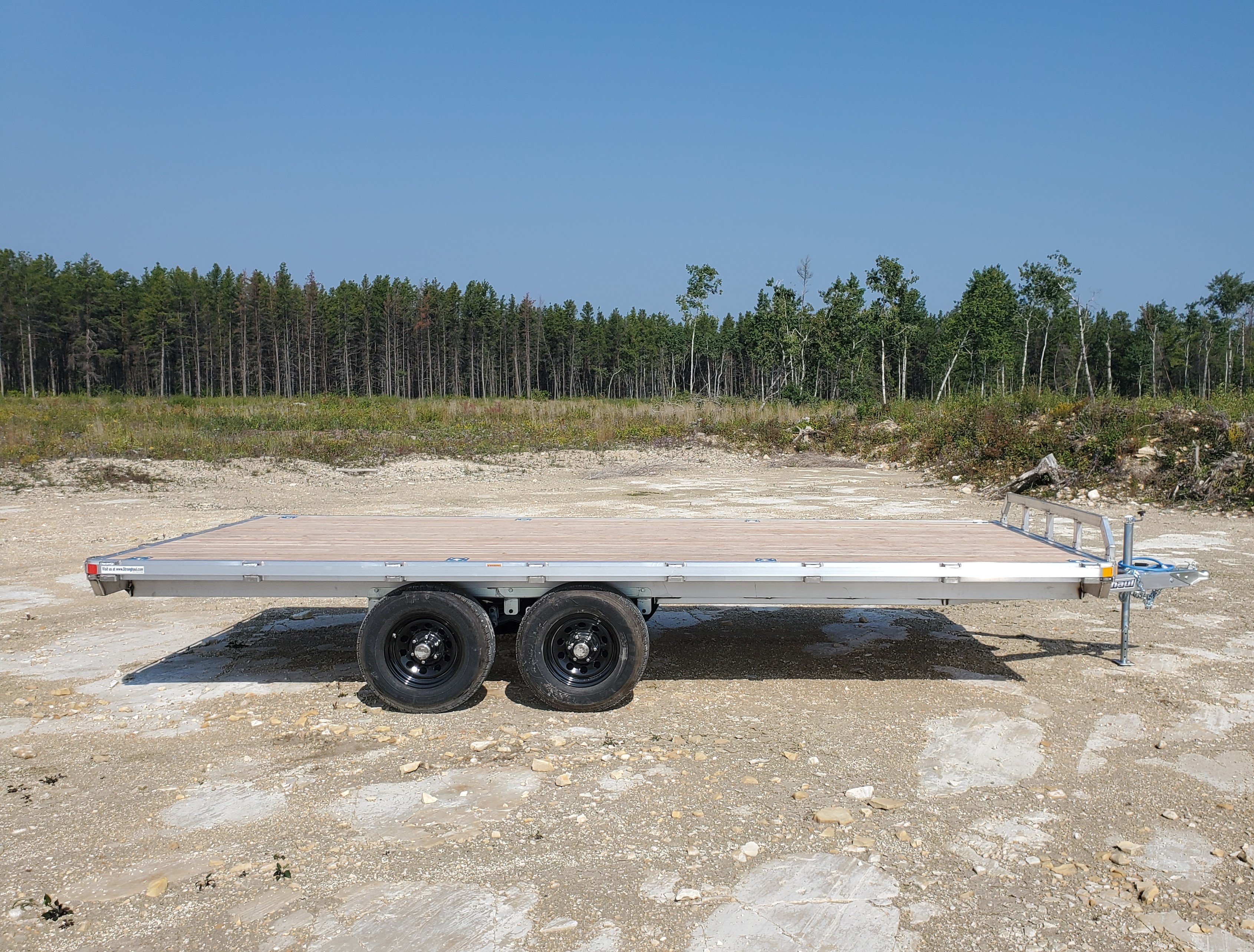

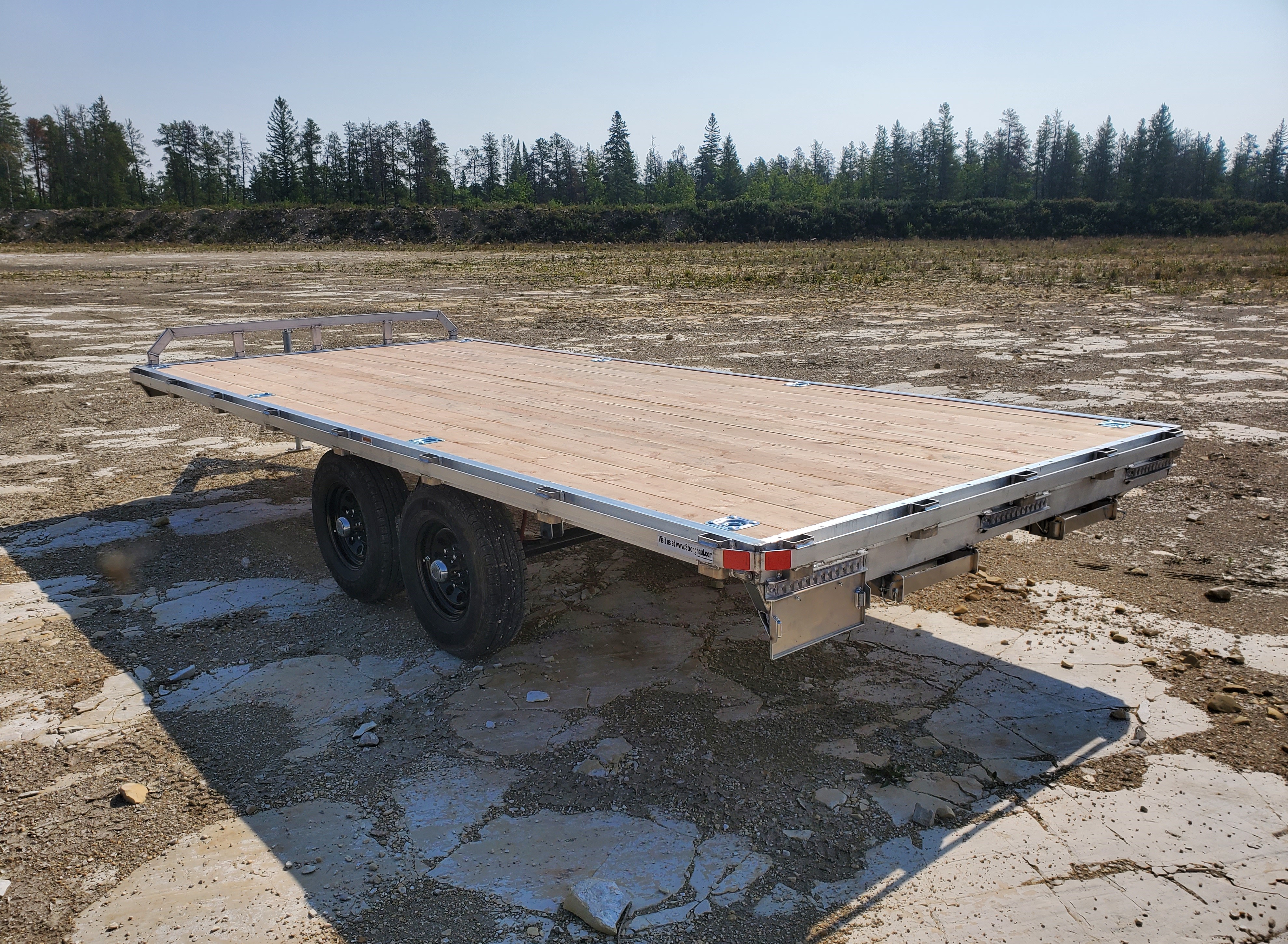

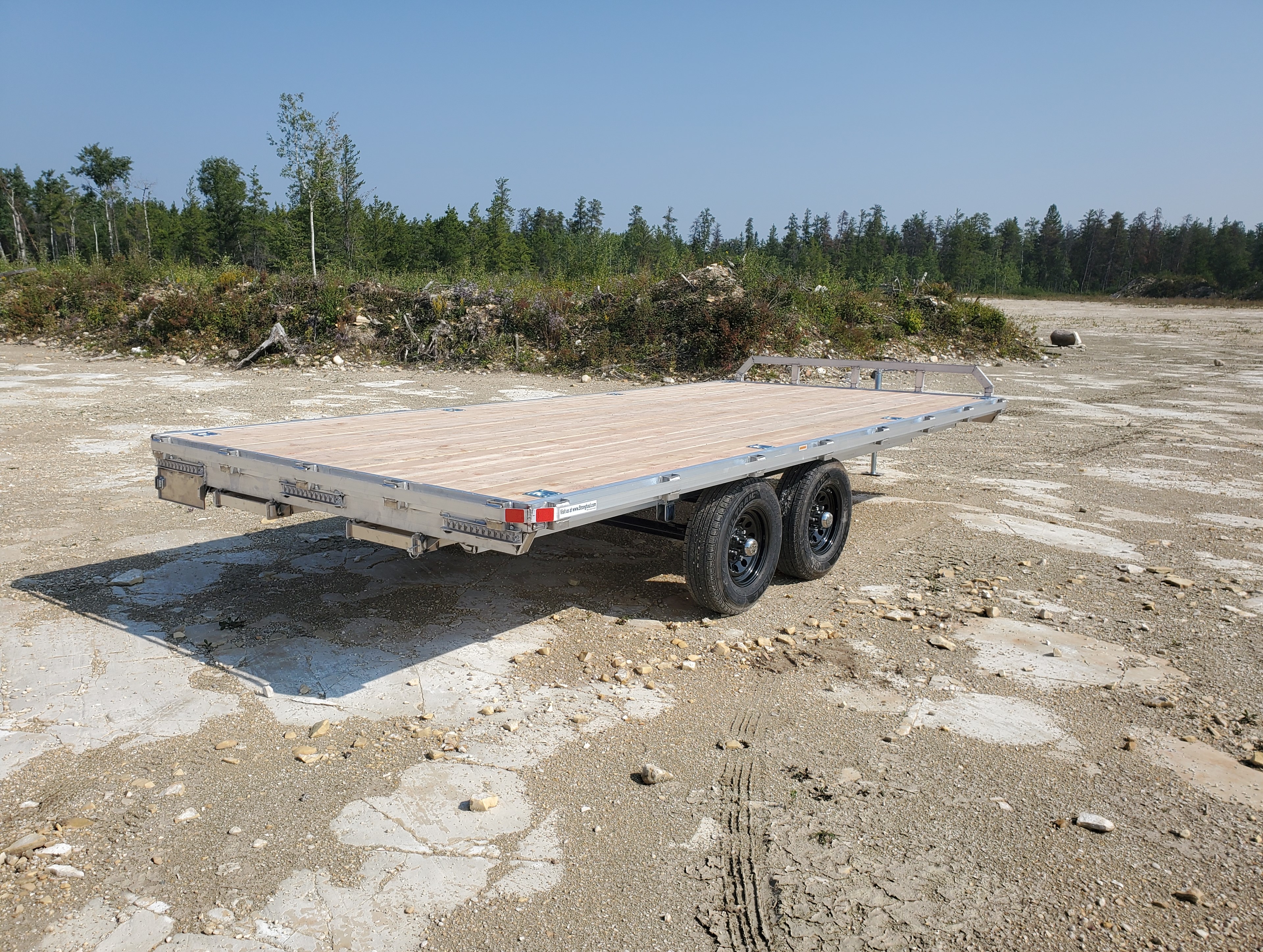

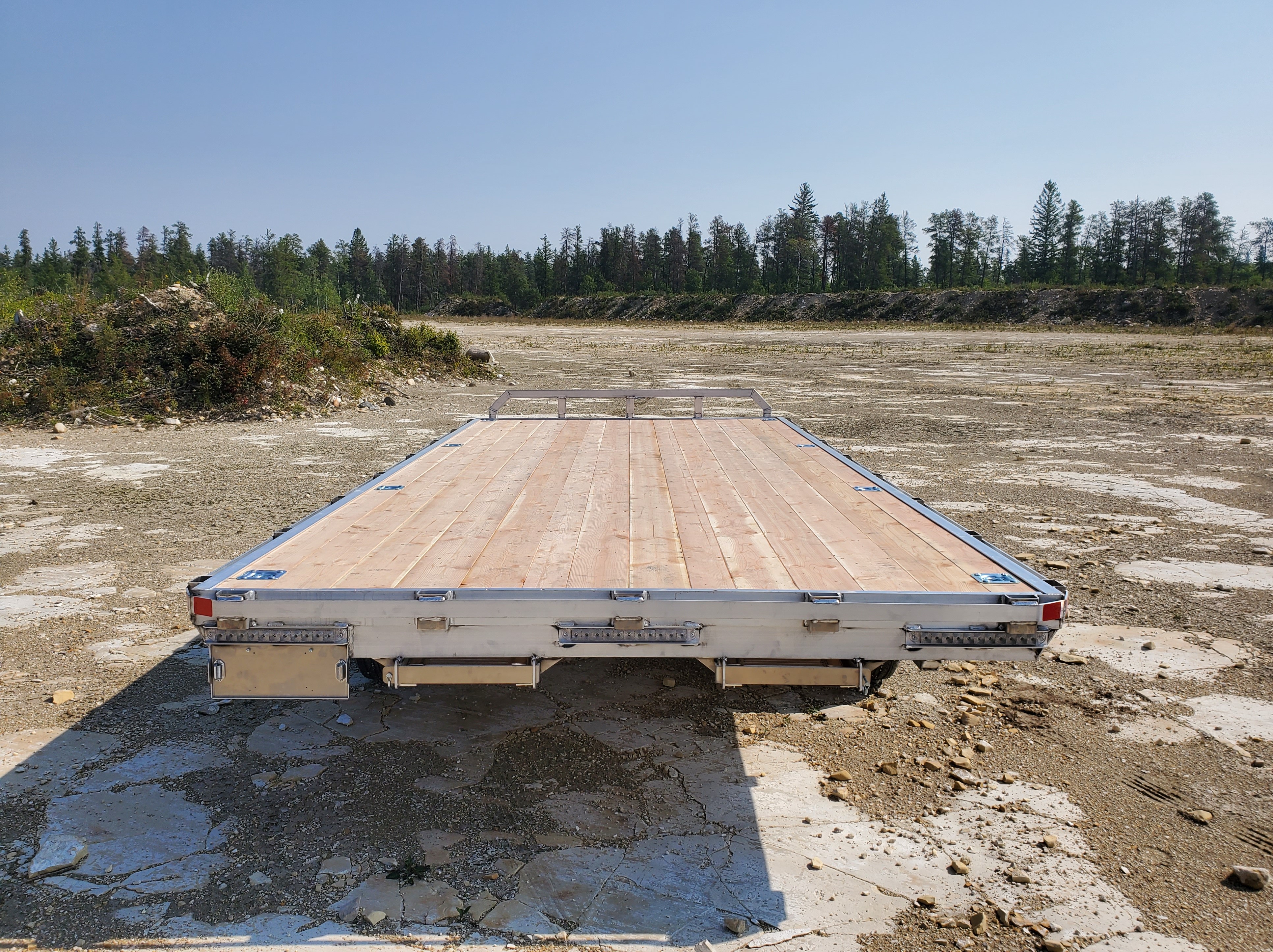

FATD-101x18-52 Model Displayed

The featured trailer has the following options applied:

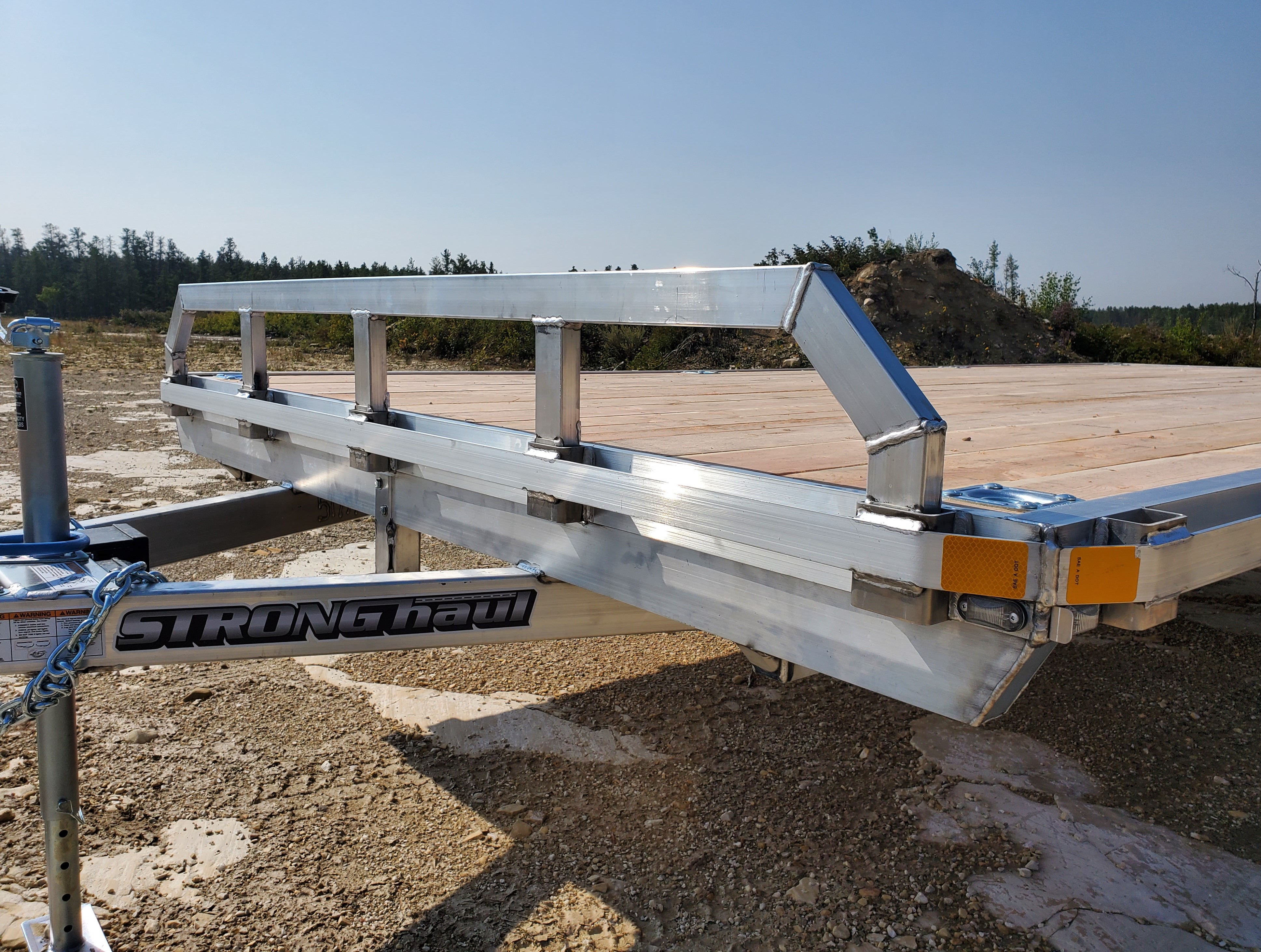

Front Rail Kit, Bolt In

Recessed Lashing Rings

If your consistently loading materials or large scale loads with a forklift this is the ideal trailer for you, with the flat deck surface and stake pockets all around there is tons of strap points and space for multiple pallets, long pieces of lumber, or ATV/UTV applications.

For more trailer specs, details, and sizing please see below.

Contact a Dealer

More Information

Standard Features and Equipment

Stronghaul FATD Brochure.PDF

-6061 All Aluminum Frame

-3500lb Dexter Straight Axles, with Electric Self Adjusting Brakes (Changes to 5200lb axles on -52 models)

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-7-Pin RV Style Arctic Rated Electrical Connector

-Junction Box, Break-away Kit with Battery and Charger

-2-5/16” Ball Coupler, Max rating 2,100lb tongue WT, with Polypropylene Tape

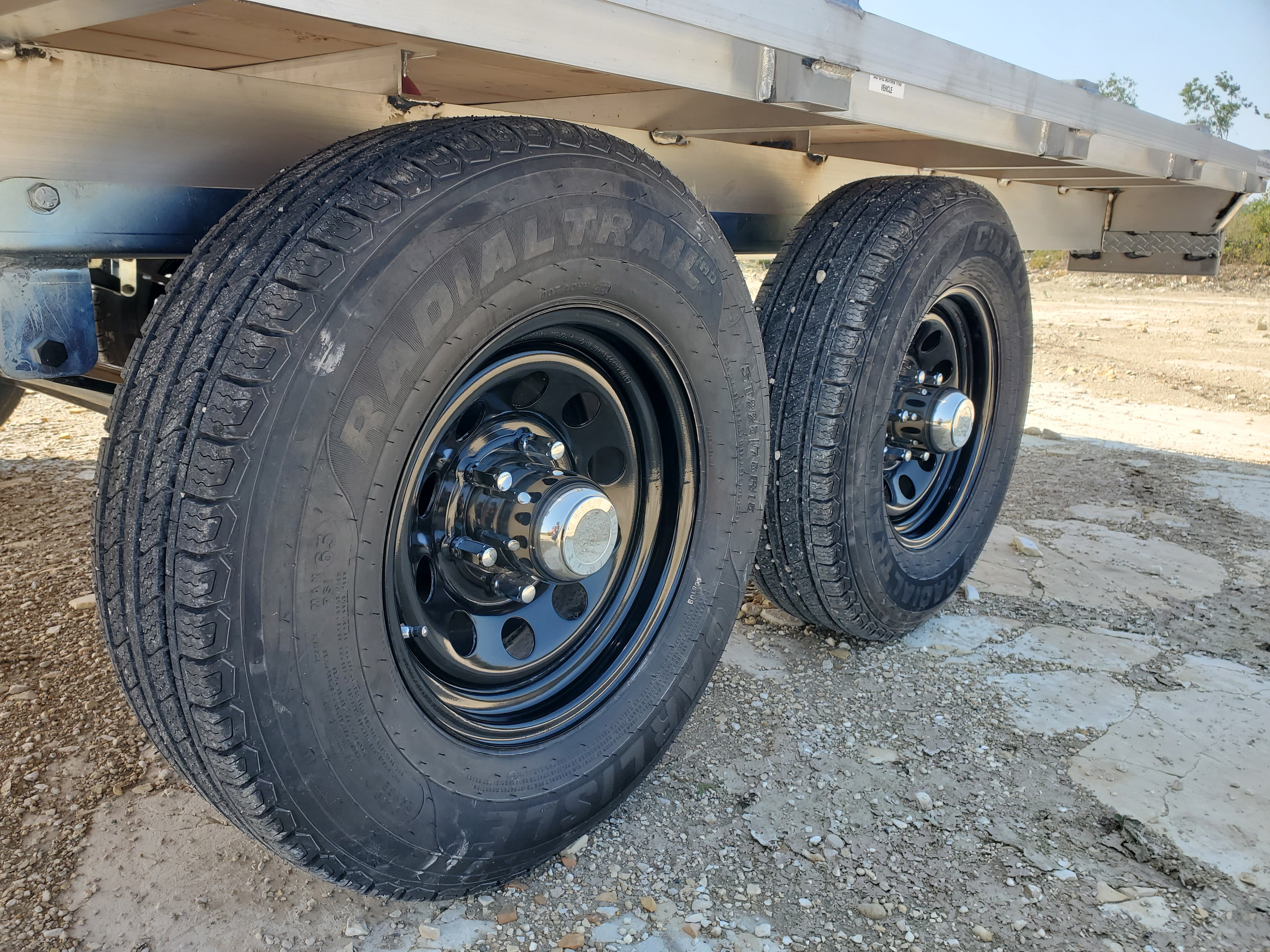

-ST205/75R15 6-ply Radial Tires (ST225/75R15 7-ply tires for -52 models)

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, Black (6 on 5.5” for -52)

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-5,000lb, A-Frame Mounted, Drop Leg Jack

-2x8 Douglas Fir/Larch Plank Floor

-3/8” x 35” Safety Chains, 16.2K lb Rating, with Safety Latch

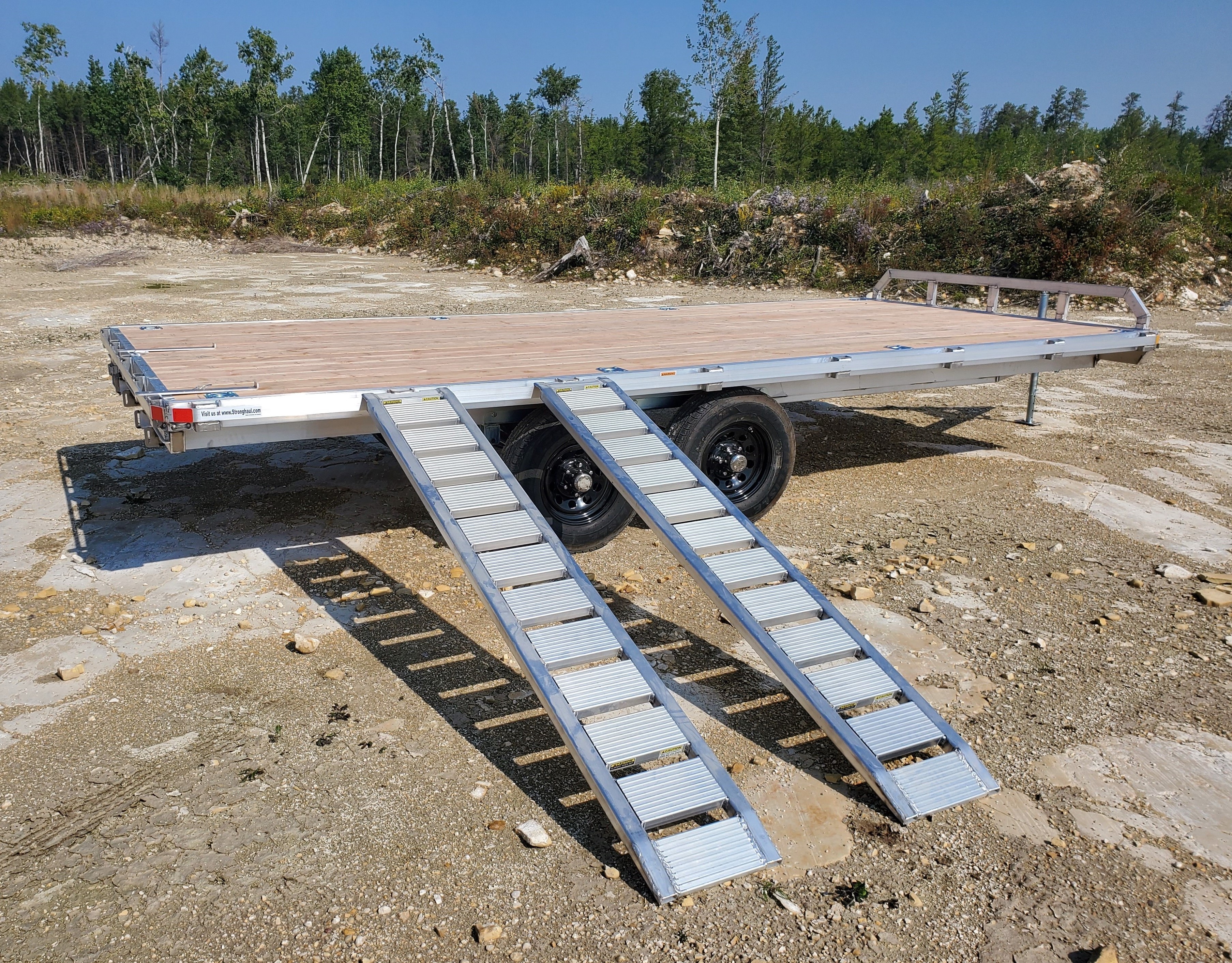

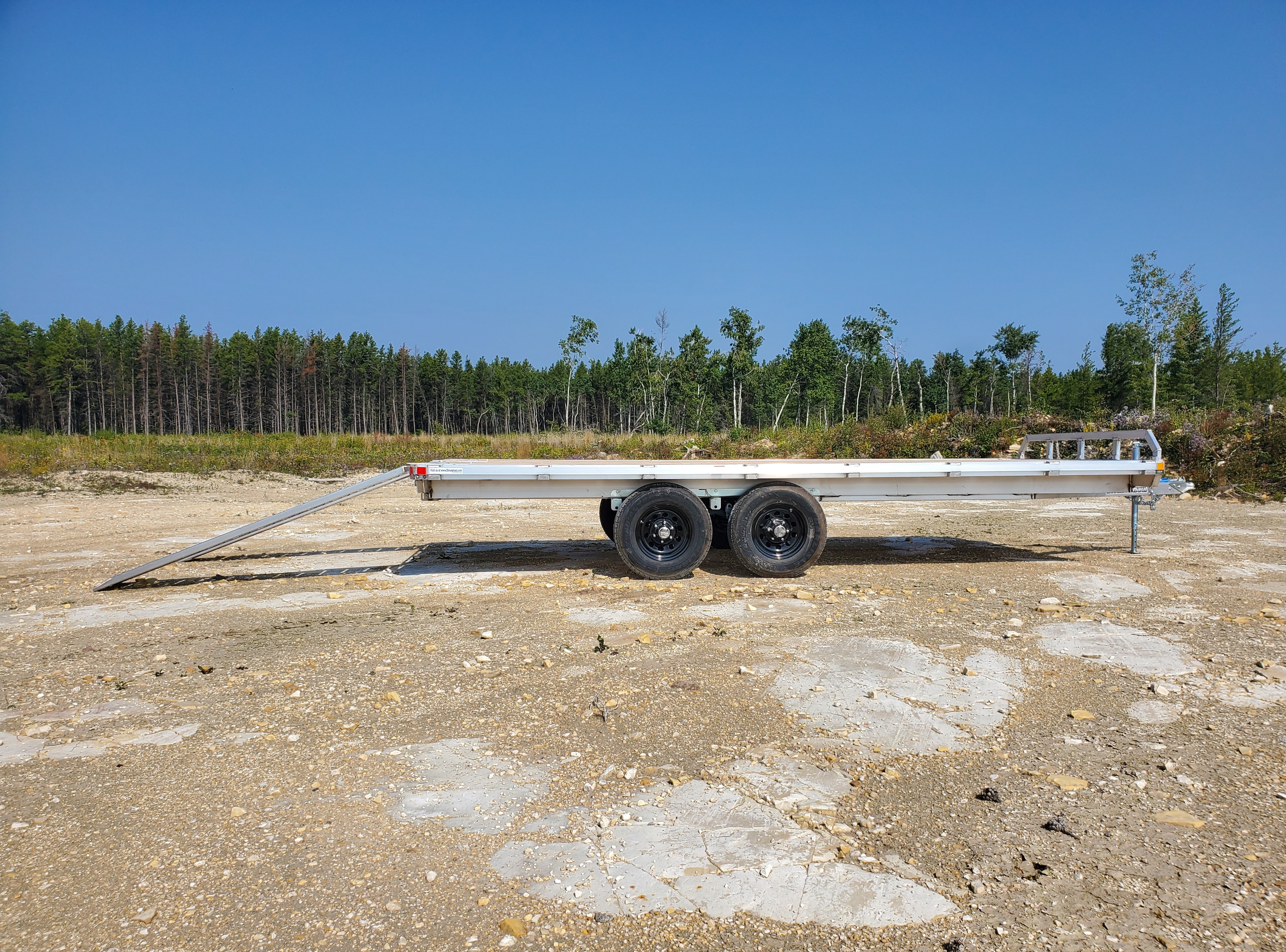

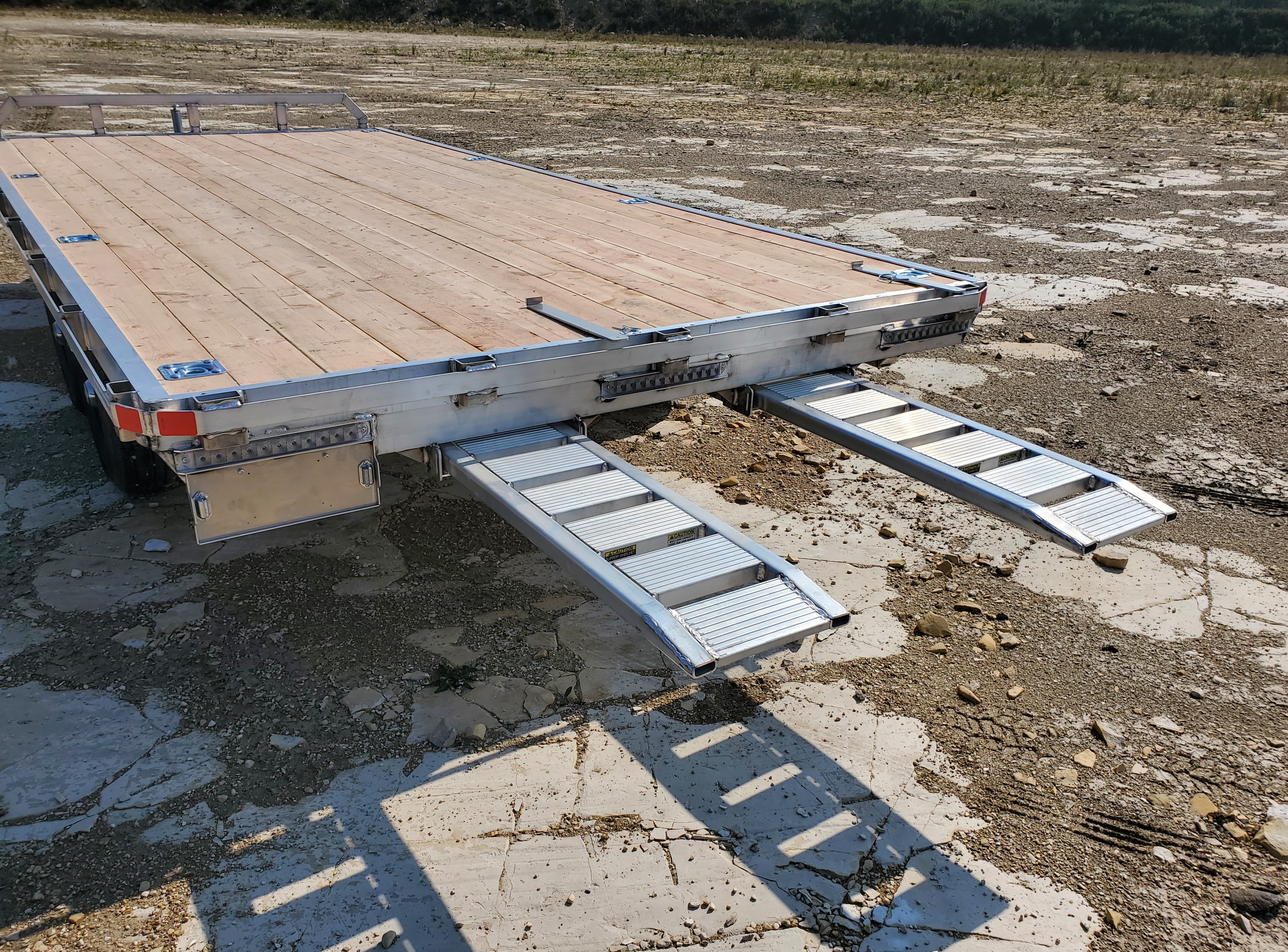

-Pocket Style Ramps, Mounts under Rear of Deck, 2,000lb CAP/Ea 78” L x 14” W

-Stake Pockets and Side Rub Rail All Around

-4,000lb Lashing Ring , ZP (6 rings on 14’ models, 6 on 16’, and 8 on 18’)

-Spare Tire Mount (Changes from front to side depending on tool box)

-Deck to Ground Height:  30”

-Ground to Coupler Height:  17” When Level

-GVWR: 7000lbs on -35 models (9,980lbs on -52 models)

Available Sizes



Dry Wt.


5,405 lbs

1595 lbs


5,057 lbs

1943 lbs


4,709 lbs

2291 lbs


4,360 lbs

2640 lbs

FATD-101x14-52 8,345 lbs 1645 lbs
FATD-101x16-52 7,997 lbs 1993 lbs
FATD-101x18-52 7,649 lbs 2341 lbs
FATD-101x20-52 7,301 lbs 2689 lbs

Available Options


Aluminum Wheel Upgrade PKG

Spare Wheel, Steel

Spare Wheel, Aluminum

Extra Lashing Rings 4k lb

Recessed Lashing Rings 6k lb

Jack Caster Wheel

Side Mount Pivot Jack

2-5/16” Adjustable Coupler

Front Rail Kit, Bolt In

A-Frame Mounted, Lockable Handle Tool Box

Snowmobile Ramp Add-on Kit
