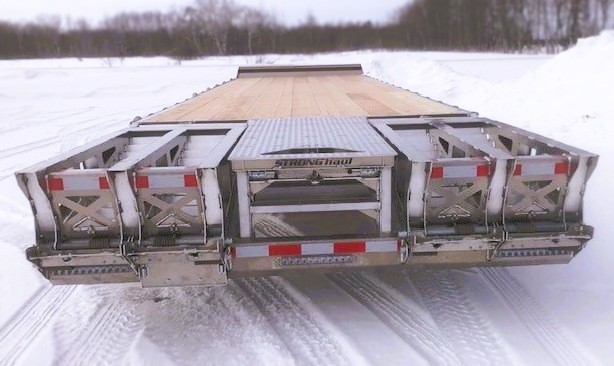

Deck Size: 102” W x 288” L (Ramps fold flat to increase deck length to 348”)

Wheels: Black Modular Style Wheels, R16” x 8” W, 8 Lug on 6.5” BHP

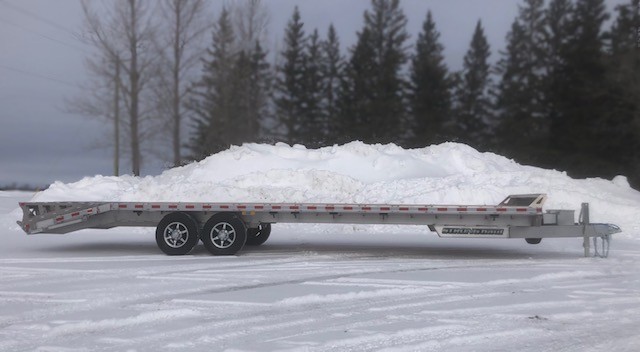

Overall Size: 102” W x 425” L

Tires: Goodride or Westlake ST235/80R16 10-ply Radial Tires

GVWR: 14,000lbs (can be derated to 10,000lbs at time of registration)

Harness Plug: 7-Way RV-Style Connector with Break-away Kit

Stake Pockets: .250” Thick, Inner Measurements: 3.5”x1.5”

Lighting: LED Lighting Pkg with Sealed Harness

Rub Rail: .250” x 3.00” 6061-T6

Decking: 2x8 No.1 Grade, Douglas Fir/Larch Plank Floor

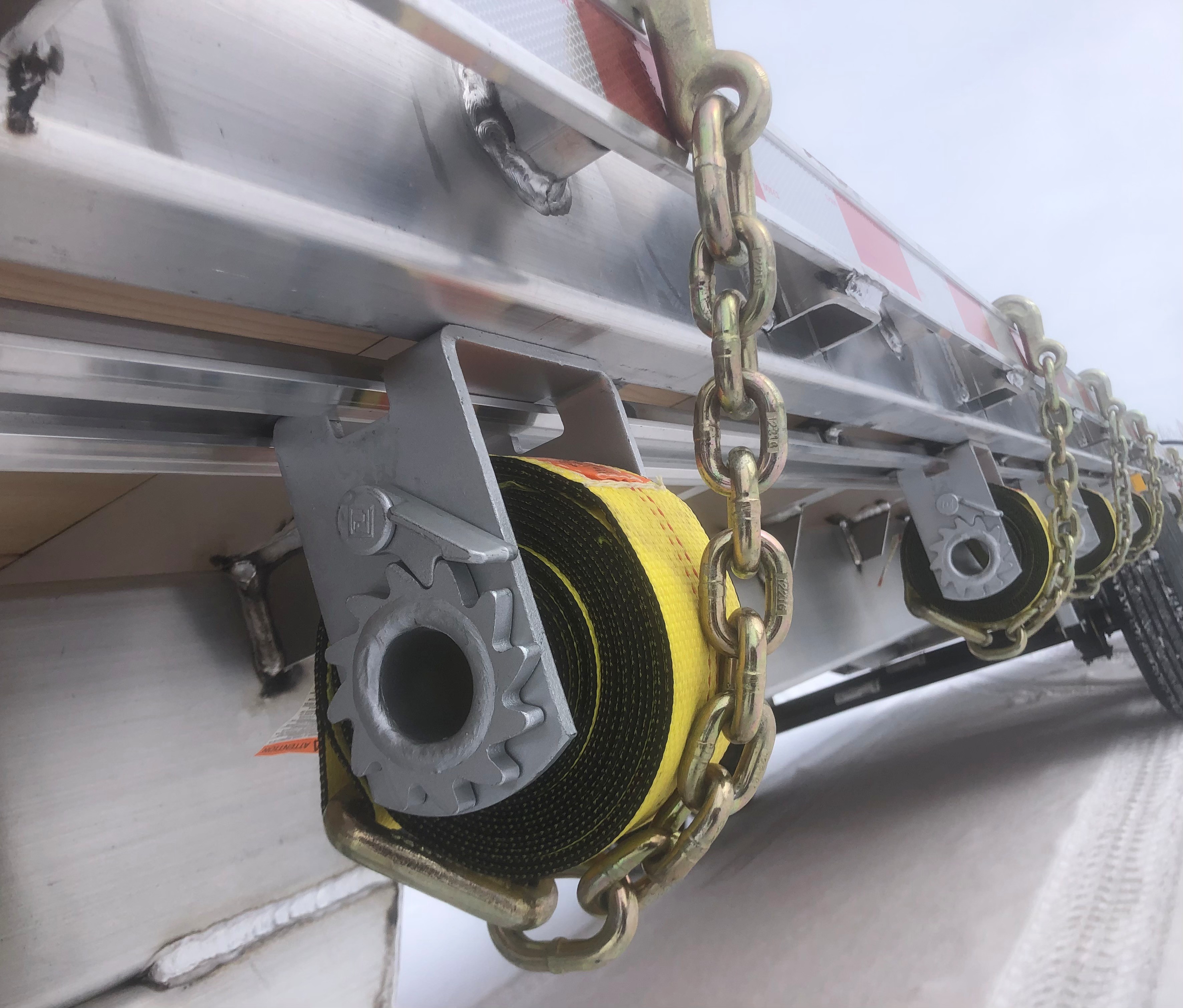

Winch track: Double L Winch Track

Safety Chains: 3/8” x 35” Chains, 16.2K lb. Rating, with Safety Latch

Hitch Length: 63” L

Spare Mount: A-Frame Spare Tire Mount

Front Guard: 8” Front Lip/ Stone Guard

Deck to GND Height: 35”

Suspension: 3,500lb HD Slipper Style Leaf Springs, Greaseable Equalizer

Top of Bumper to GND Height: 20”

Axles: 7000lb Straight, E-brake, Slipper Leaf Spring, Dexter Axles

Coupler to GND Height: 19” when Level

Axle Mounting Brackets: .250” Hangers & Main Brkt, Galv. with Poly Tape

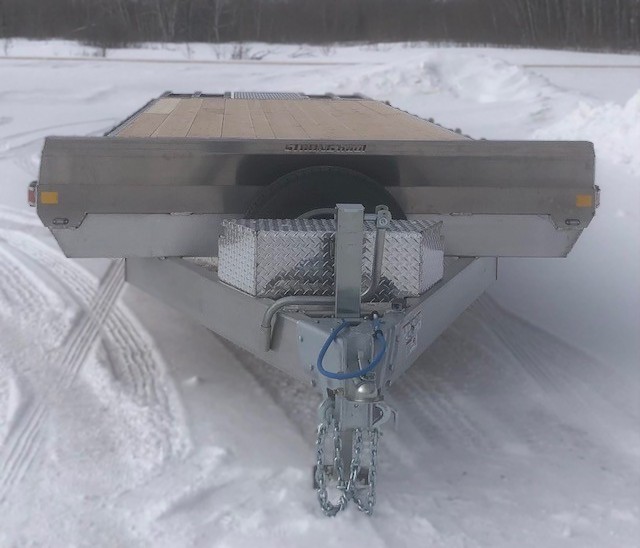

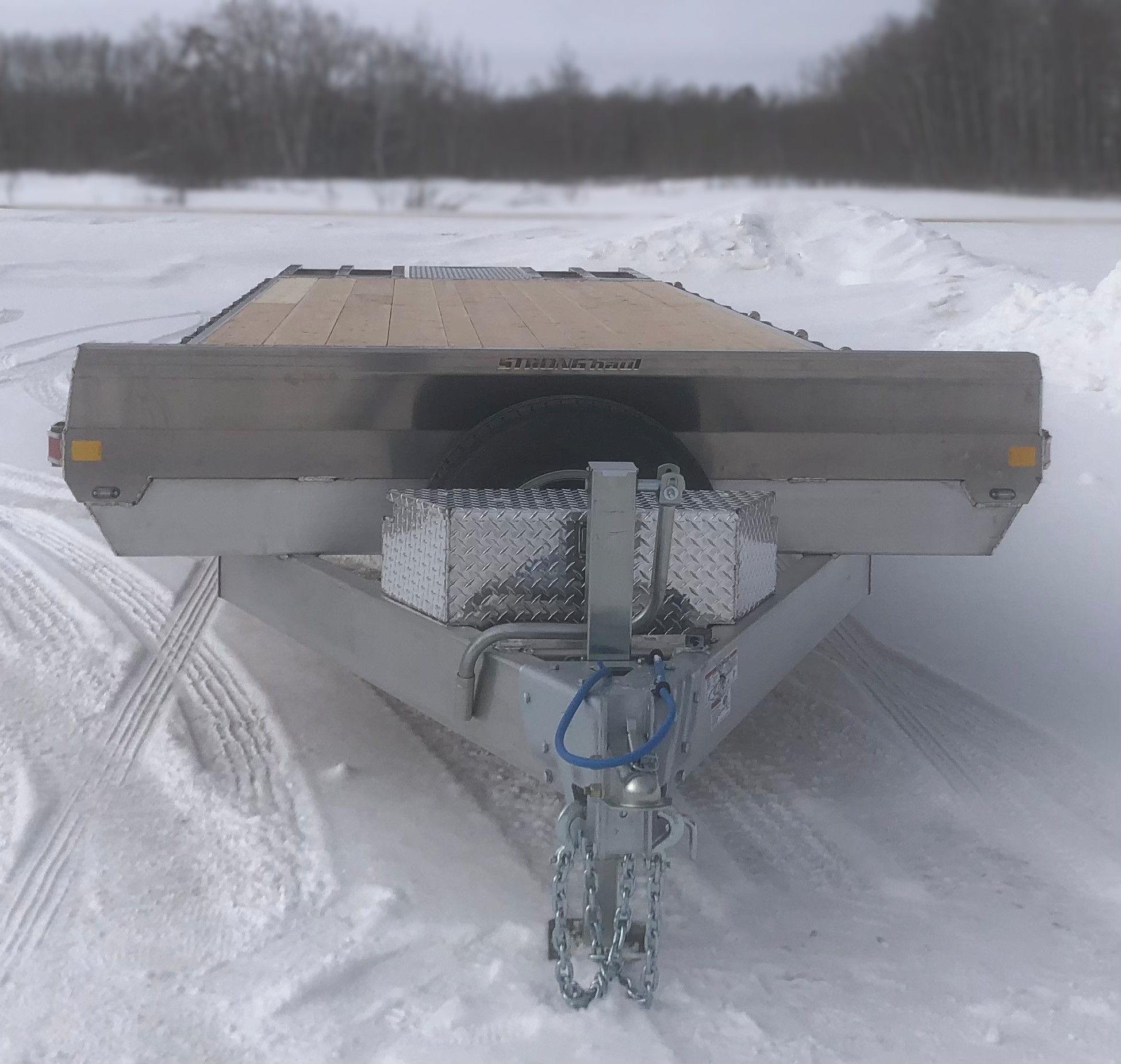

Coupler: 2-5/16” Adjustable Ball Coupler, 8” of Adjustment with Poly Tape

Chain Tubes: 2.00” x .250” 6061-T6 Round Tubes

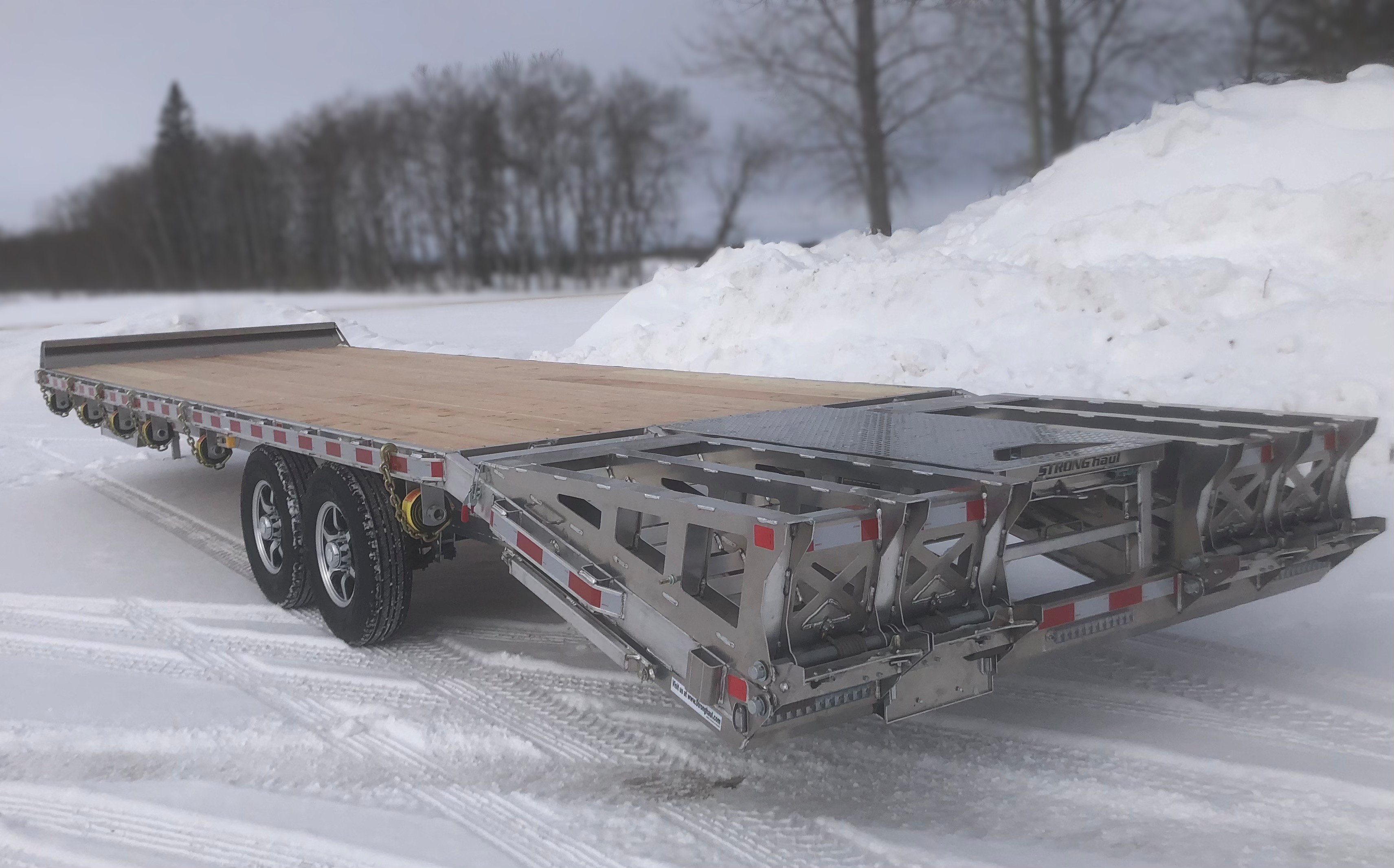

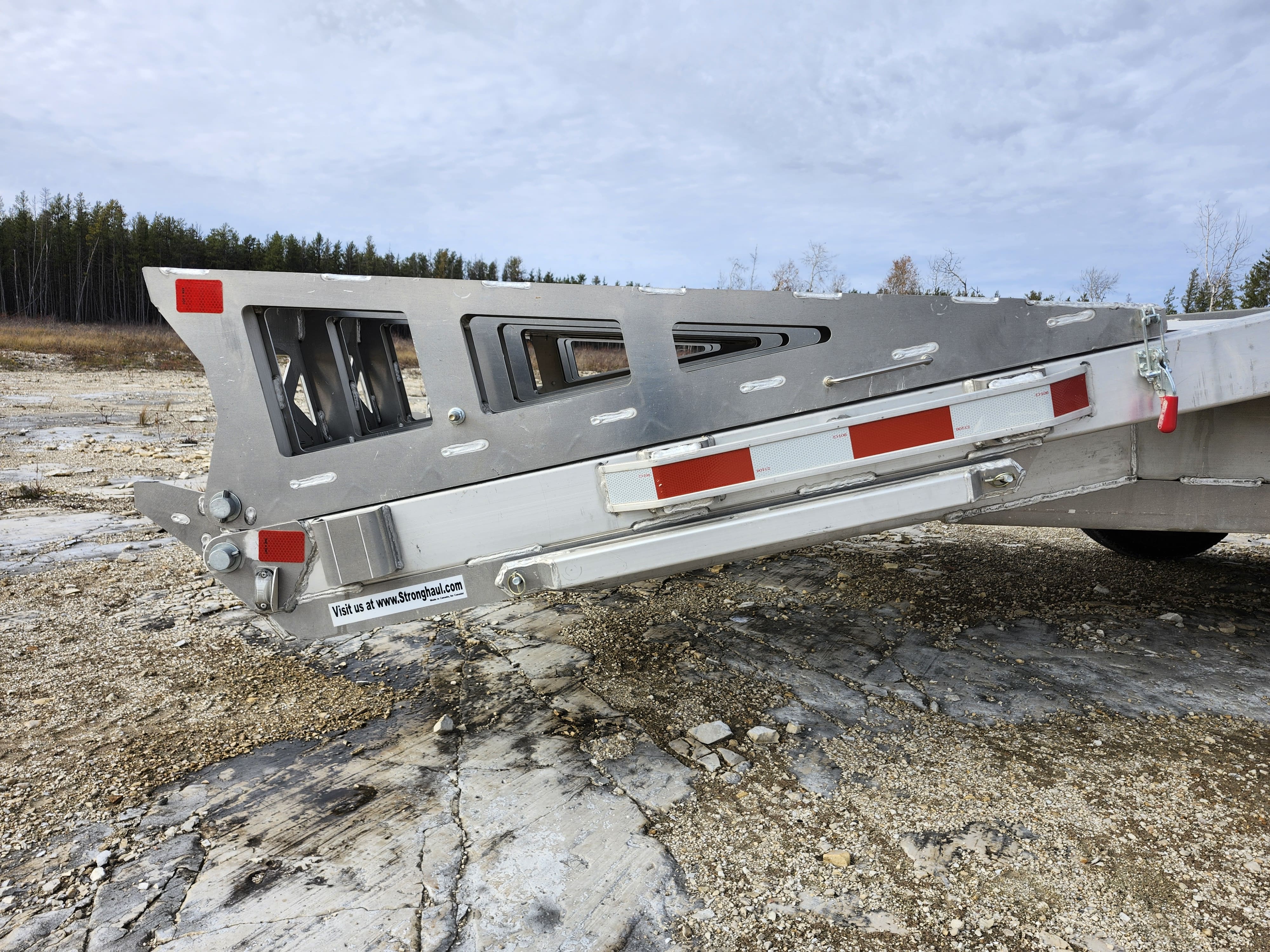

Beavertail: 5’ Beavertail Section, 16” Drop (Trailer Length includes Beavertail)

Jack: 9,500lb, Drop Leg Jack with Removable Side Wind Handle

Deck Hatch: Rear Central Hatch, Lifts Between Ramps to be Level with Deck Surface

Frame Tubes: 8.00” x 3.00” x .250”w 6061-T6

Ramp Loading Angle: 15 Degrees

Hitch Tubes: 8.00” x 3.00” x .250”w 6061-T6

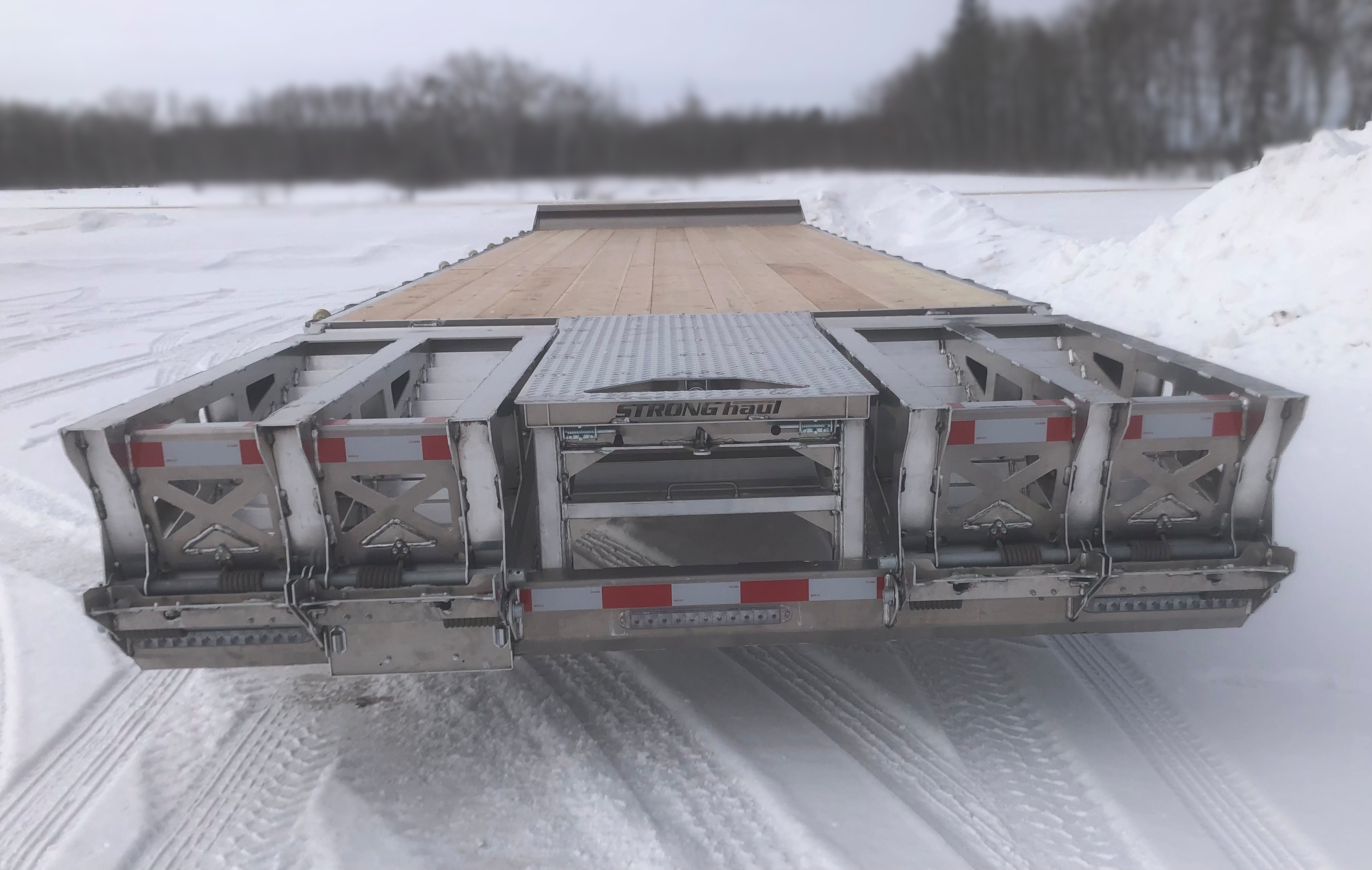

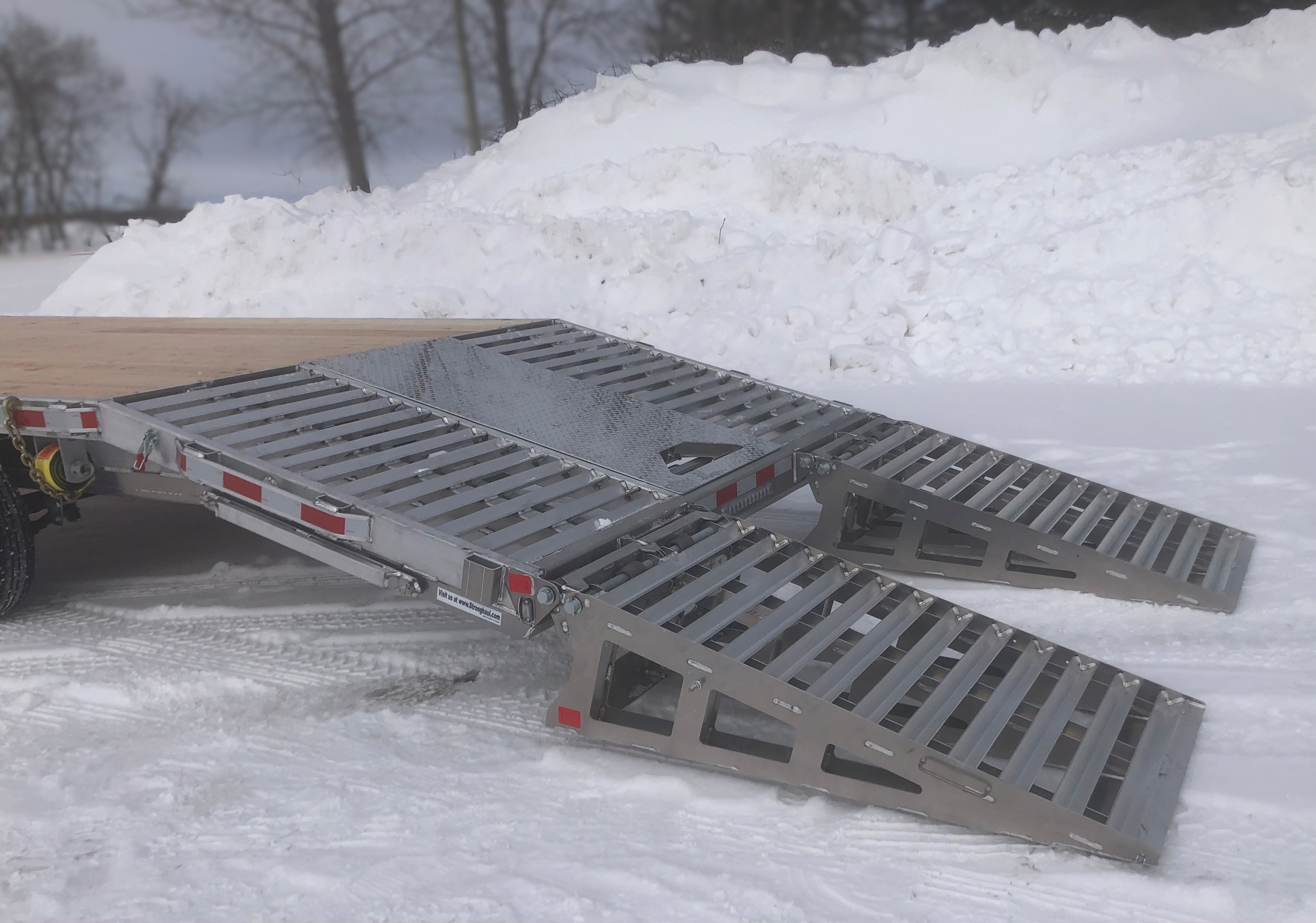

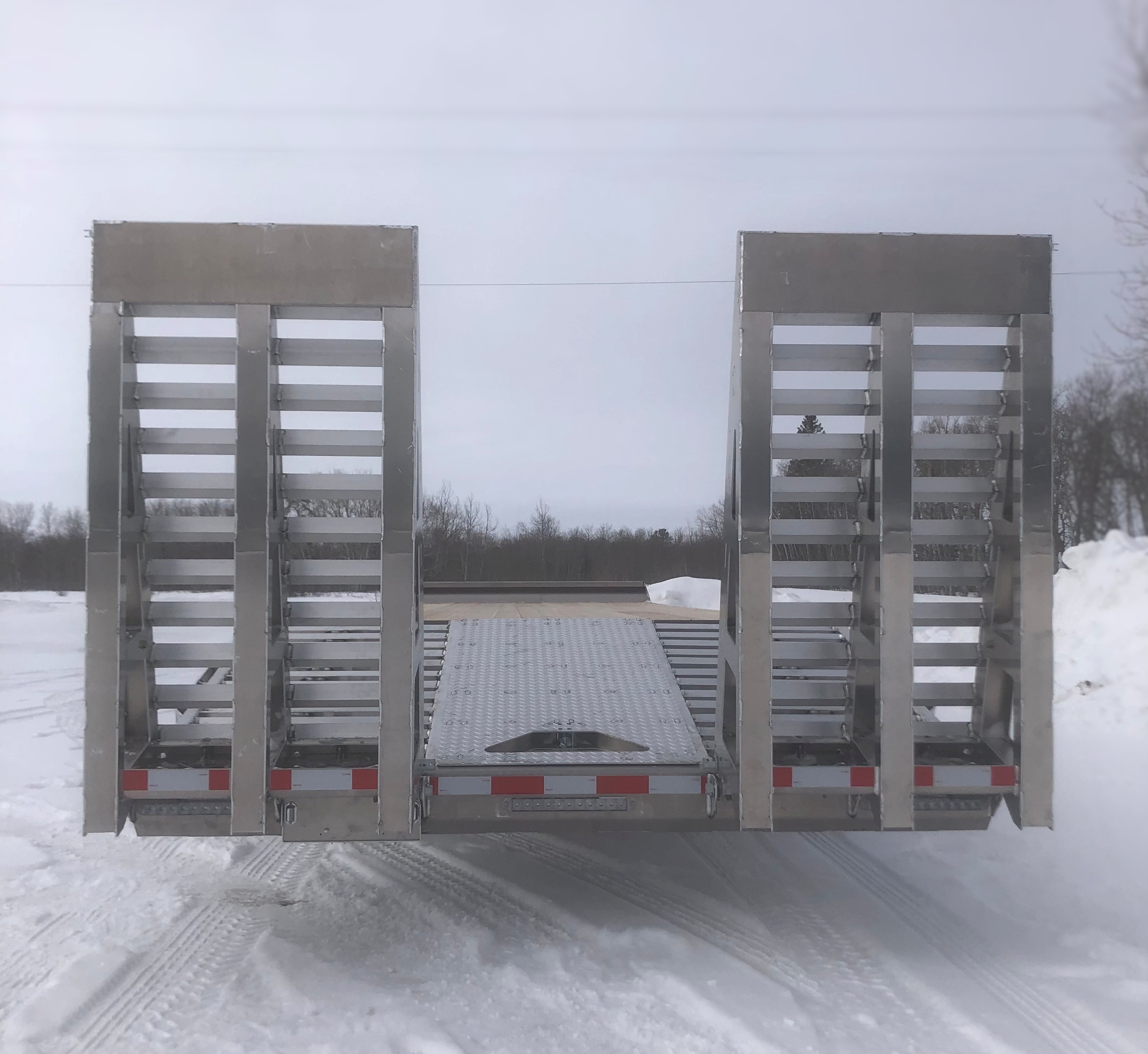

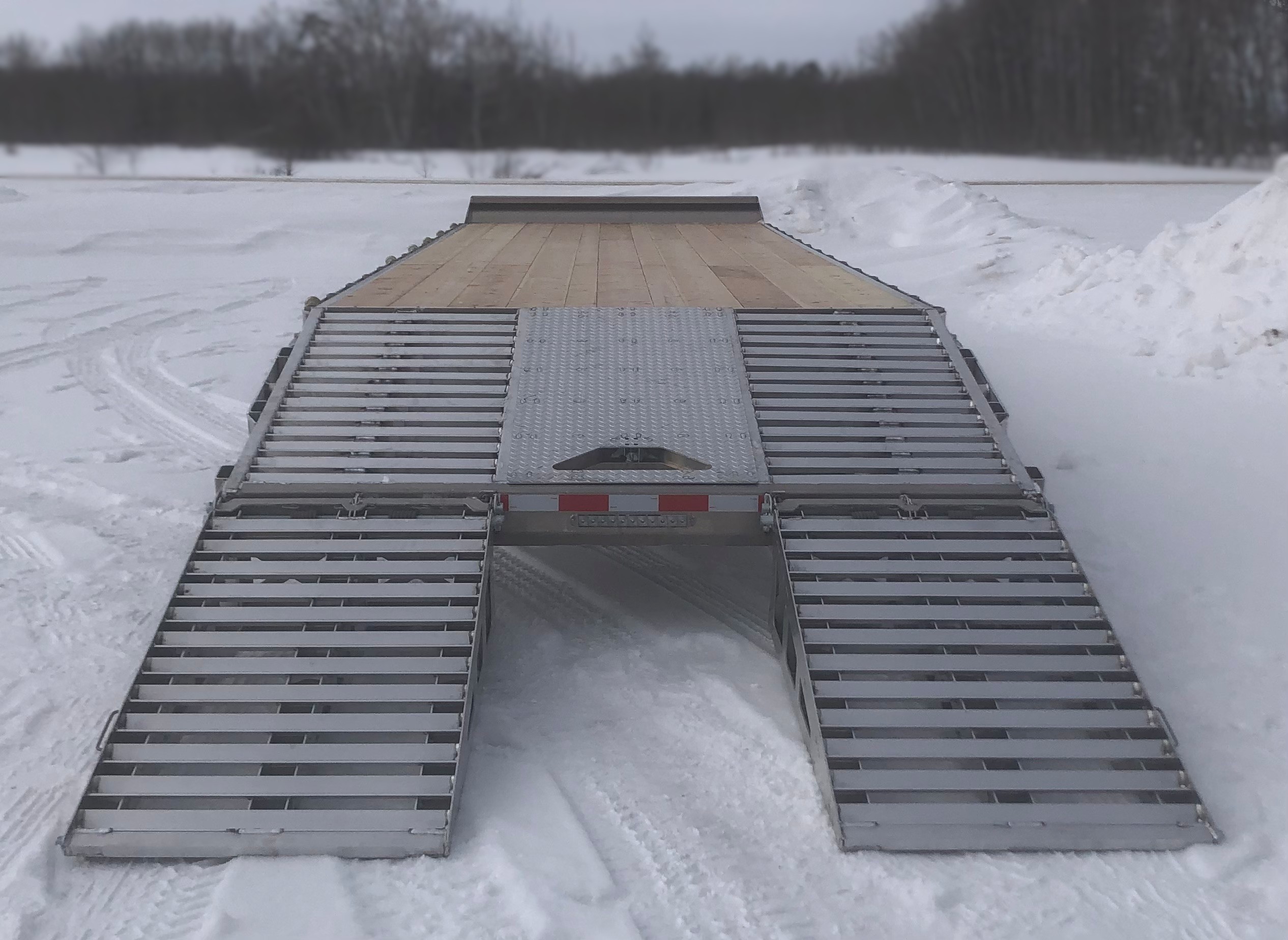

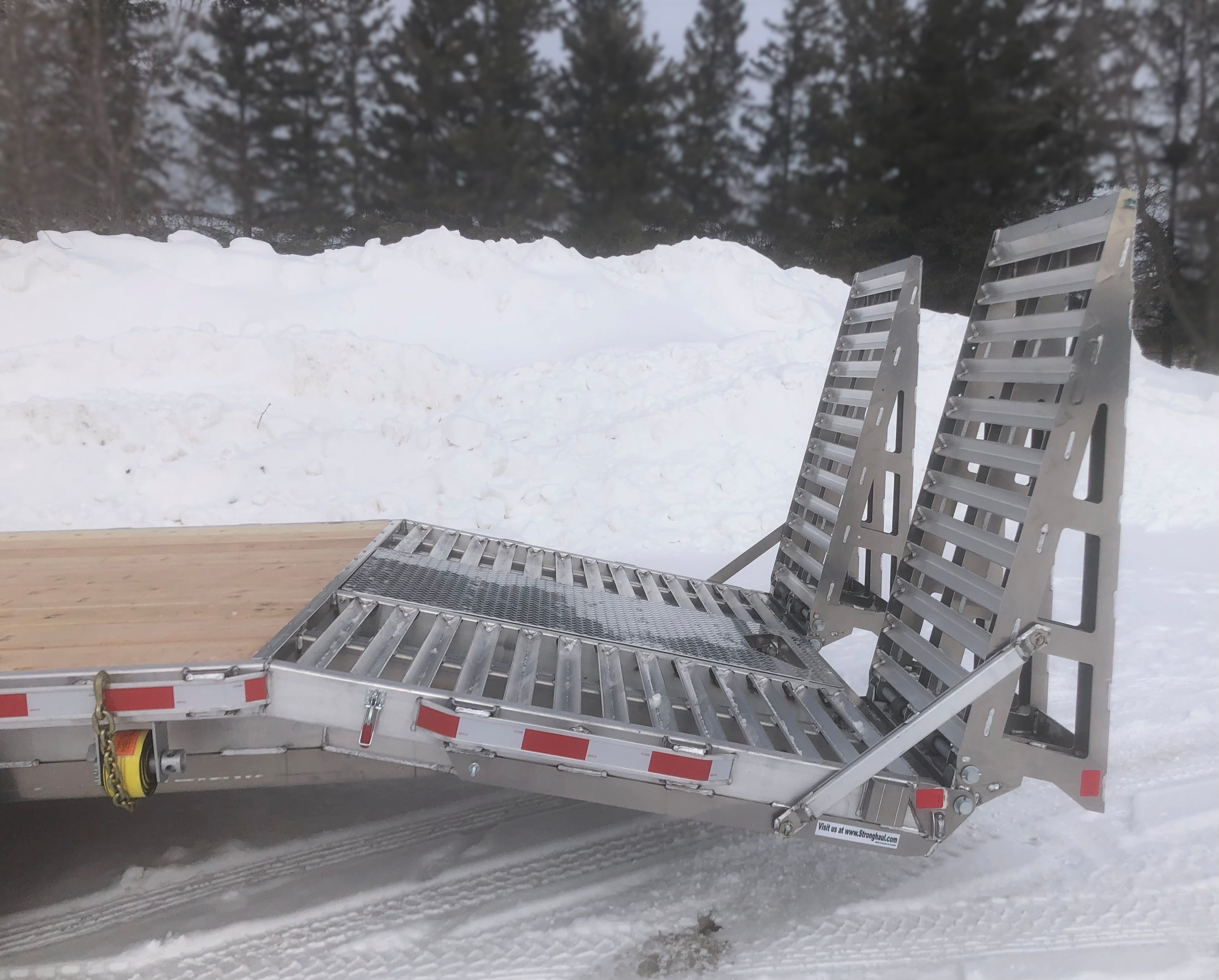

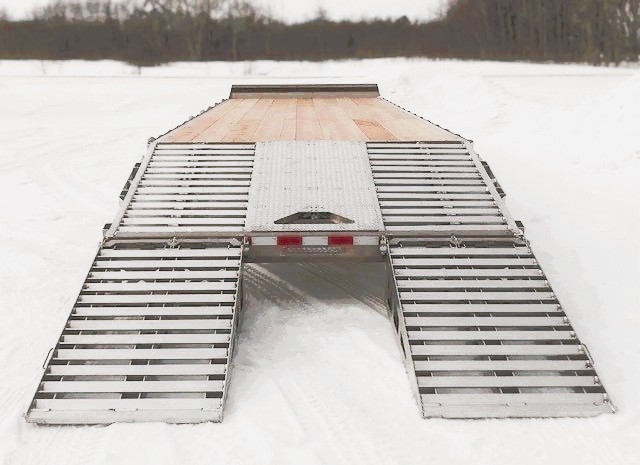

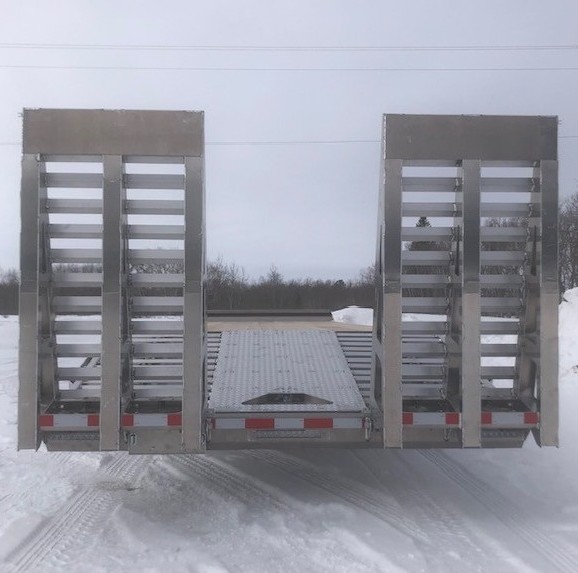

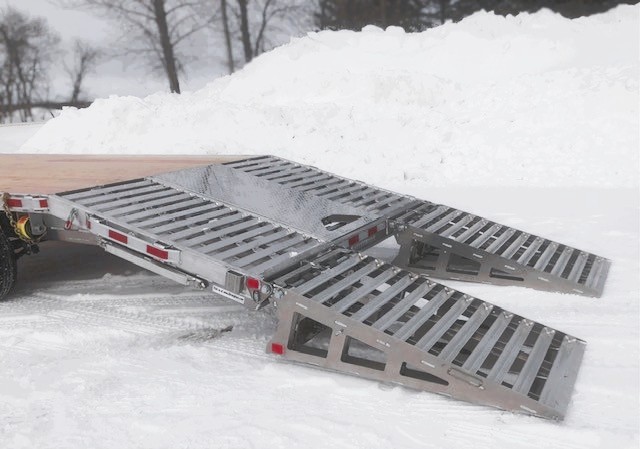

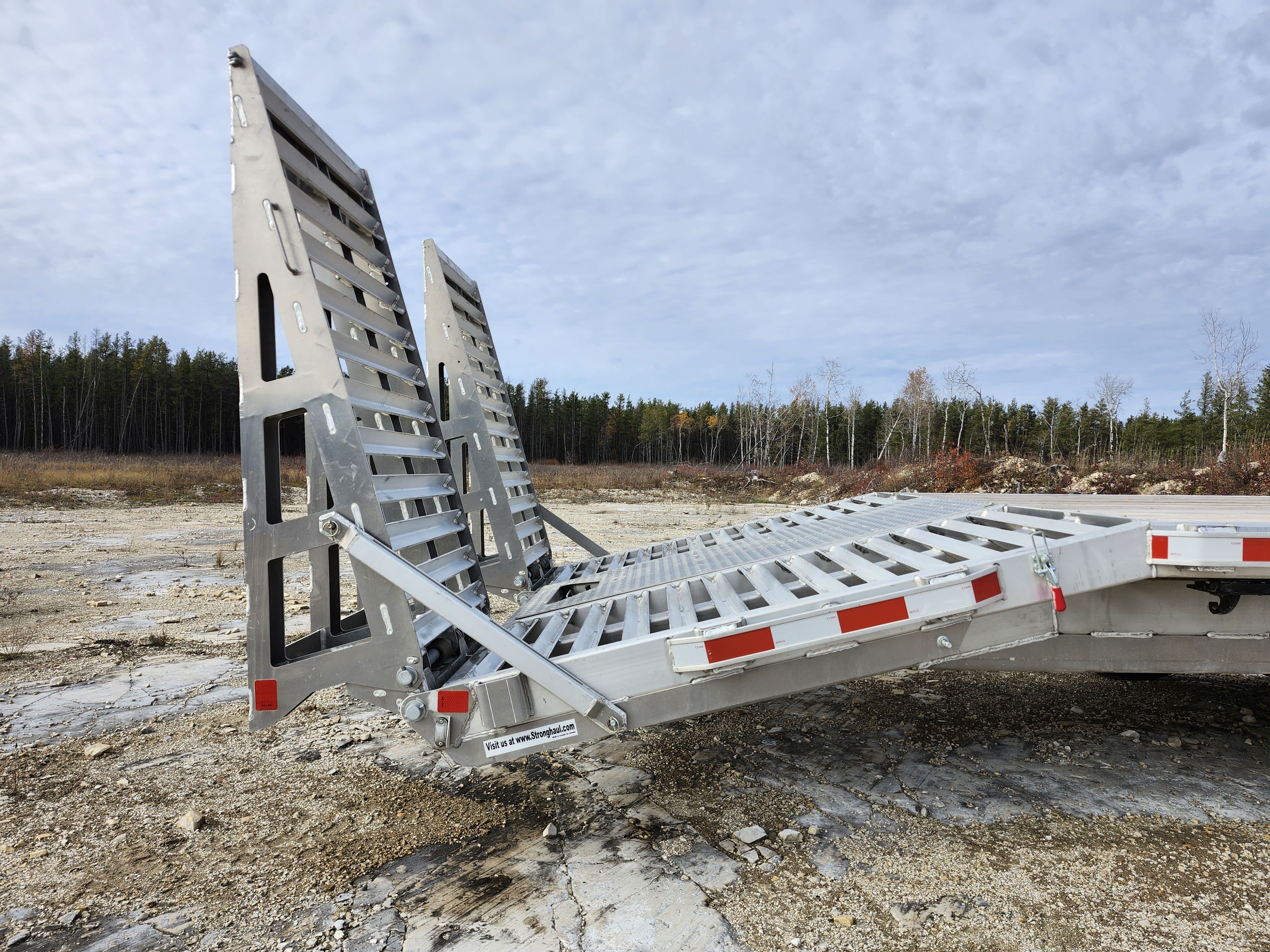

Ramps: Dual Flip Over Beaver Tail Ramps, 8,000lb CAP/Ea, 60” L x 32” W

Outer Frame Tubes: 5.00” x 2.00” x .190”w 6061-T6

Integrated Ramp Knee Brace, Spring Assisted

Crossmembers: 3.00” x 1.50” x .190”w 6061-T6 on 16” CTR’s
