Standard Features and Equipment
-6061 All Aluminum Frame
-13.5” Side Height (Deck to top of Flange)
-3500lb Dexter Drop Axles, with Electric Self Adjusting Brakes
-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape
-7-Pin RV Style Arctic Rated Electrical Connector
-Junction Box, Break-away Kit with Battery and Charger
-2-5/16” Ball Coupler, Max 2,100lb tongue WT, with Polypropylene Tape
-ST205/75R15 6-ply Radial Tires
-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, Black
-LED Lighting Package
-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone
-5,000lb, A-Frame Mounted, Drop Leg Jack
-2x10 Douglas Fir/Larch Plank Floor
-3/8” x 35” Safety Chains, 16.2K lb Rating, with Safety Latch

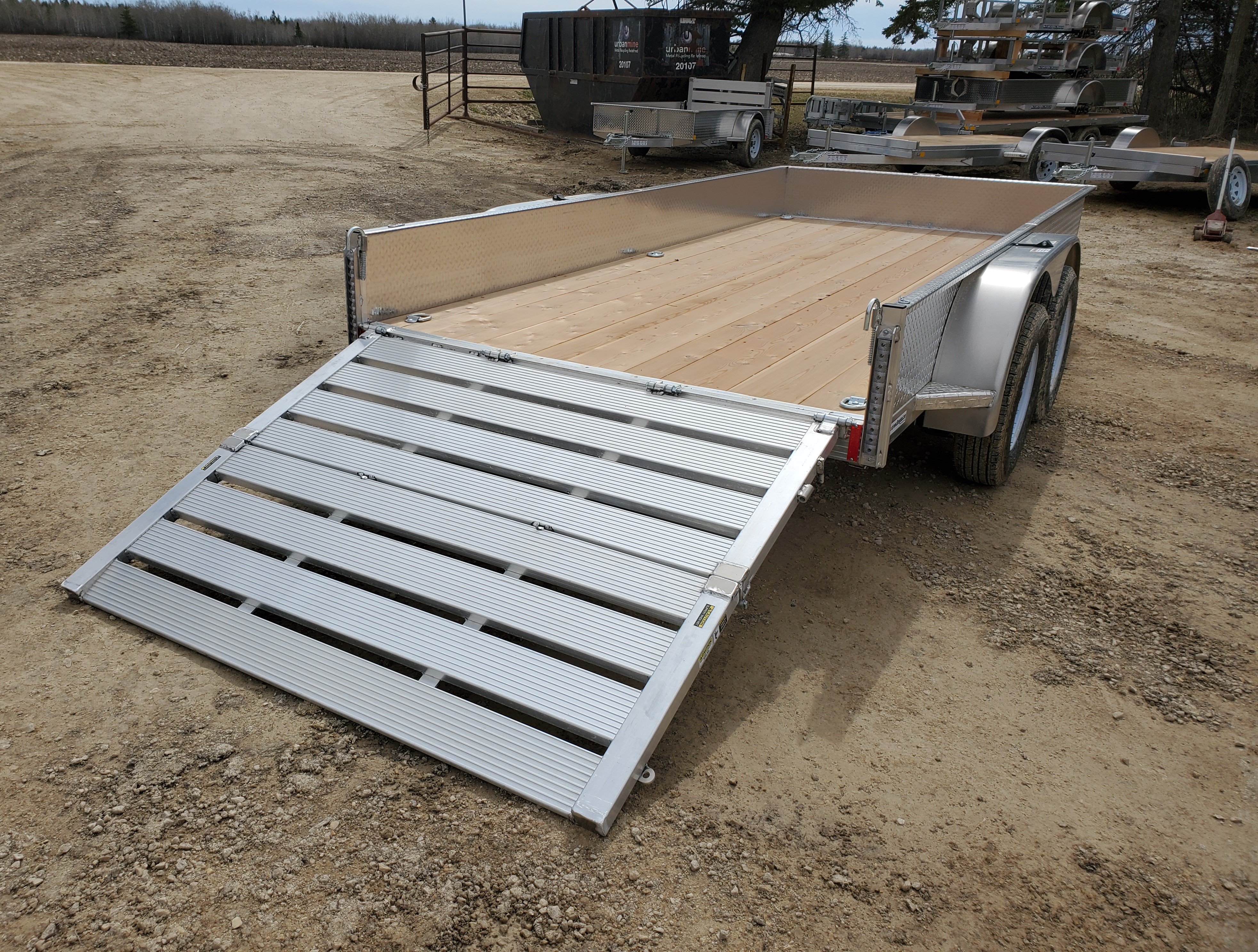

-Folding Rear Ramp rated at 3000lbs
-Ramp Unfolded Length: 54” L x 71” W (Ramp Width is trailer size - 5.00”)
-Ramp Folds Down onto Deck
-4,000lb Lashing Rings , ZP (6 rings on 12’ models, 6 on 14’, 6 on 16’, and 8 on 18’)
-Spare Tire Mount (Changes from front to side depending on tool box)
-Deck to Ground Height: 18”
-Ground to Coupler Height: 15” When Level
-GVWR: 7000lbs
