Utility Style, Aluminum Frame, Single Axle, Rail Side Trailer with Drop in Side Ramps

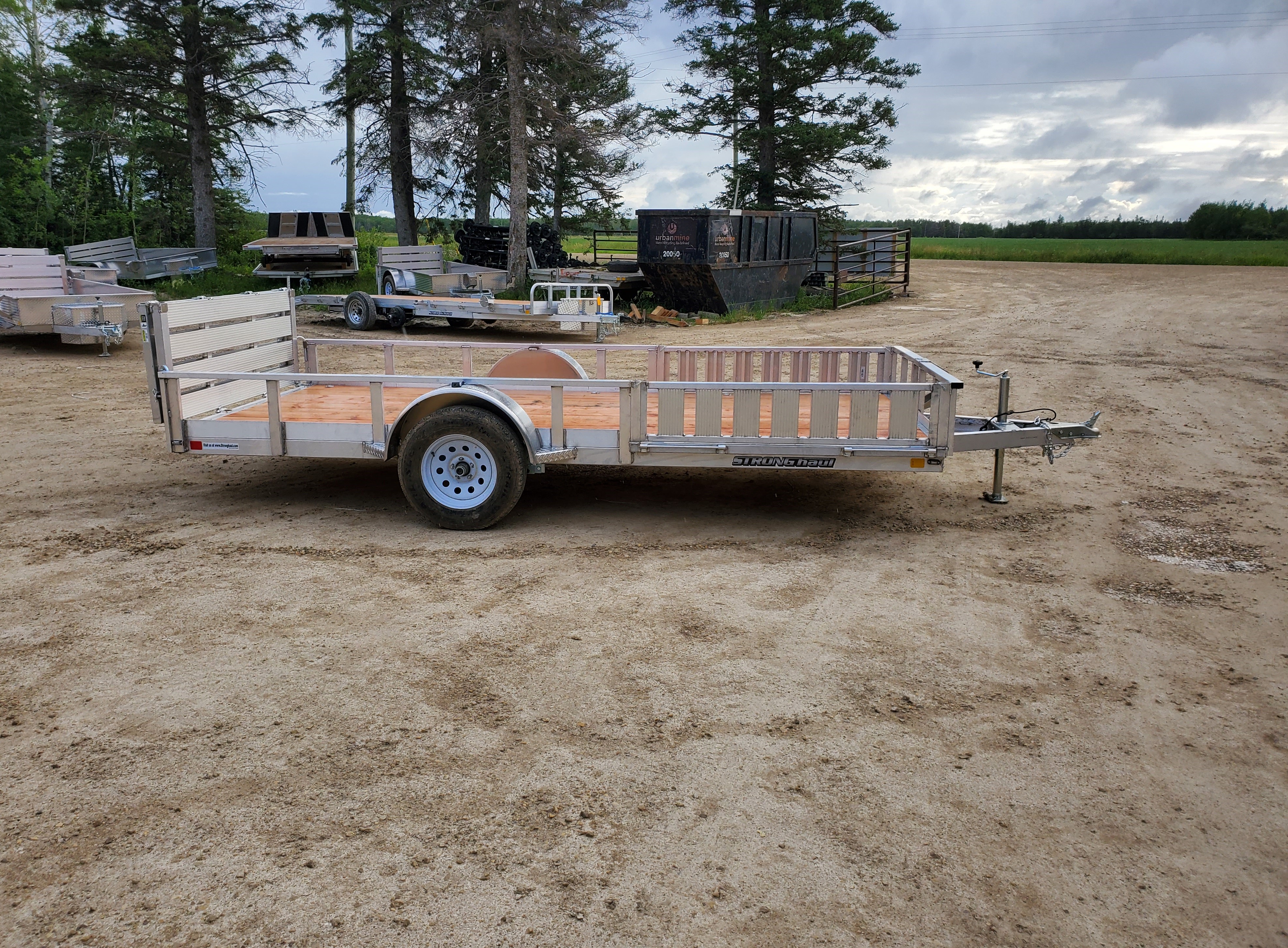

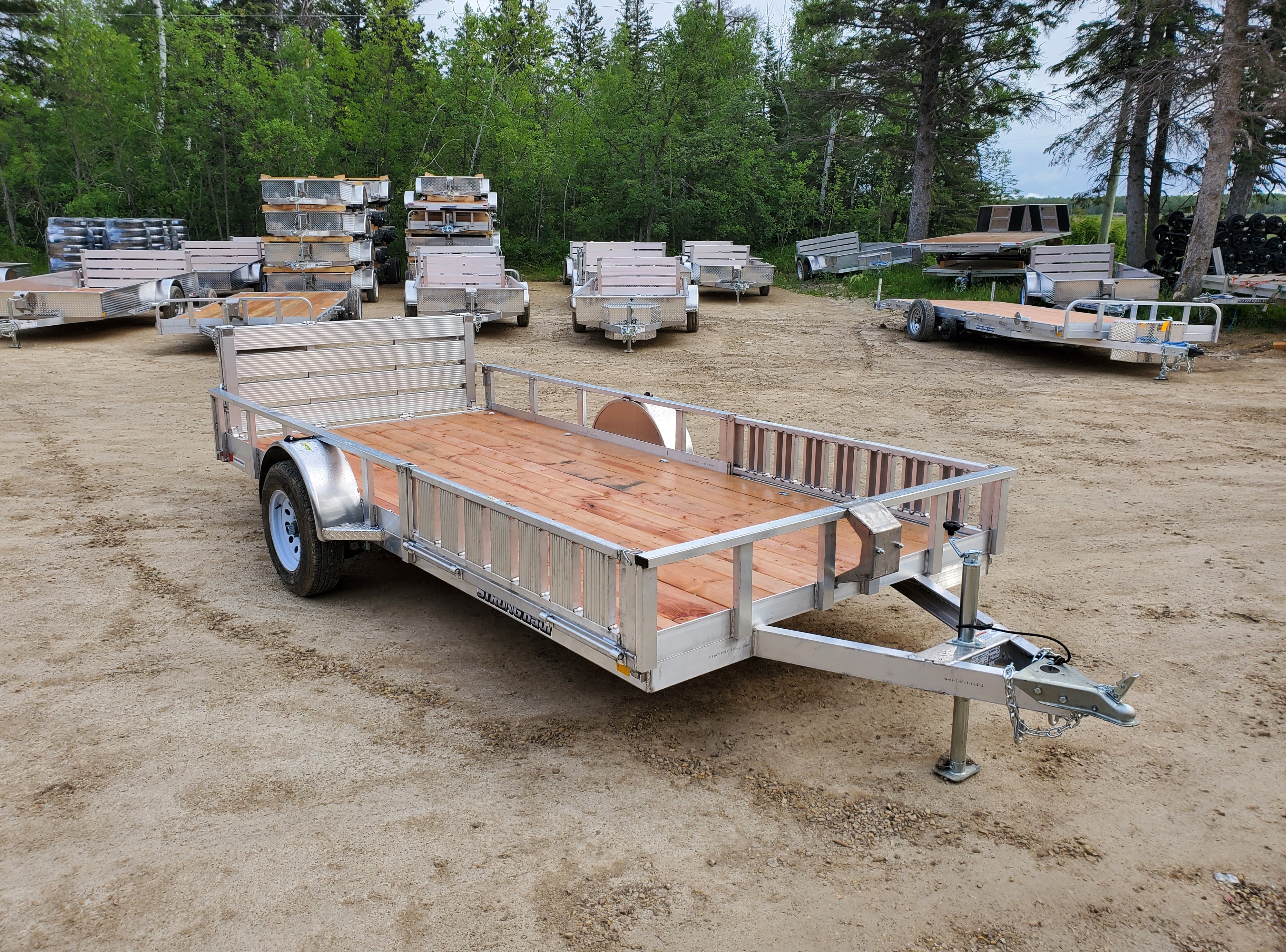

UASR-76x14-DR Model Displayed

With side loading ramps it makes this model easily capable of handling two ATV’s with the drive on drive off ramps.

For more trailer specs, details, and sizing please see below.

Contact a Dealer

More Information

Standard Features and Equipment

Stronghaul UASR-DR Brochure.PDF

-6061 All Aluminum Frame

-13.5” Side Height (Deck to top of Rail)

-3500lb Dexter Drop Axle, Idler

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-4-Pin Flat, Easy Pull Electrical Connector

-2” Ball Coupler, Max rating 700lb tongue WT, with Polypropylene Tape

-ST205/75R15 6-ply Radial Tires

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, Black

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-5,000lb, A-Frame Mounted, Drop Leg Jack

-2x10 Douglas Fir/Larch Plank Floor

-5/16” x 30” Safety Chains, 7.6K lb Rating, with Safety Latch

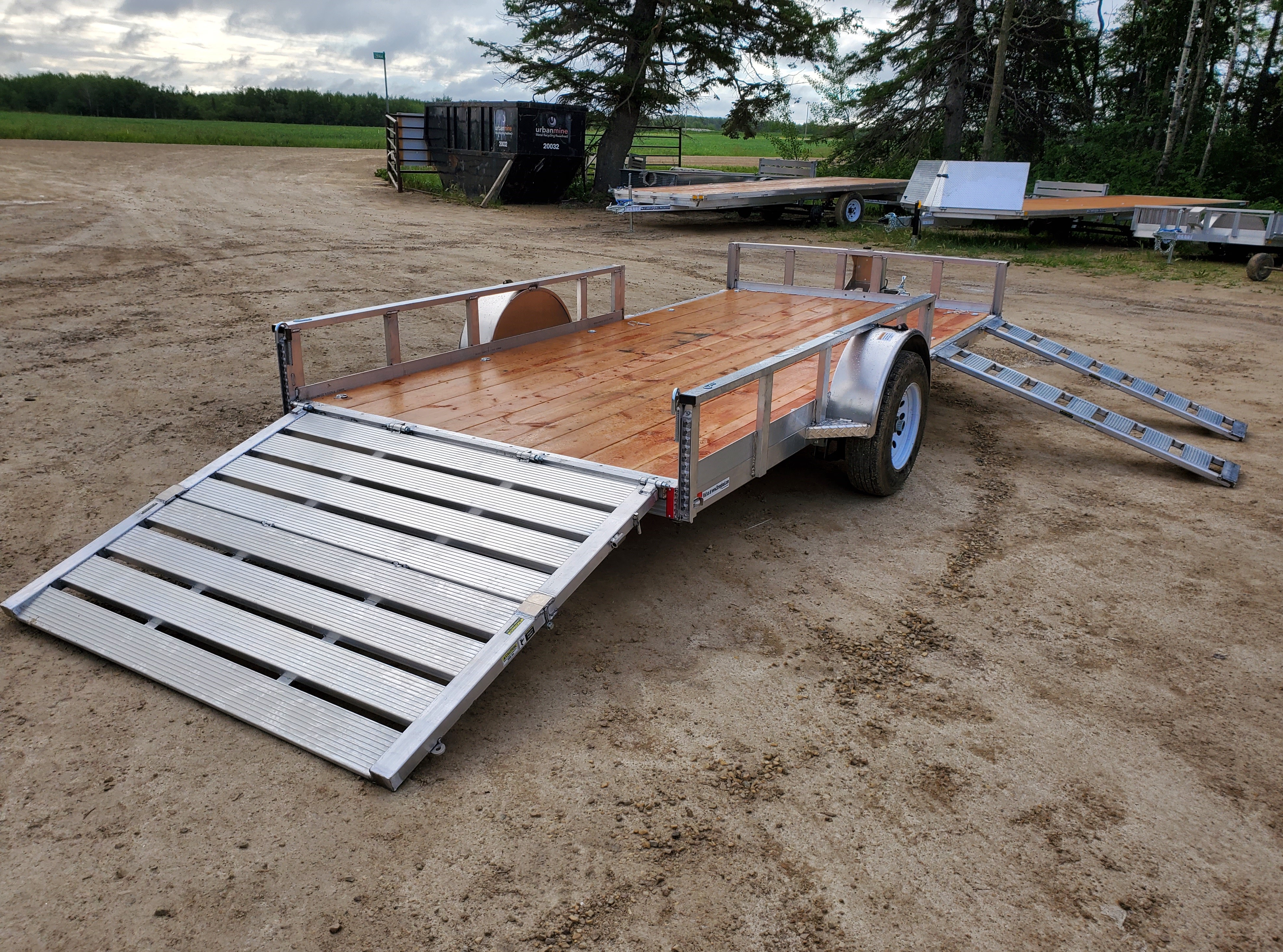

-Folding Rear Ramp rated at 3000lbs

-Ramp Unfolded Length:  54” L x 71” W (Ramp Width is trailer size - 5.00”)

-Ramp Folds Down onto Deck

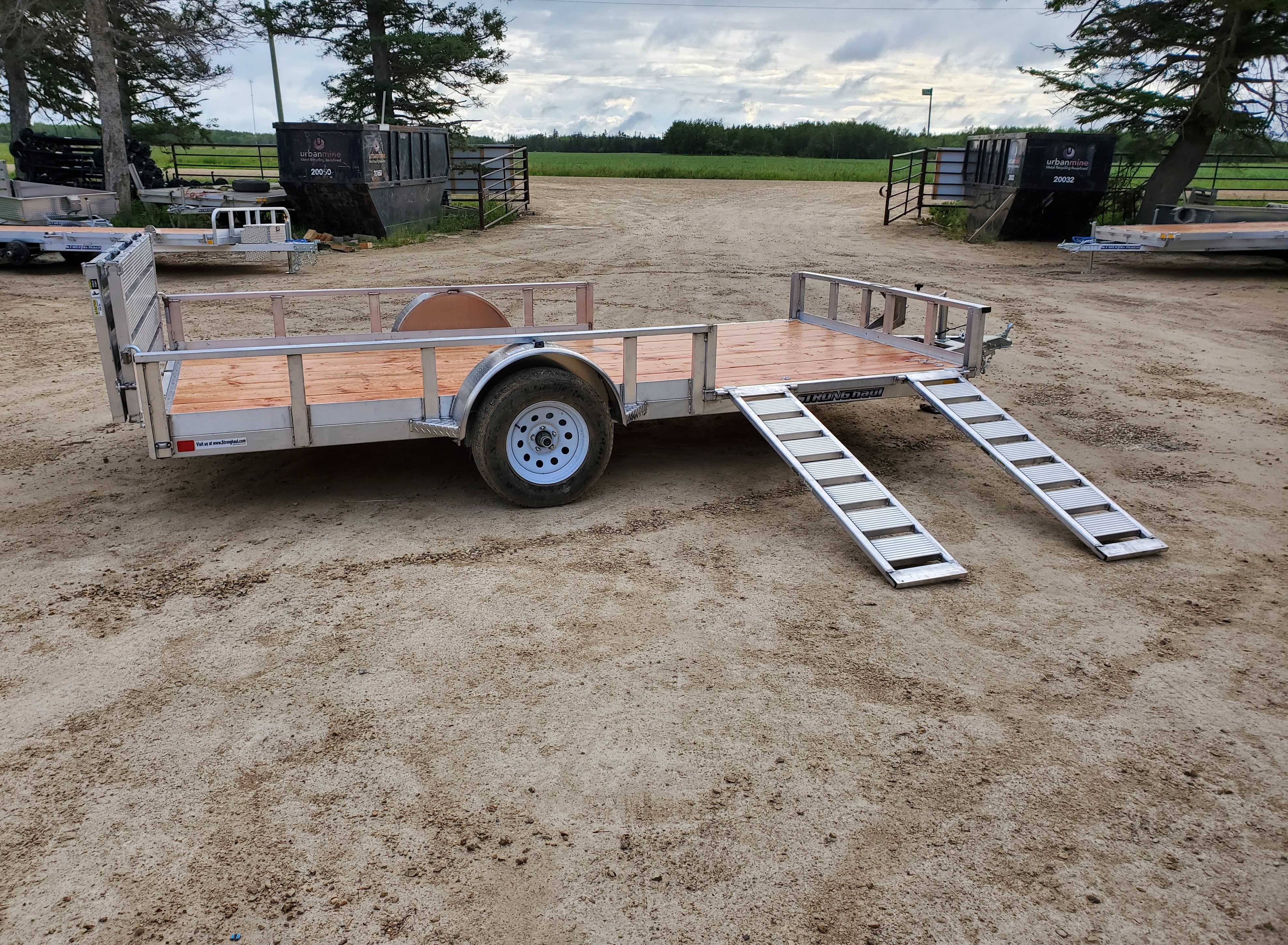

-Side Loading Access w/ Drop in Ramp Gates, 1250 lb Capacity/Ea, 61” L x 13” W

-2,000lb Lashing Rings , ZP (8 rings on 12’ models, and 10 on 14’)

-Spare Tire Mount (Changes from front to side depending on tool box)

-Deck to Ground Height:  18”

-Ground to Coupler Height:  15” When Level

-GVWR: 2,990lbs (3,500lbs with additional electric brake option)

Available Sizes


STD. Payload

Dry Wt.


2,040 lbs

950 lbs


1,870 lbs

1120 lbs


2,005 lbs

985 lbs


1,700 lbs

1290 lbs


Available Options


Aluminum Wheel Upgrade PKG

Spare Wheel, Steel

Spare Wheel, Aluminum

Extra Lashing Rings 2k lb

Jack Caster Wheel

Side Mount Pivot Jack

A-Frame Mounted, Lockable Handle Tool Box

Electric Braking Axle Upgrade
