Overview

Snowmobile Style, Aluminum Frame, Single or Tandem Axle, Deck-over Trailer

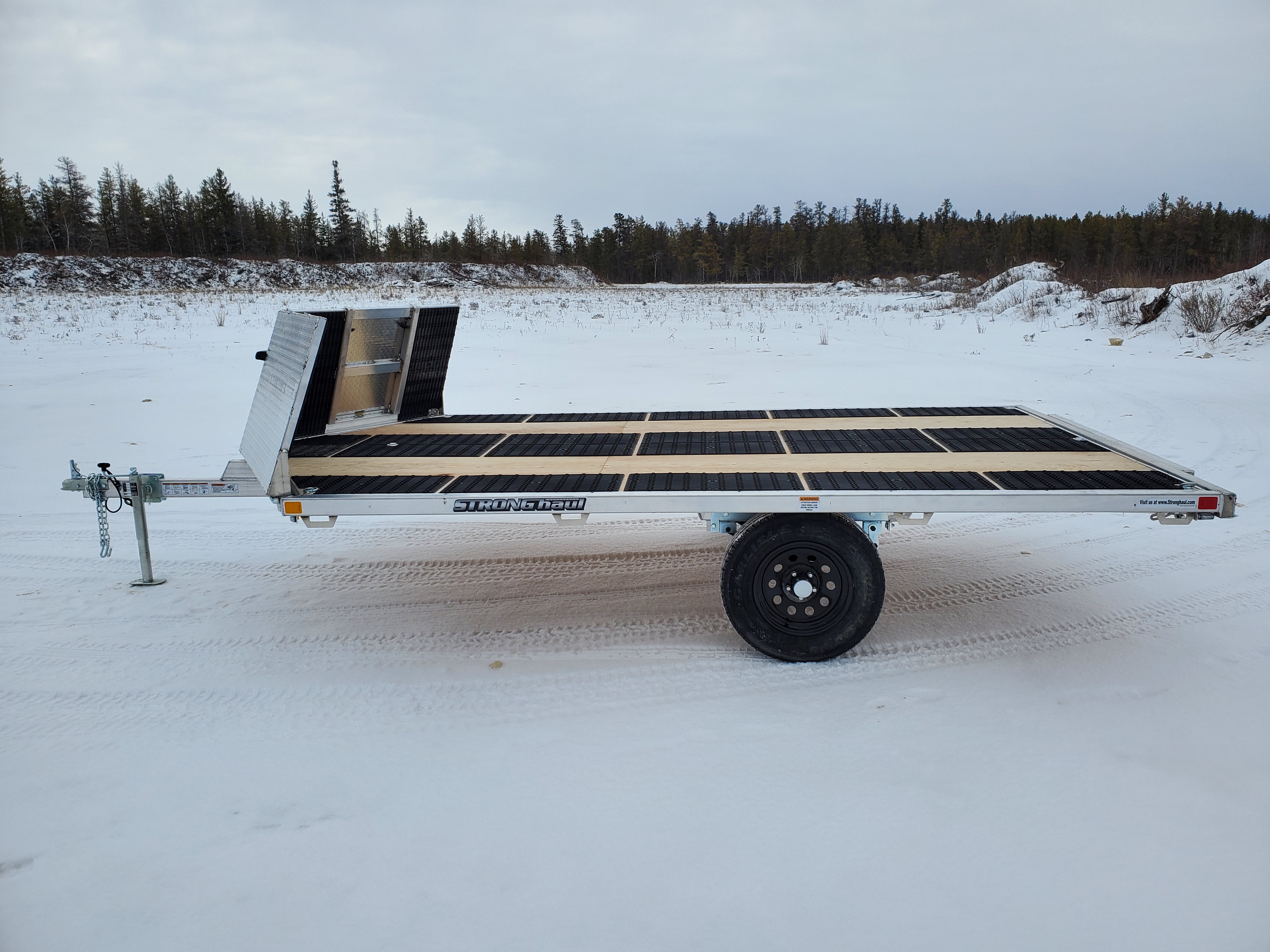

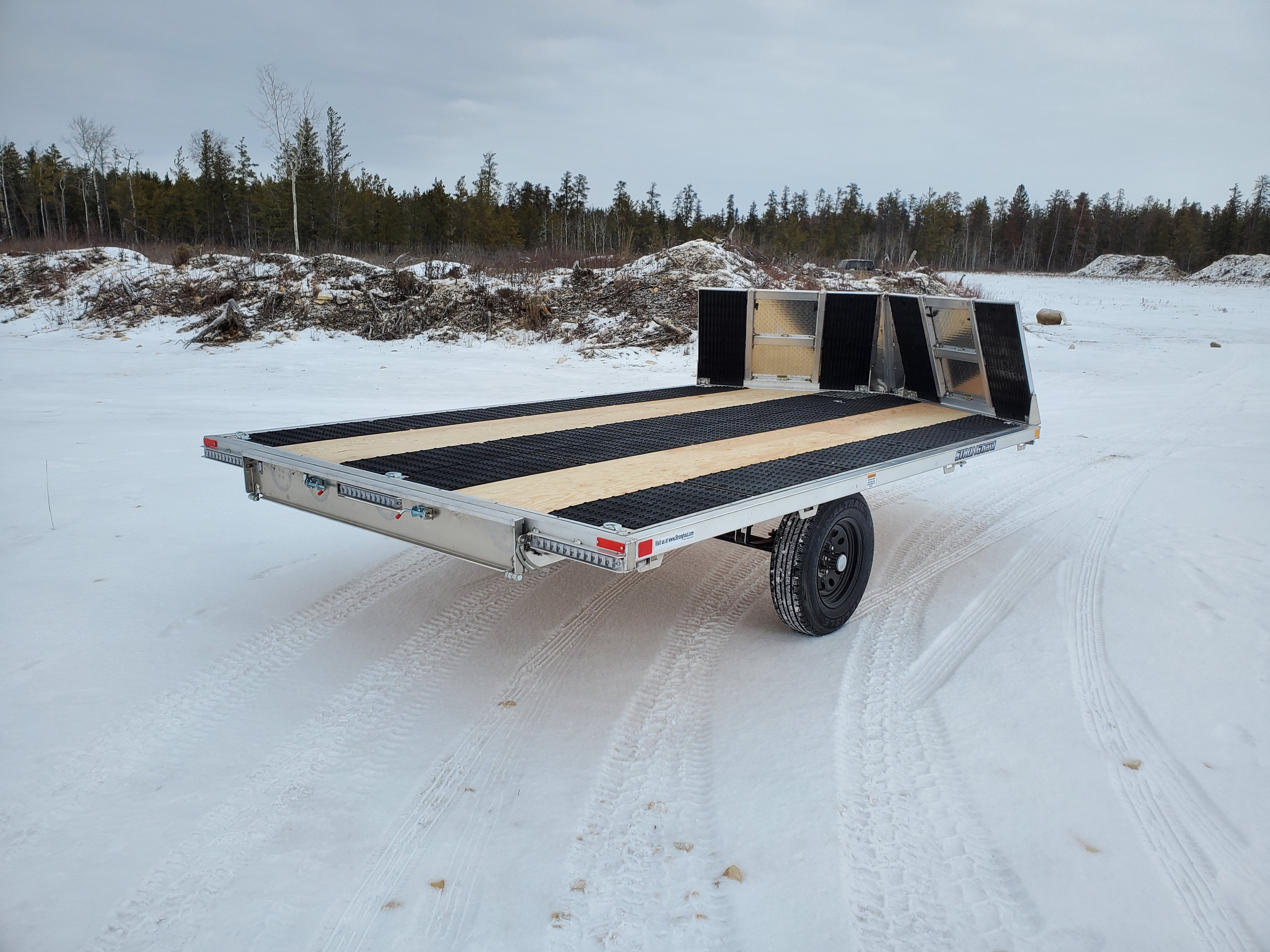

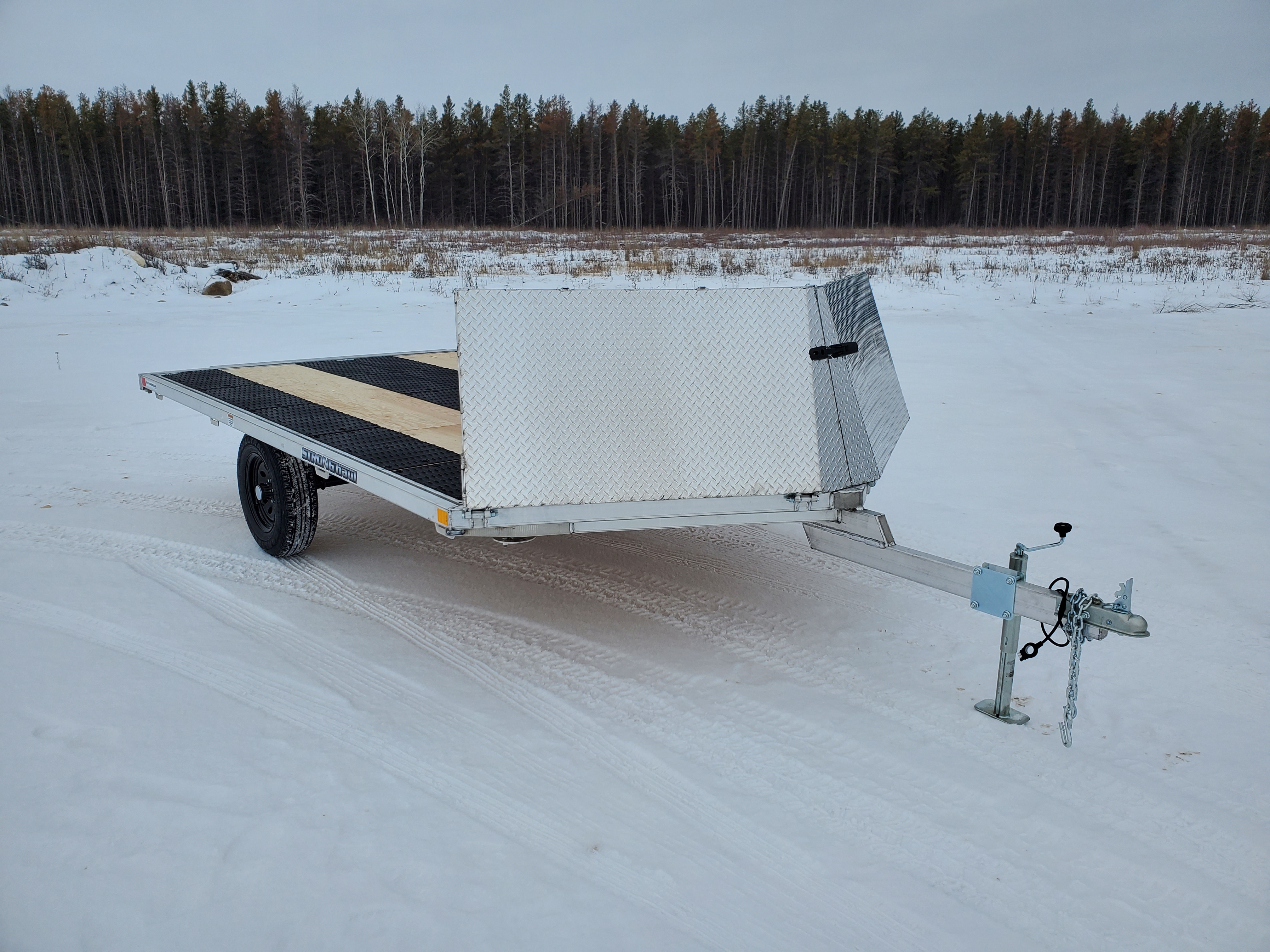

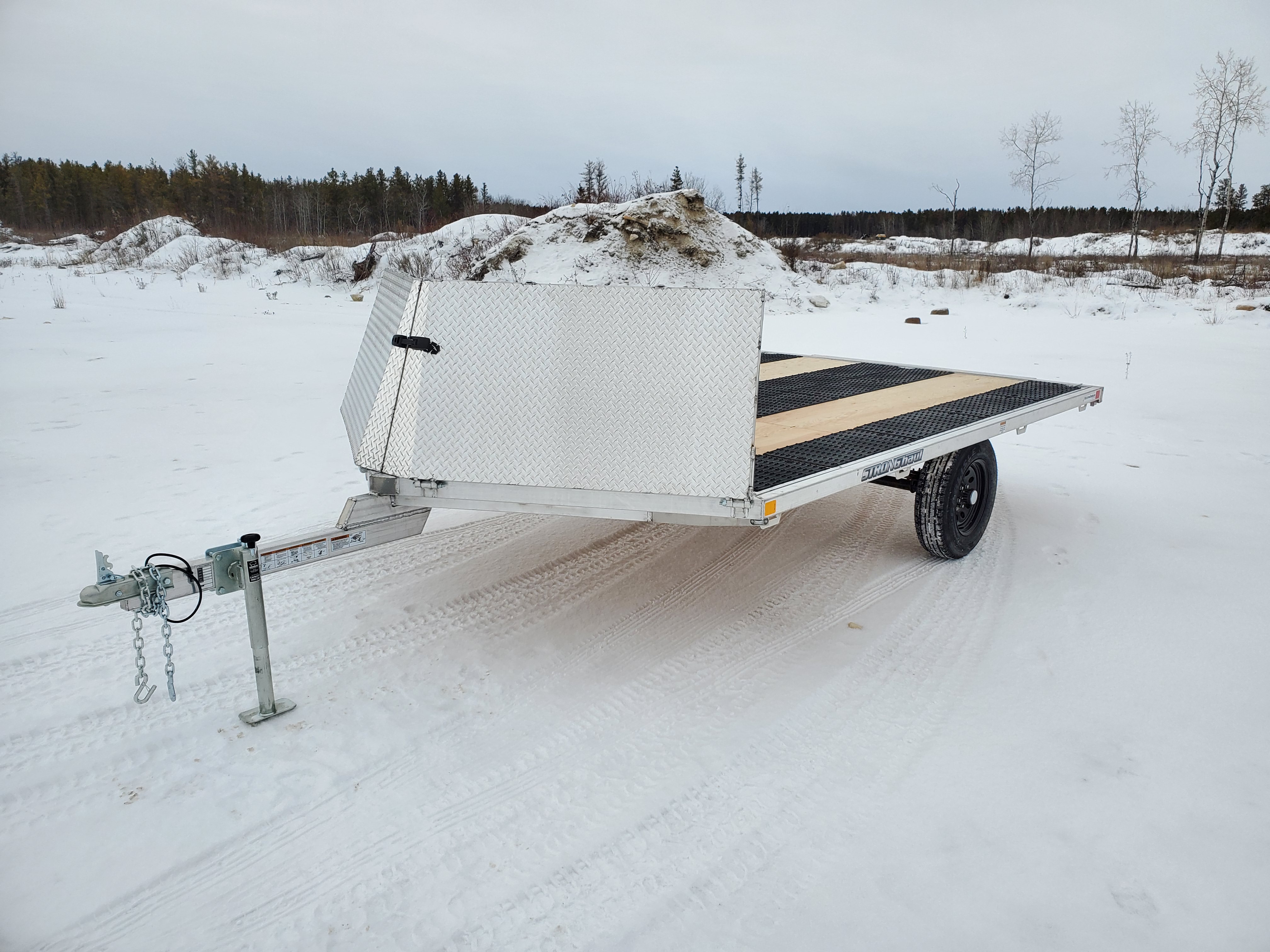

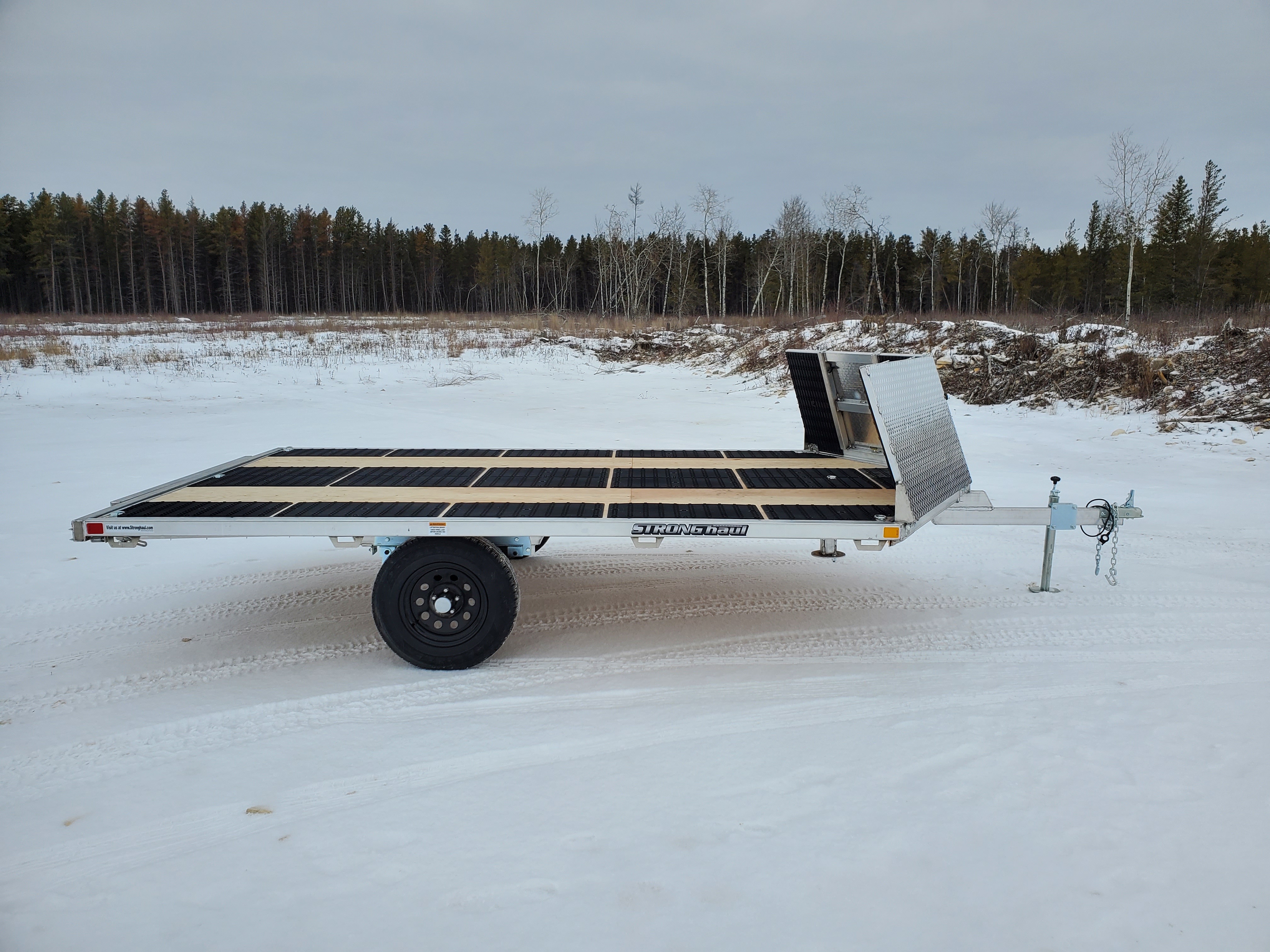

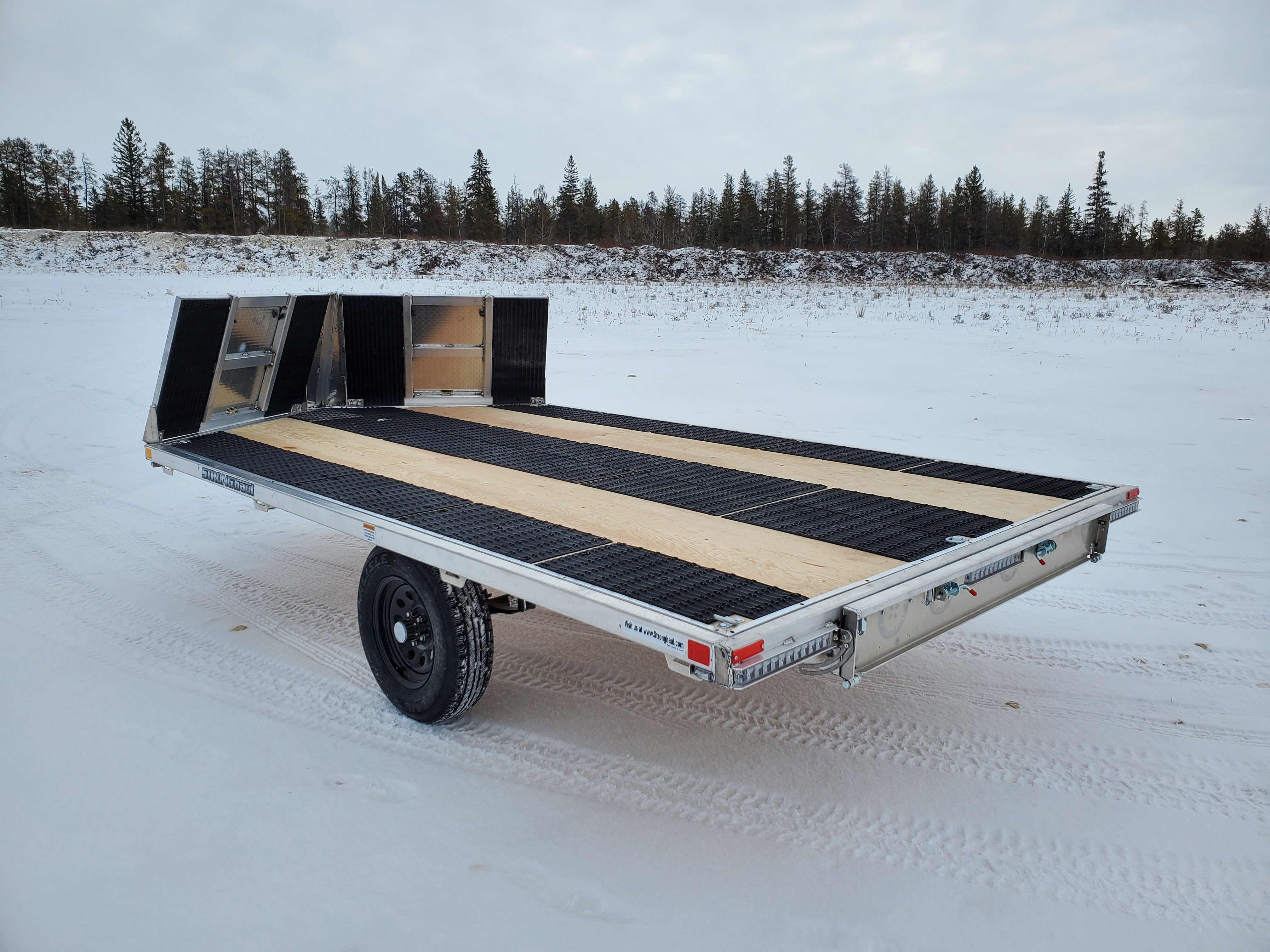

SASD-101x12-G2 Model Shown

The shown model has the following options applied:

-GEN2 drive off spray shield option

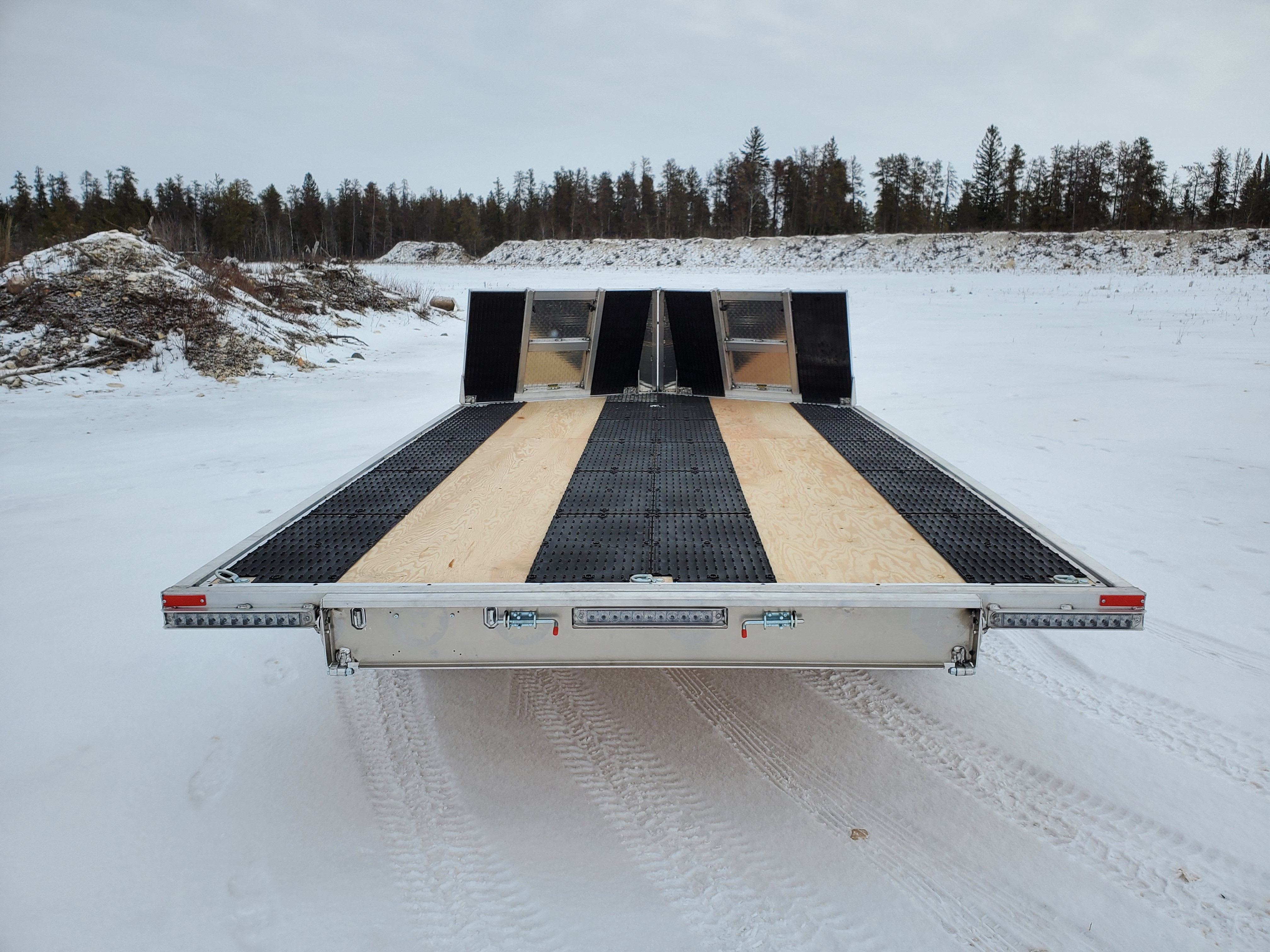

-Superglide decking protector option

The Superglides provide superior protection against damage from the carbides on the snowmobile skis and will prevent pre-mature decking wear from loading/unloading.

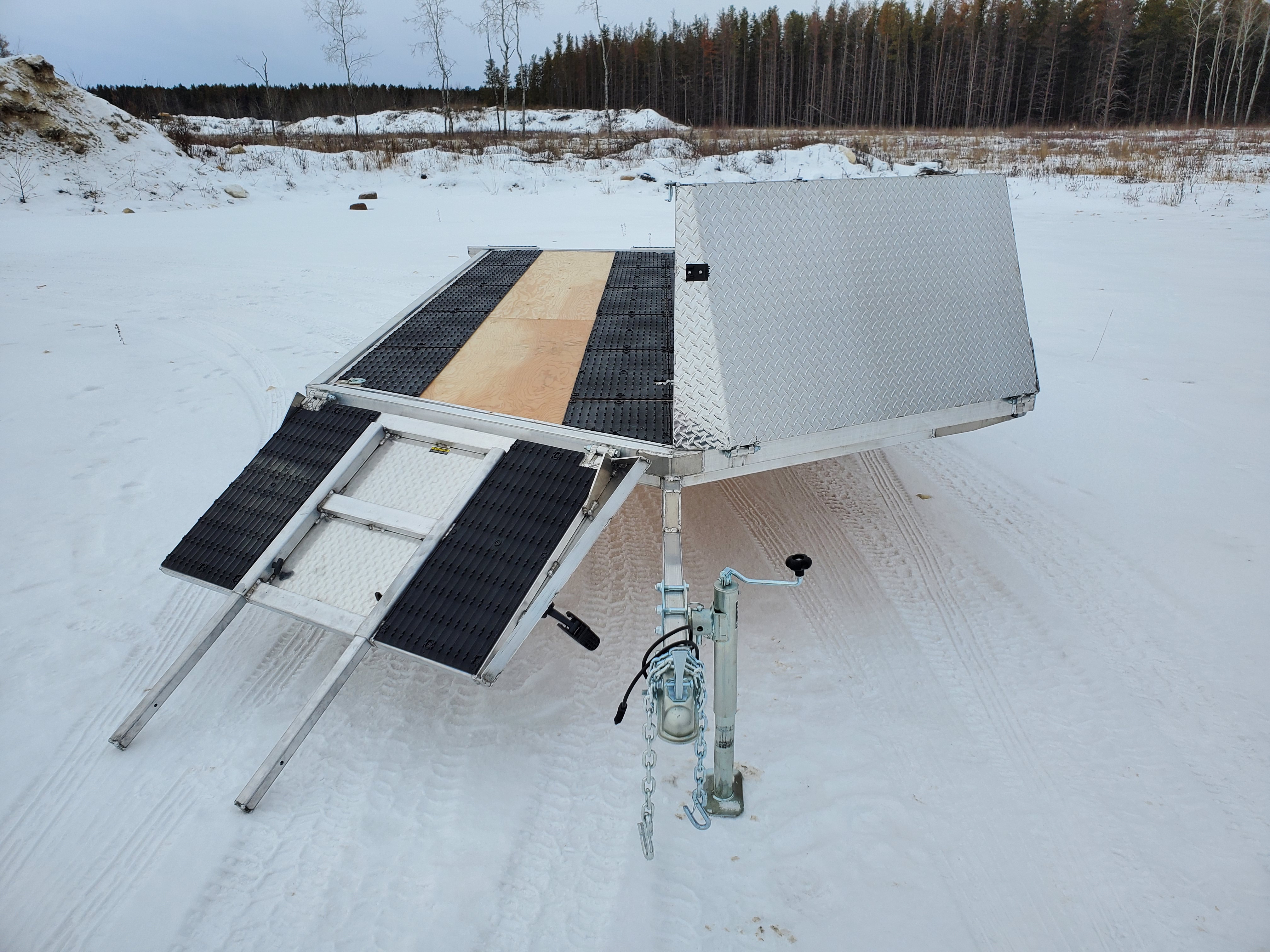

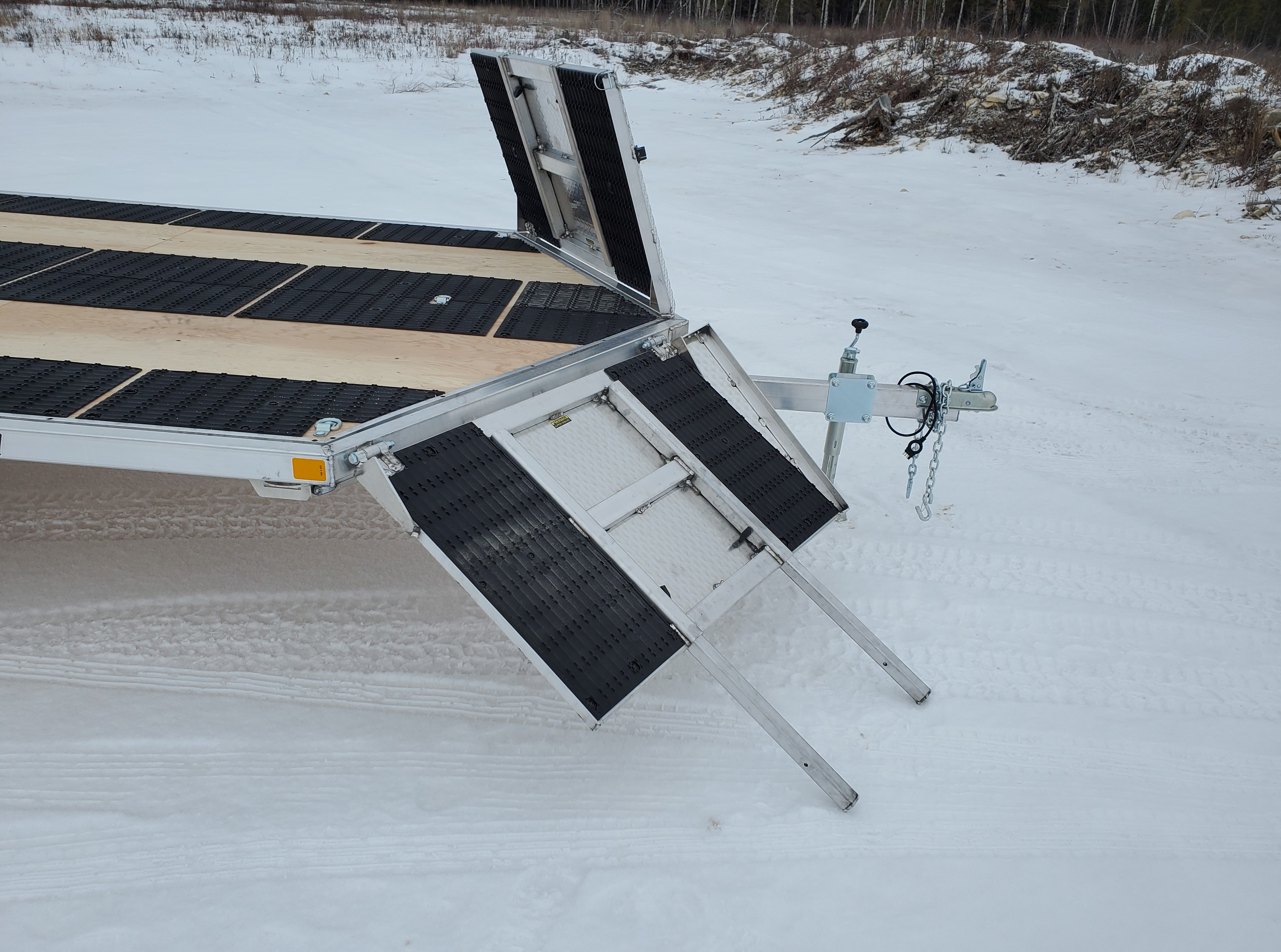

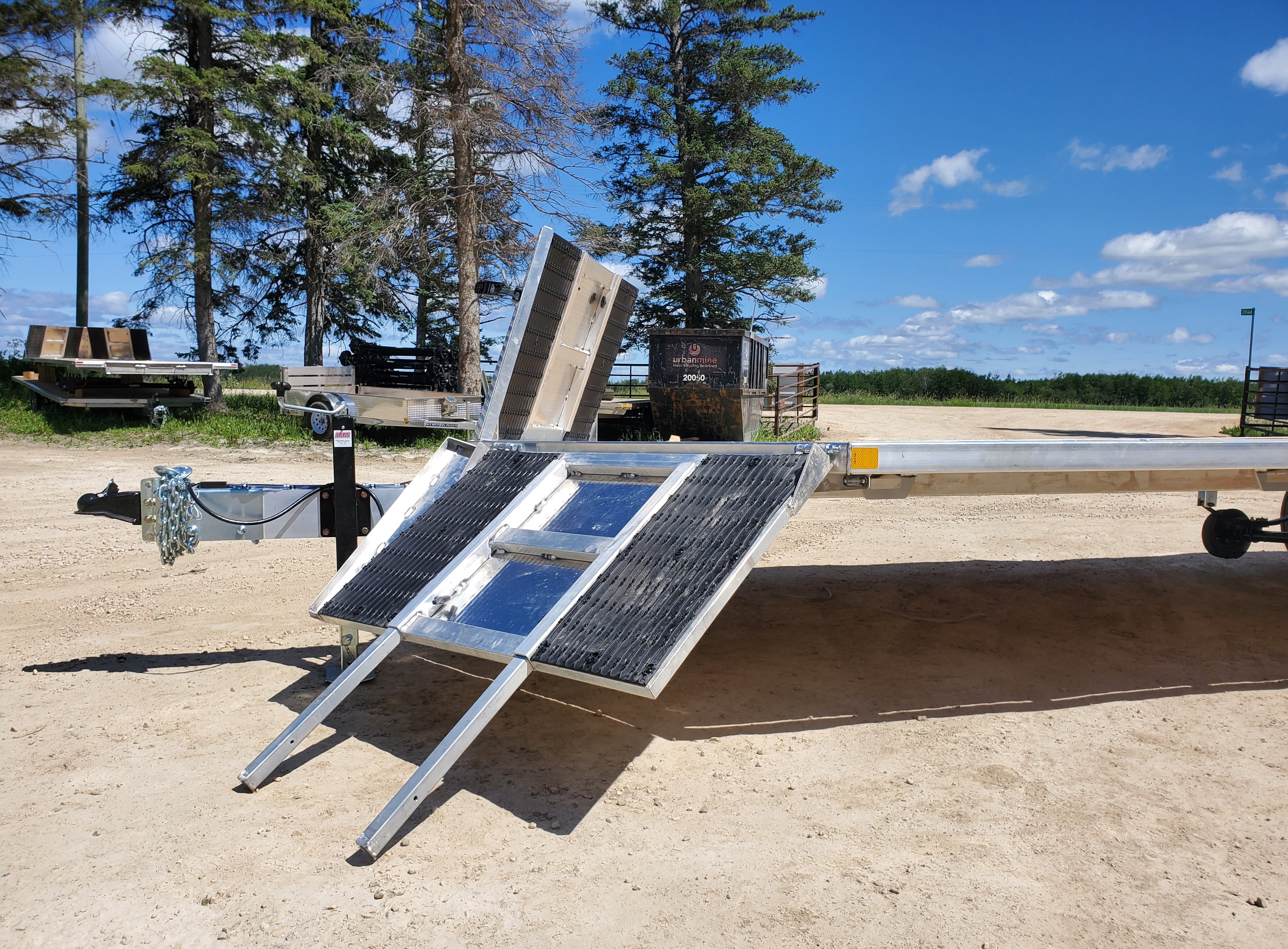

The GEN2 snowmobile trailer comes with a wider ramp for loading small UTV’s, along with no side rails to provide easy side loading access. Another feature of the GEN2 snowmobile trailer is the optional drive-off ramp/spray shield, this way it is not necessary to haul the ramp from the back of the trailer to the front in order to drive-off the front of the trailer.

*Note: Superclamp tie down bars not shown in image, tie down bar mounts in place with 2’ section of adjustable Supertrac

For more trailer specs, details, and sizing please see below.

Contact a Dealer

More Information

Standard Features and Equipment SASD-101x12-G2

Stronghaul SASD_SATD-G2 Brochure.PDF

-6061 All Aluminum Frame

-3500lb Straight Axle, Idler

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-4-Pin Flat, Easy Pull Electrical Connector

-2” Ball Coupler, Max rating 700lb tongue WT, with Polypropylene Tape

-ST205/75R15 6-ply Radial Tires

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, Black

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-A-Frame Mounted Jack Rated at 5K lbs

-3/4” Douglas Fir/Larch Plywood Floor

-5/16” x 30” Safety Chains, 7.6K lb Rating, with Safety Latch

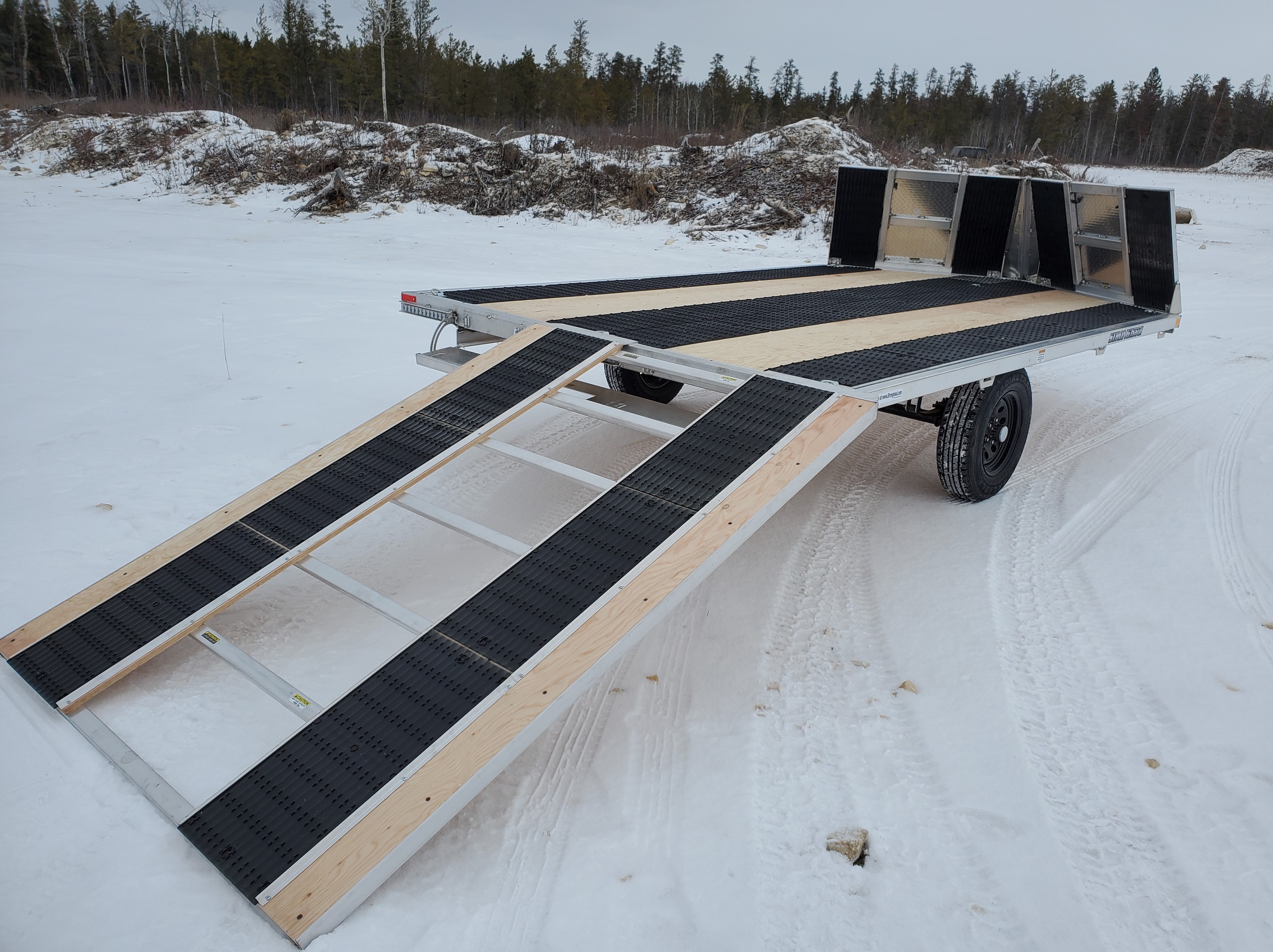

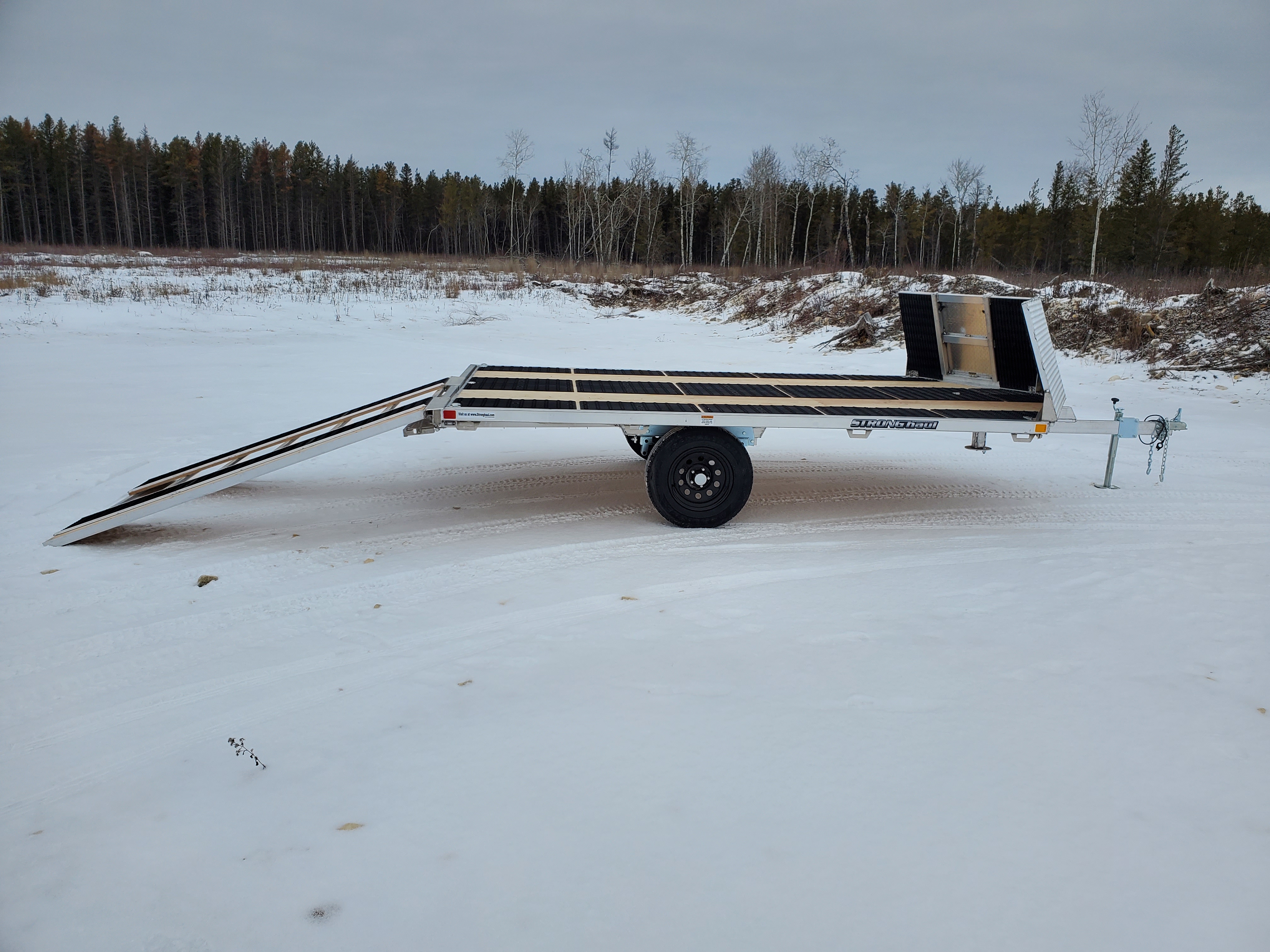

-Pull Out Rear Ramp Rated at 1000lbs, 93” L x 66” W

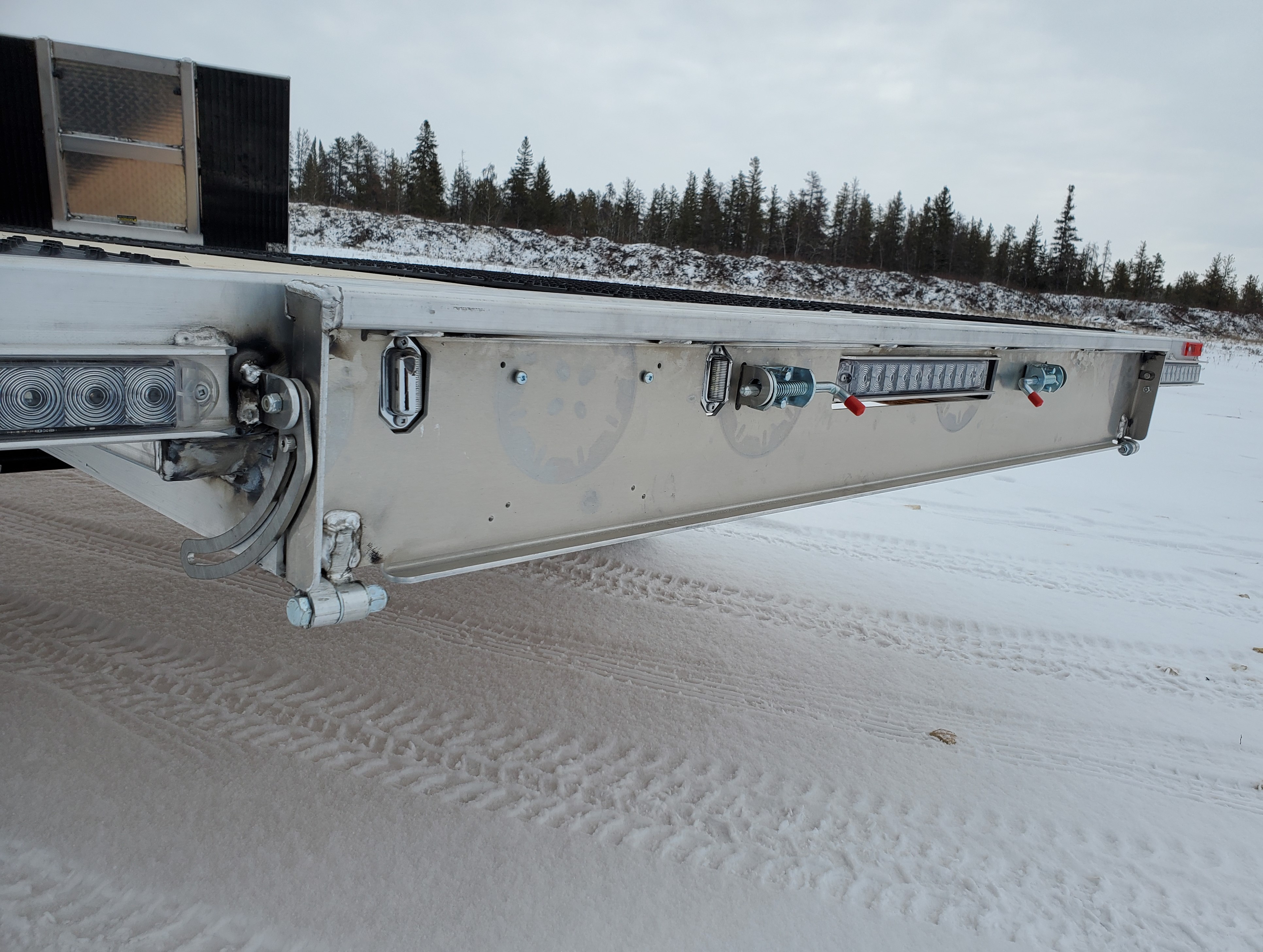

-Rear Ramp Door (Avoids setting ramp on ground when setting up)

-6 x 2,000lb Lashing Rings , ZP

-2 x Superclamp Hold Down Bars with 2’ of adjustable Supertrac

-8 x Underdeck  Aluminum Hook Points

-No Side Rail for Side Loading Capability

-Underside Spare Tire Mount

-Deck to Ground Height:  30”

-Ground to Coupler Height:  20” When Level

-GVWR: 2,990lbs (3,500lbs with additional electric brake option)

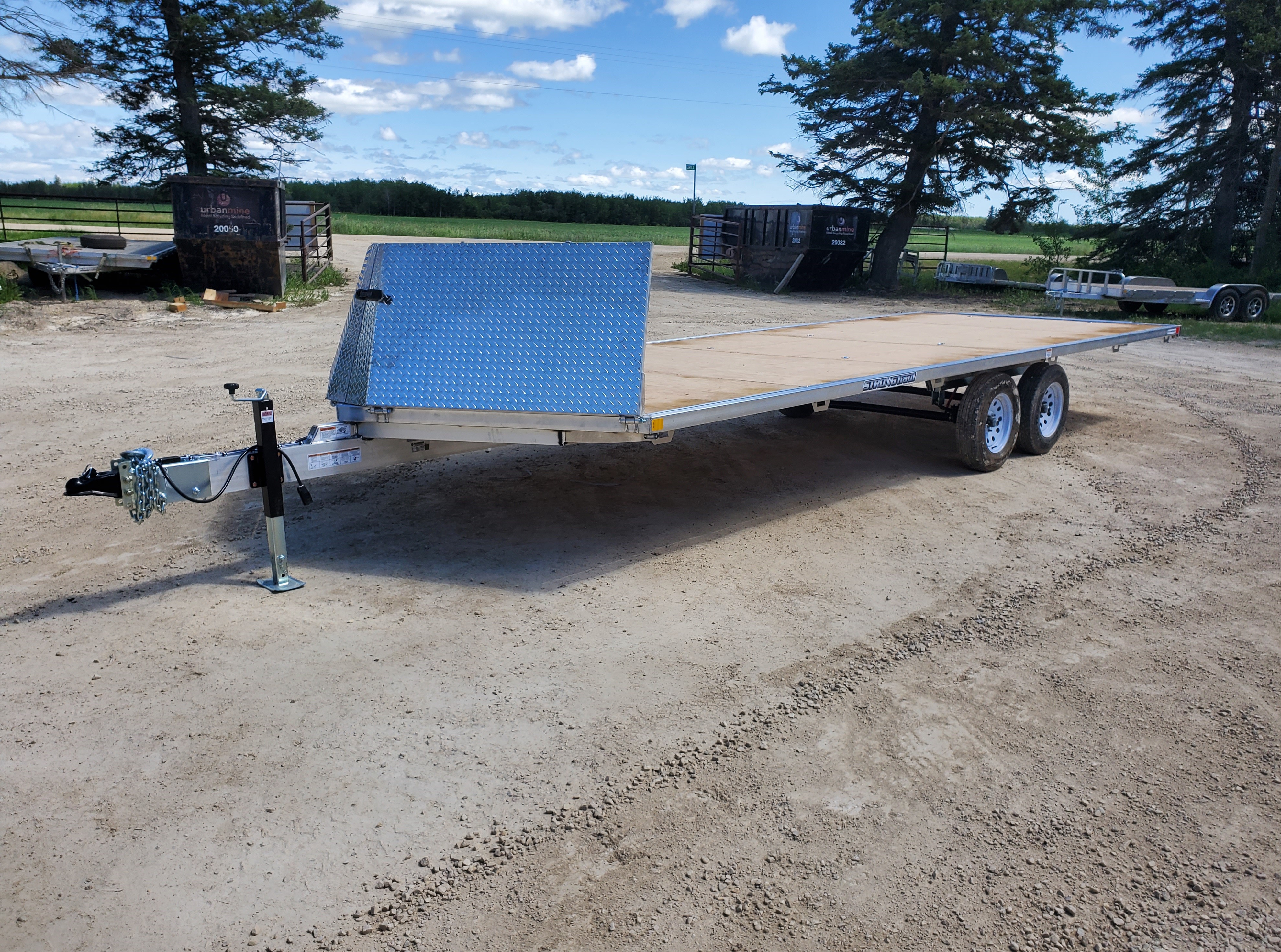

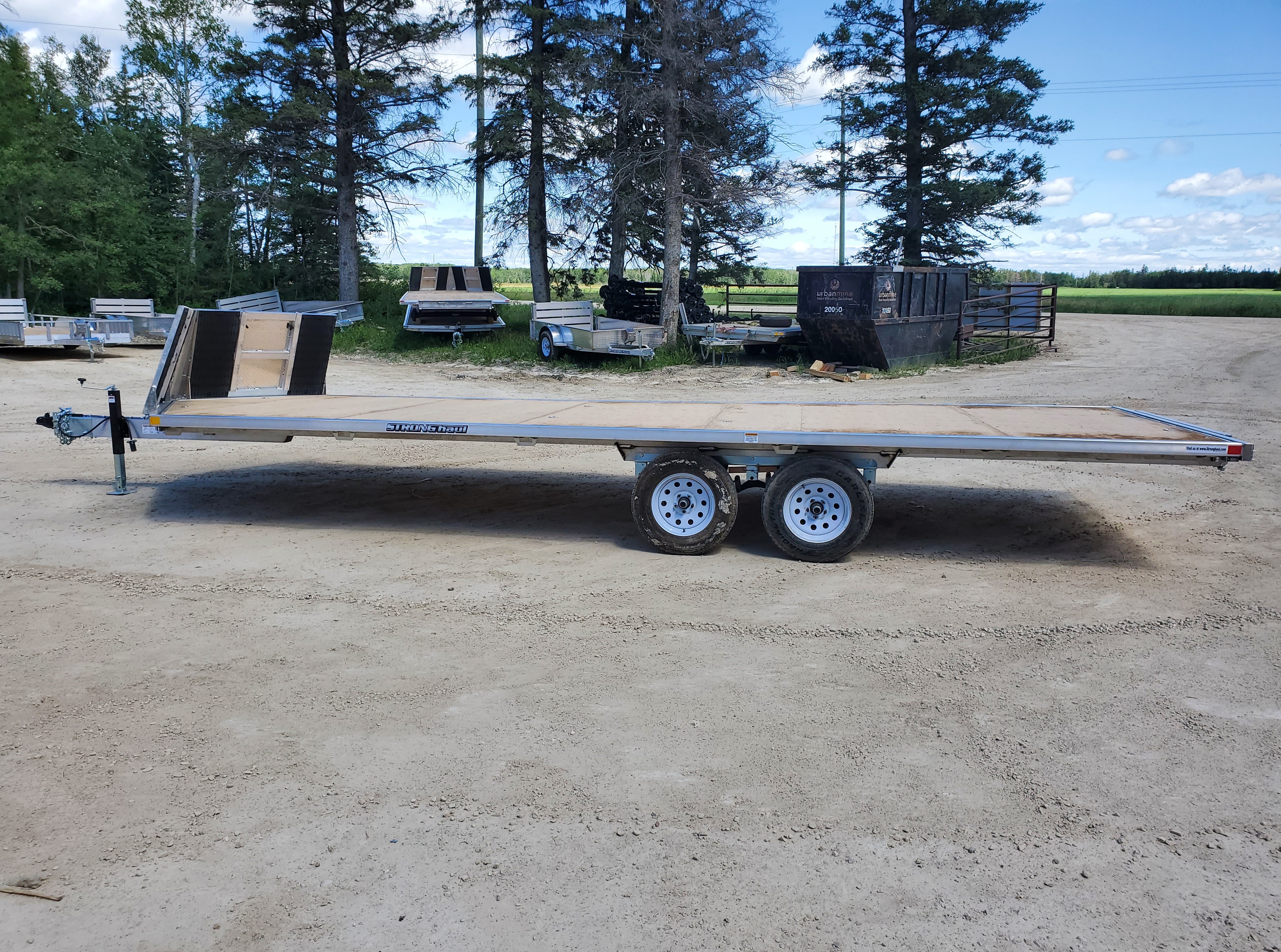

Standard Features and Equipment SATD-101x22-G2

Stronghaul SASD_SATD-G2 Brochure.PDF

-6061 All Aluminum Frame

-3500lb Straight Axles, Electric Self Adjusting Brakes

-Zinc-Plated Axle Mounting Brackets with Polypropylene Tape

-7-Pin RV Style Electrical Connector

-Junction Box, Break-away Kit with Battery and Charger

-2-5/16” Ball Coupler, Max rating 2,100lb tongue WT, with Polypropylene Tape

-ST205/75R15 6-ply Radial Tires

-Modular-Style Steel Wheels, R15”, 5 lug on 4.5” BHP, Black

-LED Lighting Package

-Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone

-A-Frame Mounted Jack Rated at 5K lbs

-3/4” Douglas Fir/Larch Plywood Floor

-3/8” x 35” Safety Chains, 16.2K lb Rating, with Safety Latch

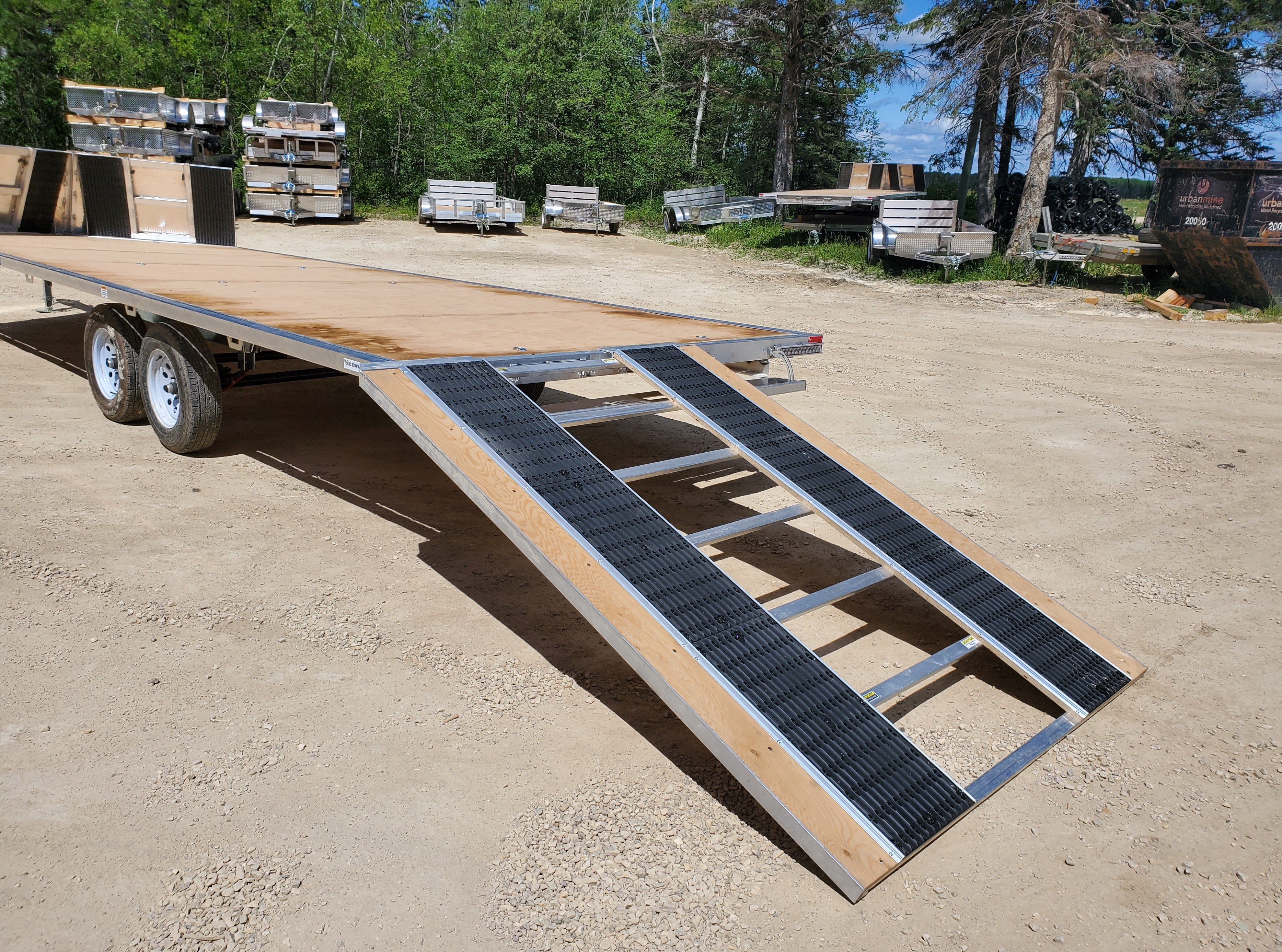

-Pull Out Rear Ramp Rated at 1000lbs, 93” L x 66” W

-Rear Ramp Door (Avoids setting ramp on ground when setting up)

-9 x 2,000lb Lashing Rings , ZP

-4 x Superclamp Hold Down Bars with 2’ of adjustable Supertrac

-12 x Underdeck  Aluminum Hook Points

-No Side Rail for Side Loading Capability

-Underside Spare Tire Mount

-Deck to Ground Height:  30”

-Ground to Coupler Height:  20” When Level

-GVWR: 7000lbs

Available Options

Description

Aluminum Wheel Upgrade PKG

Spare Wheel, Steel

Spare Wheel, Aluminum

Extra Lashing Rings 2k lb

Upgrade Lashing Rings 4k lb

Superglide Decking Upgrade
GEN2 27” Upward Deflecting Spray Shield/Drive Off Ramp
