Standard Features and Equipment SASD-101x10-TD
Stronghaul SASD-TD Brochure.PDF
|
Deck Size: 102” W x 120” L |
Lighting: LED Lighting Package |
|
Overall Size: 102” W x 164” L |
Harness: Enclosed Wiring, Protected with Tubing/Hose and Sealed with Silicone |
|
GVWR: 2,990lb (may be increased to 3,500lb with Electric Brake option) |

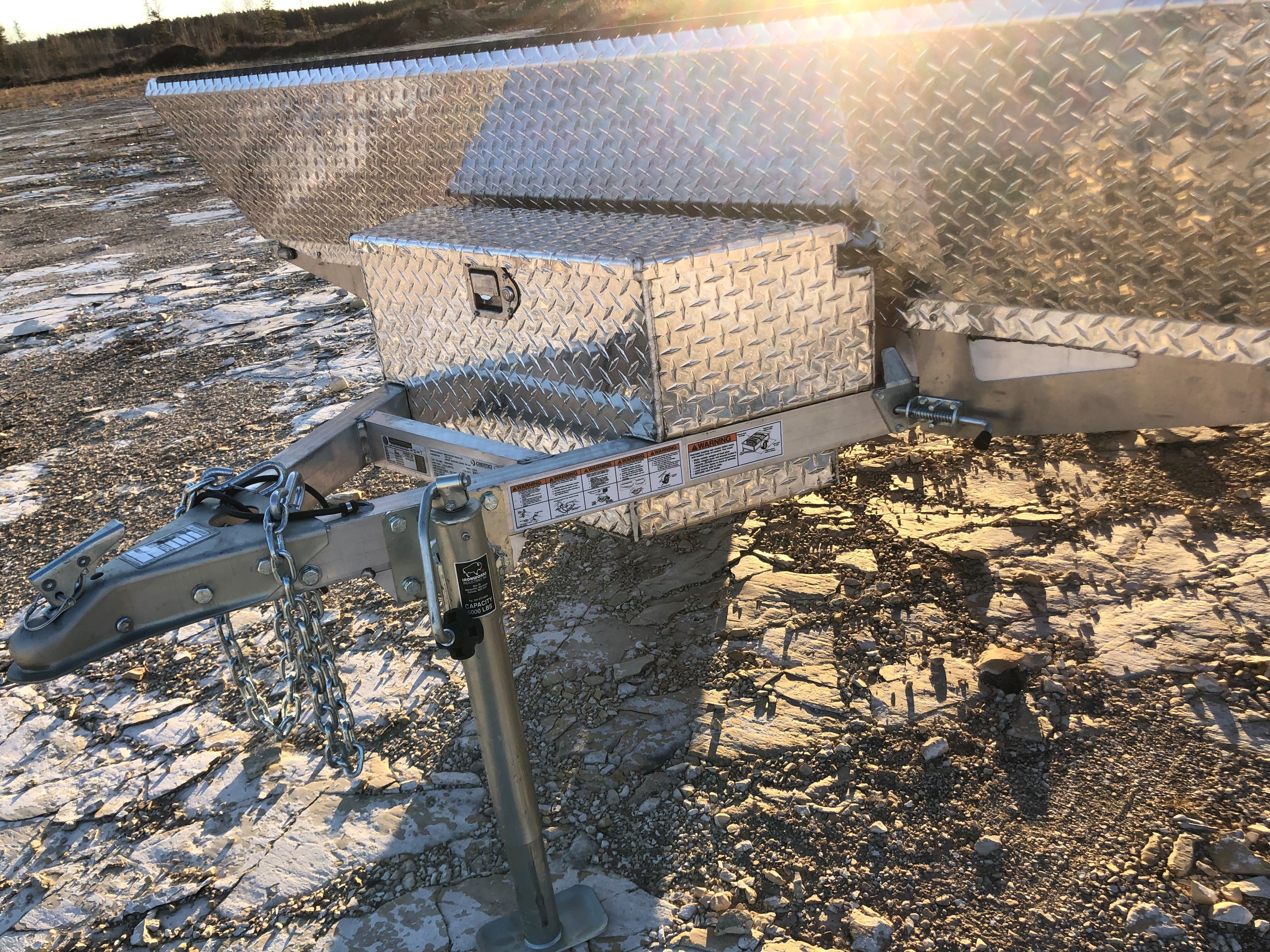

Jack: 5,000lb Cap, Side Mount, Pivot Jack, ZP |
|
Deck to GND Height: 30” |
Decking: 3/4” Douglas Fir/Larch Plywood |
|
Coupler to GND Height: 22” |
Safety Chains: 5/16” x 30”, 7,600lb Rating per Chain, S-Hook w/ Safety Latch, ZP |
|
Frame Tubes: 3.00” x 2.00” x .125” 6061-T6 |
Lashing Rings: 6 x 2,000lb WLL Lashing Rings, 3/8 Dia, ZP |
|
Hitch Tubes: 3.00” x 2.00” x .188” 6061-T6 |

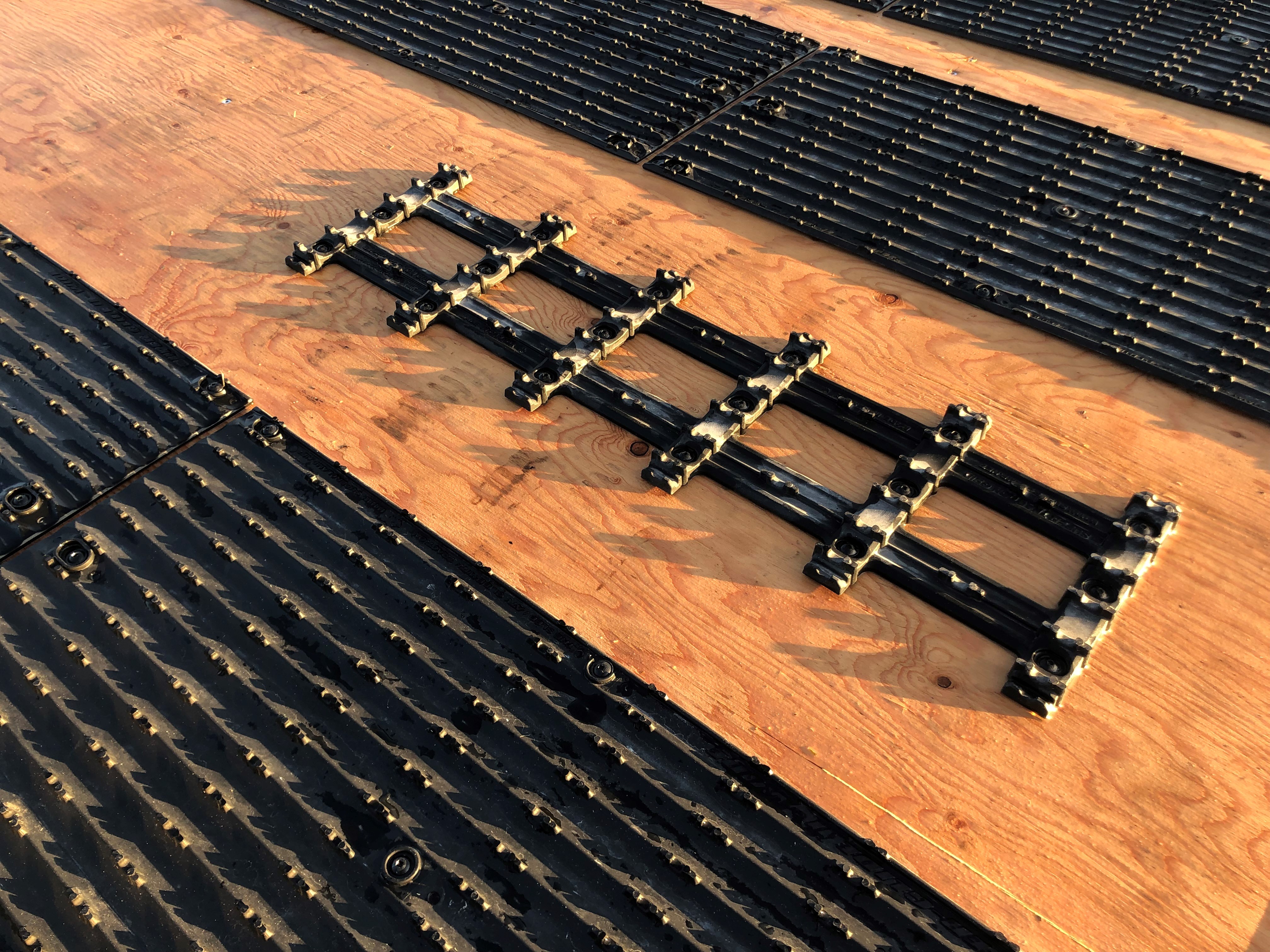

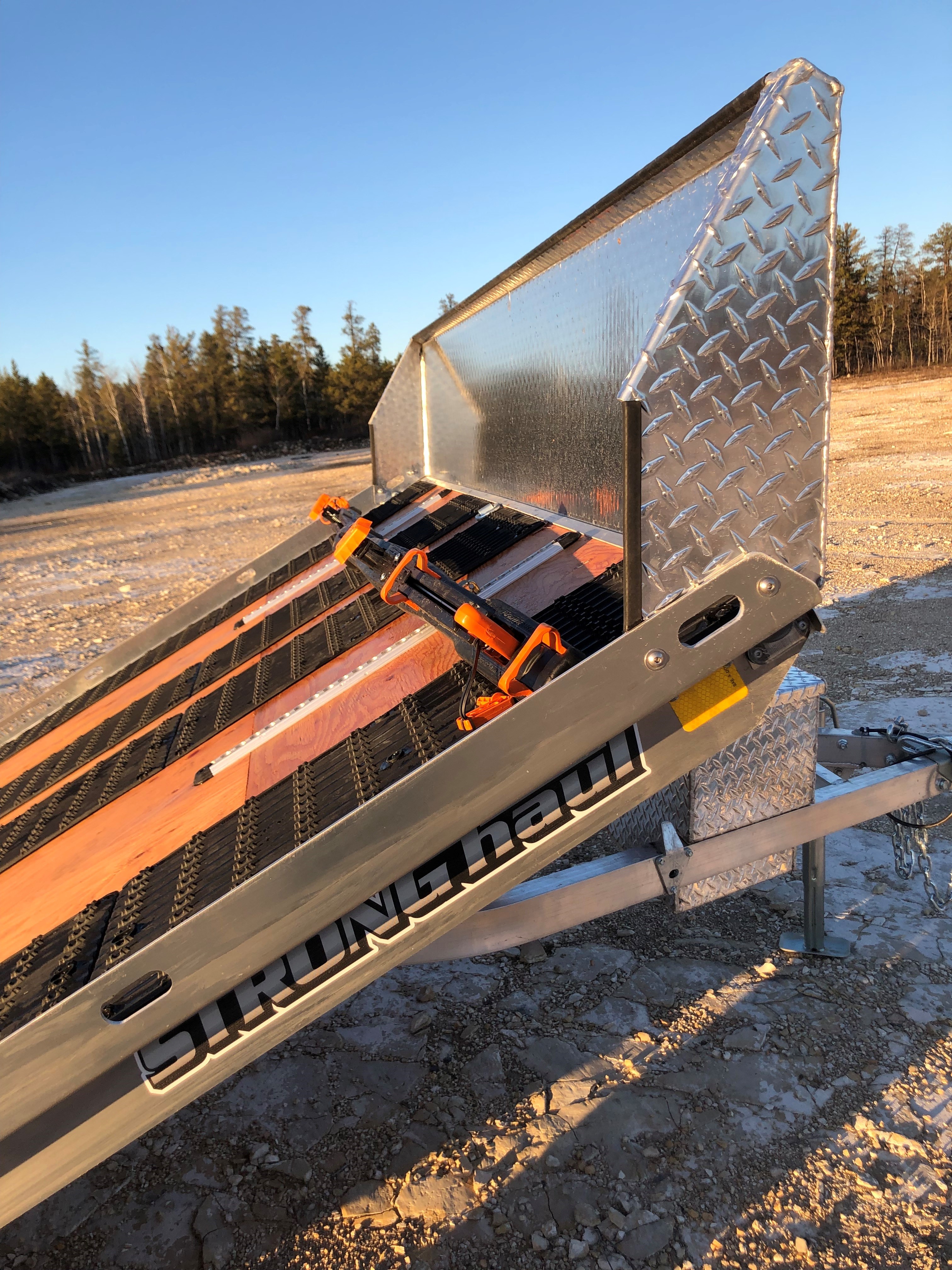

Ski-Tie Bar: 2 x Super-clamp Hold Down Bars, with 24” Adjustable Super-trac Kit |
|
Cross members: 2.50” x 1.25” x .125” 6061-T6 on 24” centers |

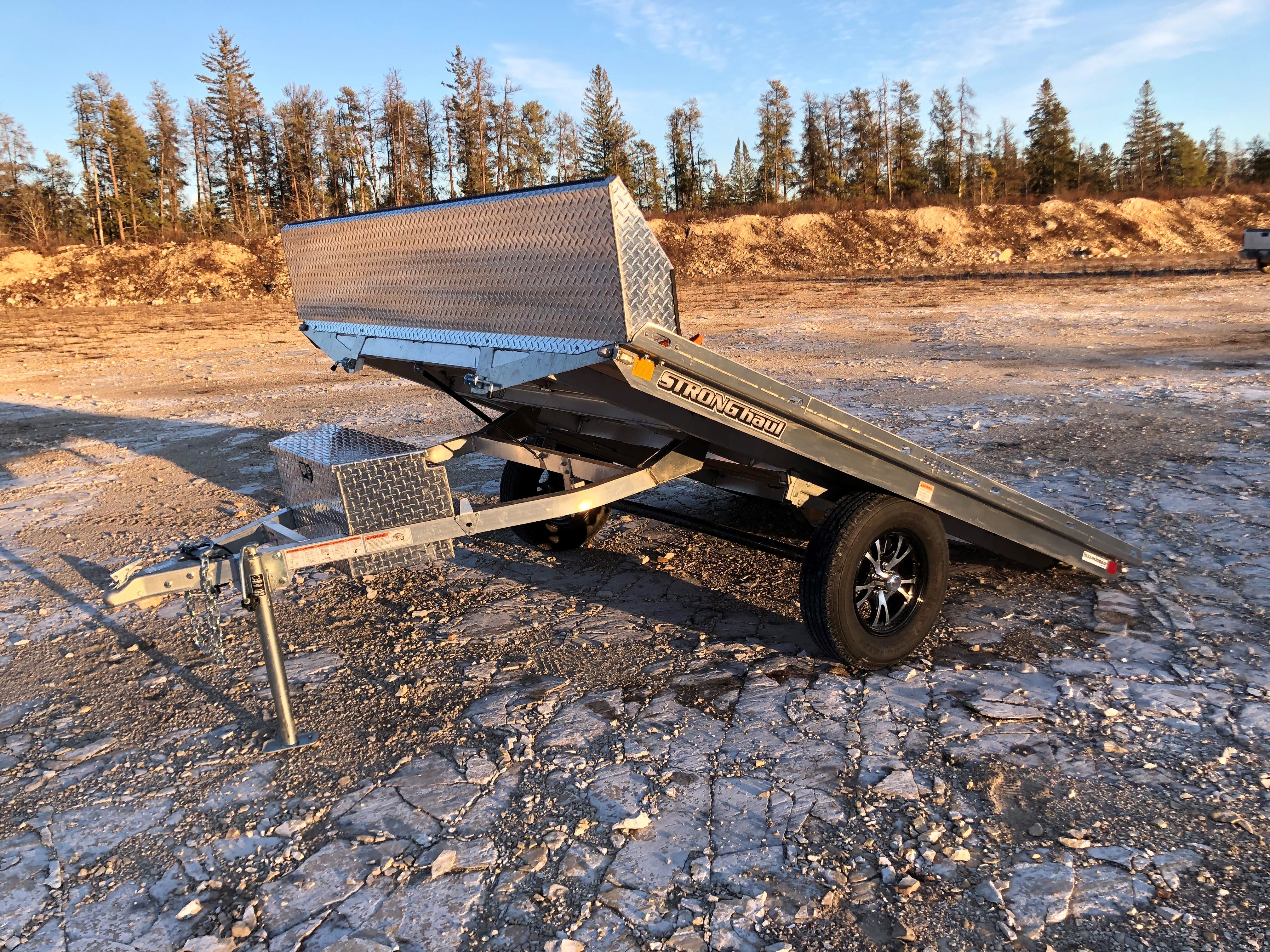

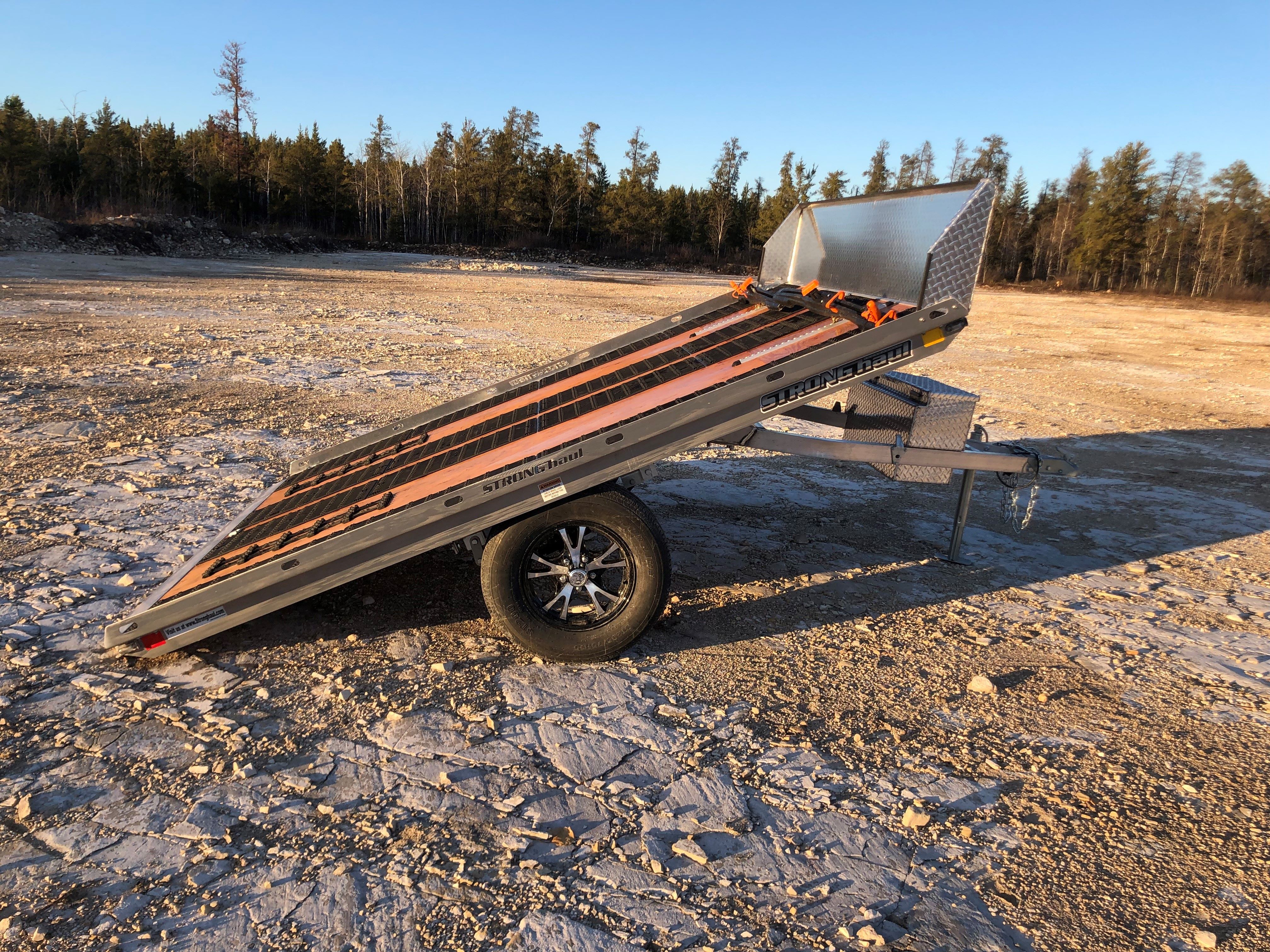

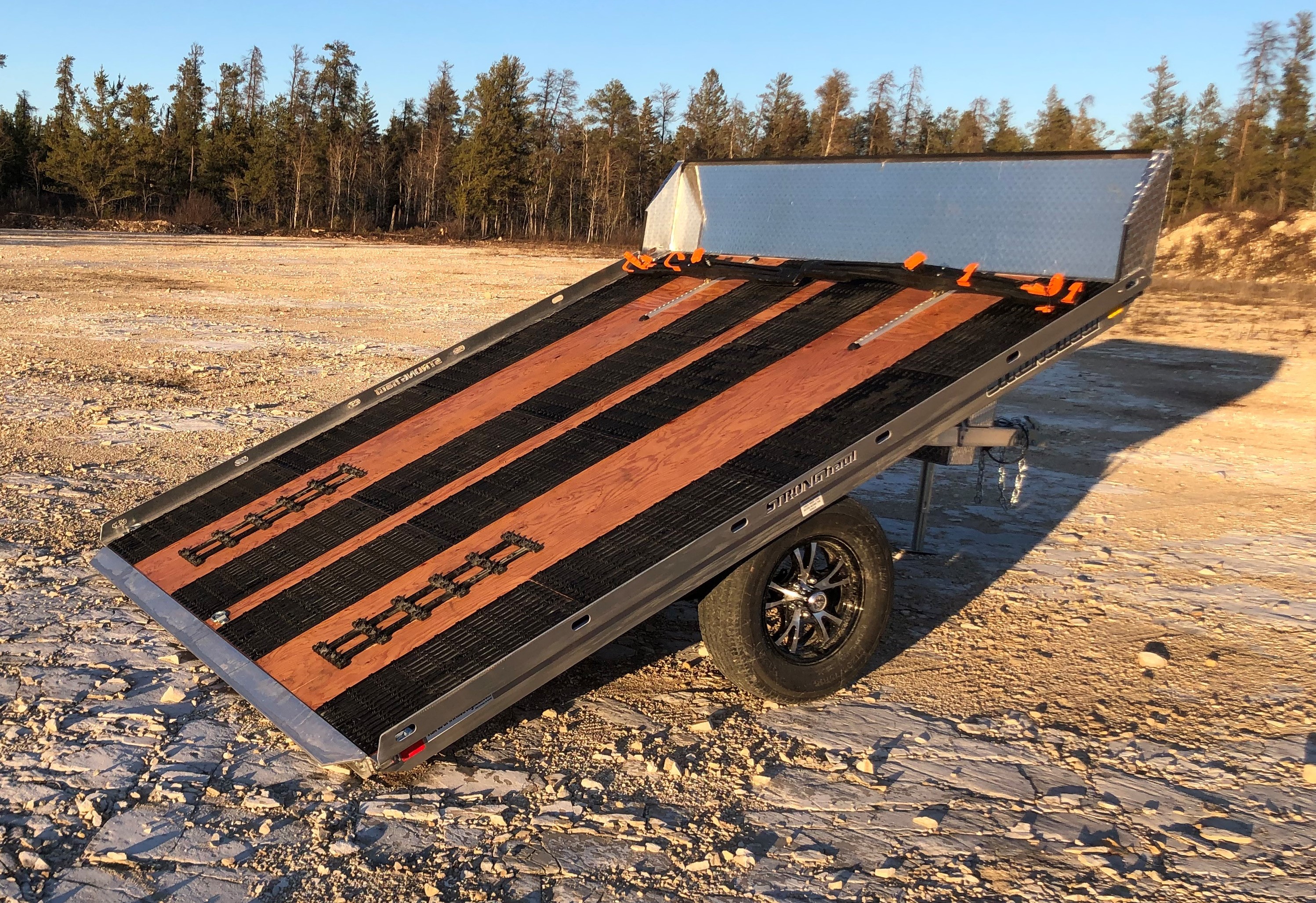

Loading: 30 Degree Loading Angle, Tilt Deck |
|
Axle: Dexter 3500lb Leaf Sprung, Idler Axle |
Spare Tire Mount: Underside Spare Tire Holder |
|
Coupler: 2” Ball, A-frame Style, Zinc Plated, with Polypropylene Isolation Tape |
Zinc-Plated Axle Mounting Brackets with Polypropylene Tape |
|
Tires: Goodride or Westlake ST205/75R15 6-ply Radial Tires |
Features: Laser Cut Side Rails/Anchor Points |
|
Wheels: Black Modular Style Wheels, R15” x 6” W, 5 Lug on 4.5” BHP |
Cushioned deck landing, rubber bumper and gas strut |
|
Harness Plug: 4-Flat, Easy-Pull, Electrical Connector |
|
